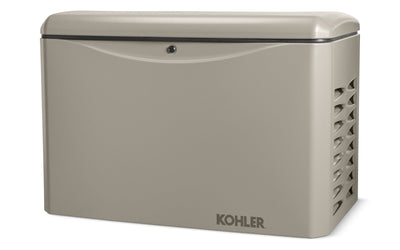

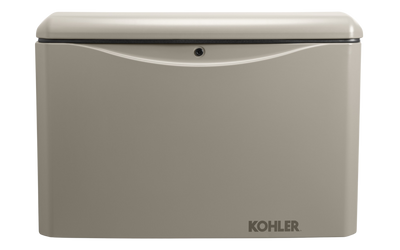

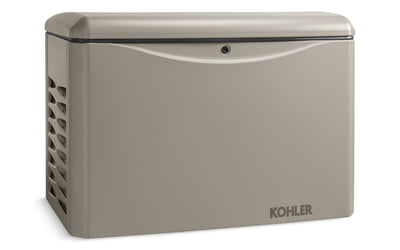

Kohler 20RCA-QS6 20KW Standby Generator with OnCue Plus New
Manufacturer: Kohler
SKU: 20RCA-QS6
Share
QTY
(888) 999-1522
$ 5,100.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
CURRENT SPECIAL - ADD TO CART TO SEE LOWER PRICE
Ships same or next day
Exceptional Customer Service
Manufacturer Direct
Similar Products
COMPARE SIMILAR ITEMS
0 items match these filters.
Customers Also Purchased
-
Kohler Genuine Battery Optimum Duty Series 500CCA Group 51 Wet 12V New
-
Qwikpad Lightweight Pad 180 MPH Wind For 9-26kW Air Cooled Generac / Kohler Generators New (Can o...
-
Kohler 50 Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches New
-
Kohler 17/18/20 kW Maintenance Generator Kit New
-
Kohler OnCue Plus Wireless Radio Kit For RDC2 DC2 and VSC Controllers New
-
Kohler Air Cooled Generator Emergency Stop Kit New
-
Kohler 10RESV(L) and 12RESV(L) Maintenance Generator Kit New
-
Kohler 12RES, 14RES & 14RCA/RCAL Maintenance Generator Kit New
-
Kohler 120V (20kW) Cold Weather Package Kit New
-
Kohler 120V, 18/20kW, 8/10/12RESV(L) Carburetor Heater New
-
Kohler 110-120V 14/18/20RESA/C(L), 8/10/12RESV(L) Battery Heater New
-
Kohler 120V 6/12/14 kW Carburetor Heater New
-
Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
-
Kohler RDT Series 200 Amp Outdoor Automatic Transfer Switch New
-
Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch New
-
Kohler RDT Series 200 Amp Outdoor Automatic Transfer Switch (Service Disconnect) New
-
Kohler RXT Series 400A 400 Amp 1ph-120/240V Service Rated Nema 3R Automatic Transfer Switch New
Kohler 20RCA-QS6 20KW Standby Generator with OnCue Plus New
Share
Product Overview
Our most popular generators for backup power provide award-winning reliability and performance. When you lose power during an outage or storm, a hard-working 14/20 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on. Now also available in 3 phase.
5 year comprehensive warranty
Remote Monitoring
Brand new in box
Free shipping
Works with liquid propane or natural gas
Authorized Kohler dealer
Features
- Every KOHLER® generator is equipped with a heavy-duty, commercial-grade engine that stands up to extreme weather
- In just 10 seconds, your KOHLER generator automatically restores power to a 5-ton (60,000 BTU) air conditioner, major appliances and electronics
- We've got you covered with 5-year, 2,000-hour protection, and a corrosion-proof enclosure that's built to last
- KOHLER generators have received several awards, including the Most Valuable Product (MVP) Award 2010 by Building Products magazine
- PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
- Extraordinary peak motor-starting capacity: 14RCA at 33kVA at 240V and 20RCA at 41kVA at 240V
- Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
- Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators)
- Compatible with OnCue® Plus and OnCue® Plus Wireless Generator Management Systems, and Programmable Interface Module (PIM)
- Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only
- RDC2 controller designed for today's sophisticated electronics manages both the generator set and Model RXT transfer switch functions
- Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
- Stylish corrosion-proof enclosure impact tested to -30°F
- Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
- Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.
- Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time
Specifications
| Fuel Consumption on NG at 50% load | 161 cfh |
| Fuel Consumption on LP at 50% load | 82 cfh |
| Controller | RDC2 Controller |
| Cylinder Arrangement | V-2 |
| Dimensions | 1193 mm x 666 mm x 817 mm (47 in. x 26.2 in. x 32.2 in.) |
| Engine Manufacturer/Description | KOHLER |
| Engine Model | CH1000 |
| Engine/Alternator RPM | 3600 |
| Fuel Type | Natural Gas, LPG |
| Frequency | 60 Hz |
| Phase | Single Phase or Three Phase |
| Voltage @ 60 Hz | 120/240|277/480 |
| Digital Voltage Regulation | ±1.0% |
| Built in Mounting Pad | Yes |
| Model | 20RCA |
| Rated kW LP | 20 kW |
| Rated kW NG | 18 kW |
| Amps LP | 83 amps |
| Amps NG | 75 amps |
| Peak Motor Starting kVA @240 V | 41 kVa |
| Alternator Note | All information shown is for 1 Phase 60 Hz generator with the largest alternator option available. |
| Displacement | 999 cm³ (61 cu. in.) |
| Horsepower | NG 27.1 HP, LP 30.9 HP |
| Enclosure Material | Aluminum |
| Sound Output During Weekly Exercise | 64 dB(A) |
| Sound Output During Full-speed Operation | 69 dB(A) |
| Response Time | 10 seconds |
| Warranty | Premium five-year limited warranty |
| Country of Origin | US |
| Certifications/Listings | EPA, CSA, cUL, UL 2200 |
| Automatic Transfer Switch | Sold Separately |
| Remote Monitoring | Included |
| Off Grid / Utility Backup | Utility Backup |
| Weight | 555 lbs. (252 kg) |
| Alternator Type | 2-Pole, Rotating Field |
Package Contents
Kohler 20RCA-QS6 20KW Standby Generator with OnCue Plus
User's manual
Warranty
This item comes with a 5 year comprehensive warranty.
