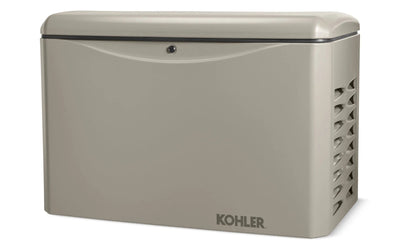

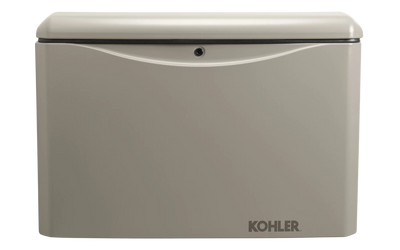

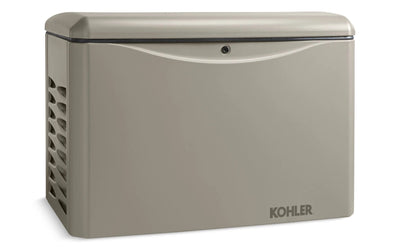

Kohler 20RCA-QS7 20KW 120/208V 3-Phase Standby Generator with OnCue Plus New

Manufacturer: Kohler



$ 5,600.00

shipping box
FREE Shipping

This item ships for free. Freight shipments include liftgate at no additional charge.

Pay Over Time

Select Bread as your payment at checkout

in stock checkmark

In Stock



truck icon

Current special - Add to cart to see lower price

Please check with us for current lead times

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review
mcafee icon
Kohler 20RCA-QS7 20KW 120/208V 3-Phase Standby Generator with OnCue Plus New

Kohler 20RCA-QS7 20KW 120/208V 3-Phase Standby Generator with OnCue Plus New

Product Overview

Our most popular generators for backup power provide award-winning reliability and performance. When you lose power during an outage or storm, a hard-working 17/21 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.

vendor logo
authorized dealer

5 year comprehensive warranty


Remote Monitoring


Brand new in box


Free shipping


Works with liquid propane or natural gas


Authorized Kohler dealer


  • PowerBoost™ technology regulates voltage and provides instant response to load changes.
  • The engine has hydraulic valve lifters that eliminate the need for expensive valve adjustments.
  • The cylinder head is made of aluminum while the fuel solenoid valves are made of steel. The pistons are made of aluminum alloy.
  • The oil tank is made of steel and stores 1.9 liters/2 quarts of oil. It has an oil drain extension with a shutoff valve.
  • The alternator has a digital voltage regulator that guards all sensitive electronics against harmonic distortion and unsteady power.
  • The aluminum enclosure has a hinged locking roof that allows easy access to the generator set controller for maintenance and service.
  • Kohler 20RCA is offered in single-phase and 3-phase. Voltage options for 3-Phase include 120/208V, 120/240V, and 277/480V.
  • Compatible with Kohler Model RXT transfer switch, programmable interface module (PIM), and load shed kit.
  • 20RCA certifications and listings include cUL, UL 2200, CSA and EPA. Meets 181 mph wind rating.
  • This model is backed by a premium 5-year/2000 hour limited warranty for on-grid applications.


Rated kW LP17/21 kW
Rated kW NG17/21 kW
Amps LP58 amps
Amps NG58 amps
Displacement999 cm³ (61 cu. in.)
HorsepowerNG 27.1 HP, LP 30.9 HP
Enclosure MaterialAluminum
Sound Output During Weekly Exercise64 dB(A)
Sound Output During Full-speed Operation69 dB(A)
Response Time10 seconds
WarrantyPremium five-year limited warranty
Country of OriginUS
Certifications/ListingsEPA, CSA, cUL, UL 2200
Automatic Transfer SwitchSold Separately
Remote MonitoringIncluded
Off Grid / Utility BackupUtility Backup
Weight555 lbs. (252 kg)
Alternator Type3-Pole
Fuel Consumption on NG at 50% load161 cfh
Fuel Consumption on LP at 50% load82 cfh
ControllerRDC2 Controller
Cylinder ArrangementV-2
Dimensions1193 mm x 666 mm x 817 mm (47 in. x 26.2 in. x 32.2 in.)
Engine Manufacturer/DescriptionKOHLER
Engine ModelCH1000
Engine/Alternator RPM3600
Fuel TypeNatural Gas, LPG
Frequency60 Hz
PhaseThree Phase
Voltage @ 60 Hz120/208V
Digital Voltage Regulation±1.0%
Built in Mounting PadYes

Package Contents

Kohler 20RCA-QS7 20KW Standby Generator with OnCue Plus

User's manual


vendor logo
authorized dealer

This item comes with a 5 year comprehensive warranty.
