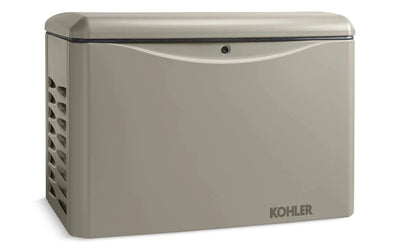

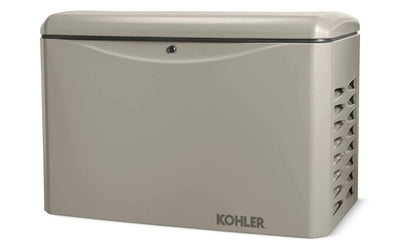

Kohler 20RCA-QS8 20KW 120/240V 3-Phase Standby Generator with OnCue Plus New

Manufacturer: Kohler

SKU: 20RCA-QS8

Kohler 20RCA-QS8 20KW 120/240V 3-Phase Standby Generator with OnCue Plus New
Kohler 20RCA-QS8 20KW 120/240V 3-Phase Standby Generator with OnCue Plus New
Kohler 20RCA-QS8 20KW 120/240V 3-Phase Standby Generator with OnCue Plus New



Kohler 20RCA-QS8 20KW 120/240V 3-Phase Standby Generator with OnCue Plus New
Kohler 20RCA-QS8 20KW 120/240V 3-Phase Standby Generator with OnCue Plus New
Kohler 20RCA-QS8 20KW 120/240V 3-Phase Standby Generator with OnCue Plus New

QTY

$ 5,260.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

in stock checkmark

In Stock

tags

ON SALE!

truck icon

Current special - Add to cart to see lower price

Ships in (est) 3-8 business days

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review

Product Overview

Our most popular generators for backup power provide award-winning reliability and performance. When you lose power during an outage or storm, a hard-working 17/21 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.

vendor logo
divider
authorized dealer
checkmark

5 year comprehensive warranty

checkmark

Remote Monitoring

checkmark

Brand new in box

checkmark

Free shipping

checkmark

Works with liquid propane or natural gas

checkmark

Authorized Kohler dealer

Kohler 20RCA-QS8 20KW 120/240V 3-Phase Standby Generator with OnCue Plus New

Kohler 20RCA-QS8 20KW 120/240V 3-Phase Standby Generator with OnCue Plus New

Features

  • PowerBoost™ technology regulates voltage and provides instant response to load changes.
  • The engine has hydraulic valve lifters that eliminate the need for expensive valve adjustments.
  • The cylinder head is made of aluminum while the fuel solenoid valves are made of steel. The pistons are made of aluminum alloy.
  • The oil tank is made of steel and stores 1.9 liters/2 quarts of oil. It has an oil drain extension with a shutoff valve.
  • The alternator has a digital voltage regulator that guards all sensitive electronics against harmonic distortion and unsteady power.
  • The aluminum enclosure has a hinged locking roof that allows easy access to the generator set controller for maintenance and service.
  • Kohler 20RCA is offered in single-phase and 3-phase. Voltage options for 3-Phase include 120/208V, 120/240V, and 277/480V.
  • Compatible with Kohler Model RXT transfer switch, programmable interface module (PIM), and load shed kit.
  • 20RCA certifications and listings include cUL, UL 2200, CSA and EPA. Meets 181 mph wind rating.
  • This model is backed by a premium 5-year/2000 hour limited warranty for on-grid applications.

Specifications

Fuel Consumption on NG at 50% load161 cfh
Fuel Consumption on LP at 50% load82 cfh
ControllerRDC2 Controller
Cylinder ArrangementV-2
Dimensions1193 mm x 666 mm x 817 mm (47 in. x 26.2 in. x 32.2 in.)
Engine Manufacturer/DescriptionKOHLER
Engine ModelCH1000
Engine/Alternator RPM3600
Fuel TypeNatural Gas, LPG
Frequency60 Hz
PhaseThree Phase
Voltage @ 60 Hz120/240V
Digital Voltage Regulation±1.0%
Built in Mounting PadYes
Model20RCA-QS8
Rated kW LP17/21 kW
Rated kW NG17/21 kW
Amps LP58 amps
Amps NG58 amps
Displacement999 cm³ (61 cu. in.)
HorsepowerNG 27.1 HP, LP 30.9 HP
Enclosure MaterialAluminum
Sound Output During Weekly Exercise64 dB(A)
Sound Output During Full-speed Operation69 dB(A)
Response Time10 seconds
WarrantyPremium five-year limited warranty
Country of OriginUS
Certifications/ListingsEPA, CSA, cUL, UL 2200
Automatic Transfer SwitchSold Separately
Remote MonitoringIncluded
Off Grid / Utility BackupUtility Backup
Weight555 lbs. (252 kg)
Alternator Type3-Pole

Package Contents

Kohler 20RCA-QS8 20KW Standby Generator with OnCue Plus

User's manual

Warranty
