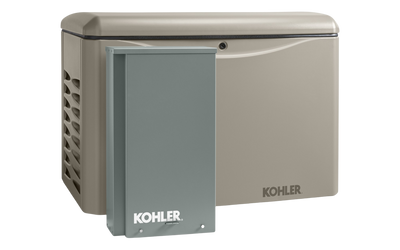

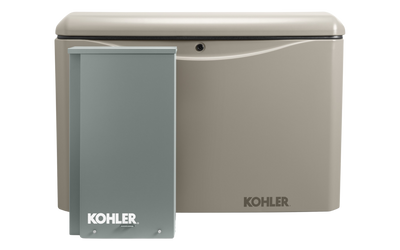

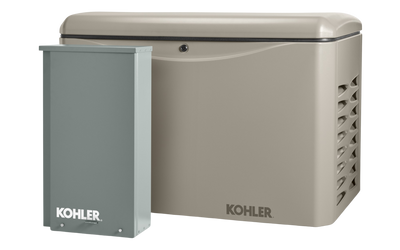

Kohler 20RCAL-200SELS 20KW Standby Generator Air Cooled with 200 Amp Automatic Transfer Switch and OnCue Plus Switch New
Manufacturer: Kohler
SKU: 20RCAL-200SELS

Share
Default Title
QTY
$ 5,795.00
$ 5,295.00
$ 5,295.00
203

This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout

In Stock

ON SALE!

Current special - Add to cart to see lower price
Ships same or next day
Product Overview



5 year comprehensive warranty.
Includes NEMA 200 Amp Transfer Switch
Brand new in box
Free shipping
Works with liquid propane or natural gas
Authorized Kohler dealer
Similar Products
Customers Also Purchased
Kohler 50 Amp Power Relay Module (PRM) For RDT/RXT Automatic Transfer Switches New
$ 155.00
Kohler 17/18/20 kW Maintenance Generator Kit New
$ 102.00
Kohler OnCue Plus Wireless Radio Kit For RDC2 DC2 and VSC Controllers New
$ 210.00
Kohler Liquid Cooled Generator Emergency Stop Kit New
$ 65.00
Kohler 10RESV(L) and 12RESV(L) Maintenance Generator Kit New
$ 87.00
Kohler 12RES, 14RES & 14RCA/RCAL Maintenance Generator Kit New
$ 85.00
Kohler 120V (20kW) Cold Weather Package Kit New
$ 640.00
Kohler 120V, 18/20kW, 8/10/12RESV(L) Carburetor Heater New
$ 189.00
Kohler 120V 6/12/14 kW Carburetor Heater New
$ 203.00
Kohler 110-120V 14/18/20RESA/C(L), 8/10/12RESV(L) Battery Heater New
$ 275.00
Features
- Every KOHLER® generator is equipped with a heavy-duty, commercial-grade engine that stands up to extreme weather.
- In just 10 seconds, your KOHLER generator automatically restores power to a 5-ton (60,000 BTU) air conditioner, major appliances and electronics.
- We've got you covered with 5-year, 2,000-hour protection, and a corrosion-proof enclosure that's built to last.
- KOHLER generators have received several awards, including the Most Valuable Product (MVP) Award 2010 by Building Products magazine.
- PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances.
- Extraordinary peak motor-starting capacity: 14RCAL at 33kVA at 240V and 20RCAL at 41kVA at 240V.
- Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics.

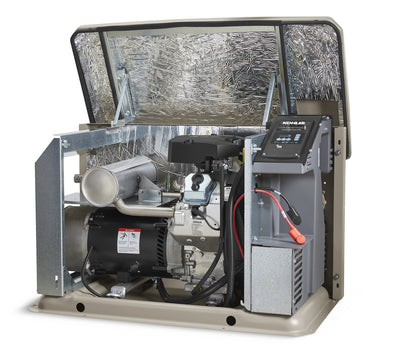

- Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators).
- Compatible with OnCue® Plus and OnCue® Plus Wireless Generator.
- Management Systems, and Programmable Interface Module (PIM).
- Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only.
- Comes with an RXT 200-amp outdoor-rated service entrance rated automatic transfer switch with load shed kit.

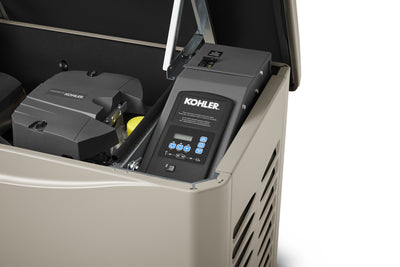

- RDC2 controller designed for today's sophisticated electronics manages both the generator set and Model RXT transfer switch functions.
- Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner.
- Stylish corrosion-proof enclosure impact tested to -30°F.
- Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field.
- Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.
Specifications
Model | 20RCAL |
Rated kW LP | 20 kW |
Rated kW NG | 18 kW |
Amps LP | 83 amps |
Amps NG | 75 amps |
Peak Motor Starting kVA @240 V | 41 kVa |
Alternator Note | All information shown is for 1 Phase 60 Hz generator with the largest alternator option available. |
Displacement | 999 cm³ (61 cu. in.) |
Horsepower | NG 27.1 HP, LP 30.9 HP |
Enclosure Material | Aluminum |
Sound Output During Weekly Exercise | 64 dB(A) |
Sound Output During Full-speed Operation | 69 dB(A) |
Response Time | 10 seconds |
Warranty | Premium five-year limited warranty |
Country of Origin | US |
Certifications/Listings | cUL, EPA, UL 2200,CSA |
Automatic Transfer Switch Included | Included |
Remote Monitoring Available | Included |
Off Grid / Utility Backup | Utility Backup |
Weight | 600/611 lbs. (272/277 kg) |
Alternator Type | 2-Pole, Rotating Field |
Fuel Consumption on NG at 50% load | 161 cfh |
Fuel Consumption on LP at 50% load | 82 cfh |
Controller | RDC2 Controller |
Cylinder Arrangement | V-2 |
Dimensions | 1193 mm x 666 mm x 817 mm (47 in. x 26.2 in. x 32.2 in.) |
Engine Manufacturer/Description | KOHLER |
Engine Model | CH1000 |
Engine/Alternator RPM | 3600 |
Fuel Type | Natural Gas, LPG |
Frequency | 60 Hz |
Phase | Single Phase |
Voltage @ 60 Hz | 120/240|277/480 |
Digital Voltage Regulation | ±1.0% |
Built-in Mounting Pad | Yes |
Package Contents
Kohler 20RCAL-200SELS 20KW Single Phase with Automatic Transfer Switch and OnCue Plus
User's manual
Warranty



This item comes with a 5 year comprehensive warranty.
Manuals & Documentation
Customer Reviews (2)
You know it's a good deal when it still feels good months later. Our purchase of a Kohler Generator from Factory Pure was all that. Excellent product, price and service. Good communication. Thanks.
Been two wet to work outside to poor cement slab
How much does cold weather kit cost for this generator??
