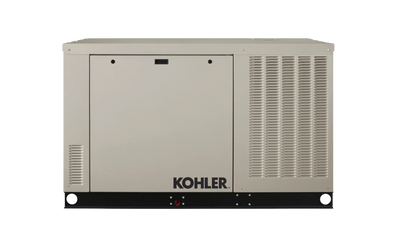

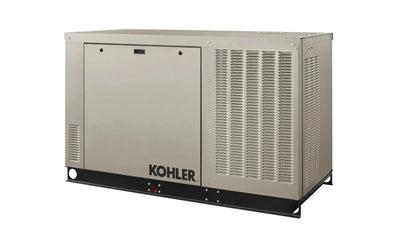

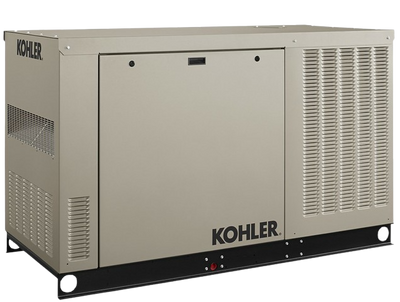

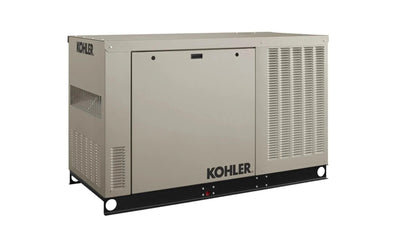

Kohler 24RCLA-QS4 23KW 277/480V 3-Phase Standby Generator with OnCue Plus New

Manufacturer: Kohler

SKU: 24RCLA-QS4

Kohler 24RCLA-QS4 23KW 277/480V 3-Phase Standby Generator with OnCue Plus New
Kohler 24RCLA-QS4 23KW 277/480V 3-Phase Standby Generator with OnCue Plus New
Kohler 24RCLA-QS4 23KW 277/480V 3-Phase Standby Generator with OnCue Plus New
Kohler 24RCLA-QS4 23KW 277/480V 3-Phase Standby Generator with OnCue Plus New
Kohler 24RCLA-QS4 23KW 277/480V 3-Phase Standby Generator with OnCue Plus New
Kohler 24RCLA-QS4 23KW 277/480V 3-Phase Standby Generator with OnCue Plus New
Kohler 24RCLA-QS4 23KW 277/480V 3-Phase Standby Generator with OnCue Plus New
Kohler 24RCLA-QS4 23KW 277/480V 3-Phase Standby Generator with OnCue Plus New

QTY

(888) 999-1522

$ 13,320.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

in stock checkmark

In Stock

tags

ON SALE!

truck icon

Current special - Add to cart to see lower price

Please check with us for current lead times

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review
Kohler 24RCLA-QS4 23KW 277/480V 3-Phase Standby Generator with OnCue Plus New

Kohler 24RCLA-QS4 23KW 277/480V 3-Phase Standby Generator with OnCue Plus New

Product Overview

Reliable power for large residential or small business needs. When the power goes out during a bad storm or power failure, your 23 kW KOHLER® generator with industrial-grade engine keeps your home or business – from central air to sump pump to personal computers – up and running.

vendor logo
divider
authorized dealer
checkmark

5 year comprehensive warranty

checkmark

Remote Monitoring

checkmark

Brand new in box

checkmark

Free shipping

checkmark

Works with liquid propane or natural gas

checkmark

Authorized Kohler dealer

Features

  • 23kW (LPG) / 21kW (NG) Liquid-Cooled Standby Generator
  • For commercial buildings with 277/480V 3-Phase service
  • Premium 5-Year / 2000 Hour Limited Warranty
  • Backed by Kohler's extraordinary reliability & performance
  • Brushless-Alternator For High Quality, Cleaner Generator Power
  • Advanced voltage / Hz regulation prevents unstable power
  • Protects sophisticated electronics with ultra-low distortion (THD)
  • RDC2 Digital Controller - Controls Generator & RXT Transfer Switch
  • Provides advanced control, system monitoring & diagnostics
  • Electronic speed control and digital voltage regulation (DVR)
  • Built-in 2.5 amp battery charger
  • 2-Line Backlit LCD Digital Display
  • Easy to read local data access in all lighting conditions
  • Programmable exerciser for weekly or bi-weekly self-testing
  • 2.2L Liquid-Cooled Engine (1800 RPM)
  • Runs on clean burning Natural Gas or LP fuel
  • Simple field conversion while maintaining emission certification
  • Sound-Attenuating Aluminum Enclosure
  • Fade, scratch, & corrosion-resistant powder-baked finish
  • Meets 181 MPH wind load rating
  • "Quieter" Cooling System
  • Electronic fan, internal silencer & acoustic insulation
  • Keeps dB under 61 @ 7M (23') during normal operation
  • Meets NFPA 37 4.1.4 Requirements For Reduced Setback
  • Can be installed within 18" of structure
  • GFCI Service Outlet
  • Ideal for powering heater kits or for powering service tools
  • Standard OnCue® Plus Generator Management Systems
  • Real-time power status and the ability to manage your entire backup system
  • Not Compatible For Off-Grid Applications
  • Approved for stationary standby applications in locations served by a reliable utility source
  • Requires Automatic Transfer Switch (Sold Separately)
  • Please Note - Requires Loading Dock, Forklift or Crane For Delivery

Specifications

Rated Amps 35 Amps
Decibel Rating @ 7m 53 Test (61 Run) dbA
Transfer Switch Automatic (Not Included)
Battery Not Included (630 CCA)
Enclosure Aluminum
Mounting Pad Concrete (Not Included)
Cooling System Liquid Cooled
Grade Type Emergency
Wi-Fi Remote Monitoring Sold Separately
Engine Brand Kohler
Starting System 12v Auto Start
CC 2200 CC
Engine RPM 1800 RPM
Low Oil Alert/Shutdown Yes
NEMA 5-20R - GFCI 1
Product Category Generator - Standby
Weight 1260 Pounds
Made in USA Yes
Consumer Warranty 5 Years
Commercial Warranty 5 Years
Product Style Standby Generator
Product Length 74 Inches
Product Width 32.9 Inches
Product Height 45.1 Inches
Voltage 277/480 Three-Phase
Frequency 60 Hertz
Alternator Brushless
Rated Watts 23000 Watts
Fuel Type LP/Natural Gas
NG Power Capacity 21000 Watts
LP Power Capacity 23000 Watts
NG Fuel Consumption @ 50% Load 199 ft³/hr
NG Fuel Consumption @ 100% Load 301 ft³/hr
LP Fuel Consumption @ 50% Load 2.4 gallons/hr
LP Fuel Consumption @ 100% Load 3.2 gallons/hr

Package Contents

Kohler 24RCLA-QS3 23KW Standby Generator with OnCue Plus

User's manual

Warranty
