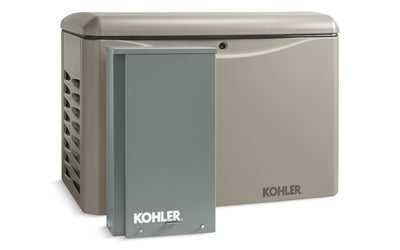

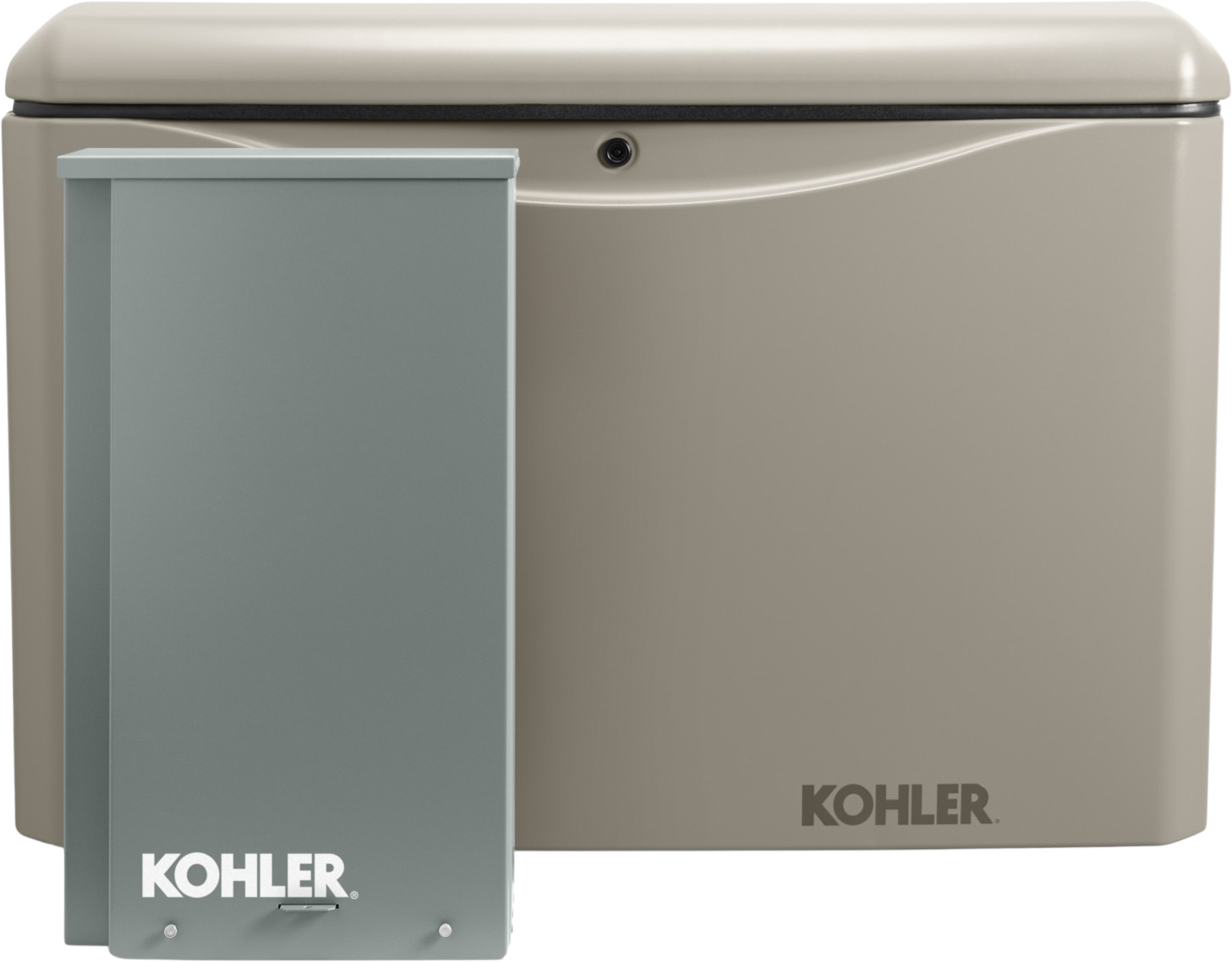

Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and OnCue Plus New

Manufacturer: Kohler

SKU: 26RCAL-200SELS

IND_Template (11)
Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and OnCue Plus New
Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and OnCue Plus New
Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and OnCue Plus New
Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and OnCue Plus New
Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and OnCue Plus New
Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and OnCue Plus New







IND_Template (11)
Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and OnCue Plus New
Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and OnCue Plus New
Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and OnCue Plus New
Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and OnCue Plus New
Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and OnCue Plus New
Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and OnCue Plus New

QTY

$ 7,255.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

in stock checkmark

In Stock

tags

ON SALE!

truck icon

CURRENT SPECIAL - ADD TO CART TO SEE LOWER PRICE

Ships same or next day

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review

Product Overview

Popular generators for backup power, with an automatic transfer switch included. When you lose power during an outage or storm, a hard-working 26 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.


KOHLER® generators are designed to provide reliable power and are equipped with a heavy-duty, commercial-grade engine that stands up to harsh weather conditions. With the ability to power a 5-ton (60,000 BTU) air conditioner, major appliances, and electronics in just 10 seconds, these premium generators are backed by a 5-year, 2,000-hour warranty and have won awards, including the MVP Award 2010 by Building Products magazine.

vendor logo
divider
authorized dealer
checkmark

5 year comprehensive warranty

checkmark

Remote Monitoring

checkmark

Brand new in box

checkmark

Free shipping

checkmark

Works with liquid propane or natural gas

checkmark

Authorized Kohler dealer

Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and OnCue Plus New

Kohler 26RCAL-200SELS Standby Generator 26KW 120/240V Single Phase 200A Automatic Transfer Switch and OnCue Plus New

Features

  • PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
  • Extraordinary peak motor-starting capacity: 14RCA at 33kVA at 240V, 20RCA at 41kVA at 240V, and 26RCA at 39kVA at 240V
  • Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics

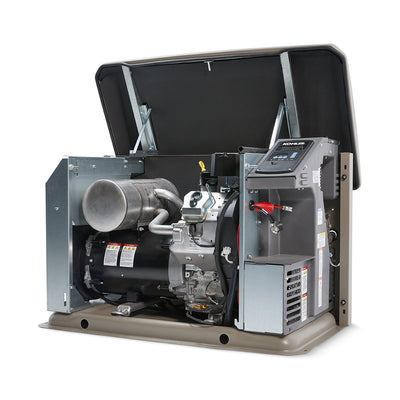

  • Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators)
  • Compatible with OnCue® Plus and OnCue® Plus Wireless Generator Management Systems, and Programmable Interface Module (PIM)
  • Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only
  • Comes with either an RXT 100-amp indoor-rated automatic transfer switch with 16-circuit load center or an RXT 200-amp outdoor-rated service entrance rated automatic transfer switch with load shed kit
  • RDC2 controller designed for today's sophisticated electronics manages both the generator set and Model RXT transfer switch functions
  • Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
  • Attractive powder-coated aluminum enclosure designed to handle the elements including hurricane force winds up to 181 mph.
  • Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field

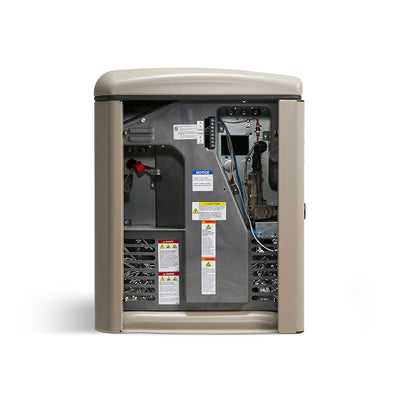

  • Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.

Specifications

Alternator Type2-Pole, Rotating Field
Fuel Consumption on NG at 50% load?180 cfh
Fuel Consumption on LP at 50% load?85 cfh
ControllerRDC2 Controller
Cylinder ArrangementV-2
Dimensions1193 mm x 660 mm x 820 mm (47 in. x 26.0 in. x 32.3 in.)
Engine Manufacturer/DescriptionKOHLER
Engine ModelCH1006
Engine/Alternator RPM3600
Fuel TypeNatural Gas,LPG
Frequency60 Hz
PhaseSingle Phase
Voltage @ 60 Hz120/240
Digital Voltage Regulation±1.0%
Built in Mounting PadYes
Rated kW LP26 kW
Rated kW NG24 kW
Amps LP109 amps
Amps NG100 amps
Peak Motor Starting kVA @240 V39 kVa
Alternator NoteAll information shown is for 1 Phase 60 Hz generator with the largest alternator option available.
Displacement999 cm³ (61 cu. in.)
HorsepowerNG 33.0 HP, LP 36.4 HP
Enclosure MaterialAluminum
Sound Output During Weekly Exercise56 dB(A)
Sound Output During Full-speed Operation67 dB(A)
Response Time10 seconds
WarrantyPremium five-year limited warranty
Country of OriginUS
Certifications/ListingsEPA,UL 2200,cUL
Automatic Transfer Switch IncludedYes
Automatic Transfer Switch Amp200A
Remote Monitoring AvailableIncluded
Off Grid / Utility BackupUtility Backup
Weight670 lbs. (304 kg)

Package Contents

Kohler Standby Generator

User's manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 5 year comprehensive warranty.
