Vevor Electric Motor 5 HP 1725 RPM Air Compressor Three-Phase TEFC New

Manufacturer: Vevor

SKU: TYJLDJ5HP1720JMHT001V8

×
SMS
Messenger
WhatsApp
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame
VEVOR 5 HP Electric Motor, 1725RPM Air Compressor Motor, CW/CCW Rotation, 1.125 inch Shaft Diameter, 2.75inch Shaft Length, 20.7N.m Torque, Three-Phase, TEFC Cooling, 230V/460V, 184T Frame

Power Options





QTY

Product successfully added to your wishlist.
View wishlist

(888) 999-1522

Apply for an immediate tax exemption and checkout with taxes removed from your order. Tax exemptions will be validated and approved before shipping.

$ 373.90

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or


divider
in stock checkmark

In Stock

delivery truck icon

Most orders ship out the same or next business day

If ordered by 12 PM ET

Extended Warranty

×

Factory Warranty

  • This item comes with a 1 year factory warranty.

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

  • Brand New

    Full parts and labor coverage

$0

(Included)

  • This item comes with a 1 year factory warranty.

$49.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees
  • Brand NewFull parts and labor warranty

$74.00

(Details)

  • WarrantyExtends factory warranty to 3 total years
  • WarrantyCovers functionality issues for 3 years
  • WarrantyLocal repair options always available
  • WarrantyFree replacement if repair is not possible
  • WarrantyNo deductibles or hidden fees
  • WarrantyFull parts and labor warranty

$99.00

(Details)

  • WarrantyExtends factory warranty to 5 total years
  • WarrantyCovers functionality issues for 5 years
  • WarrantyLocal repair options always available
  • WarrantyFree replacement if repair is not possible
  • WarrantyNo deductibles or hidden fees
  • WarrantyFull parts and labor warranty

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+

Similar Products

COMPARE SIMILAR ITEMS
0 items match these filters.

    Customers Also Purchased

    Vevor Electric Motor 5 HP 1725 RPM Air Compressor Three-Phase TEFC New

    Vevor Electric Motor 5 HP 1725 RPM Air Compressor Three-Phase TEFC New

    ×
    SMS
    Messenger
    WhatsApp
    Add To Wishlist
    Remove From Wishlist

    Product Overview

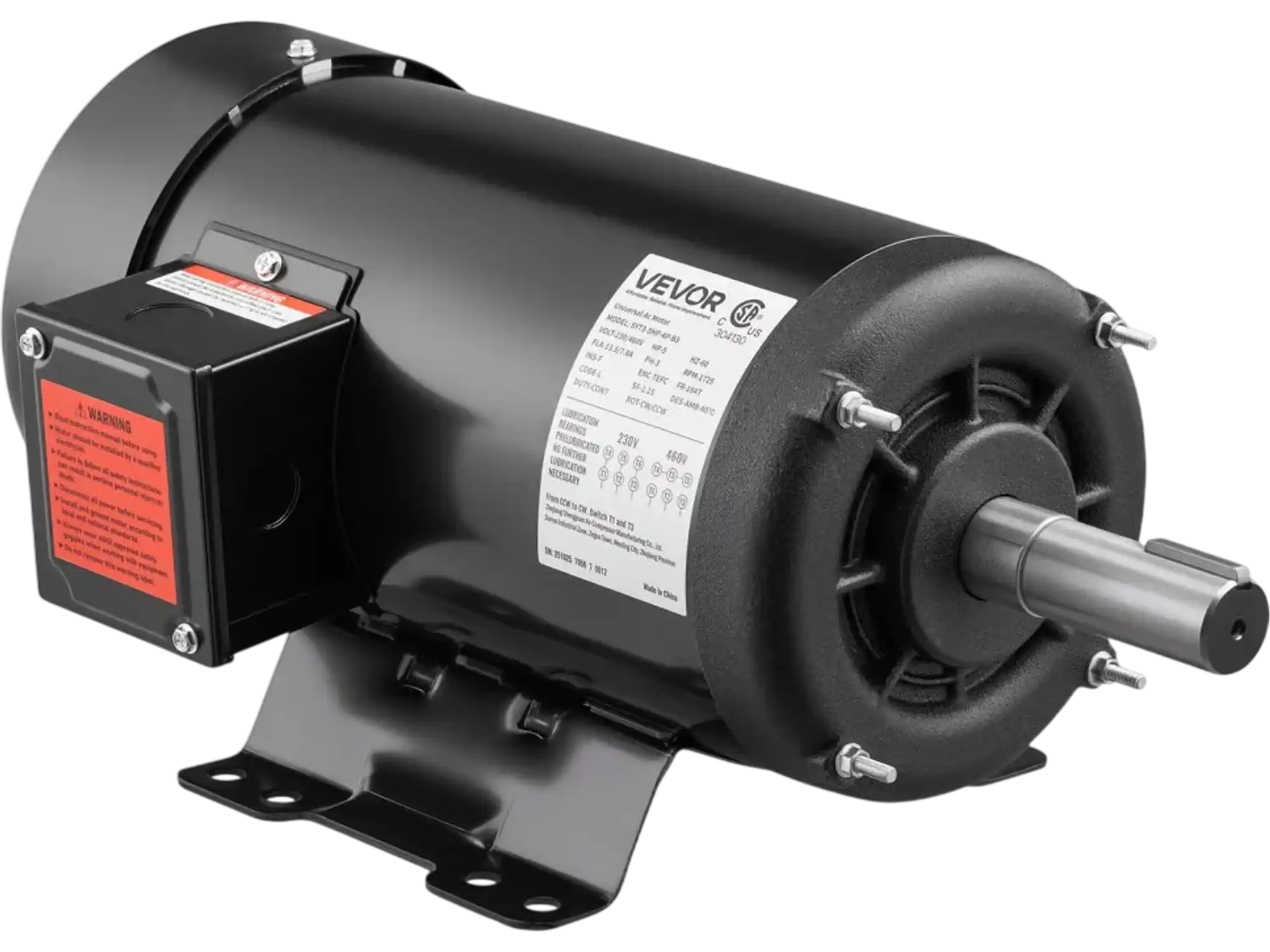

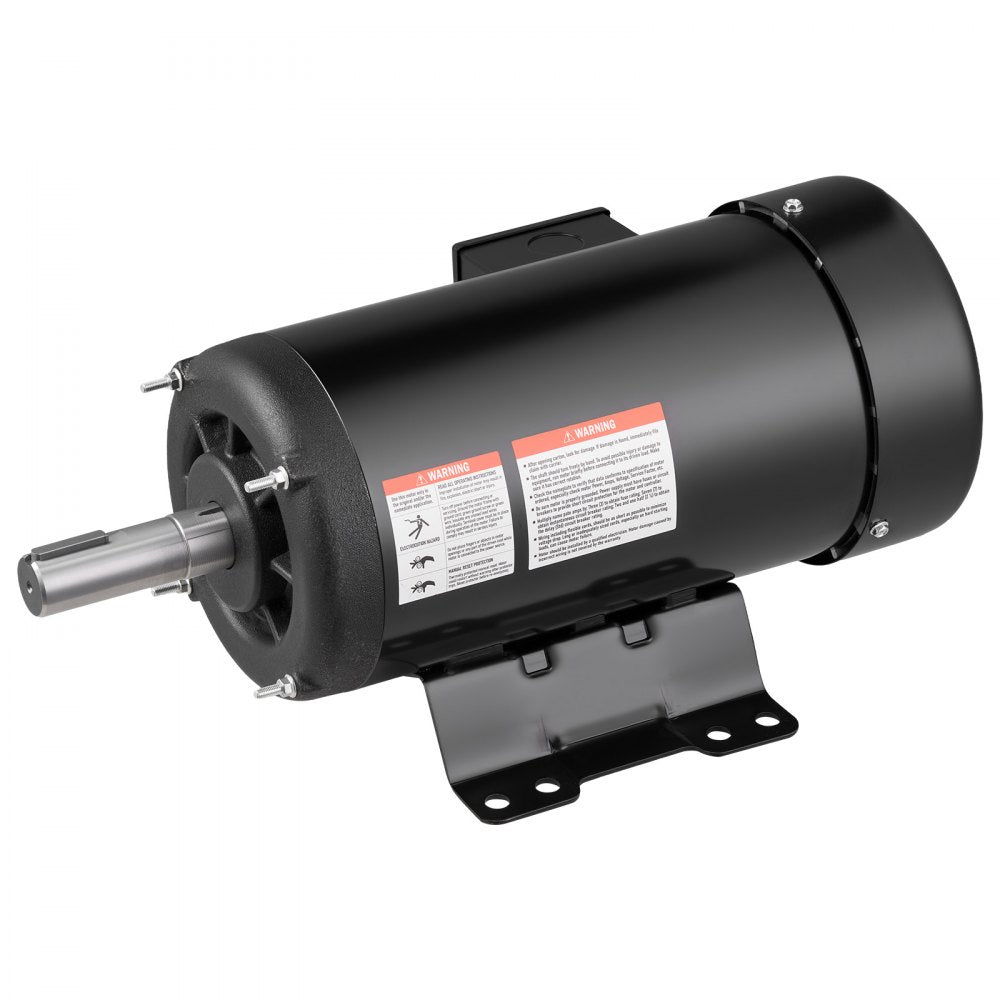

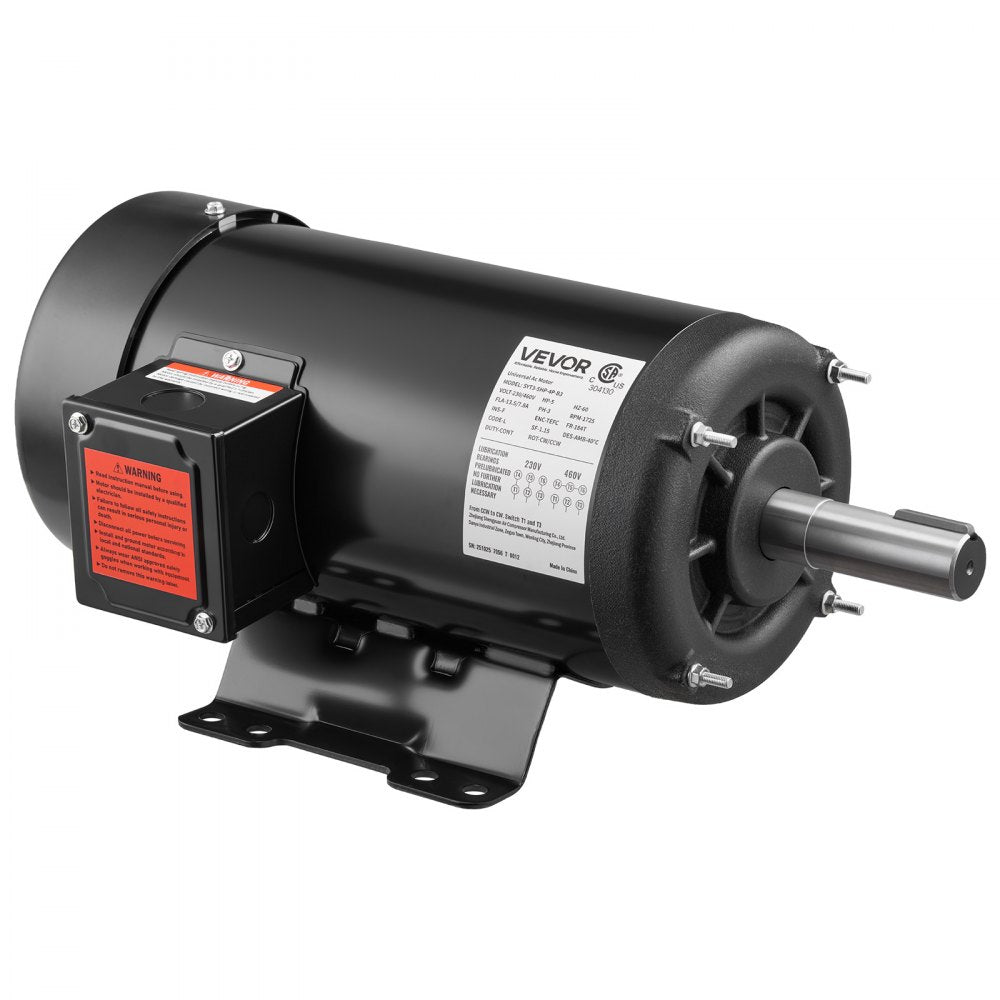

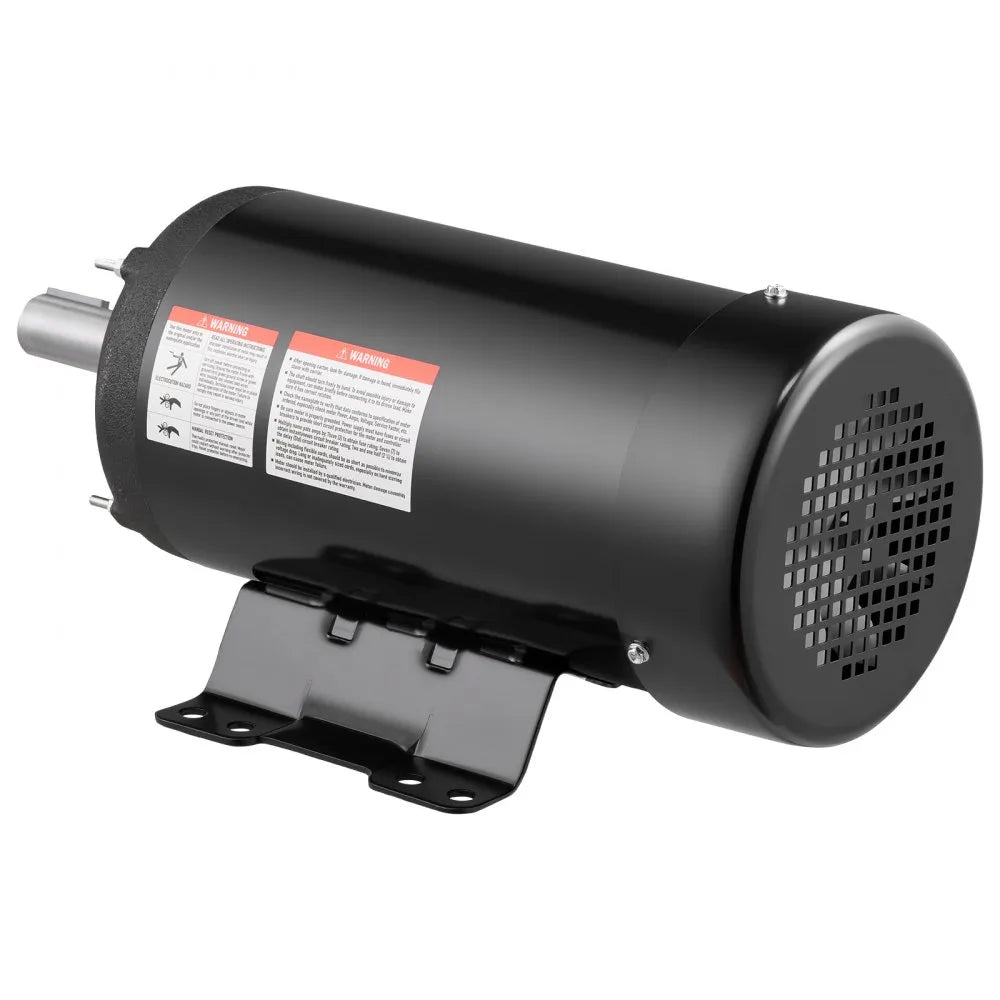

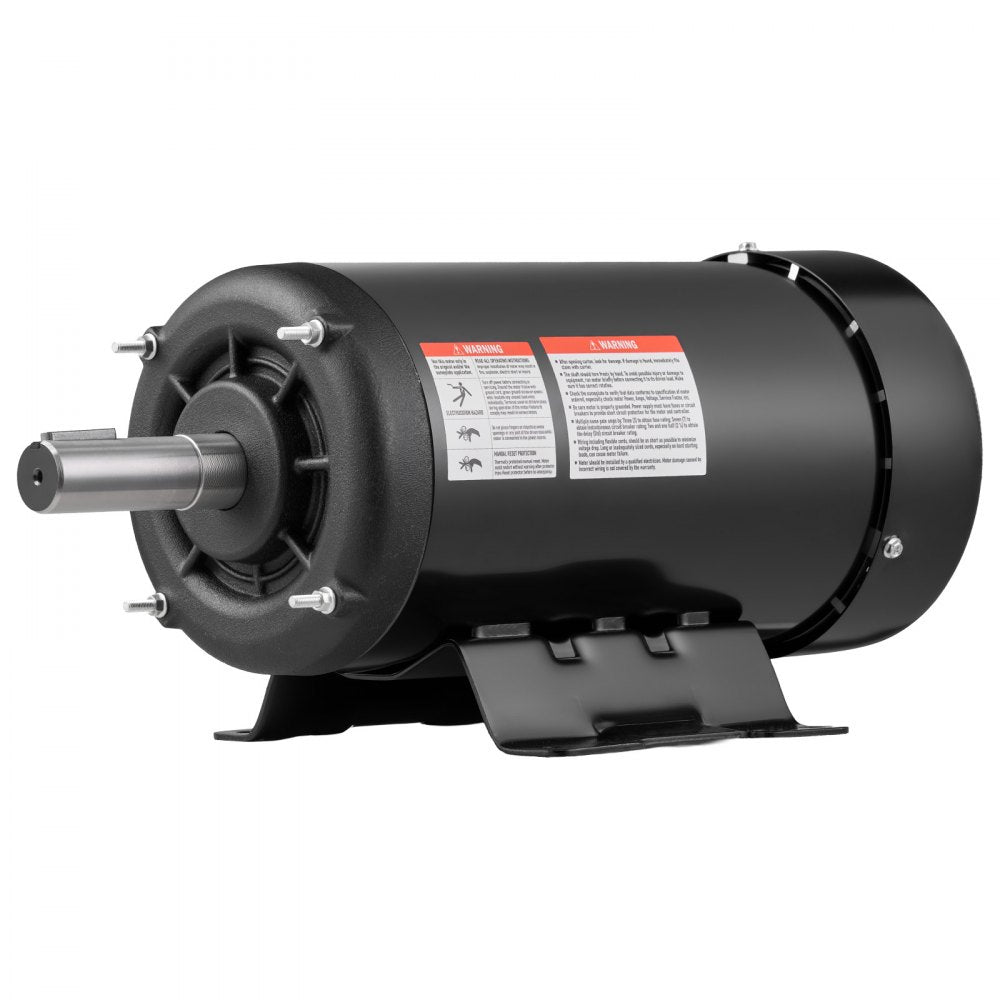

    The Vevor 5 HP electric motor is a three-phase air compressor motor designed for dependable performance at 1725 RPM. It supports CW/CCW dual-direction rotation for flexible installation and operates on AC 230V/460V, 60Hz power. Built with a steel plate body and TEFC cooling, it is designed to help reduce overheating during demanding use. This motor features a 184T frame, 1.125" shaft diameter, and 2.75" shaft length for general-purpose replacement and repair applications. It is suitable for air compressors, water pumps, agricultural machinery, and other equipment.
    vendor logo
    divider
    authorized dealer
    checkmark

    Brand new

    checkmark

    1 year factory warranty

    checkmark

    Manufacturer direct shipping from CA, NJ, & TX

    checkmark

    Authorized Vevor Dealer

    Features

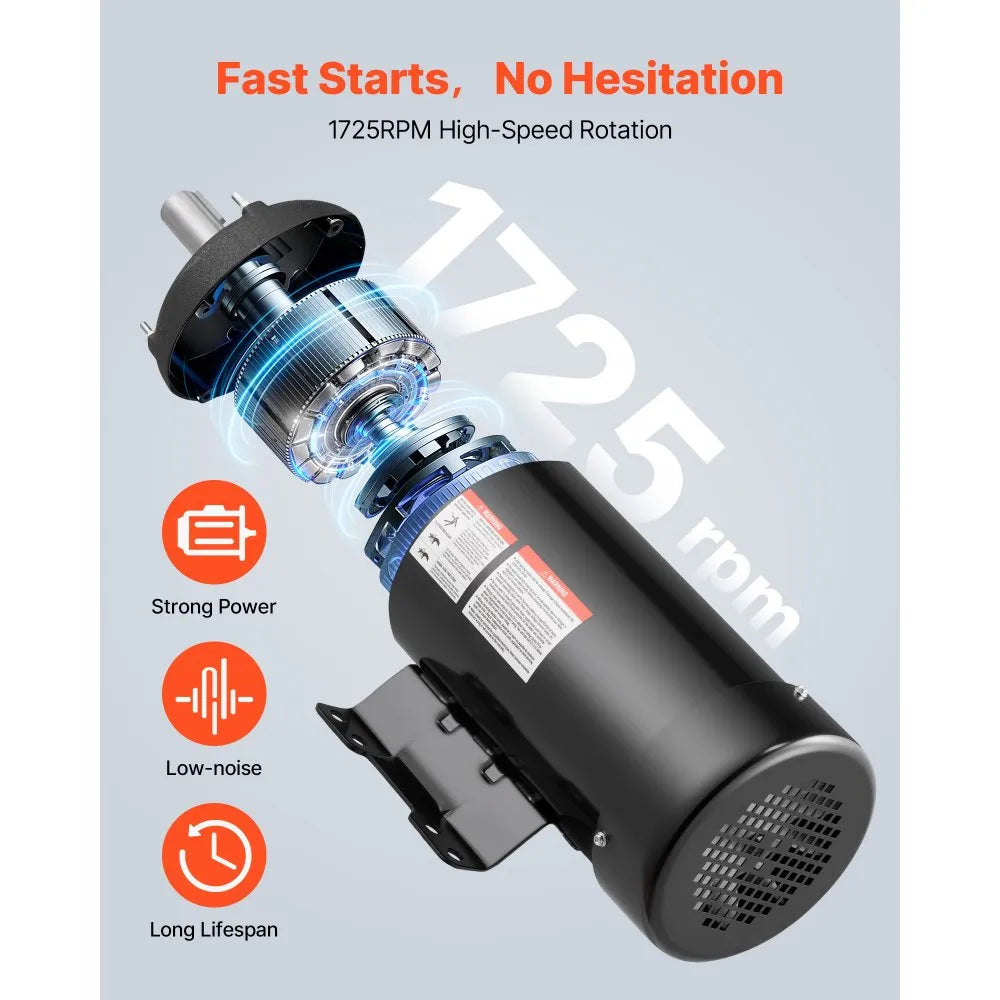

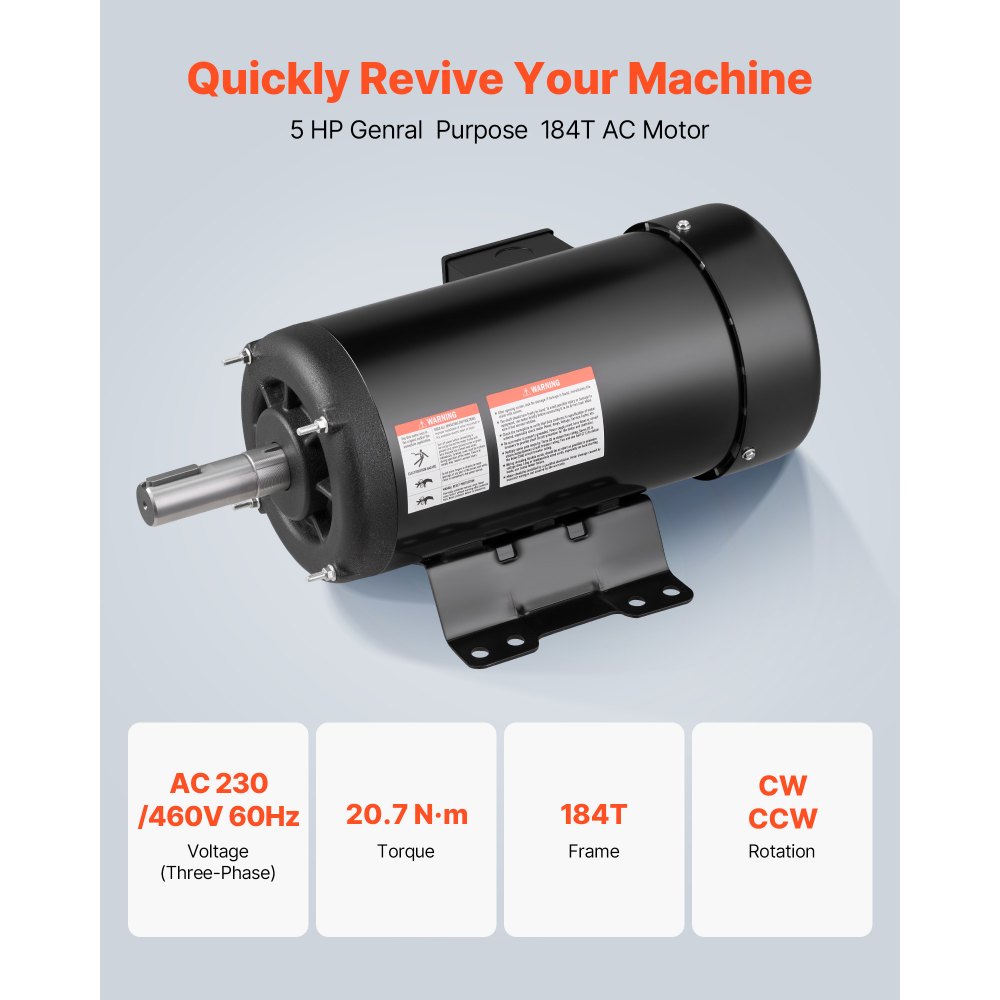

    • High Performance: 5HP high-performance motor featuring 20.7 N.m rated torque. Designed for AC 230/460V 60Hz, three-phase power. The air compressor electric motor operates at 1725 RPM for fast, reliable speed

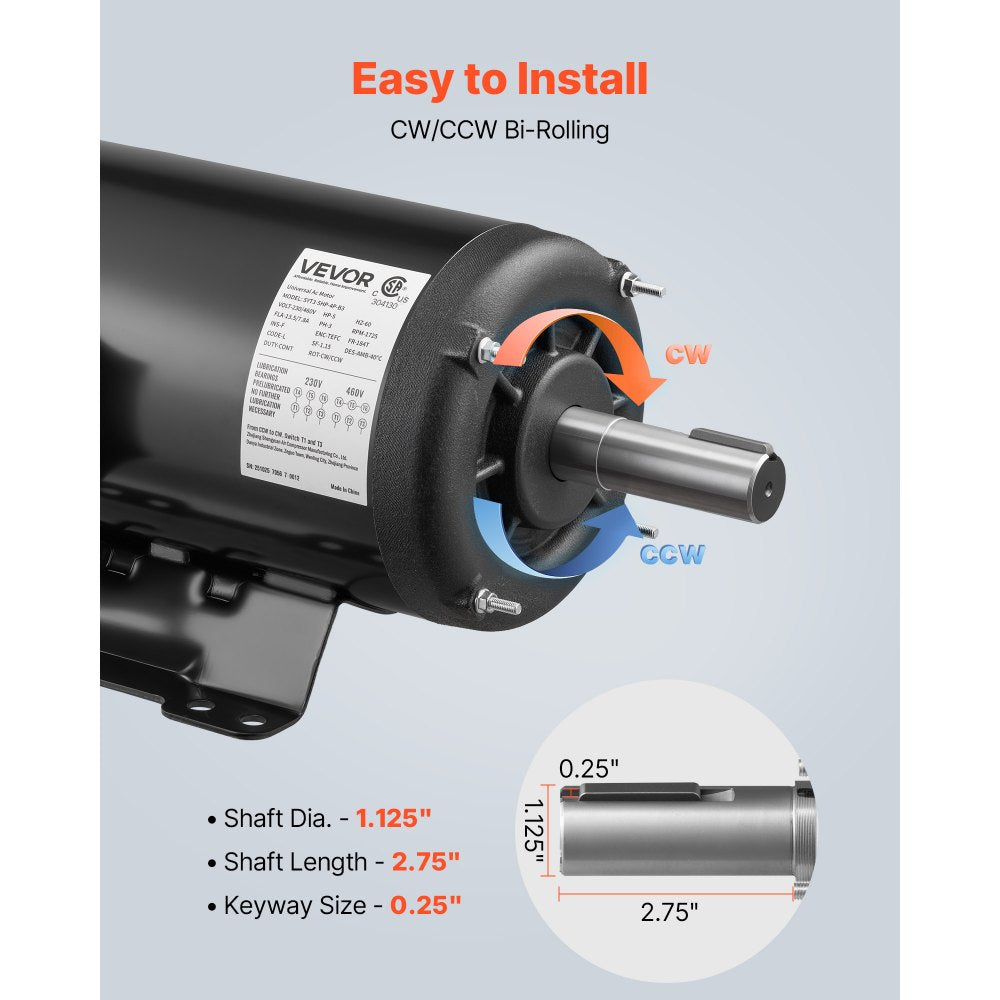

    • Rugged Frame Type: The 184T frame of this electric motor includes a 1.125-inch shaft diameter, 2.75-inch shaft length, and keyway size: 0.188 inch ( 0.25 inch / 6.35 mm width x 0.125 inch / 3.18 mm depth)
    • Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications

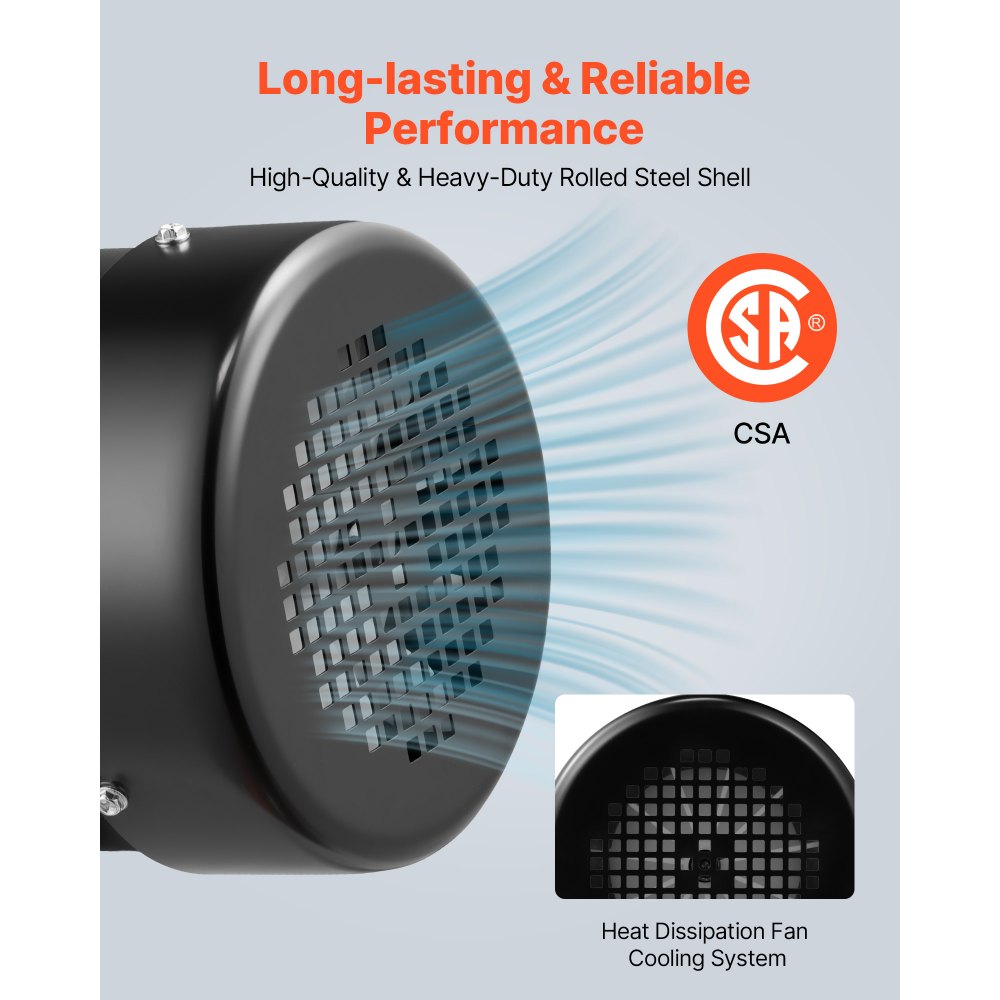

    • Secure & Reliable: This air compressor motor is CSA-certified and features a rolled steel housing for dependable strength. Its improved cooling system helps reduce overheating, while a manual reset overload protector supports stable, long-term performance

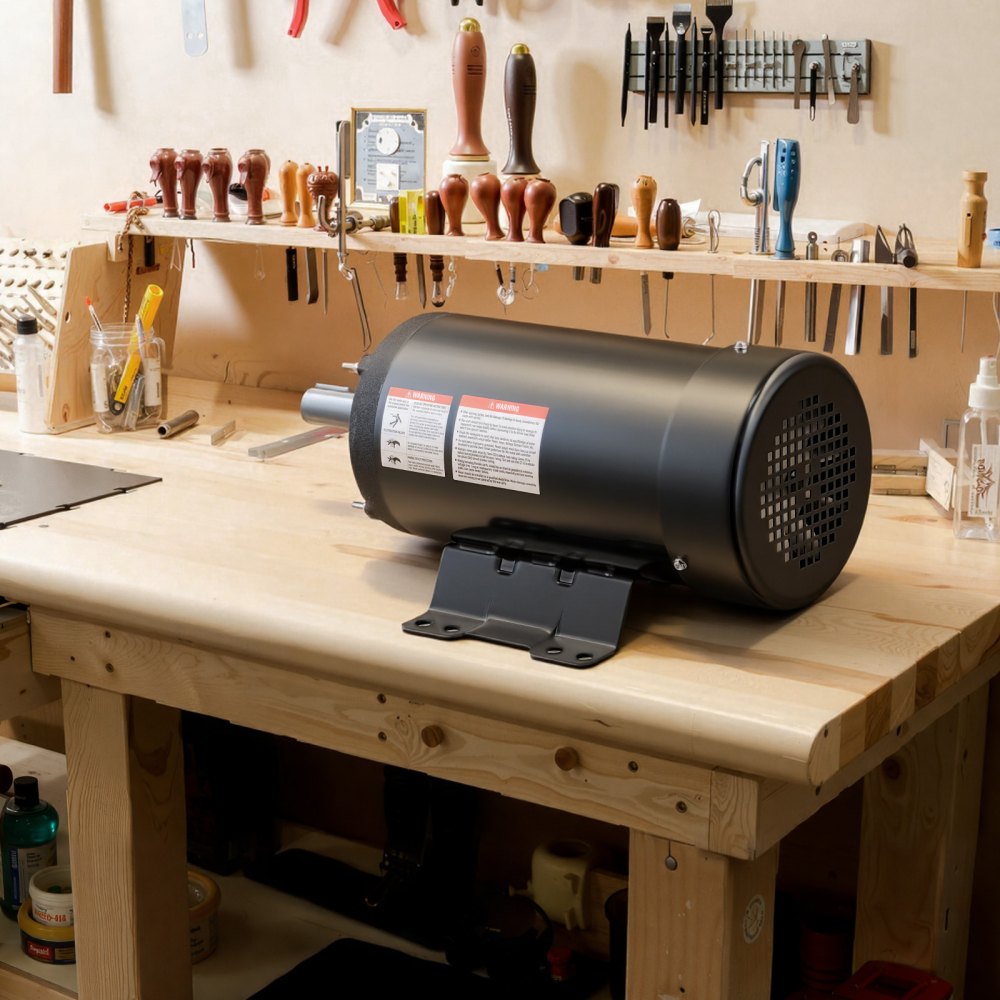

    • Various Applications: VEVOR general purpose motor is ideal for DIY projects and repair replacements, providing versatile and powerful functionality for water pumps, agricultural machinery, and general equipment

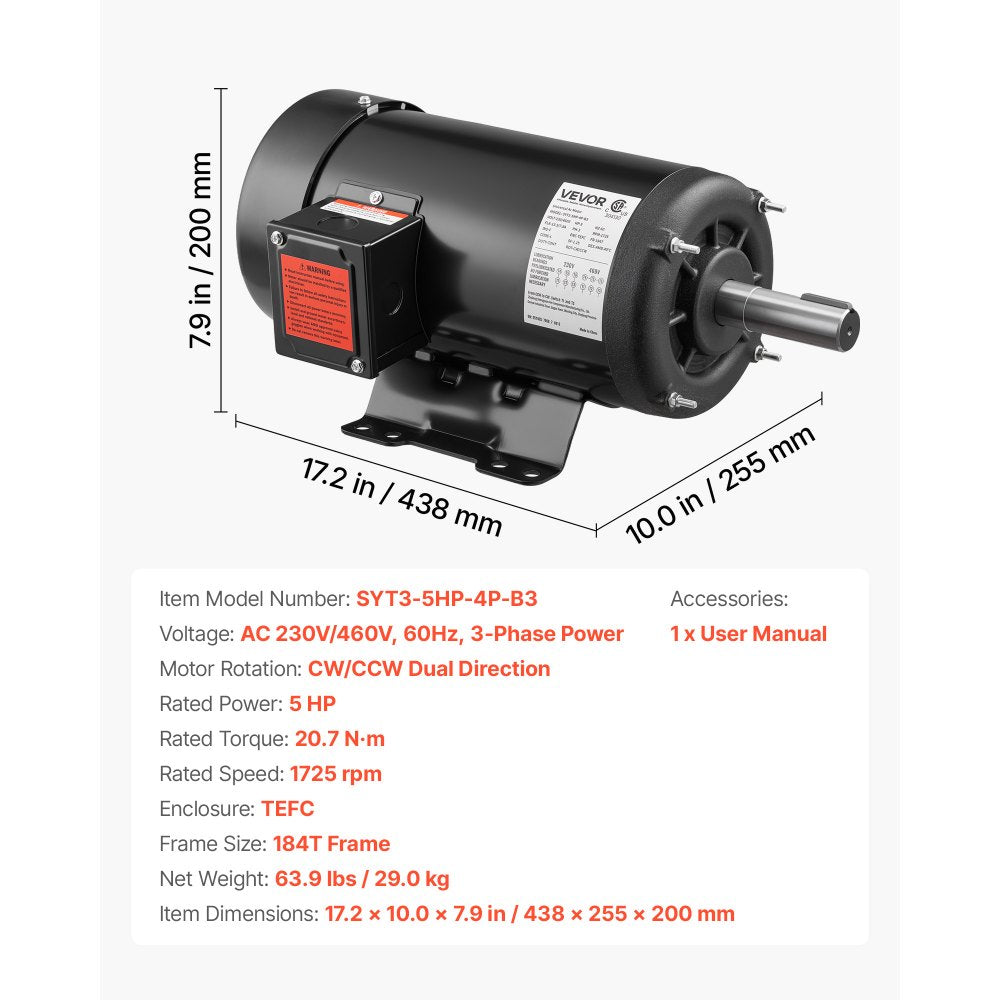

    Specifications

    Model SYT3-5HP-4P-B3
    Voltage / Frequency AC 230V / 460V, 60Hz, 3-Phase Power
    Rotation Direction CW/CCW Dual Direction
    Horsepower 5 HP
    Rated Torque 20.7 N.m
    Speed 1725 RPM
    Cooling Type TEFC
    Frame 184T
    Shaft Diameter 1.125"
    Shaft Length 2.75"
    Keyway Size 0.188" 0.25" width x 0.125" depth
    Material Steel Plate Body
    Net Weight 63.9 lbs
    Dimensions 17.2 x 10.0 x 7.9"

    Package Contents

    1 x Electric Motor

    Warranty

    vendor logo
    divider
    authorized dealer

    This item comes with a 1 year factory warranty.
