Product Overview

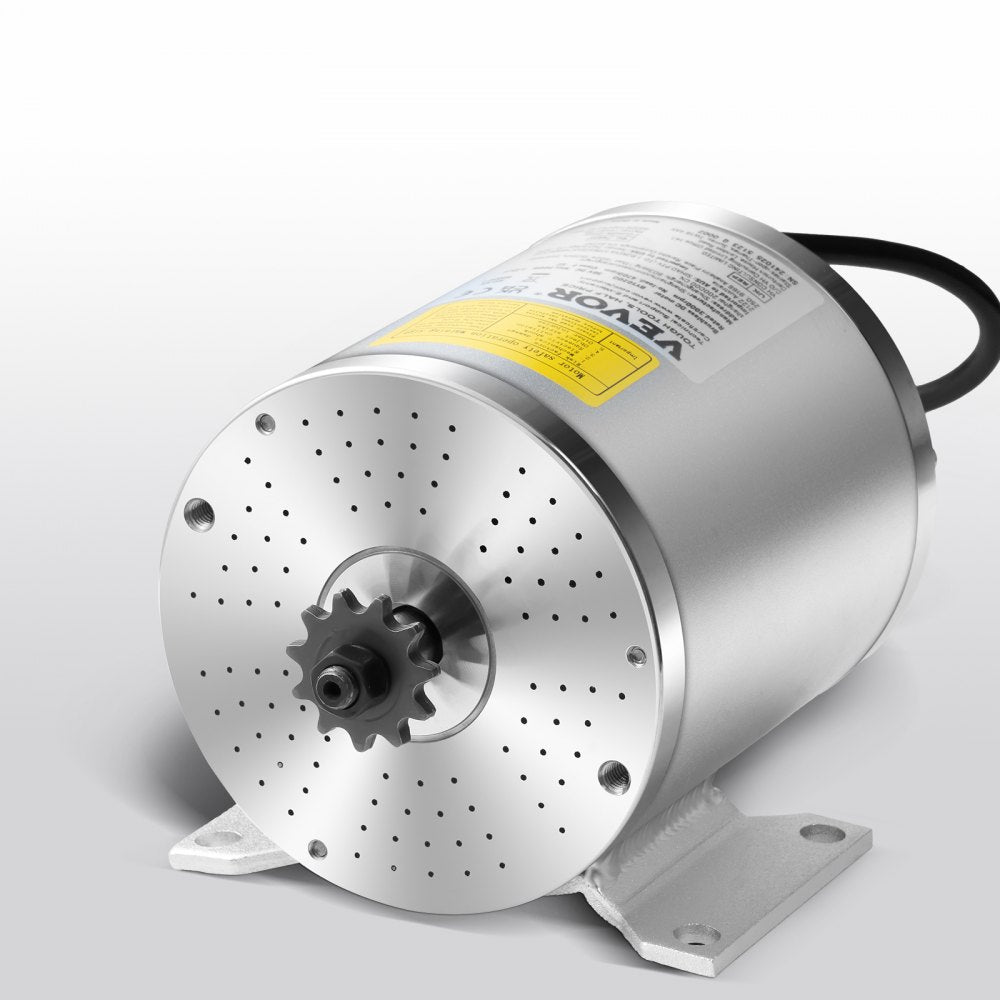

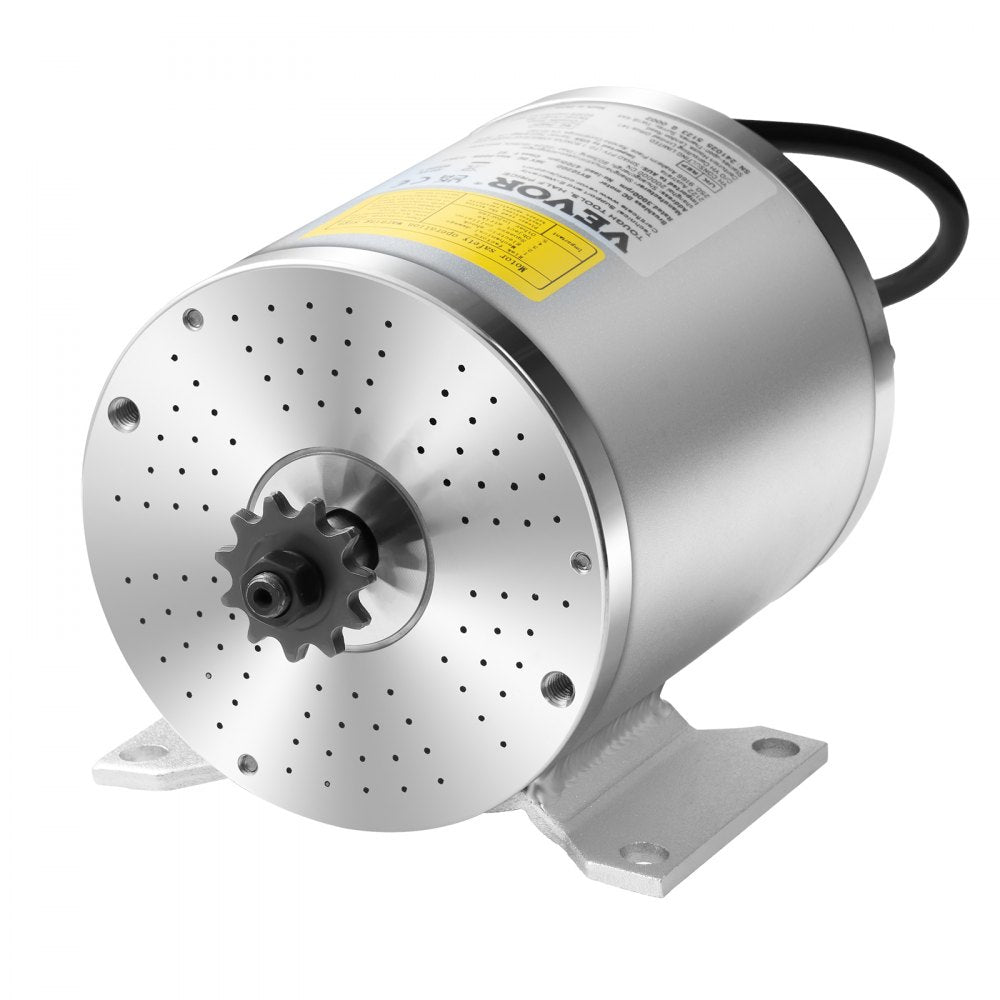

The Vevor brushless DC motor kit is designed to deliver strong, efficient performance for DIY electric vehicle projects such as go-karts, e-bikes, motorcycles, and scooters. It features a 500W motor, 36V operation, 3000 RPM rated speed, and 2.5 N·m rated torque for dependable power on challenging terrain. The upgraded controller adds speed control and braking functions along with overload, undervoltage, and short-circuit protection. With a 100% copper core motor and 70 dB operation, it is built for durable and relatively quiet performance. This kit is suited for users looking to upgrade or build a custom electric drive system.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- High-Power, Efficient Performance: VEVOR brushless DC motor delivers 500W of output power and operates efficiently with 85% conversion efficiency, ensuring reliable speed even on challenging terrains and less energy consumption. Perfect for electric bikes, scooters, and other DIY electric vehicle projects that require high performance.
- Impressive Torque and Speed: Achieve up to 23 MPH at rated speed, and a no-load speed of 28.6 MPH with a 16-inch wheel, ensuring a fast and smooth ride for commuting or recreational use. The rated torque of 2.5 N.m ensures reliable performance even on steep inclines and rough terrains.

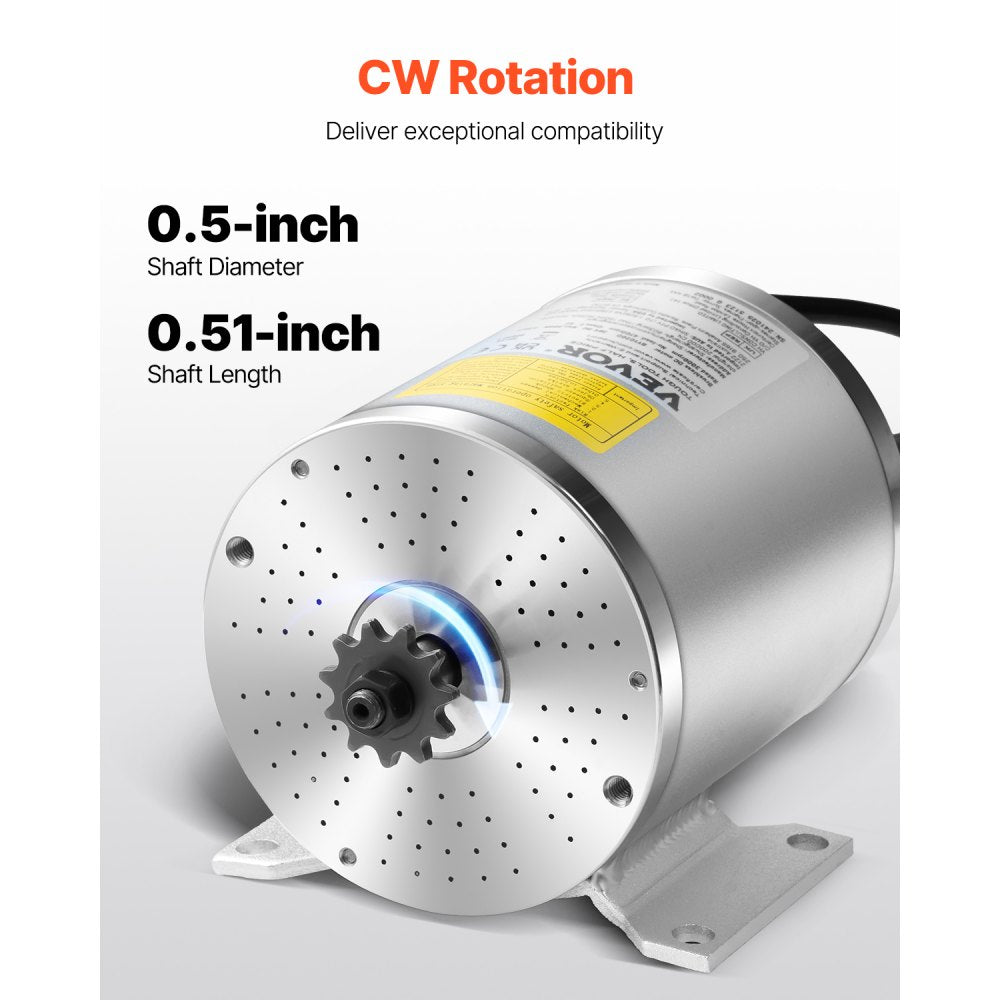

- Quiet, Reliable, and Versatile Operation: 100% Copper Core Motor for excellent heat and cold resistance, ensuring stable performance in extreme weather conditions. With a low noise level of 70 dB, this motor offers quiet operation. Designed with CW rotation, it ensures smooth and efficient compatibility with a wide range of electric vehicles.

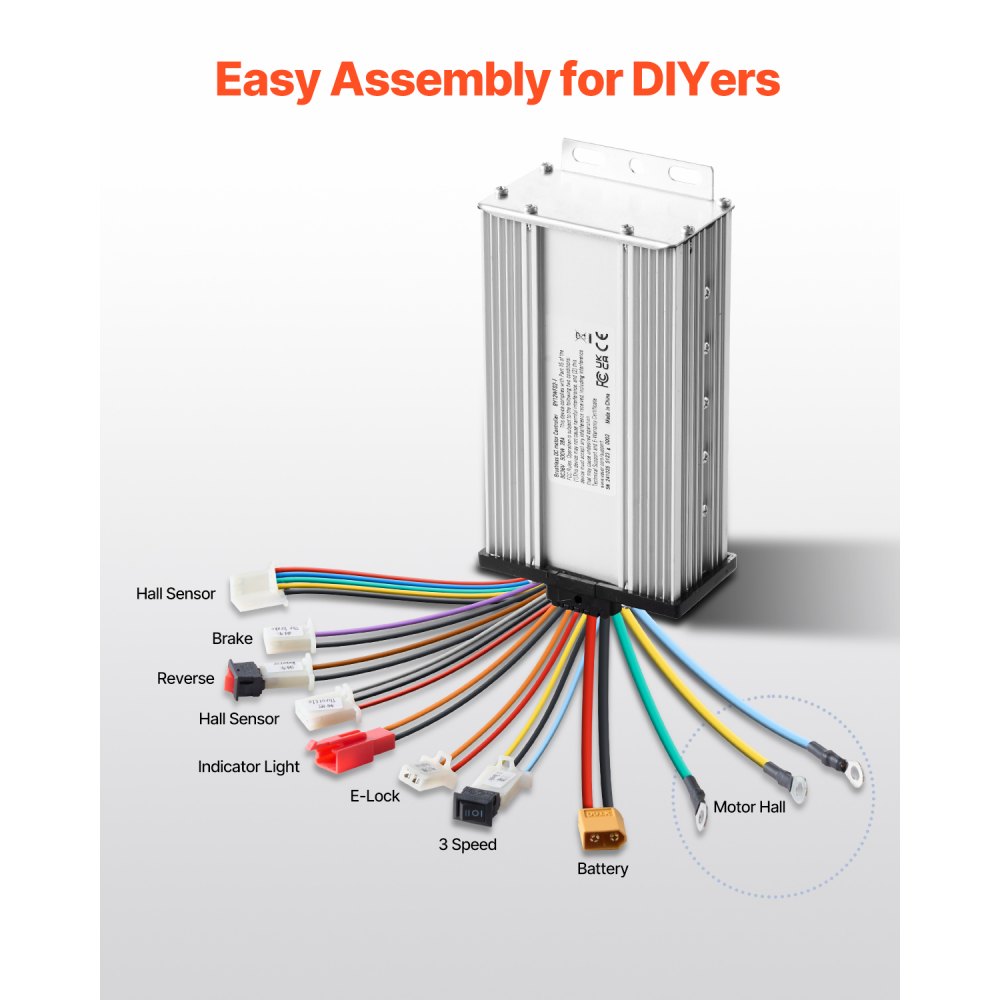

- Advanced Safety and Control Features: The upgraded controller integrates multiple safety protections including overload, undervoltage, short circuit. It also offers essential user functions such as speed control and braking for smooth and reliable performance. The controller ensures optimal performance while maintaining safety and flexibility in various conditions.
- Easy DIY Installation: Package includes: 1 x 24V 250W Brushless Motor, 1 x Motor Controller, 1 x Twistgrip Throttle, 1 x 410-16 Tooth Sprocket with Flywheel, and 1 x Set of Assembly Hardware. This motor kit comes with detailed wiring diagram instruction, ideal for DIY enthusiasts and hobbyists looking to upgrade or build custom electric vehicles.

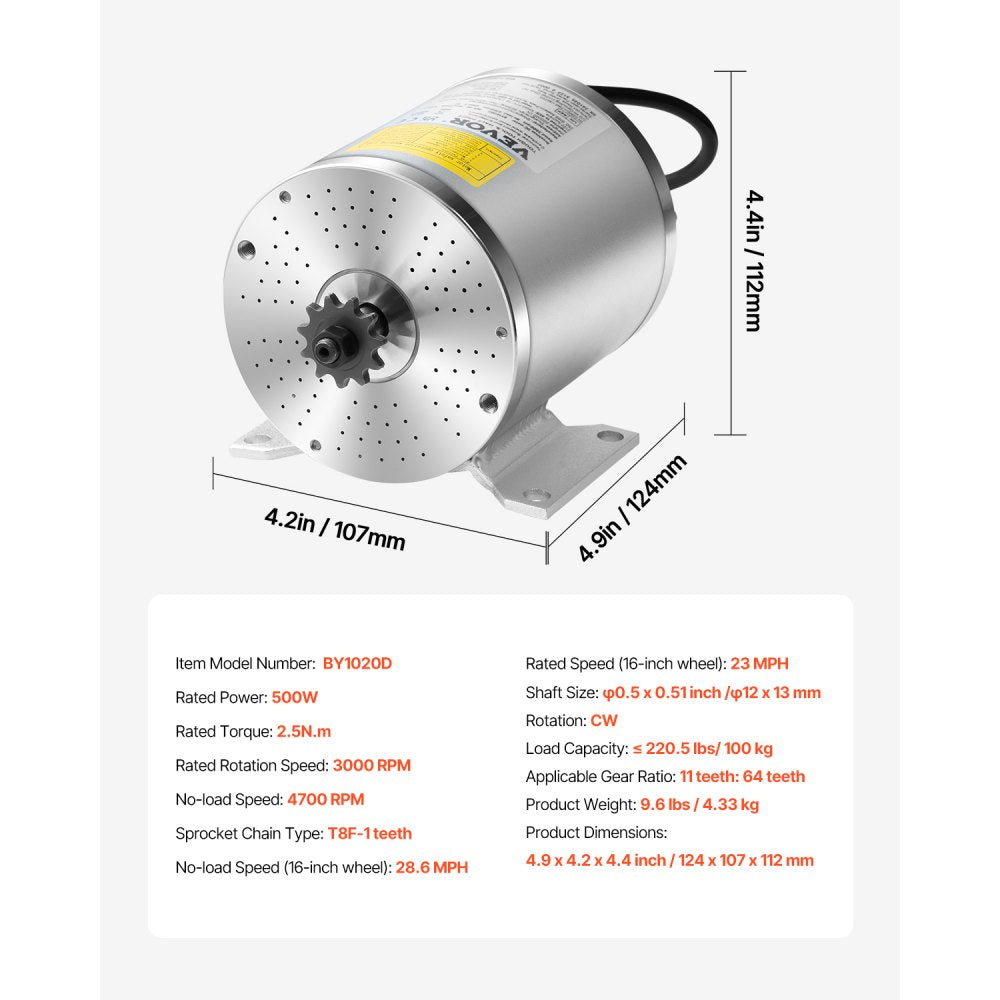

Specifications

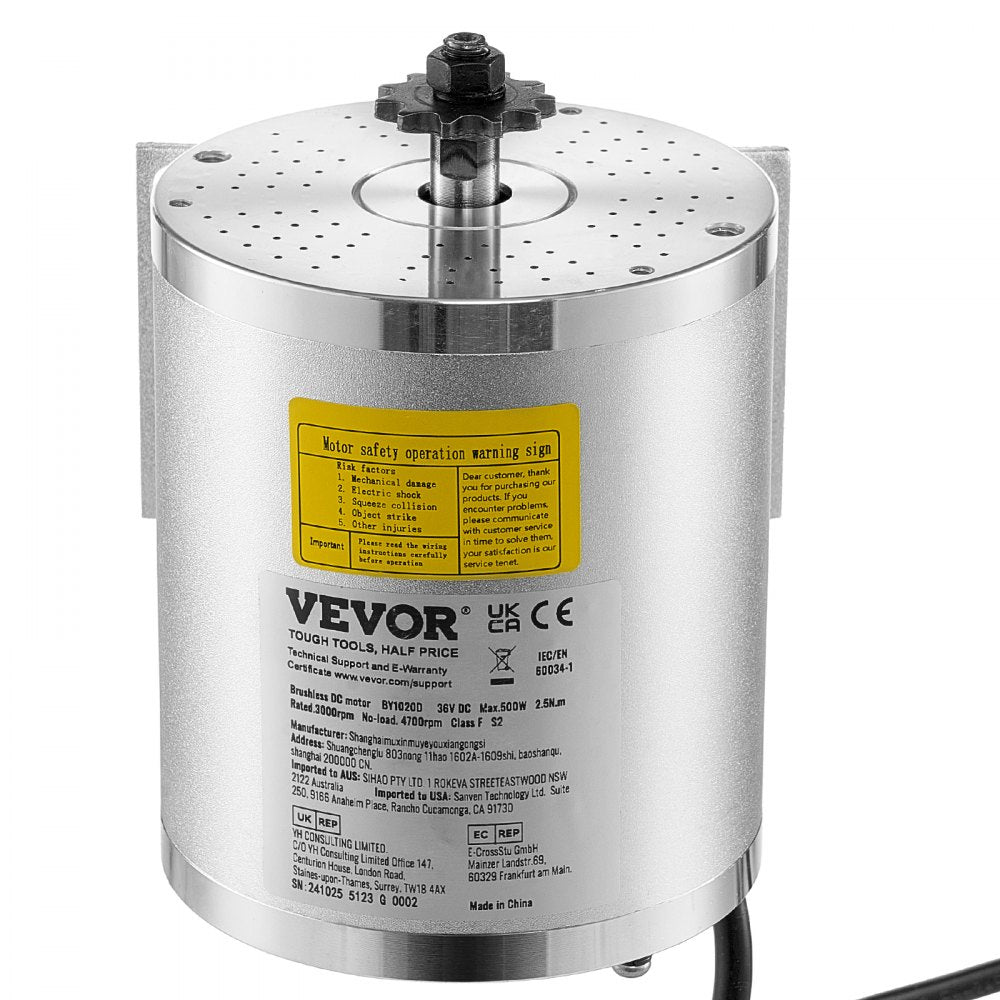

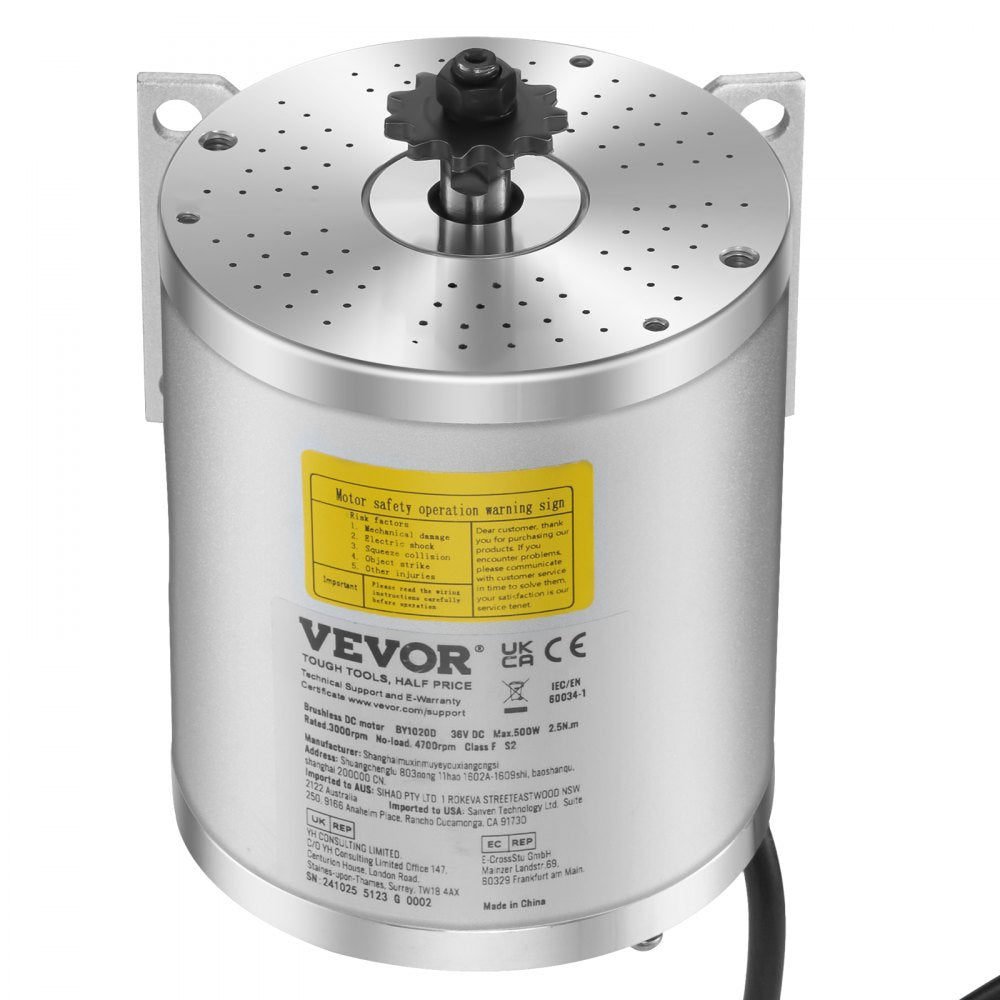

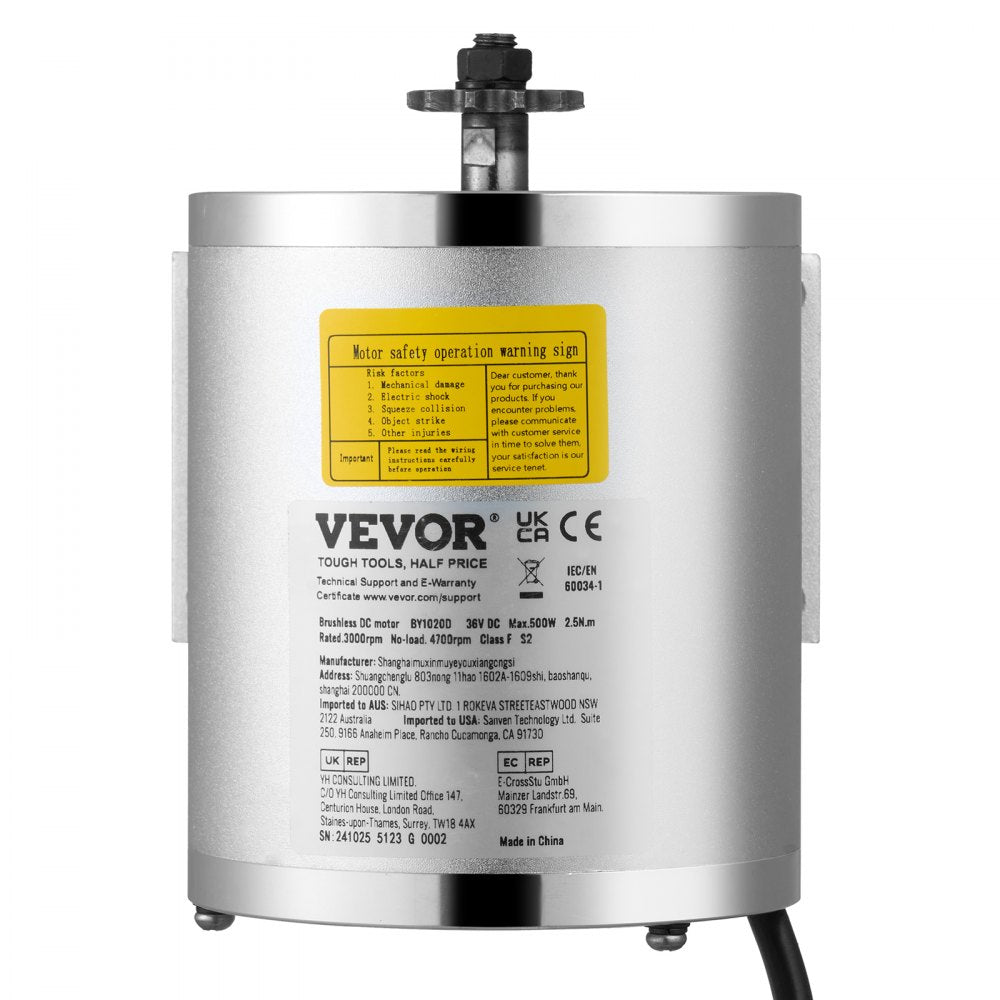

| Item Model Number | BY1020D |
| Rated Power | 500W |
| Voltage | 36V |
| Rated Torque | 2.5 N·m |
| Rated Rotation Speed | 3000 RPM |
| No-load Rotation Speed | 4700 RPM |
| Rotation | CW |
| Load Capacity | ≤ 220.5 lbs / 100 kg |
| Noise | 70 dB |
| Applicable Gear Ratio | 11 teeth |
| Product Weight | 9.6 lbs / 4.33 kg |
| Product Dimensions | 4.9 x 4.2 x 4.4" / 124 x 107 x 112 mm |

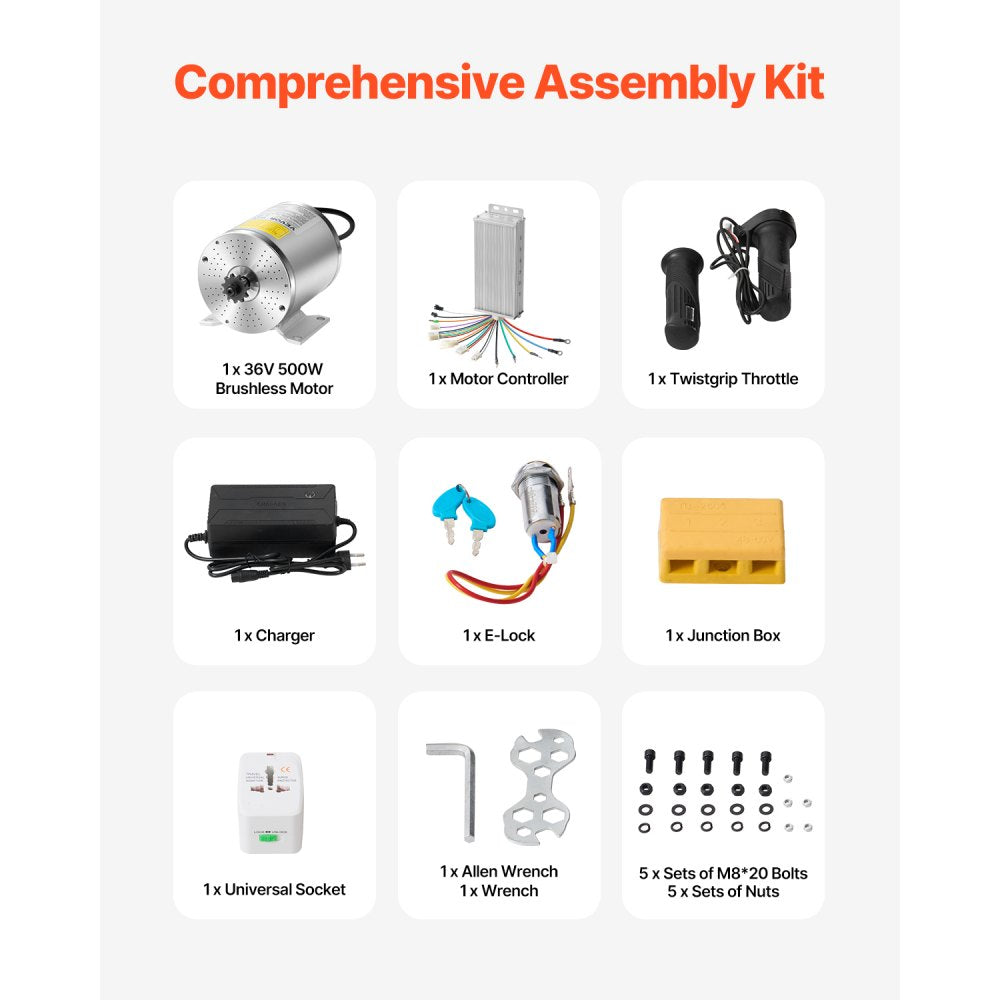

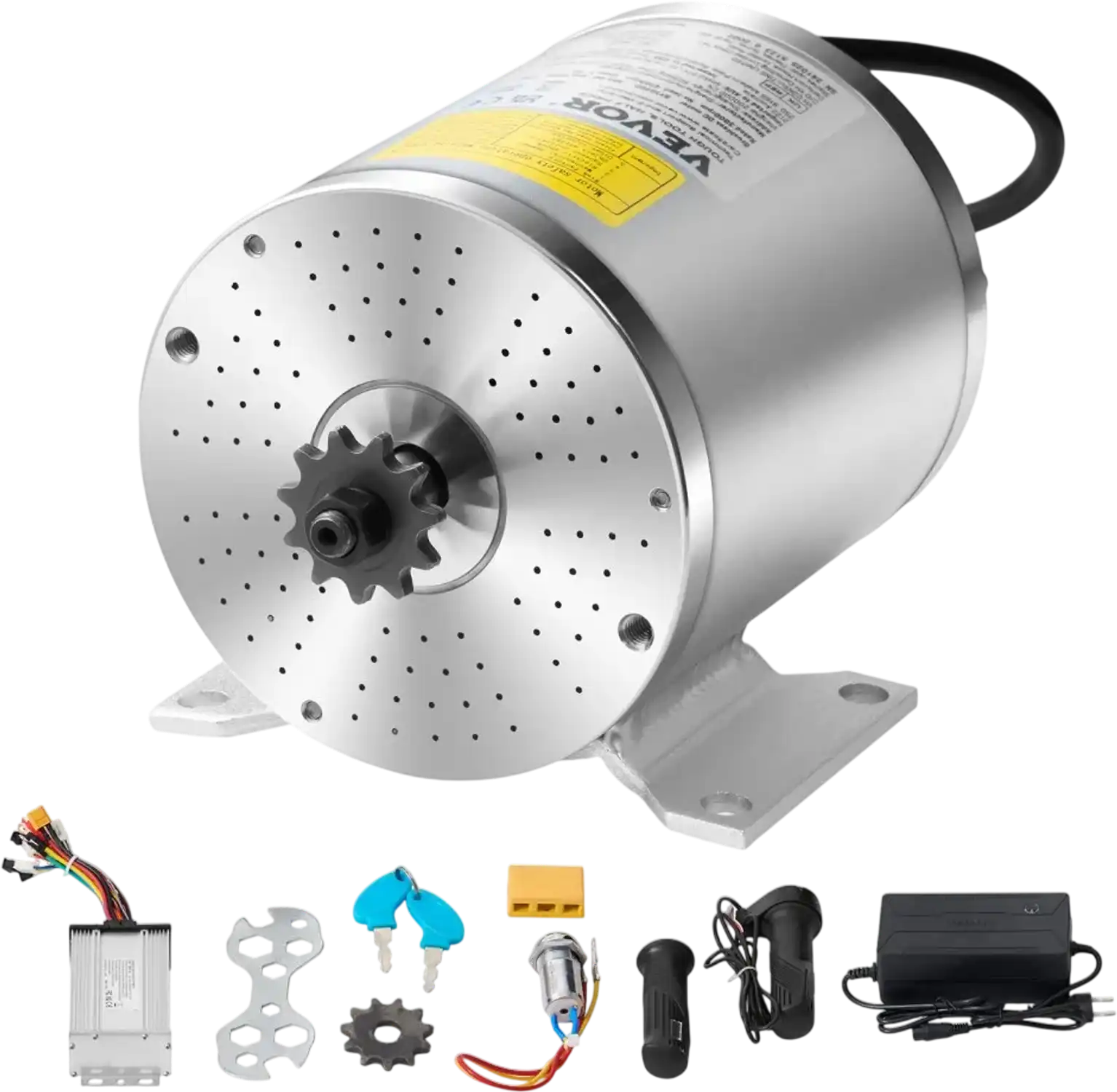

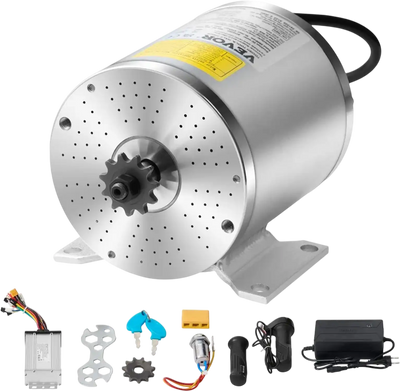

Package Contents
1 x Brushless Motor
1 x Motor Controller
1 x Twistgrip Throttle
1 x 410-16 Tooth Sprocket with Flywheel
1 x Set of Assembly Hardware
Warranty
This item comes with a 1 year factory warranty.
