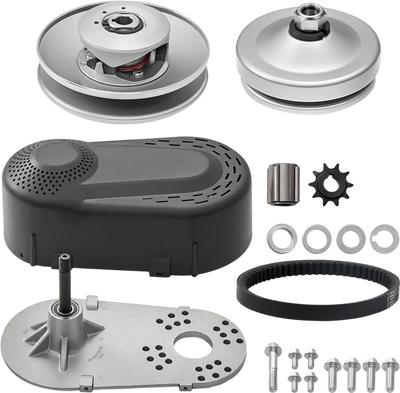

Vevor Drive Clutch Torque Converter Kit for 2-8 HP Engines 2000 RPM New
-
Vevor Hybrid Solar Inverter 3500W 1 Phase 24V DC to 220/230V AC with MPPT Solar Controller New
-
Vevor Electric Brushless DC Motor Kit 48V 1800W 4500 RPM with Upgraded Speed Controller New
Vevor Motor Kit 500W 48V Brushless DC Electric Motor with Upgraded Speed Controller New
Product Overview

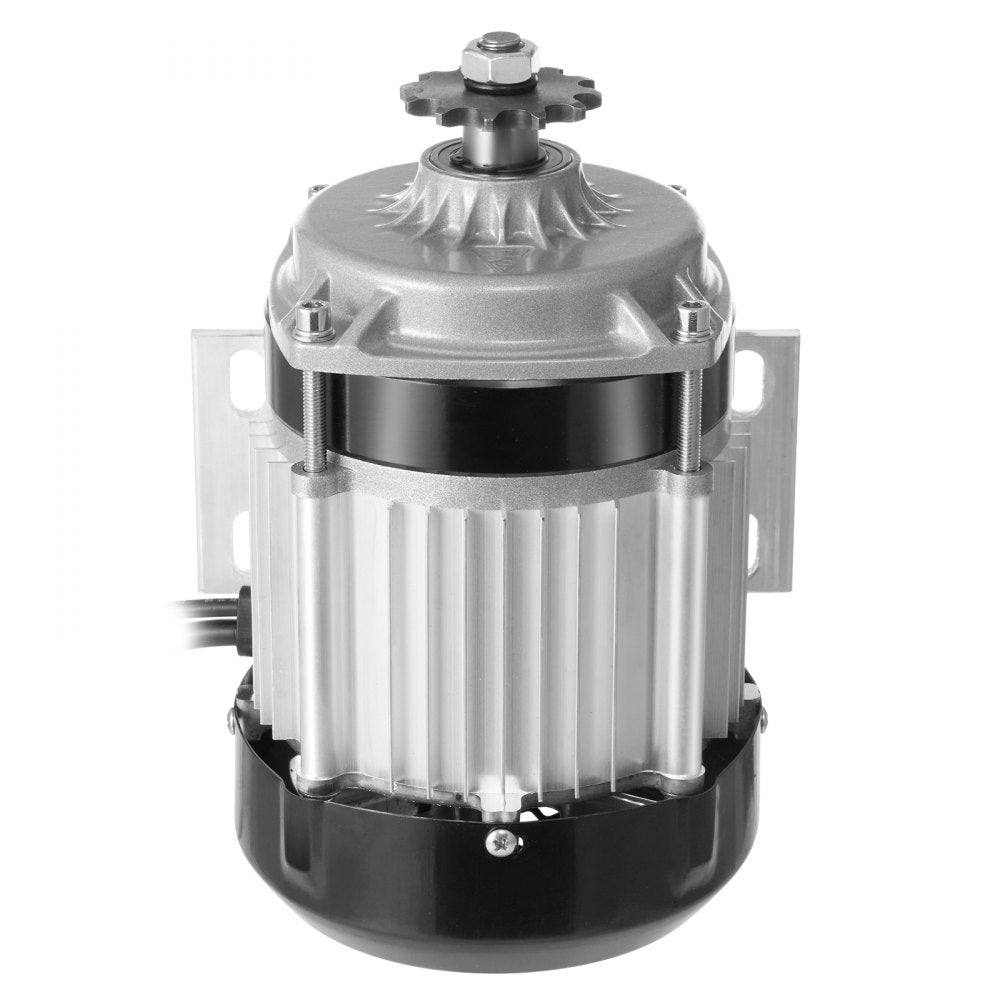

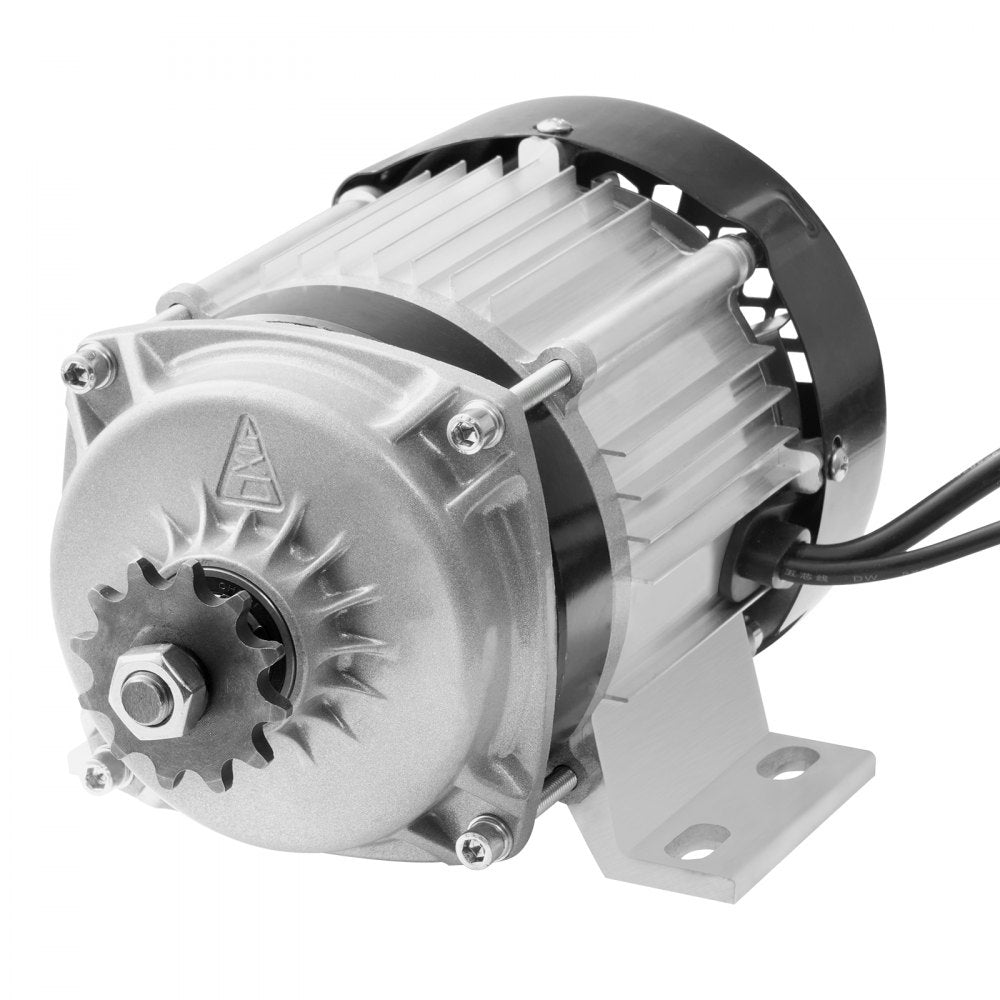

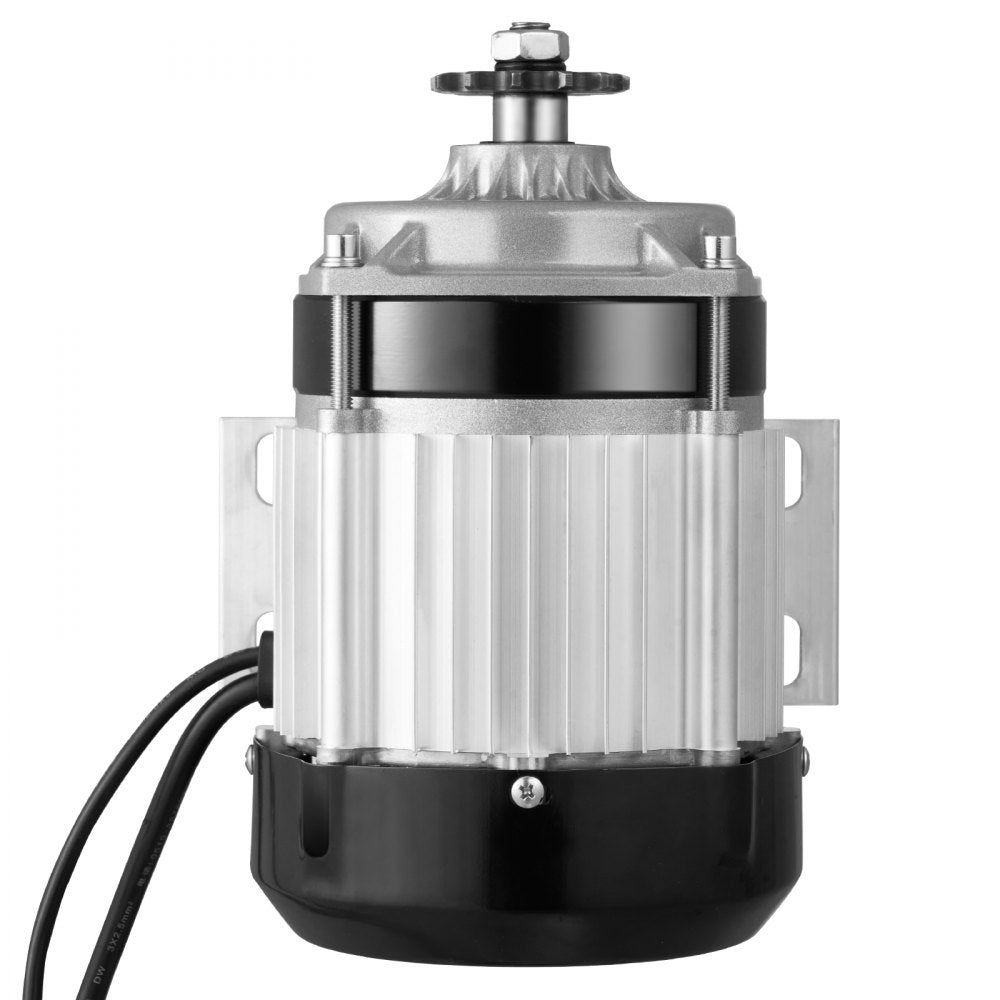

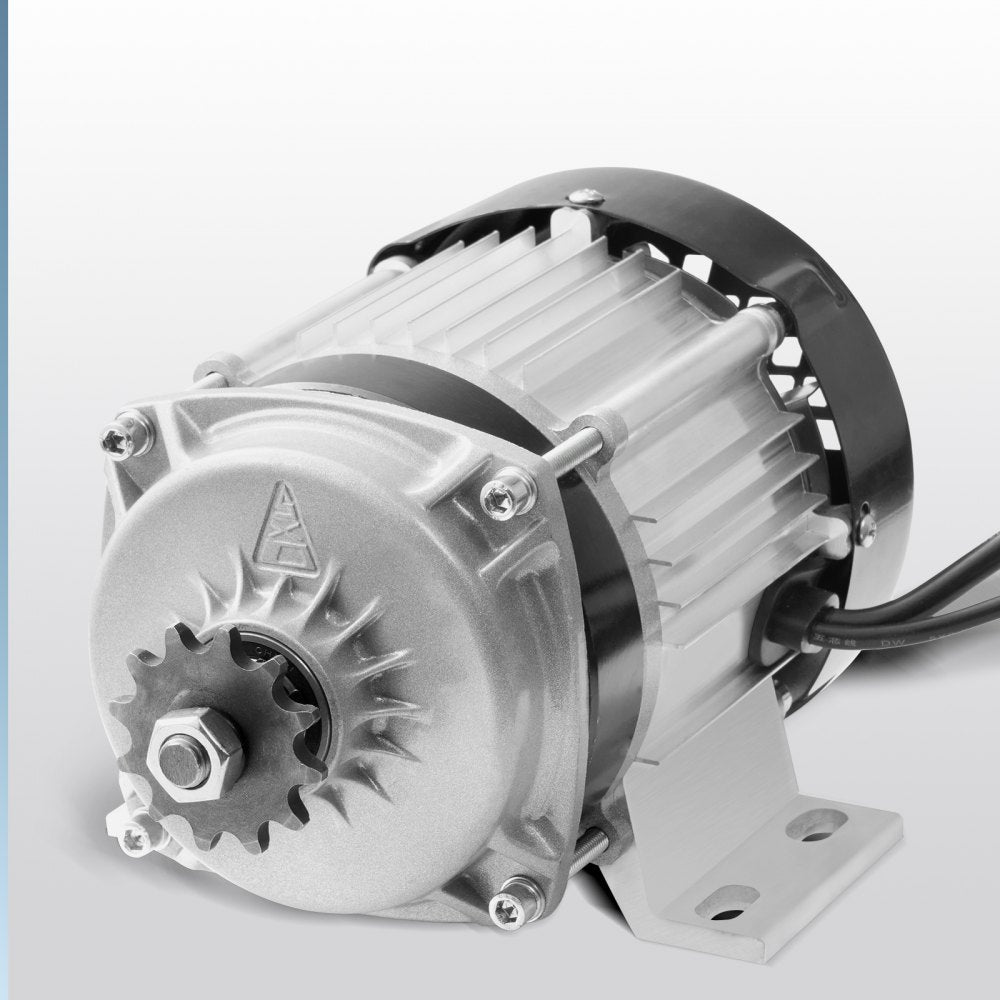

The Vevor 500W brushless DC motor kit is designed to add reliable power and smooth performance to DIY electric vehicle projects. It includes a 48V motor, upgraded speed controller, assembly hardware, and a user manual for easier installation. With 2700 RPM rated speed, 2.8 N·m rated torque, and 85% conversion efficiency, it is suited for go-karts, e-bikes, scooters, and similar builds. The copper-core motor is built for stable operation in demanding weather conditions while maintaining low-noise performance. Its upgraded controller adds speed control, braking support, and multiple safety protections for dependable everyday use.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, NJ, & TX
Authorized Vevor Dealer
Features
- High-Power, Efficient Performance: Our brushless DC motor delivers 500W of output power and operates efficiently with 85% conversion efficiency, ensuring reliable speed even on challenging terrains and less energy consumption. Perfect for electric bikes, scooters, and other DIY electric vehicle projects that require high performance.
- Impressive Torque and Speed: Achieve up to 21.1 MPH at rated speed, and a no-load speed of 24.2 MPH with a 16-inch wheel, ensuring a fast and smooth ride for commuting or recreational use. The rated torque of 2.8 N·m ensures reliable performance even on steep inclines and rough terrains.

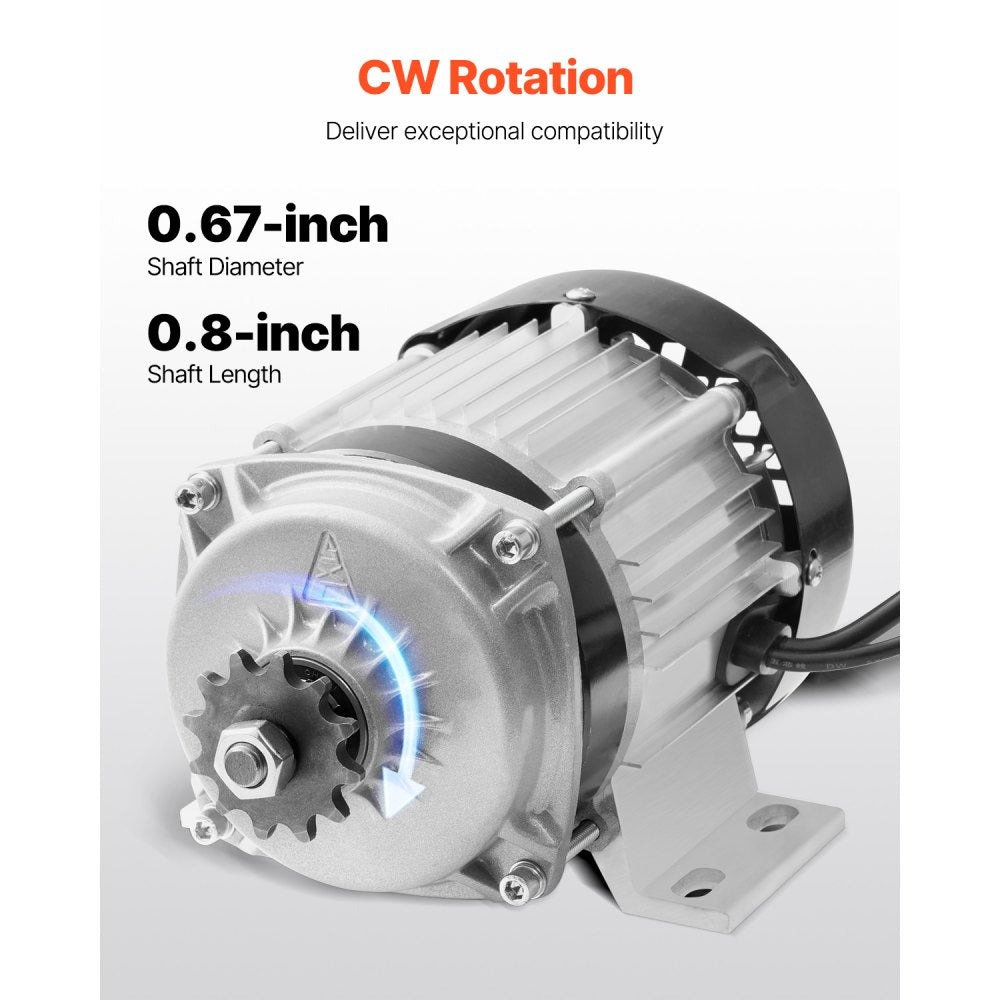

- Quiet, Reliable, and Versatile Operation: 100% Copper Core Motor for excellent heat and cold resistance, ensuring stable performance in extreme weather conditions. With a low noise level of 70 dB, this motor offers quiet operation. Designed with CW rotation, it ensures smooth and efficient compatibility with a wide range of electric vehicles.
- Advanced Safety and Control Features: The upgraded controller integrates multiple safety protections including overload, undervoltage, short circuit. It also offers essential user functions such as speed control and braking for smooth and reliable performance. The controller ensures optimal performance while maintaining safety and flexibility in various conditions.

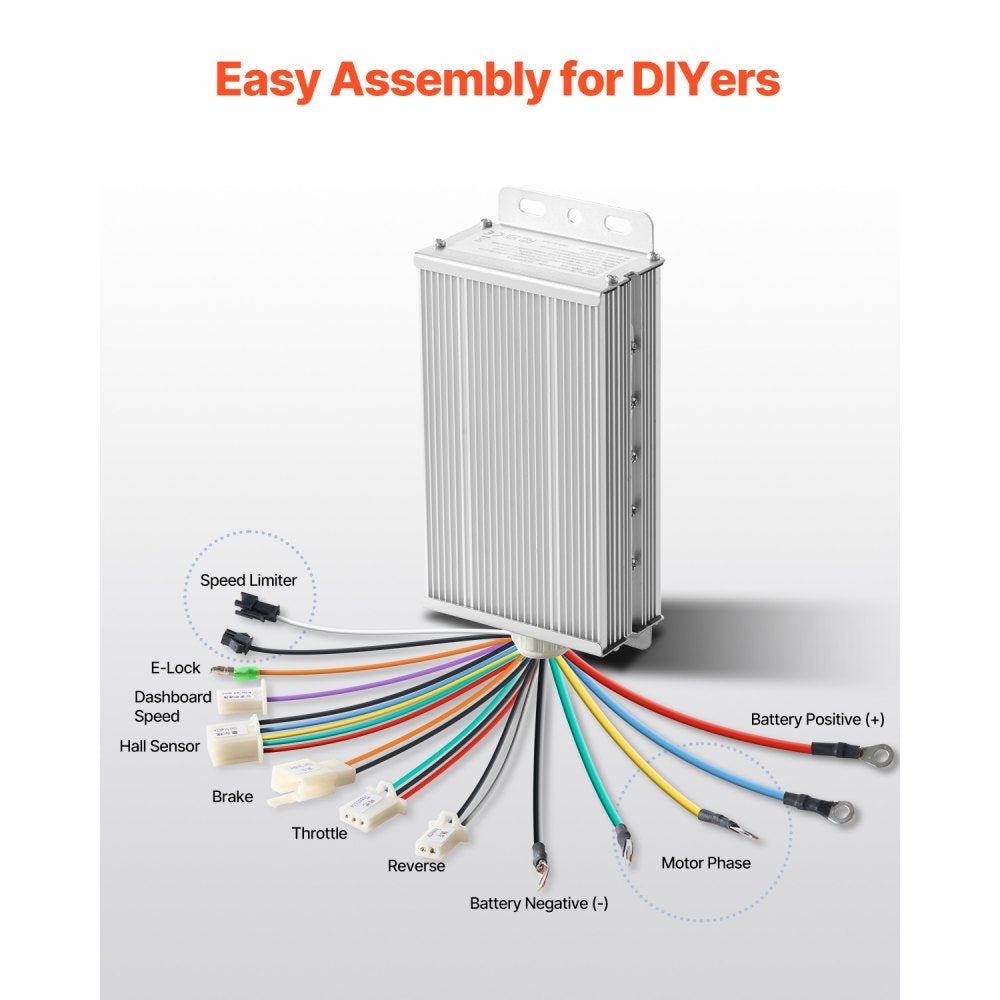

- Easy DIY Installation: Package includes: 1 x 48V 500W Brushless Motor, 1 x Motor Controller, 1 x Set of Assembly Hardware, and 1 x User Manual. This motor kit comes with detailed wiring diagram instruction, ideal for DIY enthusiasts and hobbyists looking to upgrade or build custom electric vehicles.

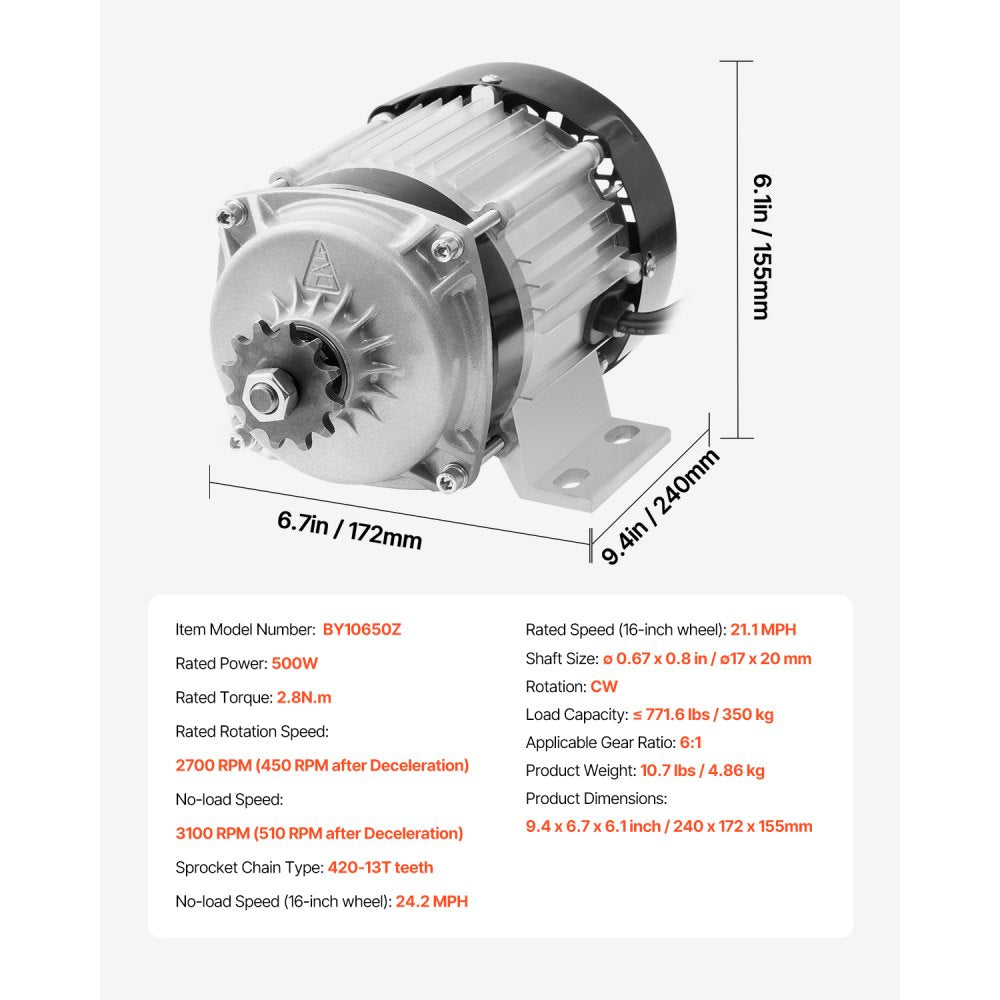

Specifications
| Item Model Number | BY10650Z |
| Rated Power | 500W |
| Voltage | 48V |
| Rated Torque | 2.8 N·m |
| Rated Rotation Speed | 2700 RPM 450 RPM after deceleration |
| No-load Rotation Speed | 3100 RPM 510 RPM after deceleration |
| Rotation | CW |
| Load Capacity | 771.6 lbs |
| Applicable Gear Ratio | 6 |
| Product Weight | 10.71 lbs |
| Product Dimensions | 9.45 x 6.77 x 6.10 in |

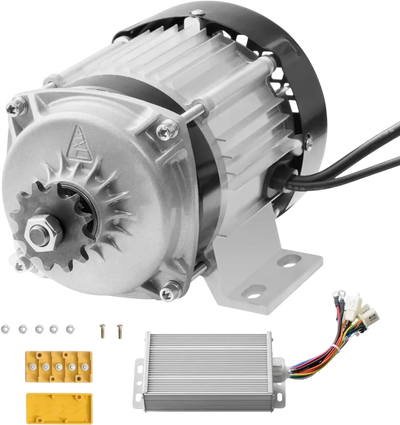

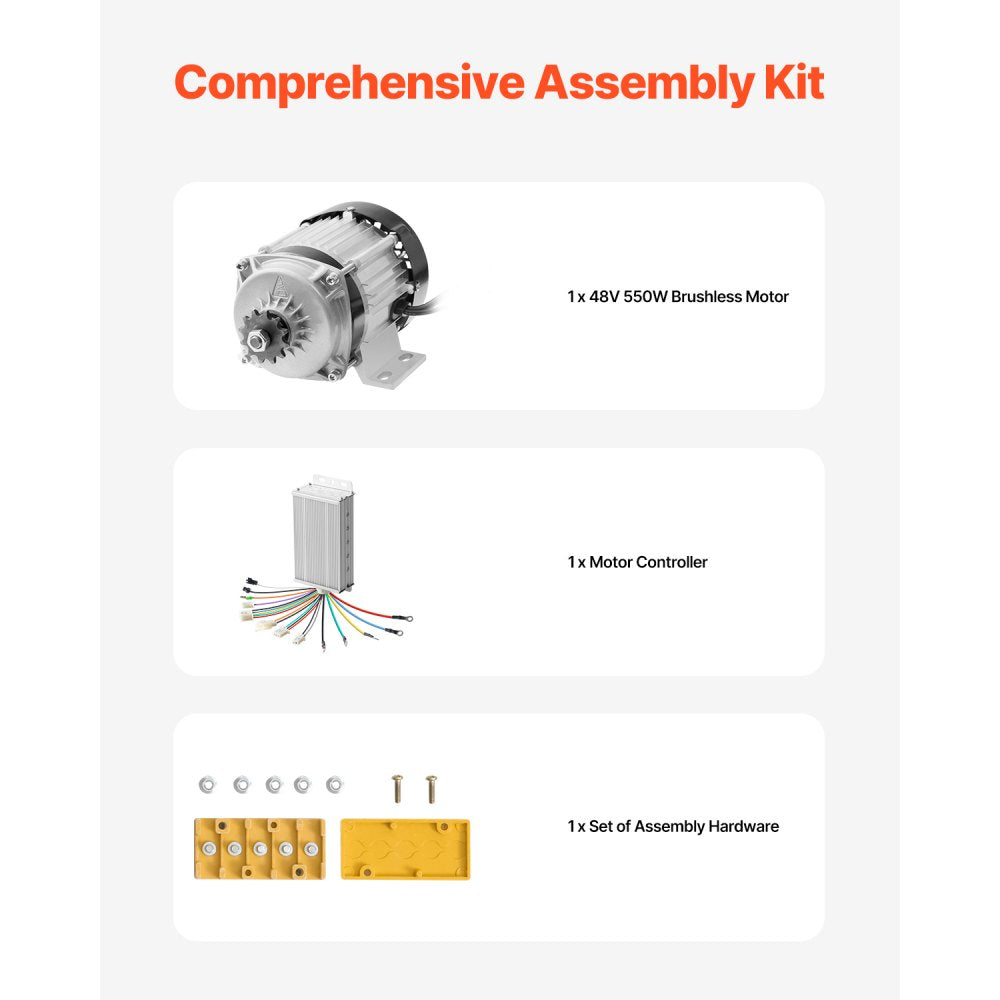

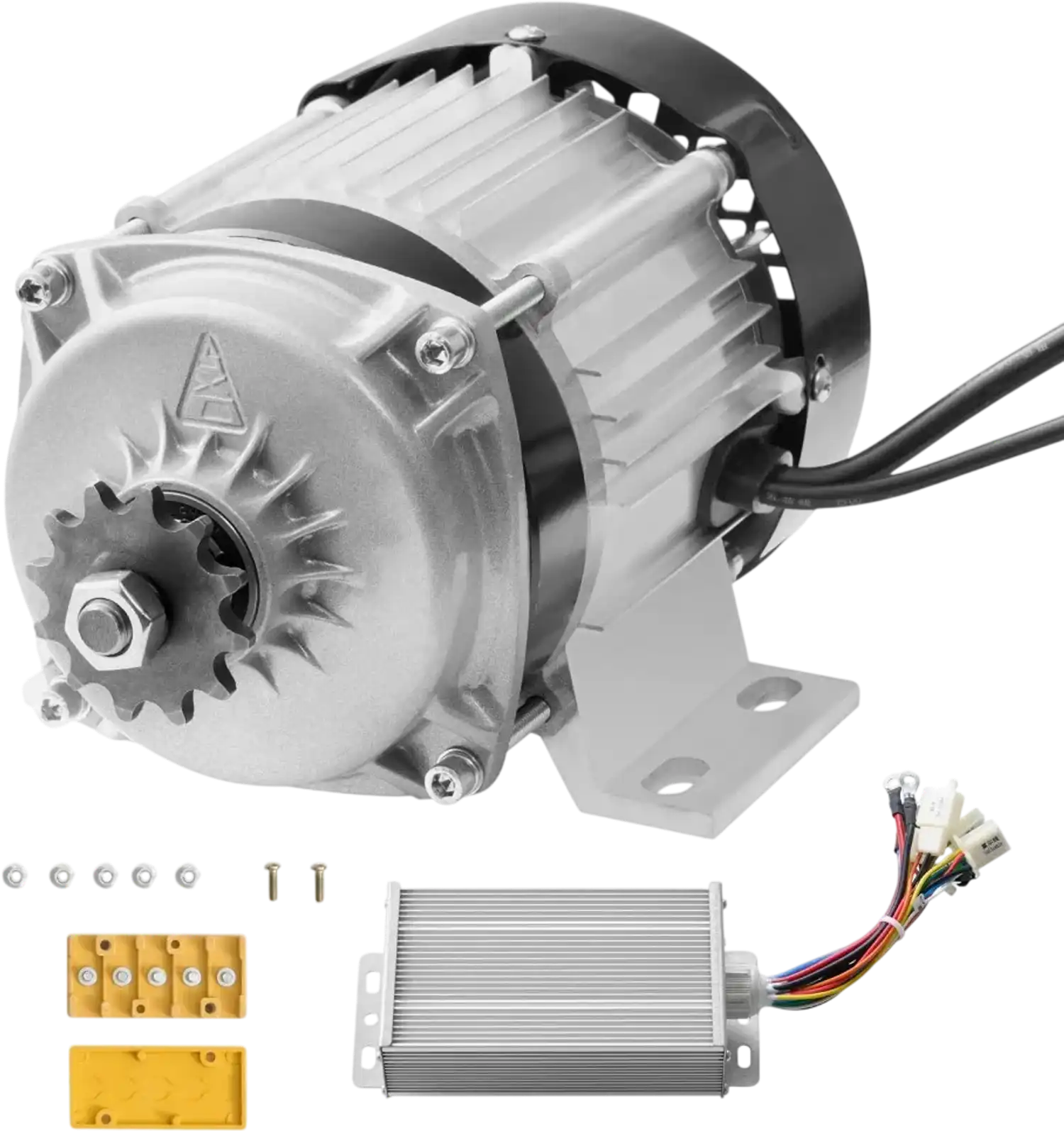

Package Contents
1 x 48V 500W Brushless Motor
1 x Motor Controller
1 x Set of Assembly Hardware
1 x User Manual
Warranty
This item comes with a 1 year factory warranty.
