Product Overview

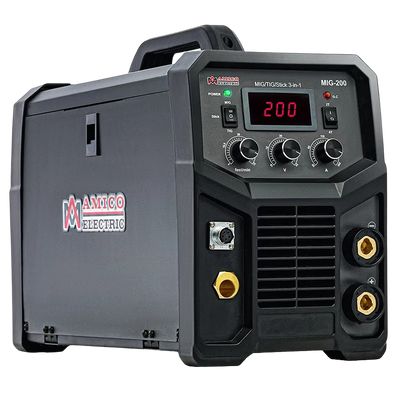

MIG-200 is a multi-functional electric welding machine with a sleek and elegant appearance with superb production technology. It adopts the most advanced IGBT inverter technology, resulting in excellent arc stability and flawless welding effects. All metals can be welded: stainless steel, carbon steel, low carbon steel, steel, alloy, iron, copper, cast iron, and even aluminum (using spool gun SPG15180 & SPG15250).
1 year limited factory warranty
Brand new in box
Ships directly from Amico Electric out of CA
Authorized Amico Electric dealer
Similar Products
Customers Also Purchased
Amico Electric MIG-200 115/230V Dual Voltage 200 Amp MIG/MAG/Flux-cored/Lift-TIG/Stick Arc DC Inverter Welder New
Share
Email
Share
Share
Features
- STICK: With professional manufacturing and strong penetration, it is compatible with all electrodes: E6010, E6011, E6013, E7014, E7018, etc. With a thrust adjustment function, a built-in hot start function, an electrode anti-stick function, and current intensity control function, it can complete all work and tasks efficiently and easily. It is a reliable and effective tool for professional welders and a dream machine for beginners.
- LIFT-TIG: It can weld thin stainless steel and various other metals efficiently and safely and without high-frequency interference. The automatic temperature control function makes the machine run very quietly. The package includes a 10-feet MIG torch assembly, a 10-feet 300-amp electrode holder assembly, a 10-feet 300-amp ground clamp assembly, and a 115/230V power adapter.
- Intelligent power supply system can automatically detect the input voltage and can easily switch between 115V and 230V. Extending the power cord by 700 feet can also resist power fluctuations and cable attenuation, allowing it to still function efficiently. It is very suitable for difficult operations on construction sites, house maintenance, docks, agricultural sites, and even remote areas.
- MIG-200 integrates the most innovative design structure and technology and includes all functions of every welding machine: MIG, MAG, Flux-Core, Lift-TIG, Stick, and Spool Gun welding. It can perfectly weld all conductive metals: aluminum, aluminum alloy, stainless steel, alloy steel, carbon steel, steel, cast iron, iron, and copper – all up to about 1/2 inch. This is the most efficient machine for all tasks, including industrial manufacturing, car modifications, and professional maintenance.

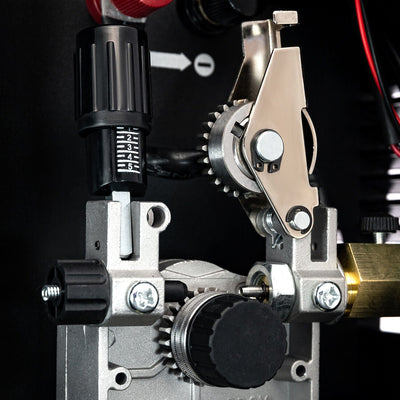

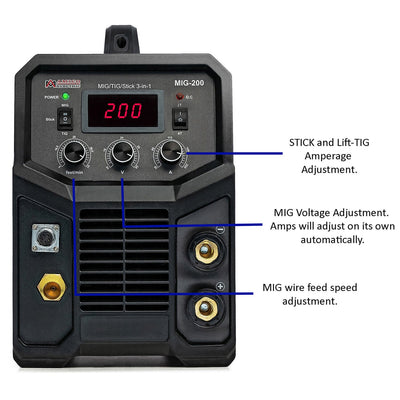

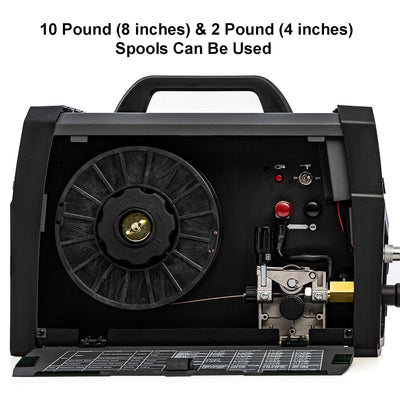

- MIG: Designed and manufactured according to the highest standard of industrial welding machines; 10 pound (8 inches) and 2 pound (4 inches) spools can be used. The high-performance double-gear drive wire feeder is manufactured with the highest technology, allowing the wire feeding speed to be stable and efficient. When using MIG/MAG/Flux-Core welding, adjusting the welding current and wire feeding speed is very simple, easy, and direct.
Specifications
| Welder Type | 3-IN-1 MIG/TIG/STICK Combo Welder |
| Output Terminal Type | Direct Wire |
| Power Supply | AC 115V & 230V/1-Phase/50-60Hz |
| Rated Input Current | 230V 38.5A (MIG) / 29.5A (TIG) / 41.5A (STICK)115V 39.0A (MIG) / 31.0A (TIG) / 47.0A (STICK) |
| Current Range Output | MIG 230V/40A-200A, 115V/30A-145ATIG 230V/15A-200A, 115V/10A-145ASTICK 230V/15A-200A, 115V/10A-145A |
| Nominal DC Open Circuit Voltage (OCV) | 56V |
| Welding Output, 104F (40C), 10 min (230V) | MIG 200A/24.0V, TIG 200A/18.0V, STICK 200A/28.0V |
| Duty Cycle | MIG 60% @ 200A, TIG 60% @ 200A, STICK 60% @ 200A |
| Max. Wire Feeding Speed | 610 inch/min. |
| Efficiency | 93% |
| Power Factor | 0.85 |
| Cooling Method | Fan Cooled |
| Product Size | 17.75 x 8.25 x 13.8 in. |
| Product Weight | 26 lbs. |
| Package Size | 20 x 13.8 x 15.3 in. |
| Package Weight | 47.5 lbs. |

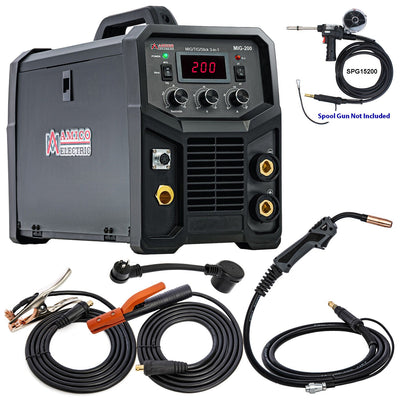

Package Contents

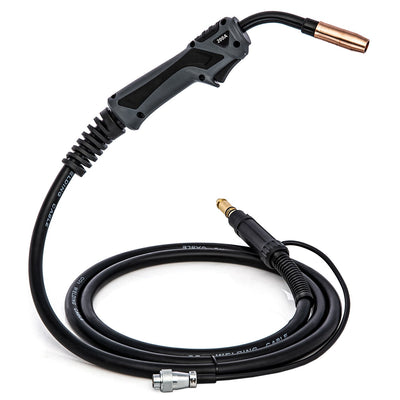

10 ft. Pro. MIG Torch Assembly

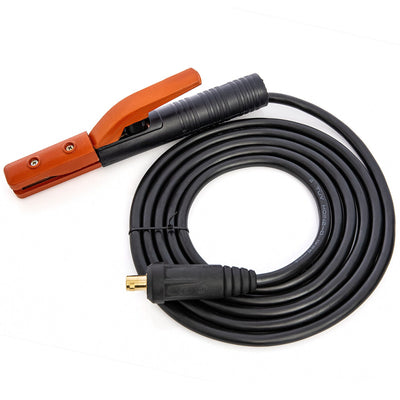

10 ft. Electrode Holder Assembly

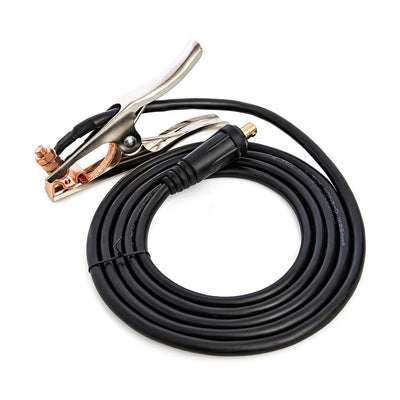

10 ft. Work Clamp Assembly

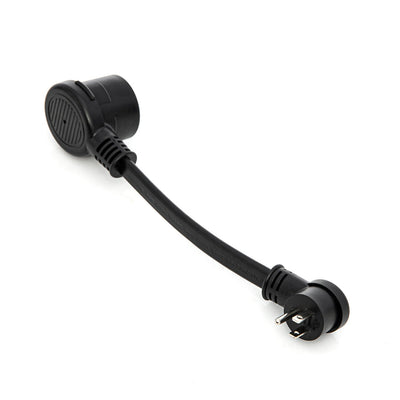

230V to 115V Power Adapter
7 ft. Power Cord N6-50P Plug
Owner's Manual
Warranty
This item comes with a 1 year limited factory warranty.
