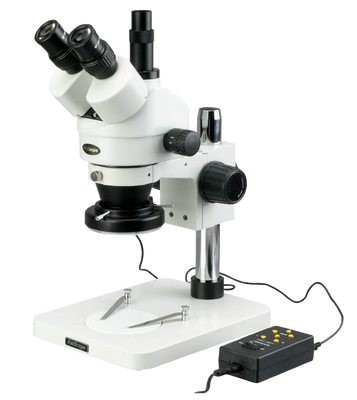

Amscope SM-1TS-144A Trinocular Inspection Zoom Stereo Microscope with 144 LED 4 Zone Light New
Product Overview
This trinocular stereo microscope comes with a 144 LED 4 light zone ring light. The 144 LED ring light is lighting direction changeable and lighting intensity adjustable, providing cool, even and bright LED illumination.
It features a separate control box allowing you to turn on/off each portion of the 4 light zones individually as well as changing the lighting direction so you may obtain the best images for your stereo microscope.
Brand new in box
5 year factory warranty
Manufacturer direct shipping from CA
Authorized AmScope dealer
Features
- A trinocular stereo inspection microscope with LED ring light
- Intensity and light direction variable cool, even and bright 144 LED ring illumination
- 7X - 45X super wide zoom magnification power
- 4" (100mm) extreme large working distance
- High resolution with great flatness and contrast, giving sharp and clear images
- Trinocular head with 45 degree inclined 360 degree swiveling eye tubes
- The trinocular port enables the easy use of camera capabilities
- 30mm super widefield high eyepoint eyepieces with a 20mm field of view
- Sharp stereo erect images with a wide field of view
- Crystal clear, original true color microscope images
- Dual eye tubes with adjustable diopters
- Sturdy all metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Precise ground glass lenses
- Full metal chrome plated mechanical components
- Adjustable interpupillary distance
- Rubber eye guards included
- Manufactured under ISO 9001 quality control standard
- Five 5 year manufacturer warranty for microscope
Specifications
| Head | 360 degree rotatable 45 degree inclined trinocular |
| Eyepiece | 30mm super widefield high eyepoint WH10X/20MM |
| Zoom Range | 0.7X - 4.5X |
| Diopter Adjustment | +/- 5dp |
| Interpupillary Distance | 2 - 3/16" - 2 - 15/16" (55 - 75mm) |
| Working Distance | 4" (100mm) |
| Field of View | 1 - 1/4" (33mm) super widefield |
| Illumination | 144 LED ring light, 4 light zones |
| Power Input | 110 - 240V, 50 - 60HZ, automatic switching |
| Stand | 10" x 7 - 7/8" x 10.75" (254 x 200 x 275mm) |
| Round Plate | 3 - 3/4" (95mm) in diameter |
| Accessories | A pair of eye guards |
| Shipping Weight | 20 lbs |
Package Contents
Trinocular Stereo Zoom Head
Pair of Super Widefield 10X Eyepieces
144 LED Ring Illuminator with 4 Light Zones
Pillar Table Stand
Focusing Rack
Round Plastic Plate
Pair of Eye-Guards
Pair of Clips
Dust Cover
User's Manual
Warranty
This product comes with a 5 year factory warranty.
