Amscope SM-2BZ 3.5X - 90X Binocular Stereo Zoom Microscope with Dual Halogen Lights New
Share
Product Overview
The SM-2B is a turnkey binocular stereo microscope solution for biological and industrial fields. Using our workhorse SM745 head, it provides remarkable optical quality with a wide zoom magnification range.
The dual illumination base provides solid support, and both transmitted and reflected lighting for observing a range of objects, from biological cultures to PCBs.
Brand new in box
5 year factory warranty
Manufacturer direct shipping from CA
Authorized AmScope dealer
Features
- The stereo optics provide clear, sharp images with excellent focus depth and a large working distance.
- With 0.7X - 4.5X zoom objectives, moving through the magnification range is as easy as turning a knob.
- 0.5X and 2X Barlow lenses are included, which can be alternated to either halve or double the magnification range, expanding the possible magnifications to 3.5X - 90X.
- Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity.
- Rotating interpupillary adjusters simplify the process of aligning the eyepieces for each user.
- The dual illumination stand provides a turnkey solution for biological and industrial applications.
- The pillar based support system offers flexibility with its ability to quickly adjust height and lateral position.
- The microscope can be easily set and rotated in the mounting collar, and locked in place once adjusted.

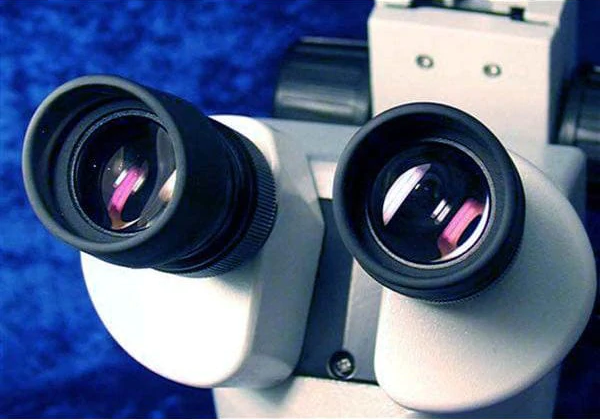

- 10X wide field eyepieces provide an ample magnification range from 7X to 45X, with high eyepoint optics to accommodate glasses or goggles.
- Large, symmetrical focus knobs provide the precision control needed, with adjustable tension for light or heavy loads as well as comfort.
- Overhead and substage halogen lighting allows you to work with opaque and translucent objects.
- The top light is mounted behind the head to provide offset light, and can be tilted for varied effect.
- This is useful for topological examination, such as with circuit boards and biological cultures.
- Translucent materials benefit from substage transmitted lighting.
- A frosted glass stage plate is provided to diffuse the light for more even back lighting.
Specifications
| Head Type | Binocular, 45° incline, 360° rotatable |
| Optical System | Greenough stereoscopic |
| Interpupillary Adjustment | Compensation free gemel, 54 - 76mm |
| Ocular port Diameter | 30mm |
| Dioptric Adjustment | Both oculars, ± 5dp |
| Eyepieces | 10X |
| Objective Lenses | 0.7X - 4.5X zoom |
| Objective Numerical Aperture | 0.065 @ 4.5X0.02 @ 0.7X |
| Objective Resolution | 195 lp/mm @ 4.5X60 lp/mm @ 0.7X |
| Native Field of View (10X Eyepieces) | 4.4mm - 28.6mm |
| Native Working Distance | 100mm |
| Auxiliary (Barlow) Lens | 48mm thread |
| Stand Type | Pillar stand with integrated top and bottom illumination |
| Focusing block Focus Range | 50mm |
| Reflected Illumination | 15W halogen |
| Transmitted Illumination | 15W halogen |
| Stage Illumination Plate Diameter | 95mm |
| Power | 110VAC 60Hz |

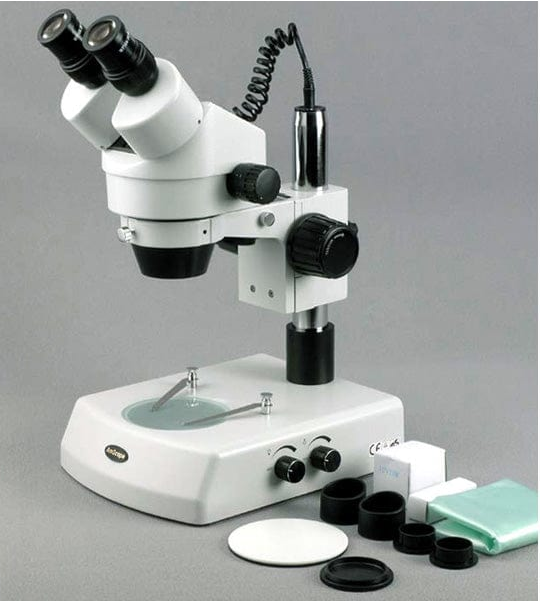

Package Contents
Binocular stereo microscope head
Pair of 10X eyepieces
0.5X Barlow lens
2X Barlow lens
Pair of eye guards
Pillar stand
Focusing block
Top light
Pair of stage clips
Glass stage plate
Black/White stage plate
Power cord
Two light bulbs
Dust cover
User's Manual
Warranty
This product comes with a 5 year factory warranty.
