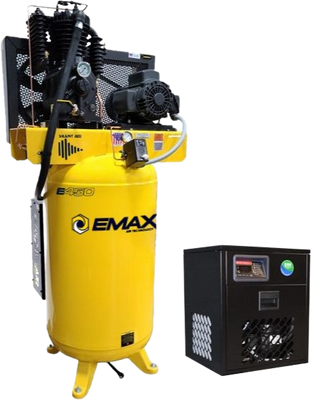

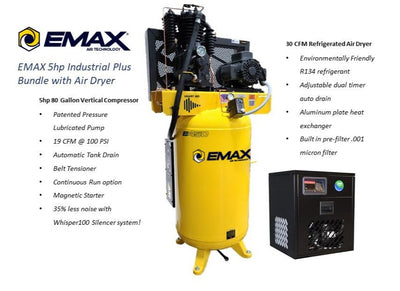

EMAX ESP05V080I1PK Industrial Plus Series 80 Gal. 5 HP 1-Phase Two Stage Silent Air Electric Air Compressor with 30 CFM Dryer New

  • Model: EMAX
  • SKU: ESP05V080I1PK
EMAX ESP05V080I1PK  Industrial Plus Series 80 Gal. 5 HP 1-Phase Two Stage Silent Air Electric Air Compressor with 30 CFM Dryer New

Extended Warranty Options

  • Details
  • Details
  • Details
Warranty has been added in!

In Stock
Manufacturer Direct Shipping
Please allow 2-3 weeks for delivery
  • Free Shipping Options Available
  • Price Match On Most Items
  • Manufacturer Direct
  • Exceptional Customer Service
  • Free Replacement Shipping
To place an order over the phone or for immediate assistance, please call (888) 978-4993. For after hours sales please call (888) 999-1522.
Manufacturer Refurbished 5 year factory warranty
Manufacturer Refurbished Ships directly from EMAX
Manufacturer Refurbished Brand new in box
Manufacturer Refurbished Authorized EMAX dealer


EMAX Compressor Tools and Equipment delivers overwhelming performance to ensure that they meet even the most demanding environments needs. Our products are designed with the highest standards to be deliver all the power you need at the Jobsite, Garage or Shop. All EMAX piston pumps deliver big air and include steel connecting rods and removable disc valves. Air Stream Technology ensures the coolest, quietest air compressor in the industry. It includes an air compressor silencer designed to suppress operating noise level and offers super-quiet low RPMs with a solid cast iron construction for extended life. The compact Whisper 100 is located conveniently on the back of the tank and affordably dissipates compressor intake noise by channeling the intake air through a series of baffle plates and pre-filter media, which traps and dissipates intake noise. This bundle is equipped with a dryer specifically designed for this model and is the only energy efficient dryer system with an aluminum refrigerated air inner cooler. It filters all solid particles 0.01 microns and larger, so only clean, dry compressed air leaves the dryer, which minimizes maintenance and repair, as well as reducing internal dryer contamination. It features a stainless steel heat exchanger for maximum life, as well as adjustable hot bypass to prevent the dryer from freezing up in low and high CFM flow. We also include a full 5-Year Warranty to ensure confidence in our product and service.


  • All of our motors are low RPM (1750 RPM), which runs cooler, yields low harmonic distortion and provides higher torque in cold weather
  • Automatic tank drain with integrated dual timer automatically provides maintenance at a set time interval
  • Premium 5 layer filtration system prevents foreign matter from entering intake and extends pump life
  • Automatic belt tensioner adjusts the tension and alignment of your belts easily and in just minutes
  • Belt guards built with 13G steel to be tougher than anything else in the industry
  • Designed for up to 50,000-hours of commercial or industrial use with proper maintenance
  • Ram-tek solid steel, heavy gauge rods are built for maximum performance and durability
  • We use 100% brass valves with Teflon seating and all safety valves comply to ASME code
  • Has a pre-wired condor starter/pressure switch, featuring an actuation-type diaphragm
  • Continuous run prevents constant cycling, which causes wear on the magnetic contacts
  • Flow-tek concentric disc valves deliver maximum performance and longevity
  • Refrigerated air dryer keeps water, oil and dirt out of your compressed air
  • Top quality compression and oil rings to ensure low oil carry over (1 PPM to 5 PPM)
  • Air dryer ensures less corrosion of pipes and tools for less down time
  • Air dryer uses 120-Volt single-phase power, no special wiring needed
  • Raised pump platform keeps your oil cool within the pump
  • Air dryer uses environmentally friendly R134 refrigerant
  • Note: this package does not come with a hydraulic hose or connection line



Product Depth (in.) - 31
Product Height (in.) - 75
Product Width (in.) - 33


Air Delivery SCFM @ 40PSI - 26.0
Air Delivery SCFM @ 90PSI - 22.0
Amperage (amps) - 24 A
Application Use - Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Cutting,Drilling,Finish Nailing,Framing Nailing,Grinding,HVLP Painting,Hobby Nailing,Hobby Painting,Inflation,Roof Nailing,Sanding,Spraying,Surface Prep
Compressor Tank Capacity (Gallons) - 80
Compressor Type - Garage & Industrial
Compressor/Air Tool Features - Tank Pressure Gauge
Decibel Rating (Outdoor) - 70 dBA
Horsepower (hp) - 5 hp
Lubrication Type - Oil-Lubricated
Maximum Pressure (psi) - 175
Portable - No
Power Source - Electric
Product Weight (lb.) - 576lb
Stage Count - Dual Stage
Tank Material - Cast Iron
Tank Style - Vertical
Tools Product Type - Air Compressor Kit
Voltage (v) - 208/230v
Voltage (volts) - 208/230

Certifications and Listings - 4-UL Certified
Manufacturer Warranty - 5 Year


As an Authorized Emax dealer we offer a 5 year factory warranty on EMAX air compressors.
