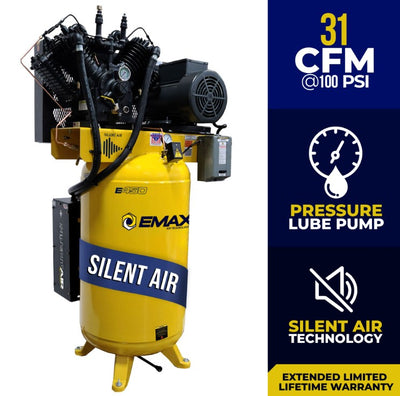

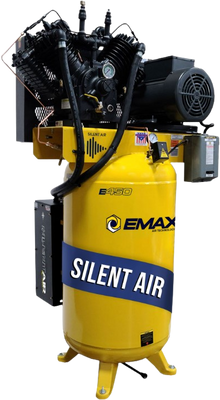

EMAX ESP07V080V1 Industrial 80 Gal. 7.5 HP 1-Phase 2 Stage Pressure Lubricated Silent Air Compressor New
Share
Product Overview
This EMAX ESP07V080V1 7.5 HP 80 gal. Single Phase Plus Silent Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This air compressor delivers 31SCFM at 100PSI, with Max 175PSI. Our silent air PLUS compressor features an industrial electric motor, magnetic starter, automatic tank drain, powder coated ASME tank with a 200 PSI rating, along with our continuous run functionality.
5 year factory warranty
Brand new
Ships directly from EMAX out of OH
Authorized EMAX dealer
Features
- MADE IN USA
- Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours
- Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
- Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
- Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
- Extended tank water drain pipe plumbed out the front of the silent air compressor with 1/4 in. ball valve handle for easy tank draining
- Certified: ASME, CSA, UL, ETL
- Silent air silencer system dissipates air compressor intake noise by channeling the intake air through a series of baffle plates
- Solid cast iron crankcase ensures stable crankshaft alignment and can handle a heavy work load
- Precision balanced solid cast iron crankshaft with Timken-Style stainless steel roller bearings on the front and rear for a smooth and efficient operation
- All steel connecting rods with replaceable rod bearing inserts allows rods to be rebuilt
- Re-usable oil filter
- Removable 100% cast iron cylinders do not warp from heat
- All cast iron cylinder heads are durable and dependable
- Disc valve design intake and exhaust valves can be serviced in minutes
- Top quality compression and oil rings ensure performance with low oil carry over
- Precision ground pistons are machined to tight tolerances that ensure low oil carry over
- Premium non-absorbent gaskets prevent oil seepage from the pump
- All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke, which results in fewer loads on the motor
- Built-in head unloaders are built into the intake valve assembly on the air compressor head, reducing internal pump heat
- Built-in inter-cooler and after-coolers
- Raised pump platform design lifts the pump 2 in. off the mounting base plate, allowing for 100% constant flow of cool air from the flywheel fan to circulate
- Large 1-3/8 in. output shaft on the motor
- Large starting and running capacitors
- Motor can be pulled 15% over full load for more break horsepower
- Dynamically balanced armature for low vibration levels
- Belt guard is made from 13-ga. steel and premium grade expanded metal
- Top quality pressure switches with an adjustable screw which allows you to adjust your pressure higher or lower
- All check valves on the air compressor are brass with a Teflon seating to reduce tank noise
- 100% brass ASME safety valves are preset and sealed for correct settings
- Running amps: 32
- Pump Oil Capacity: 2.5 quarts
- Tank outlet size: 3/4 in.
- Oil level site glass
- Name Brand Industrial Motor RPM: 1750
- Electric motor meets ALL UL and CSA requirements
Specifications
| Portable or Stationary | Stationary |
| Power Type | Electric |
| Product Height | 72 ft. |
| Product Length | 38 ft. |
| Product Weight | 810 lb. |
| Product Width | 42 ft. |
| Pump Life | 70,000 Hr |
| Pump Material | Solid Cast Iron |
| Pump Oil Capacity | 2.5 qt. |
| Regulator Included | No |
| Running Horsepower | 7.5 HP |
| Stage Type | Two-Stage |
| Start Type | Electric |
| Tank Capacity | 80 gal. |
| Tank Fill Time | 4 min. |
| Tank Orientation | Vertical |
| Tank Pressure Gauge | Yes |
| Voltage | 230 volt |
| Air Delivery SCFM At 40 PSI | 35 SCFN |
| Air Delivery SCFM At 90 PSI | 32 SCFM |
| Airflow Volume | 31 CFM |
| Air Outlet Size | 3/4 in. |
| Amperage | 32 Amps |
| Application/Use | Pneumatic |
| Cartridge Size | 0 ea |
| Color | Yellow |
| Compressor Type | Vertical |
| Country of Origin | Made in USA |
| Drain System | Electric Autodrain |
| Drive Type | Electric Motor |
| Engine Brand | N/A |
| Fuel Tank Capacity | 0 gal. |
| Hose Included | No |
| Low-Oil Shutdown | No |
| Lubrication Type | Oil |
| Maximum Operating Pressure | 175 PSI |
| Maximum RPM | Pump 640 rpm |
| Motor Phase | Single |
| Number of Power Speeds | 1 |
| Number of Wheels | 0 |
| Oil Free Compressor | No |
Package Contents
EMAX Compressor
Owner's Manual
Warranty
This item comes with a 5 year factory warranty.
