MRCOOL Ductless Mini-Split Air Conditioner & Heater 36,000 BTU 3 Ton 230V Advantage 4th Gen A-36-HP-230C New
Manufacturer: MRCOOL
SKU: A-36-HP-230C
Share
Email
QTY
$ 2,246.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Pay Over Time
Select Bread as your payment at checkout
In Stock
Ships In 1-2 Business Days
Manufacturer Direct
Exceptional Customer Service
Manufacturer Direct
Product Overview
Designed to be installed by an HVAC technician, this 4th generation MRCOOL Advantage Series is now efficiently rated at 17.5 SEER. Immediately upon installation, this quality mini-split system provides high quality comfort with a price point that’s hard to beat. The high performance compressor features the eco-friendly refrigerant R-410A that is chlorine-free. This MRCOOL Advantage system incorporates both quality and superior technological control with its WiFi control module. It aids in easier setup and you’re able to control it with the SmartHVAC app, or your Amazon Alexa or Google Assistant.
Brand new in box
2 year limited factory warranty
Manufacturer direct shipping from KY & NV
Fast shipping
Authorized MRCOOL dealer
Features
- Installation kit included
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- The new 4th generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant
- Installation by a licensed professional required where applicable
- 1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Sleep mode, louver position memory, and auto restart functions

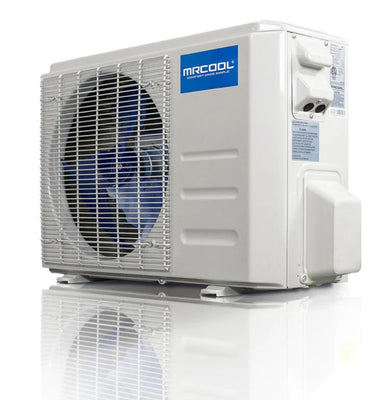

- Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor
Specifications
| Condenser Dimensions | 37.24"W x 16.14"D x 31.89"H |
| Condenser Weight | 150.13 lbs |
| Air Handler Dimensions | 49.57"W x 11.10"D x 14.25"H |
| Air Handler Weight | 40.34 lbs |
| SEER | 17.5 |
| SEER2 | 17.5 |
| EER2 | 8.5 |
| COP 47 | 2.81 |
| HSPF | hspf4/hspf5 : 12/8 |
| HSPF2 | hspf4-2/hspf5-2: 8.7/6.8 |
| Tonnage | 3 |
| Cooling Capacity | 36,000 BTU |
| Heating Capacity | 36,000 BTU |
| Voltage | Requires a minimum of 208-230V/60HZ/28-35A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 35 A |
| Min Circuit Ampacity | 28 A |
| Color | White |
| Max Coverage Area | 1,500 sqft |
| Zone Capacity | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 119.9 oz |
| Decibel Rating | 40 to 54.5 dBA |
| Decibel Rating Low | 40 dBA |
| Decibel Rating High | 54.5 dBA |
| Inverter | Yes |
| Min Ambient Cool | 5F - 122F |
| Min Ambient Heat | 5F - 75F |
| Line Set Length | 25ft |
| Max Lineset Length | 98.42 ft |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 5/8 in |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor RPM | 950/250 |
| Blower Motor RPM | 1200/950/750 |
| Auxiliary Heater Available | No |
| Modes | Fan Only |
| Quiet Mode | Auto Cool |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with | IOS |
| Android | Includes |
| Remote | Batteries |
| Certifications | UL Listed |
| CSA LIsted | ETL Listed |
| Registered Warranty | 1-Year Compressor, 2-Year Parts and 1-Year remote |
Package Contents

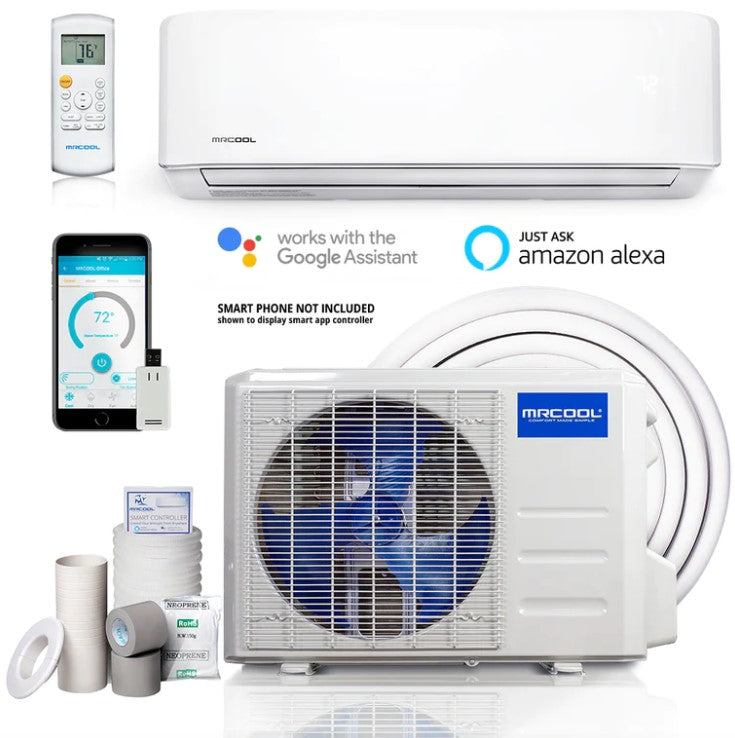

36K BTU Heat Pump Condenser & Wall Mount Air handler 230 volt
Installation kit included with 25' lineset
User Manual
Warranty
This product comes with a 1 year compressor, 2 year parts and 1 year remote warranty when registered and when installed by a licensed professional.
