Renogy RNG-KIT-PREMIUM800D-RVR40 800 Watt 24 Volt Solar Premium Kit New

Manufacturer: Renogy

SKU: RNG-KIT-PREMIUM800D-RVR40

  • Renogy RNG-KIT-PREMIUM800D-RVR40 800 Watt 24 Volt Solar Premium Kit New
  • Renogy RNG-KIT-PREMIUM800D-RVR40 800 Watt 24 Volt Solar Premium Kit New
  • Renogy RNG-KIT-PREMIUM800D-RVR40 800 Watt 24 Volt Solar Premium Kit New
  • Renogy RNG-KIT-PREMIUM800D-RVR40 800 Watt 24 Volt Solar Premium Kit New
  • Renogy RNG-KIT-PREMIUM800D-RVR40 800 Watt 24 Volt Solar Premium Kit New
  • Renogy RNG-KIT-PREMIUM800D-RVR40 800 Watt 24 Volt Solar Premium Kit New
  • Renogy RNG-KIT-PREMIUM800D-RVR40 800 Watt 24 Volt Solar Premium Kit New
  • Renogy RNG-KIT-PREMIUM800D-RVR40 800 Watt 24 Volt Solar Premium Kit New
  • Renogy RNG-KIT-PREMIUM800D-RVR40 800 Watt 24 Volt Solar Premium Kit New
  • Renogy RNG-KIT-PREMIUM800D-RVR40 800 Watt 24 Volt Solar Premium Kit New
  • Renogy RNG-KIT-PREMIUM800D-RVR40 800 Watt 24 Volt Solar Premium Kit New
  • Renogy RNG-KIT-PREMIUM800D-RVR40 800 Watt 24 Volt Solar Premium Kit New

QTY

$ 1,279.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review
mcafee icon
Renogy RNG-KIT-PREMIUM800D-RVR40 800 Watt 24 Volt Solar Premium Kit New

Renogy RNG-KIT-PREMIUM800D-RVR40 800 Watt 24 Volt Solar Premium Kit New

Product Overview

Take command of your power system with a Renogy Premium Solar Kit. If efficiency and reliability are your primary request, the Renogy Premium Solar Kit is your choice. Includes the new 100W Mono Solar Panel which is not only sleek in size, weight, and color but are made of the highest efficiency solar cells that Renogy has to offer.

The included Rover 20A/40A Li MPPT Solar Charge Controller features Maximum Power Point Tracking technology, which increase charging efficiency. For convenience, this kit also consists of mounting Z-Brackets, one Adaptor Kit, one Tray Cable, fusing components for your controller and battery protection, and a Bluetooth module allows for remote monitoring and parameter changes directly via the Renogy BT app.

This Premium Kit is perfect for installation on an RV, boat, or camper. It can also be installed in a ground mount system next to an off-grid campsite.

vendor logo
divider
authorized dealer
checkmark

5 year limited factory warranty

checkmark

Brand new in box

checkmark

Ships directly from Renogy out of CA

checkmark

Authorized Renogy dealer

Features

  • Monocrystalline panels come with high-efficiency cells that help increase module efficiency. Module efficiency: Eclipse 100W Monocrystalline: 18.35%
  • Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
  • Rover charge controller brings peak conversion efficiency of 98%, high Tracking efficiency of 99%
  • Extra thick anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance
  • EL tested solar modules; no hot-spot heating guaranteed
  • Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
  • IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
  • 4-Stage battery charging process for a rapid, efficient, and safe battery charging
  • RS-232 port compatible for extra features
  • Compatible with Renogy Bluetooth Module and Renogy BT APP for remote monitoring
  • Pre-drilled holes on the back of the panel allow for fast mounting and securing

Specifications

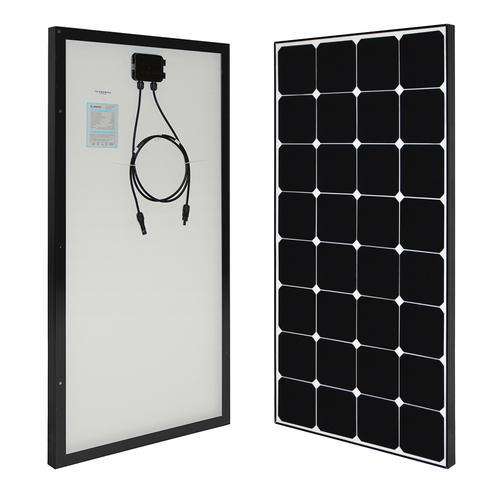

Renogy 100W Eclipse Panel
Maximum Power 100W
Maximum System Voltage 600V DC
Open-Circuit Voltage (Voc) 21.2V
Short-Circuit Current (Isc) 6.10A
Optimum Operating Voltage (Vmp) 17.7V
Optimum Operating Current (Imp) 5.70A
Weight 15.0lbs
Dimensions 40.8 X 20.7 X 1.4 inches

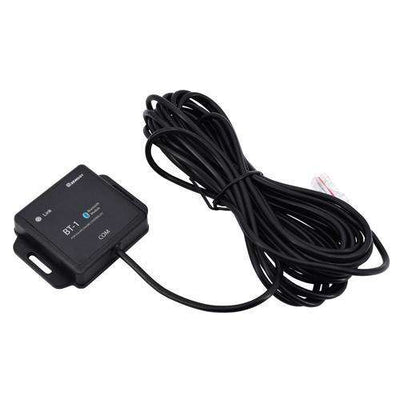

BT-1 Bluetooth Module
Input Voltage 5V-12V
Communication Range ≤15m
Compatible Models All Renogy Controllers with RJ12 port
Operation Temperature -20℃ to 75℃ (-4 F to 167 F)
Mounting Z Brackets (Set) 8x long bolts w/ cap 4x short bolts 4x washers 4x nuts
Renogy Solar MC4 Branch Connectors MMF+FFM Pair
Withstanding voltage 1000V DC(TUV), 600V(UL)
Protection Class Class II
Protection Degree IP67, mated
Insulation Material PC/PA
Temperature Range -40°F to 194°F
Renogy 8AWG cables
Rating Voltage 600/1000v
Length 8ft
Temp -40 F to 185 F

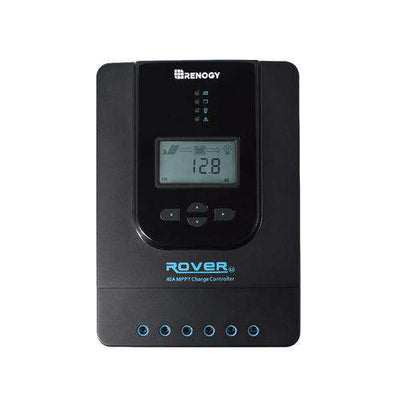

Rover Li 40A MPPT Charge Controller
Rated Battery Current 40A
Rated Load Current 20A
Max. PV Input Short Current 50A
Max Solar Input Voltage 100VDC
Rated Load Current 10% to 90% NC
Overall Dimension 9.37 x 6.81 x 2.85 in
Net Weight 4.41 lb.

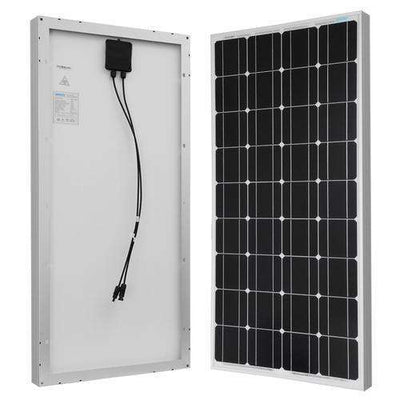

Renogy 100W Monocrystalline Panel
Maximum Power 100W
Maximum System Voltage 600V DC
Open-Circuit Voltage (Voc) 22.5V
Short-Circuit Current (Isc) 5.75A
Optimum Operating Voltage (Vmp) 18.9V
Optimum Operating Current (Imp) 5.29A
Weight 16.5lbs
Dimensions 47.0 X 21.3 X 1.4 inches
Renogy 10A MC4 Fuse Holder w/Fuse
Rated Current 10A
Rated Voltage 1000 V DC
Contact Material Copper, Silver Plated
Replaceable Fuse Cylindrical PV Fuse (10x38mm)

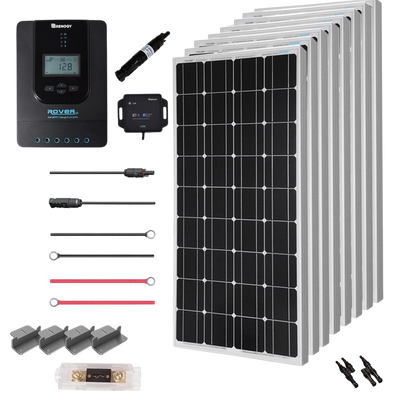

Package Contents

Renogy Eclipse or Mono Panel

Charge Controller

20ft 10AWG AK

2ft 8AWG Fuse Cable

8ft 8AWG Tray Cable

Mounting Brackets

Bluetooth Module

Fuses

Renogy Solar MC4 Branch Connectors MMF+FFM Pair

User Manual

Warranty

vendor logo
divider
authorized dealer

As an authorized Renogy dealer, this item comes with a 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate5-year material and workmanship warranty and 1 year material and workmanship warranty
