Renogy RNG-KIT-STARTER300D-WND30 400 Watts 12 Volts Monocrystalline Off Grid Solar Starter Kit New
- Model: Renogy
- SKU: RNG-KIT-STARTER300D-WND30
- Free Shipping Options Available
- Price Match On Most Items
- Manufacturer Direct
- Exceptional Customer Service
- Free Replacement Shipping
 |
Brand new in box & manufacturer direct |
|
25 year limited factory warranty |
|
All original accessories included |
|
Authorized Renogy dealer |
|
Free Shipping |
Whether your journey takes you across the US or even just to your own backyard, a Renogy Solar Starter Kit is a perfect power solution. A Starter Kit can give you the freedom to travel further from the grid without having to worry about how you will recharge your most important small electronics. The Renogy 300W Monocrystalline Starter Kit is designed for customers new to solar, or those looking to expand on an existing power system.

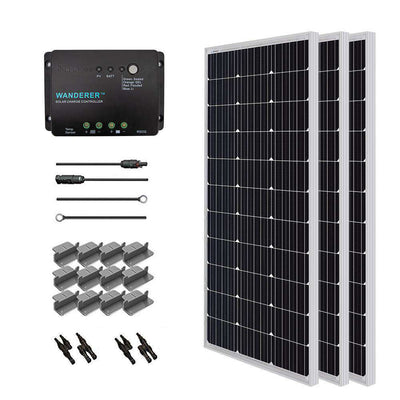

The Starter Kit is ideal for several off-grid applications, including RVs, trailers, boats, sheds, and cabins — providing many benefits, including, but not limited to, quiet power production and grid independence. This kit comes with the tools necessary for a new system: three Renogy 100W 12V Monocrystalline Solar Panels, one 30A PWM Wanderer Li Charge Controller, one 20ft 10AWG MC4 Adaptor Kit, one 8ft 10AWG Tray Cable, two pairs of branch connectors, and three sets of Z-brackets. Start your solar adventure with the convenience and comfort of knowing that you can have power anywhere there is sunlight!
Efficient
- High solar cell efficiency : Monocrystalline 21.0%, Polycrystalline 17.9%
- EL tested solar modules; no hot-spot heating guaranteed
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
- TPT back sheet ensures smooth performance over a long period of time
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
- Sealed, Gel Flooded and Lithium charging algorithm ready
- 4-Stage battery charging process for a rapid, efficient, and safe battery charging
- The Renogy Wanderer is equipped with multiple electronic protections; overcharging, overload, short-circuit and reversed polarity
- Pre-drilled holes on the back of the panel allow for fast and secure mounting
Expandable
- With the Renogy Wanderer Li 30A PWM Charge Controller, you can expand your system up to a maximum of 400W. The Renogy 100W Monocrystalline/ Polycrystalline Expansion Kit Expansion Kit is the perfect solution for future expansion
Package Includes:
|
3 x |
2 x |
|
3 x |
Renogy 20ft 10AWG MC4 Adaptor Kit (A pair)
1 x |
|

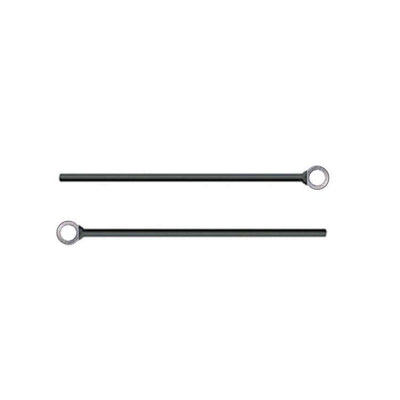

Renogy 8ft 10AWG Tray Cables (A pair)
1 x |
Renogy Wanderer Li 30A PWM Charge Controller
1 x |

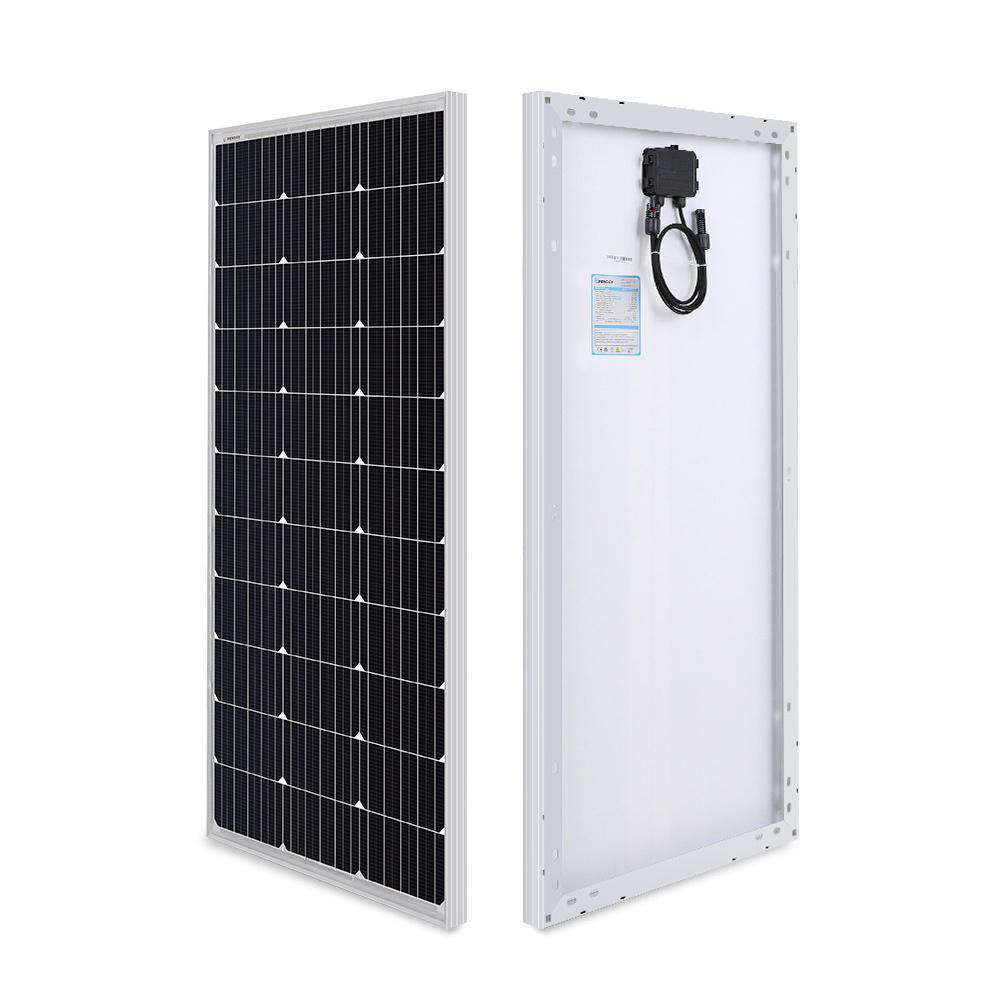

| Renogy 100W Monocrystalline Solar Panel | Renogy 100W 12V Polycrystalline Solar Panel |
|---|---|
| Maximum Power: 100W | Maximum Power: 100W |
| Maximum System Voltage:600V DC (UL) | Maximum System Voltage:600V DC (UL) |
| Open-Circuit Voltage (Voc): 21.6V | Open-Circuit Voltage (Voc): 22.4V |
| Short-Circuit Current (Isc): 6.24A | Short-Circuit Current (Isc): 5.92A |
| Optimum Operating Voltage (Vmp): 17.9V | Optimum Operating Voltage (Vmp): 17.8V |
| Optimum Operating Current (Imp): 5.72A | Optimum Operating Current (Imp): 5.62A |
| Weight: 16.5lbs | Weight: 16.5lbs |
| Dimensions: 42.2 X 19.6 X 1.38 inches | Dimensions: 39.7 X 26.7 X 1.4 inches |

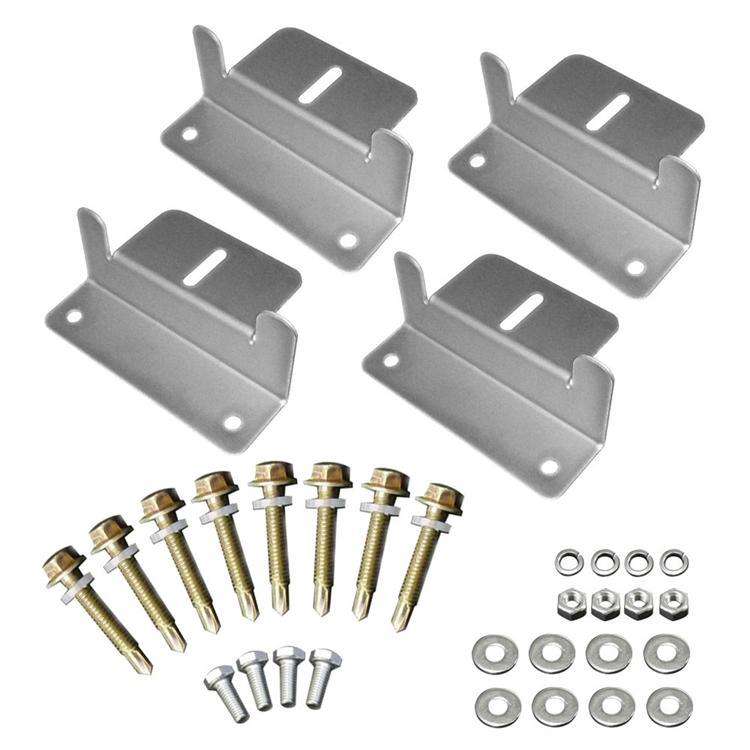

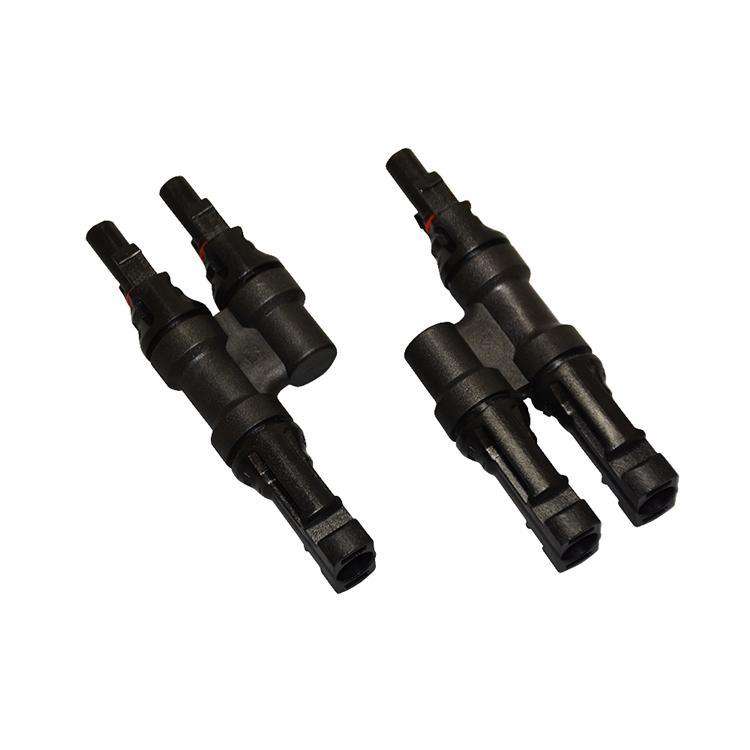

| Renogy MC4 Branch Connectors | Mounting Z Brackets (Set) |
|---|---|
| Withstanding Voltage: 1000V DC(TUV), 600V(UL) | Eight Long Cap Bolts and Four Short Bolts |
| Protection Degree: IP67, mated | Four Spring Washers and Four Washers |
| Wiring Size Range: 10, 12, 14 AWG | Four Z Shape Solar Panel Brackets |
| Temperature: -40°F to +195°F | Four Nuts |

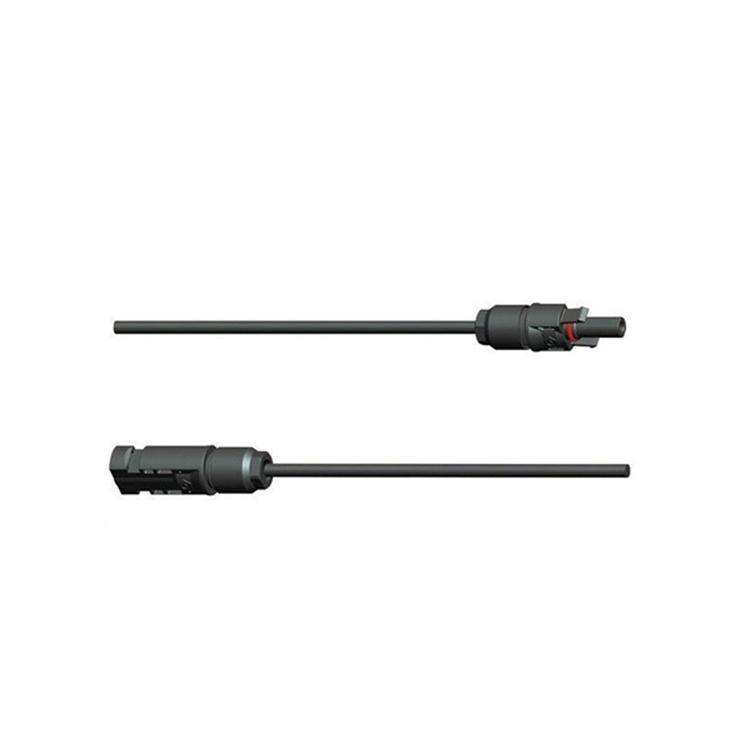

| Renogy Adaptor Kit (Set) | Renogy 8ft 10AWG Tray Cables (A pair) |
|---|---|
| Length: 20ft | Length: 8ft |
| AWG: 10 | AWG: 10 |
| Rating Voltage: 600/1000V | Rating Voltage: 600/1000V |
| Temperature: -40°F to +185°F | Temperature: -40°F to +185°F |

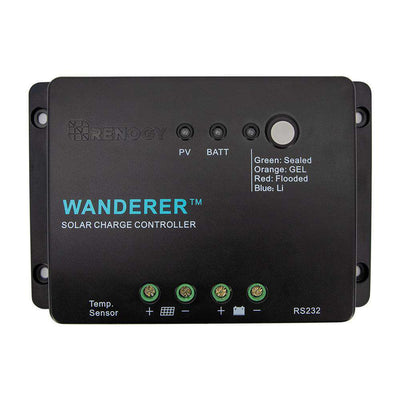

| Renogy Wanderer Li - 30A PWM Negative-Ground Charge Controller | |
|---|---|
| Nominal Voltage: 12 VDC | |
| Rated Charge Current: 30A | |
| Max. PV Input Voltage: 25 VDC | |
| Max. PV Input Power: 400W (12V) |
Warranty Information
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
Certification
 |
