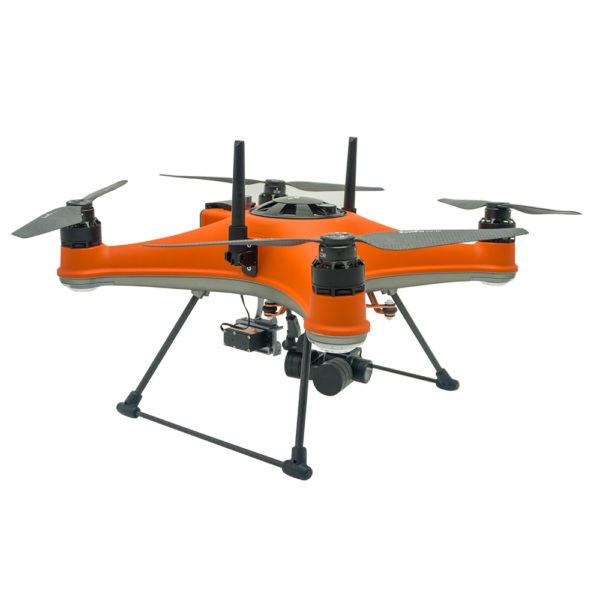

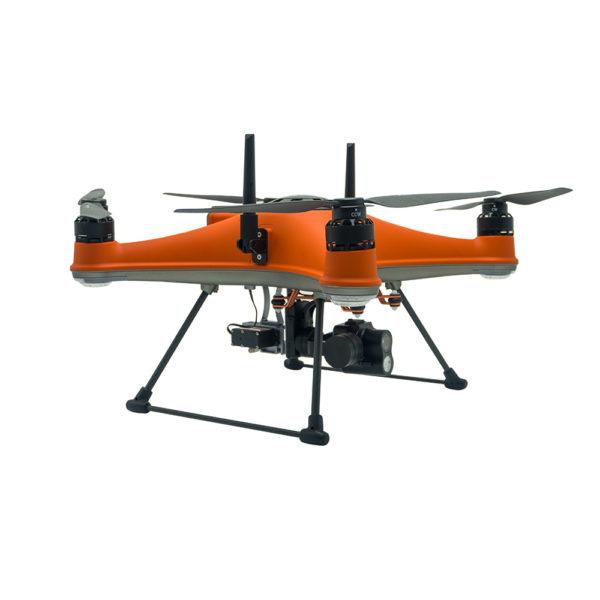

SwellPro Splashdrone 4 Fishing Drone Bundle New
Manufacturer: SwellPro
SKU: FPSD4FISH+FP6970759632392
Share
Email
QTY
$ 3,175.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Extended Warranty
Factory Warranty
- This item comes with a 12 month limited manufacturer's warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 12 month limited manufacturer's warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
Exceptional Customer Service
Manufacturer Direct
Product Overview

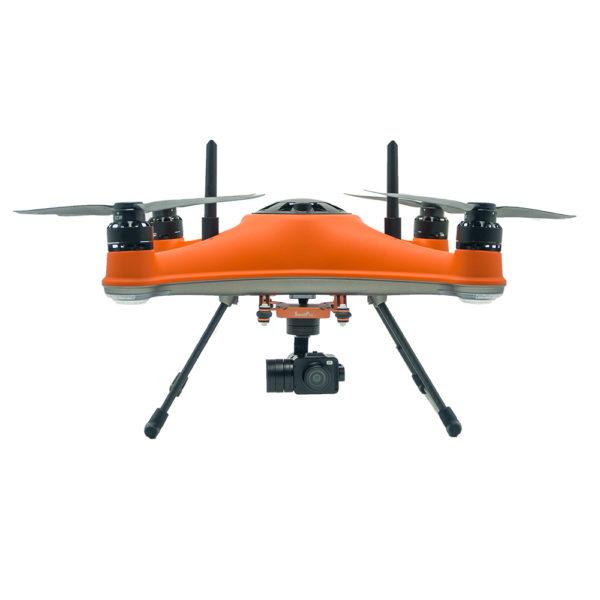

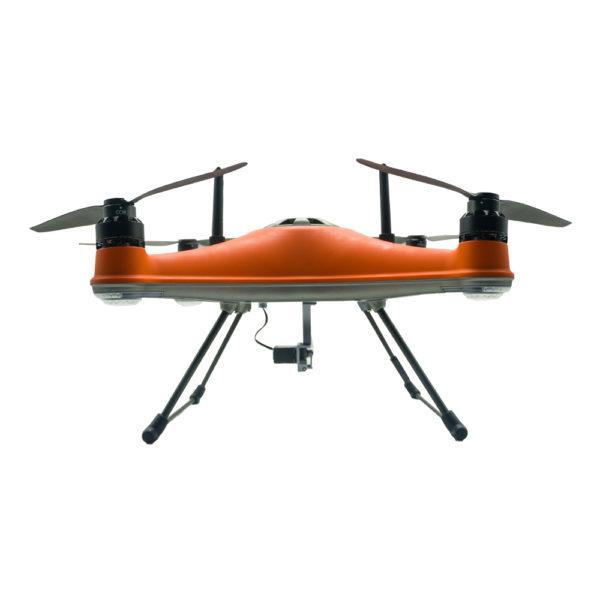

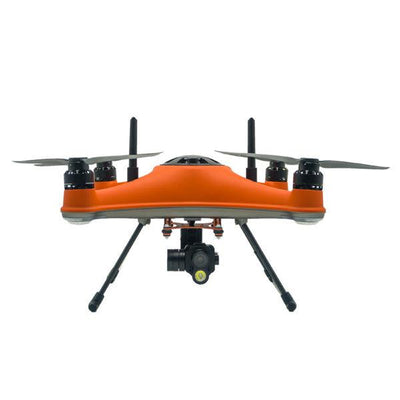

SplashDrone 4 is the all-new waterproof flight & float platform designed for multipurpose operation in any harsh environment.
The tough, rigid fuselage is made out of industrial-grade ABS. Each SplashDrone 4 is factory-sealed to the slightest details and air-pressure tested for our exclusive 100% waterproof guarantee.

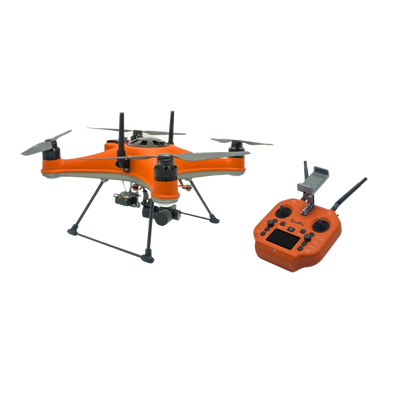

Fishing Bundle includes: SplashDrone 4 Waterproof Drone and all accessories (including remote, charger, 1 battery and case), all-new GC1-S Axis Gimbal & 4K Waterproof Camera, and all-new PL1-S Payload Release System. The fishing bundle is all you need to get started!
Brand new and manufacturer direct
12 month manufacturer's warranty
Ships from manufacturer in WI
Fast processing with free shipping
Authorized SwellPro dealer
Features
All-new IP67 seawater-proof body: SplashDrone 4 is designed to have the best waterproofing technology in the industry. The tough, rigid fuselage of is made out of industrial-grade ABS. Each SplashDrone 4 is factory-sealed to the slightest details and air-pressure tested for our exclusive 100% waterproof guarantee. The waterproof motors and internal electronics are also coated with corrosion-resistant coating adding an extra layer of protection over the already total waterproof design.
All-new IP66 waterproof remote controller: The all-new SplashDrone 4 remote controller is now waterproof for your worry-free operation. You can even toss it on the water or rinse off the collected sand. The built-in GPS offers a variety of new features, including real-time tracking and dynamic return to pilot. The remote controller is now capable of offering multiple devices connection for a better collaborative operation.
Multi-functional payload options: With its modular multi-functional payload system and open interface design, the SplashDrone 4 can quickly adapt to different tasks in the field.
Optional Waterproof 3-axis 4K camera: Capture smooth videos and crisp photos with the new, fully waterproof 4K camera stabilized by a 3-axis gimbal. The powerful gimbal remains stable even after being hit by waves. The GC3-S supports RAW images. Special filters and manual adjustment of camera parameters allow for greater creative freedom.

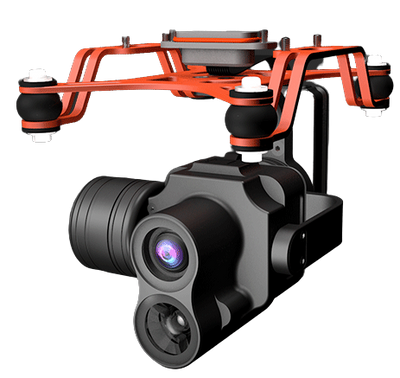

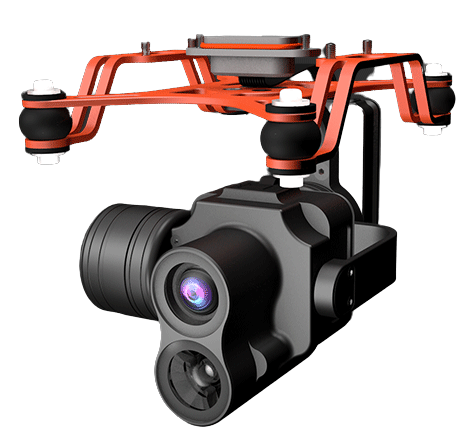

Optional Waterproof 2-axis night vision camera: The new GC2-S night-vision camera comes with a dimmable spotlight that allows use even in complete darkness. The high-sensitivity sensor of the GC2-S provides full color images even in dim light when normal cameras cannot return an image.

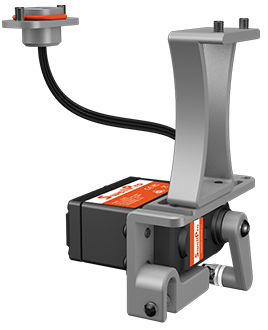

- Included Waterproof payload release: The PL-1 payload release turns the SplashDrone 4 into an aerial bait dropping system that can deliver 2KG of bait and drop the bait at targeted locations up to 4km. The PL-1 can be mounted together with your choice of camera accessories for targeted payload release. Using the SwellPro NaviFLy app, you can program the bait drop or replay flights to successful fishing locations.
Innovative Smooth+ flight control: The patented “Smooth+” flight control allows the pilot to finely tune the Roll and Yaw of SplashDrone 4. Smooth+ makes professional, steady flight control as easy as turning the knobs. Simply switch to Smooth+ control, together with our 4K 3-axis gimbal, you can take high-quality, ultra-smooth & steady shots effortlessly.
5KM image transmission: The latest 5.8GHz digital image transmitter and adjustable antennas ensures a clear and reliable image and control signal range to the SplashDrone 4 of over 5km while airborne.
Dynamic return to pilot: The SplashDrone 4 constantly records the GPS position of the remote controller, allowing the aircraft to always return to the pilot‘s position even if they are on a moving boat far away from the original take-off point.
Boat Mode: Equipped with floating foams, the boat mode allows SplashDrone 4 to sail on water just like a boat, providing great underwater shots while remains the water area uninterrupted. Caves and other overhead environments can now be accessed by SplashDrone 4 for research, exploration, and underwater photography.
Unrivalled-performance Propulsion System: The more powerful 740Kv Motor, 40A ESC together with optimized aerodynamic design allow for tight, responsive, and total control of SplashDrone 4 in any challenging weather conditions.
Smart Battery: The new slide-in smart battery has an internal battery management system for real-time power monitoring and protection both in charging and discharging, ensuring battery health, safety and longer lifespan. The 6500mAh high-performance lithium technology cells provide up to 30 minutes of flight time.
The SwellPro Navifly APP: The newly-developed SwellPro Navifly APP enables logging, planning, recording of missions as well as the control and parameter setting of cameras and other modules in flight.
Specifications
| Aircraft | |
| Waterproof Rating | IP67 |
| Drone Weight (include battery and propellers) | 2.18 kg |
| Axis Diameter | 450 mm |
| Max Ascend Speed | 4m/s |
| Max Descend Speed | 4m/s |
| Max Flight Speed | 22 m/s (ATTI)); 10 m/s (GPS) |
| Max Tilt Angle | 12.5° (ATTI); 25° (ATTI fast) |
| Max Takeoff Altitude | 120m (GPS) / ATTI - no limitation |
| Max Wind Speed Resistance | 8 m/s (11-16knots)(F4); 14 m/s (F7) peak gust |
| Max Flight Time | 30 mins (no wind & no load) (approx. 25 mins with GC3-S, approx.15 mins with load of 1.5kg) |
| Max Flight Distance | 5.0 km |
| Max Payload Capacity | 2.0 kg |
| Propellers | #1242 carbon fiber quick release propellers |
| Operating Frequency | 5180 - 5875 MHz |
| Transmitter Power (EIRP) | FCC/IC |
| Working Temperature | -10℃ ~ 40℃ |
| Satellite Positioning Systems | GPS/GLONASS |
| Hovering Precision | ±0.5 m (vertical); ±0.5 m (horizontal) |
| Pass-through Serial Port | Connect to a third-party device and transfer the data of the third-party device to the remote control |
| UART | Allows for TTL serial port to TCP, support baud rate of 115200 |
| Wi-Fi Hotspot | IP |
| Power Input | 12V/2A | 5V/2A |
| Remote Control | |
| Waterproof Rating | IP66 |
| Operating Frequency | 5180 - 5875 MHz |
| Transmitter Power (EIRP) | FCC/IC |
| Real-time Video Transmission | 720P@30fps |
| Latency | 200 ms (It depends on the actual shooting environment and mobile devices) |
| Battery | 2S 3600mAh |
| Working Time | 7 hours |
| Working Current/Voltage | 0.3A/7.4V |
| Ethernet Port | IP |
| Wi-Fi Hotspot | IP |
| Mobile Device Mount | Suitable for any size phones; Tablets require a larger mount (sold separately) |
| Screen | 2.68 inch, 128x64 |
| Working Temperature | -10℃ - 40℃ |
| Remote Charging time | 3 hours |
| Power Input | 5V/2A |
| Intelligent Battery | |
| Nominal Capacity | 6600mAh |
| Voltage | 14.8V |
| Type | Intelligent 4S LiPo |
| Watt Hours | 97.68 Wh |
| Size | 153.6*82.4*48.3mm |
| Weight | 735 g (±5 g) |
| Working Temperature | -10℃ - 40℃ |
| Charging Time | 1.5 hour |
| Max Charging Power | 84 W |
| Intelligent Battery | |
| Nominal Capacity | 6600mAh |
| Voltage | 14.8V |
| Type | Intelligent 4S LiPo |
| Watt Hours | 97.68 Wh |
| Size | 153.6*82.4*48.3mm |
| Weight | 735 g (±5 g) |
| Working Temperature | -10℃ - 40℃ |
| Charging Time | 1.5 hour |
| Max Charging Power | 84 W |
| Charger | |
| Input | 100 – 240V, 50/60Hz |
| Output | 16.8V@Dynamic Current / 5V@1.5A |
| Rated Power | 84.5 W |
| Mobile Device connection | |
| Operation Frequency | 5180 - 5875 MHz Max |
| Transmission Distance | 10 m (Unobstructed, free of interference) |
| APP | |
| Mobile App Name | SDFly |
| Live View Quality | 720p@30fps |
| Latency | ＜ 250 ms (depending on environmental conditions and mobile device |

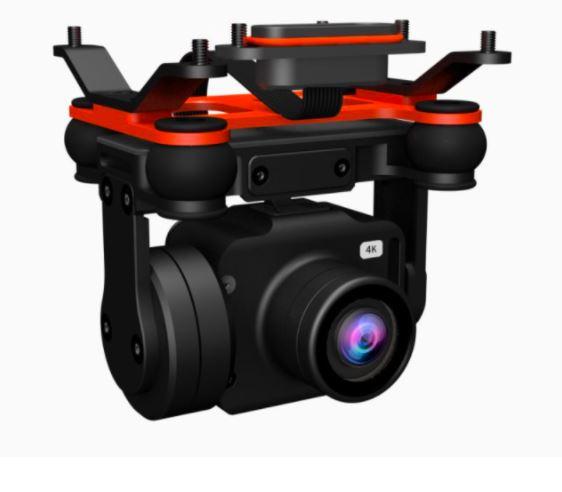

| 1-Axis Gimbal Camera (GC1) | |
| Waterproof | IP67 |
| Axis | 1 axis (pitch) |
| Pitching Angle | -90° to 0° |
| Maximum Control Speed | Pitch 60°/s |
| Weight | Approx. 145g |
| Size | 71*55*65mm |
| Image Sensor | 1/2.3" 12M SONY CMOS |
| Lens | F4.53mm f/2.65, FOV |
| ISO range | 100 - 3200 |
| Shutter Speed | 16 - 1/16000 s |
| Photo Resolution | 4 |
| Burst Photo | 3/5/10 pcs |
| Interval Photo | 1/3/5/10s |
| Video Resolution | 4K |
| Max Video Stream | 64 Mbps |
| Photo Format | JPEG / DNG |
| Video Format | MP4 / MOV |
| Support Memory Card | Micro SD CARDS with a maximum capacity of 128GB, write speed ≥60 MB/s, supports Class 10 or above & UHS-1 rating |
| Working temperature | -10℃ to 40℃ |
| 2-Axis Low-Light Gimbal Camera (GC2-S) | |
| Waterproof | IP67 |
| Weight | Approx.220g |
| Size | 113*92*80mm |
| Image Sensor | 1/2" 2M Starlight CMOS |
| Lens | FOV |
| Burst Photo | 3/5/10pcs |
| Interval Photo | 1/3/5/10s |
| Video Resolution | FHD |
| Max Video Stream | 64 Mbps |
| Photo Format | JPEG |
| Video Format | MP4 / MOV |
| Support Memory Card | Micro SD CARDS with a maximum capacity of 128GB, write speed ≥65 MB/s, supports Class 10 or above & UHS-1 rating |
| Working temperature | -10℃ to 40℃ |
| 3-Axis Gimbal Camera (GC3-S) | |
| Waterproof | IP67 |
| Axis | 3 axis (pitch, roll, yaw) |
| Pitching Angle | -90° to 0° |
| Maximum Control Speed | Pitch 60°/s |
| Weight | Approx. 310g |
| Size | 113*92*110mm |
| Image Sensor | 1/2.3" 12M SONY CMOS |
| Lens | F4.53mm f/2.65, FOV |
| ISO range | 100 - 3200 |
| Shutter Speed | 16 - 1/16000 s |
| Photo Resolution | 4 |
| Photo Shooting Mode | A single shot |
| Burst Photo | 3/5/10 pcs |
| Interval Photo | 1/3/5/10s |
| Video Resolution | 4K |
| Max Video Stream | 64 mbps |
| Photo Format | JPEG / DNG |
| Video Format | MP4, MOV |
| Support Memory Card | Micro-SD card with a maximum capacity of 128GB, write speed ≥15 MB/s, supports Class 10 or above & UHS-1 rating |
| Working temperature | -10℃ to 40℃ |
| Payload Release (PL1-S) | |
| Waterproof Rating | IP67 |
| Weight | 96 g |
| Size | 59*38*50mm |
| Max. loading weight | 2 kg |
Package Contents
1x SplashDrone 4 body
1x Remote Controller
2x Propellers(pair)
1x Intelligent Battery
1x Power Adapter
1x Power Cable
1x RC Barrel Power Cable
1x Micro USB Cable
1x Hex Screwdriver
2x Hex Screw
1x Barometric Membrane(extra)
1x Axis Gimbal Camera (GC1)
1x PL1-S Payload Release System
Owner's manual
Warranty
This item comes with a 12 month limited manufacturer's warranty.
