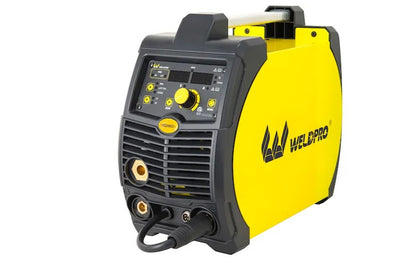

Weldpro MIG200GDSV 3-in-1 Welder With Dual Voltage 200V/110V MIG/TIG/Arc Stick 200 Amp Inverter L13004 New
Manufacturer: Weldpro
SKU: L13004
Share
QTY
(888) 999-1522
$ 770.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
ON SALE!
USE THE FOLLOWING CODE FOR $10 OFF: 10off COPY
Ships in 1-2 business days
Extended Warranty
Factory Warranty
- This item comes with a 3 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 3 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
Exceptional Customer Service
Manufacturer Direct
Weldpro MIG200GDSV 3-in-1 Welder With Dual Voltage 200V/110V MIG/TIG/Arc Stick 200 Amp Inverter L13004 New
Share
Product Overview

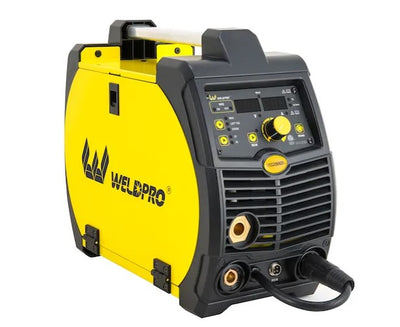

The Weldpro 200 Amp Inverter 3-in-1 multi-process dual-voltage welder is a synergically designed MIG (DC)/ Flux Core/TIG(DC)/Stick(DC) welder that takes the worry out of adjusting voltage and wire speed. The model Mig 200 automatically adjusts and compensates both voltage and wire speed together while at the same time allowing the user to fine-tune voltage independently if they so desire .
3 year factory warranty
Brand new in box
Ships directly from Weldpro out of WA
Authorized Weldpro
Features
- The IGBT Inverter Technology provides high power in a light, compact unit (30 lbs). Advanced Inductive settings allow for smoother, cleaner, welds with less spatter than other machines in and above this price range.
- This unit is capable of performing MIG, Lift TIG and Stick welding equally well at maximum 200 amp output.
- There’s not much this unit can’t do. With Dual Digital display easily set amperage and wire speed for repeatable welds every time. 2T/4T modes, spool gun capability, and advanced DC lift TIG features.
- This multi-process welder truly handles about any chore, including aluminum when used with the optional spool gun in the MIG mode.
- Lift TIG welding even allows for brazing of dissimilar metals using The TIG braising technique.

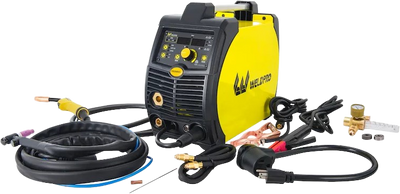

- Package includes: 1. 10ft MIG torch ERGOPLUS15; 2. TIG torch: 13 ft. WP-17V; 3. Electrode holder: 5AWGx10 ft. 200A cable 35-50 quick connector; 4. Earth clamp: 5AWGx10 ft. 300A cable35-50 quick connector; 5. Gas hose: 55; 6.Power adapter.
- The Mig 200 is a quality, versatile machine backed by the Weldpro 2 year factory warranty.
- The model 200 is also capable of true lift TIG welding as well as stick welding and aluminum welding with the optional spool gun. The MIG 200 is an intuitive synergically designed MIG / Flux Core welding machine.
- MIG,Stick or TIG weld all from a single compact, space-saving unit. Welding Amperage Ranges230V: MIG: 40-200A; MMA: 40-200A; TIG: 15-200A115V: MIG:40-120A; MMA:40-120A; TIG: 15-120A; 30% at 200 Amp rated duty cycle
- MIG welding wire diameter: 0.024/0.031/0.039, welding thickness: 19ga- 0.197 in; TIG tungsten needle diameter: 0.063 0.094, welding thickness: 25ga- 1/4 in; MMA electrode Dia: 0.063-0.157 acid electrode, alkaline electrode, welding thickness: 14ga-0.315in

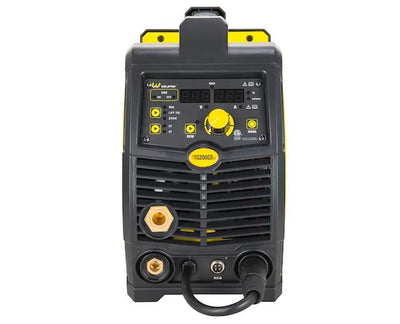

- Dual digital display easy to read and set amperage and wire speed for repeatable welds every time. VRD high temp and overload protection with indication. User adjustable inductance settings.
Specifications
| Supply voltage (V) | 1 phase 115V±15% 1 phase 230V±15% |
| Frequency (Hz) | 60 |
| Rated input current (A) | MIG: 35.7 MMA: 44.3 TIG: 26.4 MIG: 35.7 MMA: 41.7 TIG 26.8 |
| No-load voltage (V) | 65 |
| Output current (A) | MIG: 40-120 MMA: 40-120 TIG: 15-120 MIG: 40-200 MMA: 40-200 TIG: 15-200 |
| Output voltage (V) | MIG: 16-20 MMA: 21.6-24.8 TIG: 10.6-14.8 MIG: 16-24 MMA: 21.6-28 TIG: 10.6-18 |
| Power factor | 0.73 |
| Efficiency (%) | 80 |
| Wire speed (ft/min) | 6.5-26.2, 6.5-45.9 |
| Post flow (s) | 1 |
| Wire diameter (in) | .023/.030/.035/.040 |
| Appropriate thickness | 22ga.-6ga. |
| Housing protection class | Ip21 |
| Insulation class | F |
| Cooling method | Fan-cooled |
| Weight (lb) | 54.7 |
| Dimensions (in) | 25.2 x 12.8 x 23.8 |
Package Contents
3-in-1 Welder
Owner’s Manual
Warranty
This item comes with a 3 year factory warranty.
