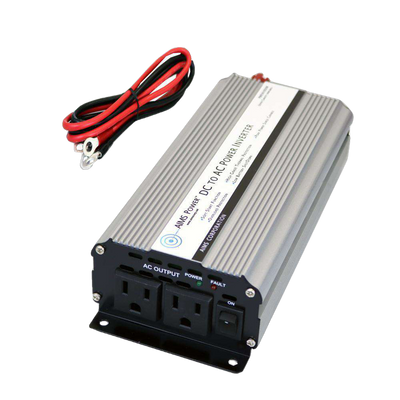

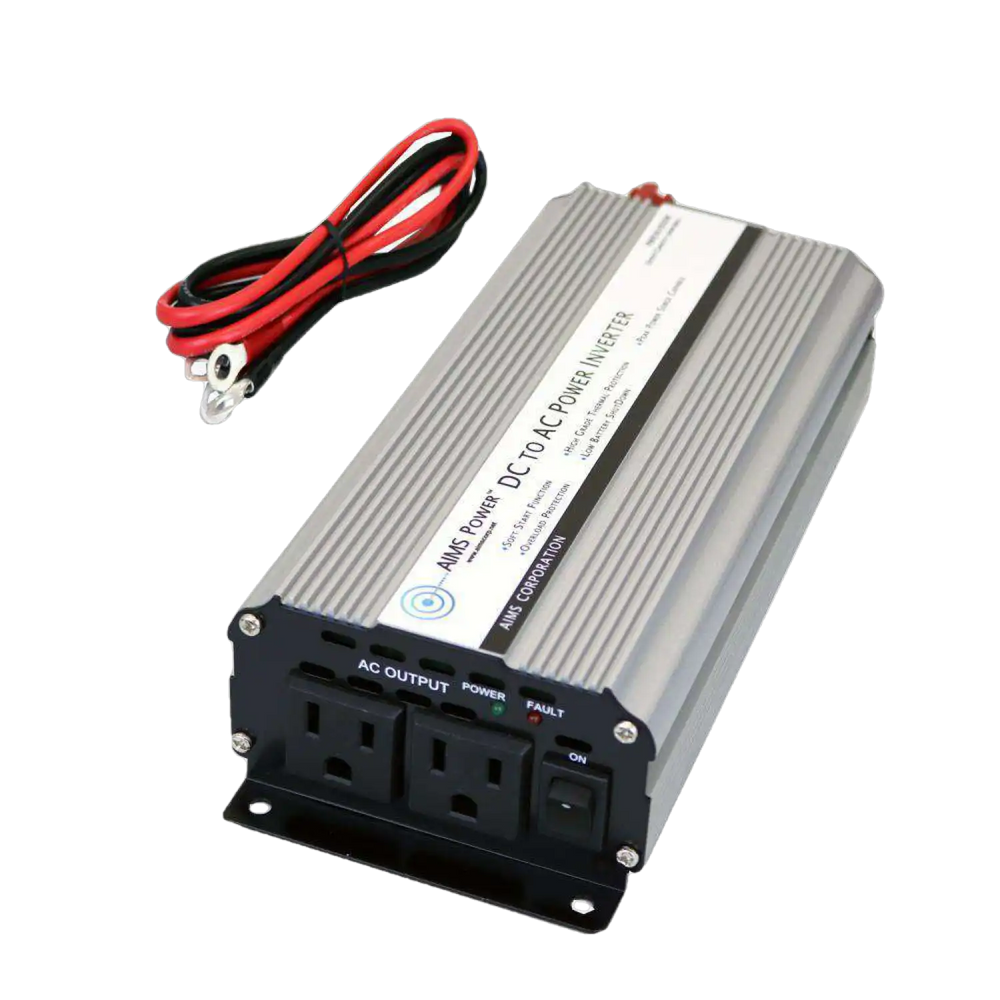

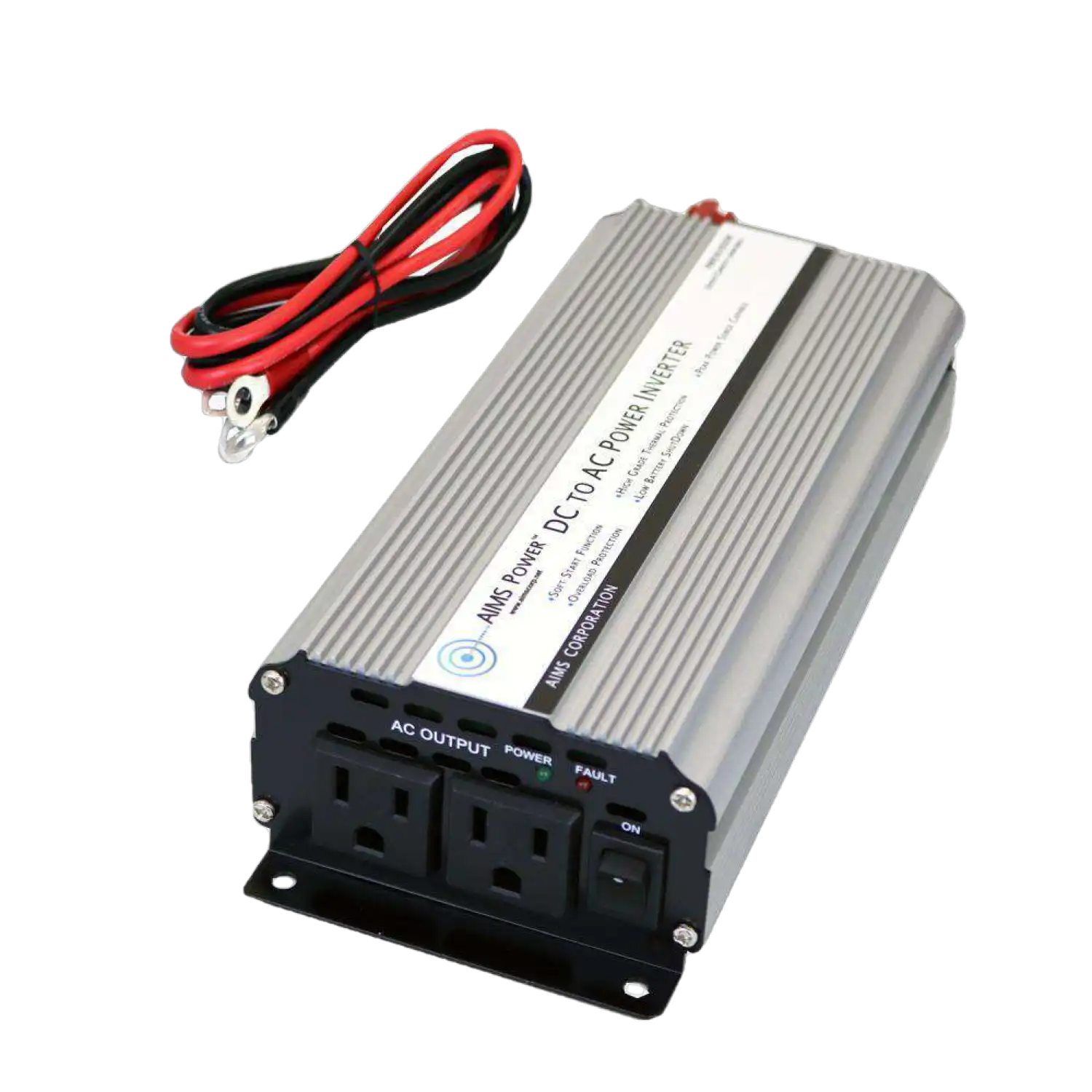

Aims Power PWRINV800W 800 Watt Power Inverter with Cables New
Product Overview
Modified Sine Wave Power Inverters represent the most economical solution for powering a large number of appliances. Modified Sine Wave Power Inverters are more efficient in converting battery power to AC. So if you’re looking to make a pot of coffee run a heater or air conditioner or appliances that can withstand occasional electrical noise a Modified Sine Wave Inverter is a cost-effective solution.
To select the right inverter first determine what devices you would need to run in the event of a power outage. Then select the appropriate inverter that can carry the combined wattage requirements of these devices. Some appliances have a start up amperage.
Brand new in box
Manufacturer direct shipping from NV
Factory Warranty Included
Authorized Aims Dealer
Features
- 800 watt continuous power
- Modified sine wave
- LED: Green power on and red heavy load/fault condition
- Dual ac receptacle
- Over Temperature protection
- Over Load protection
- Convenient cooling fan operation
- Cables included for direct connect to battery. 40" 8 awg.
- Internally fuse protected
- AC output short circuit protection
- Aluminum case for optimal cooling
- Pre-slotted mounting plate
- Isolated ground neutral
Specifications
| Continuous output power | 800 Watts |
| Surge power capability (peak power) | 1600 Watts not meant for start up applications |
| Short circuit protection | Yes |
| DC input / operating voltage | 10 to 15 Volts · Output voltage |
| Output wave form | Modified sine wave |
| Output frequency | 60 Hz |
| Battery low voltage alarm | 10.5 +/- 0.5 Volts |
| Battery low voltage shutdown | 10.0 +/- 0.5 Volts |
| No load current @ 12V | < 0.7 dc Amps |
| Full load efficiency | 90% |
| 1/3 load efficiency | 95% |
| No load minimum operating temperature | -15 degrees Celsius |
| Full load maximum operating temperature | 55 +/- 5 degrees Celsius (automatic shutdown) |
| AC Output Socket Type | Dual Type 2 -3 prong |
| High input voltage protection | 15.5V |
| Low input voltage shutdown | 10.5V |
| Internal fuse protection | Yes |
| Product size (L x W x H) | 9.25”X 3.5”X 2.25” |
| Unit Weight | 2.6 lbs |
Package Contents
Aims Inverter
Owner's manual
Warranty
1 Year Manufacturer Warranty
