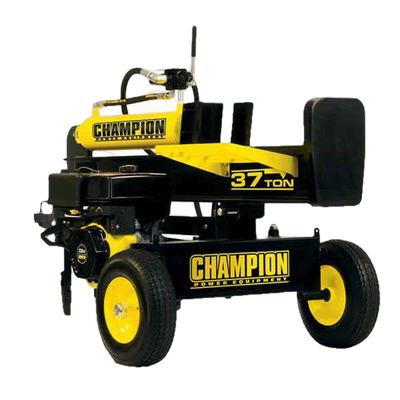

Champion 100250 37T Log Splitter
Product Overview
Champion’s towable 37-ton log splitter with its massive 338cc engine easily powers through tough logs. The fast 16-second cycle time and auto-return valve reduce your work time, while the handy log catchers and easy adjustment from horizontal to vertical save your back.
Brand new and manufacturer direct
2 year manufacturer's limited warranty
Ships from CA or NY
Fast processing with free shipping options
Authorized Champion dealer
Features
- Powerful - 37 tons of splitting capacity with a large 338cc Champion single-cylinder OHV engine

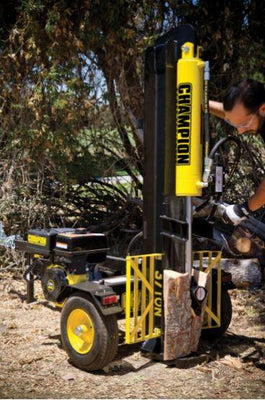

- Versatile - converts from horizontal to vertical in seconds, allowing you to handle large, heavy logs with ease
- Efficient - 16-second cycle time expanded operator area and dependable auto-return valve capable of over 200 cycles per hour
- Portable - Towable up to 45 mph and fits most ATV/UTV towing applications with an extended tongue, 2-inch ball hitch coupler and 16-inch tires
- Reliable - Champion Support includes 2 year limited warranty with FREE lifetime technical support from dedicated experts
Specifications
| GASOLINE CAPACITY | 0.8 GAL |
| ENGINE OIL TYPE | 10W-30 |
| ENGINE OIL CAPACITY | 0.5QT |
| ENGINE OIL INCLUDED | NO |
| LOW OIL SHUT-OFF | YES |
| WHEELS | YES |
| WHEEL TYPE | PNEUMATIC |
| WHEEL DIAMETER | 16.0 IN |
| TOWABLE | YES |
| HITCH TYPE | 2 IN. BALL HITCH |
| FEDNDER | NO |
| MAX TOW SPEED | 45 MPH |
| EPE CERTIFIED | YES |
| CARB COMPLIANT | YES |
| LEGNTH | 92.4 IN |
| WIDTH | 40.8 IN |
| HEIGHT | 46.1 |
| WEIGHT | 566.6 LB |
| RAM FORCE | 37T |
| OPERATING POSITION | HORIZONTAL, VERTICLE |
| CYCLE TIME | 16 SEC |
| MAX LOG LENGTH | 24 IN |
| MAX LOG WEIGHT | 100LB |
| LOG CRADLES | YES |
| LOG CATCHER | YES |
| AUTO RETURN | YES |
| WEDGE TYPE | SINGLE |
| WEDGE MATERIAL | HARDENED STEEL |
| CYLINDER DIAMETER | 5.0 IN |
| CYLINDER ROD SIZE | 1.8 IN |
| HYDRALIC PUMP | 2-STAGE |
| HYDRALIC FLOW RATE | 13.0 GAL/MIN |
| HYDRAULIC OIL SYSTEM CAPACITY | 6.8 GAL |
| HYDRAULIC OIL TANK CAPACITY | 5.0 GAL |
| HYDRAULIC OIL TYPE | AW-32, UNIVERSAL HYDRAULIC OIL, AUTOMATIC TRANSMISSION FLUID |
| HYDRAULIC FILTER | INTERNAL/EXTERNAL |
| HYDRAULIC OIL INCLUDED | NO |
| POWER TYPE | GASOLINE |
| START TYPE | RECOIL |
| ENGINE BRAND | CHAMPION |
| ENGINE SIZE | 338CC |
| ENGINE TYPE | 4-STROKE |
Package Contents
OIL FUNNEL
LOG CATCHERS
Warranty
This item comes with a 2 year limited manufacturer warranty.
