Champion 100251 25T Log Splitter
Manufacturer: Champion
SKU: 100251
Share
Email
QTY
$ 1,289.00
+
FREE Options
Sign up for restock notifications!
Exceptional Customer Service
Manufacturer Direct
Product Overview
Champion’s towable 25-ton log splitter with its 224cc engine easily powers through the toughest logs. The fast 12-second cycle time and auto-return valve reduce your work time, while the handy log catchers and easy adjustment from horizontal to vertical save your back.
Brand new and manufacturer direct
2 year manufacturer's limited warranty
Ships from CA or NY
Fast processing with free shipping
Authorized Champion dealer

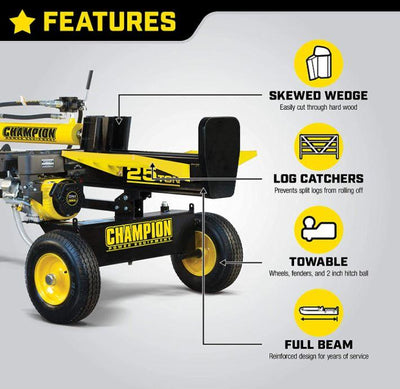

Features

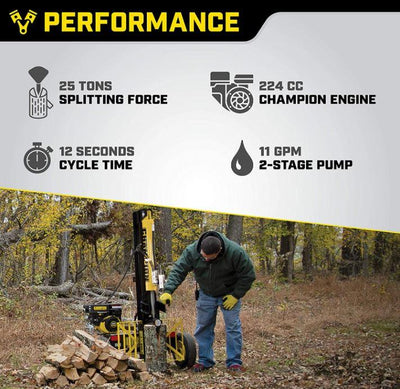

- Powerful - 25 tons of splitting capacity with a large 224 cc Champion single-cylinder OHV engine

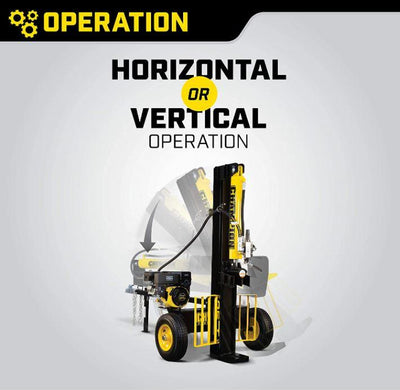

- Versatile - Converts from horizontal to vertical in seconds, allowing you to handle large, heavy logs with ease
- Efficient - 12 second cycle time, expanded operator area and dependable auto-return valve capable of 300 cycles per hour
- Portable - Towable up to 45 mph and fits most ATV/UTV towing applications with an extended tongue, 2-inch ball hitch coupler and 16-inch tires
- Reliable - Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
Specifications
| RAM FORCE | 25T |
| OPERATING POSITION | HORIZONTAL, VERTICAL |
| CYCLE TIME | 12 SEC |
| MAX LOG LENGTH | 24.0 IN |
| MAX LOG WEIGHT | 100 LB |
| LOG CRADLES | YES |
| LOG CATCHER | YES |
| AUTO RETURN | YES |
| WEDGE TYPE | SINGLE |
| WEDGE MATERIAL | HARDENED STEEL |
| CYLINDER DIAMETER | 4.0IN |
| CYLINDER ROD SIZE | 1.6 IN |
| HYDRALIC PUMP | 2-STAGE |
| HYDRALIC FLOW RATE | 11.0 GAL/MIN |
| HYDRAULIC OIL SYSTEM CAPACITY | 5.0 GAL |
| HYDRAULIC OIL TANK CAPACITY | 4.0 GAL |
| HYDRAULIC OIL TYPE | AW-32, UNIVERSAL HYDRAULIC OIL, AUTOMATIC TRANSMISSION FLUID |
| HYDRAULIC FILTER | INTERNAL |
| HYDRAULIC OIL INCLUDED | NO |
| POWER TYPE | GASOLINE |
| START TYPE | RECOIL |
| ENGINE BRAND | CHAMPION |
| ENGINE SIZE | 224CC |
| ENGINE TYPE | 4-STROKE |
| GASOLINE CAPACITY | 0.8 GAL |
| ENGINE OIL TYPE | 10W-30 |
| ENGINE OIL CAPACITY | 0.5 QT |
| ENGINE OIL INCLUDED | NO |
| LOW OIL SHUT-OFF | YES |
| WHEELS | YES |
| WHEEL TYPE | PNEUMATIC |
| WHEEL DIAMETER | 16.0 IN |
| TOWABLE | YES |
| HITCH TYPE | 2 IN BALL HITCH |
| FEDNDER | NO |
| MAX TOW SPEED | 45 MPH |
| EPE CERTIFIED | YES |
| CARB COMPLIANT | YES |
Package Contents
OIL FUNNEL
LOG CATCHERS
Warranty
This item comes with a 2 year manufacturer warranty.
