Champion 100326 25-Ton Horizontal/Vertical Full Beam Gas Log Splitter with Auto Return New
Share
Product Overview

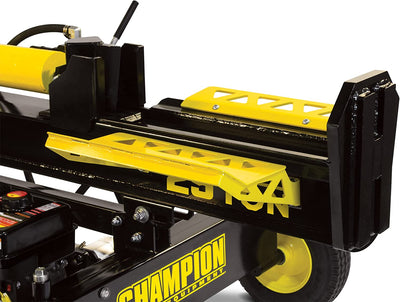

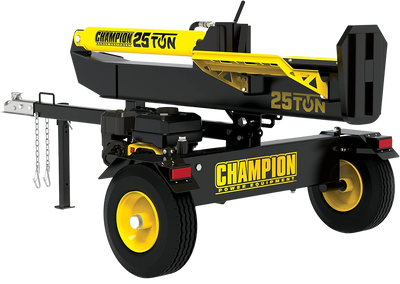

Champion’s towable 25-ton log splitter with its 224cc engine easily powers through the toughest logs. The fast 11-second cycle time and auto-return valve reduce your work time, while the handy log catchers and easy adjustment from horizontal to vertical save your back.
Brand new and manufacturer direct
2 year manufacturer's limited warranty
Ships from CA or NY
Fast processing with free shipping options
Authorized Champion dealer

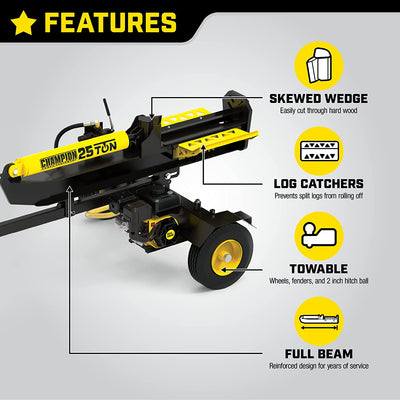

Features
- Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited and a FREE lifetime help desk
- Towable up to 45 mph and fits most ATV/UTV towing applications with an extended tongue, 2-inch ball hitch coupler and 16-inch tires

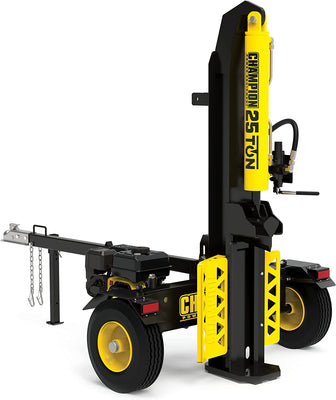

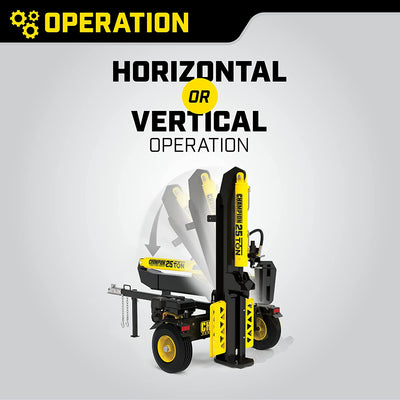

- Converts from horizontal to vertical in seconds, allowing you to handle large, heavy logs with ease

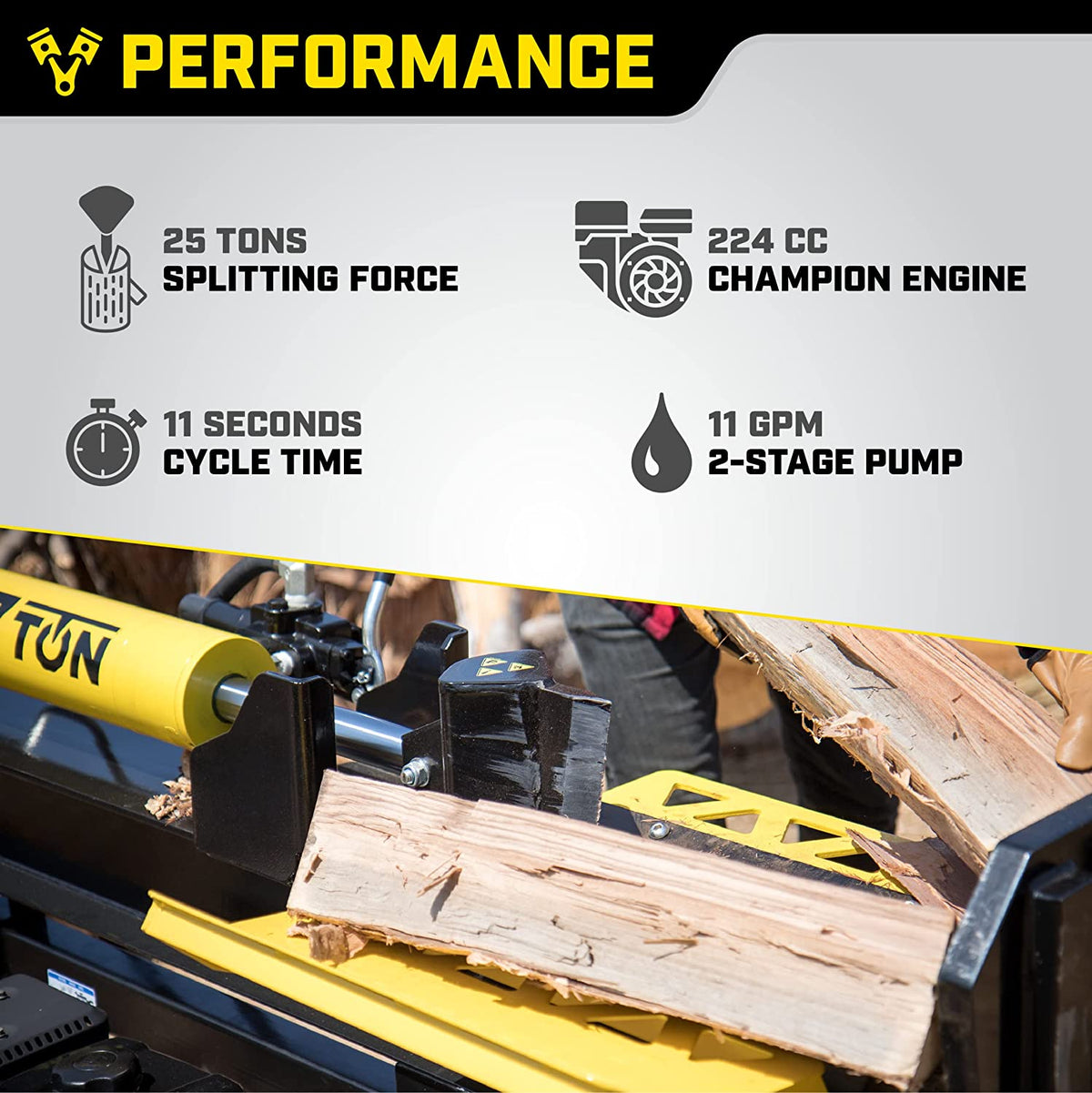

- Twenty-five tons of splitting capacity deliver the power you need. The hydraulic oil system has a 4.5-gallon oil capacity and operates at 11 GPM to power through tough logs
Specifications
| Gross Weight | 500.5 lb. (227 kg) |
| Net Weight | 434.3 lb. (197 kg) |
| Height | 39.3 in. (99.8 cm) |
| Width | 51.3 in. (130.2 cm) |
| Length | 89.5 in. (227.3 cm) |
| Model | R224P / GB225 |
| Displacement | 224 cc |
| Type | 4-Stroke OHV |
| Start Type | Manual |
| Ram Force | 25 Ton |
| Cycle Time | 11 seconds |
| Hydraulic Tank Capacity | 4 gal (15.1 L) |
| Max Log Length | 24 in. (61 cm) |
| Max Log Weight | 100 lb. (45 kg) |
| Coupler Ball Size | 2 in. (5.1 cm) |
| Tire Size | 16 in. (40.6 cm) |
| Max towing speed | 45 MPH (72 KM/H) |
| Cylinder size | 3.9 in. × 22.6 in. (10 cm × 57.5 cm) |
| Cylinder rod size | 1.6 in. (4 cm) |
| Gear Pump | 2-stage |
| Max pressure | 3900 psi |
| Max flow capacity | 11 GPM (41.6 LPM) |
| Control Valve | Detent (auto-return) |
Package Contents
25 Ton Log Splitter
Oil Funnel
Log Catchers
Warranty
This item comes with a 2 year limited manufacturer warranty.
