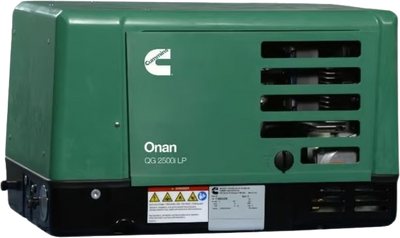

Cummins Onan QG 2500 EVAP 2.5kW RV Generator 2.5HGLAA-8304 RV Propane Single Phase 120 Volt New
Manufacturer: Cummins
SKU: A063N930
QTY
(888) 999-1522
$ 3,929.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
USE FOLLOWING CODE AT CHECKOUT FOR $50 OFF: CRV COPY
Ships in (est) 3-5 business days
Extended Warranty
Factory Warranty
- This item comes with a 3 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 3 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
Cummins Onan QG 2500 EVAP 2.5kW RV Generator 2.5HGLAA-8304 RV Propane Single Phase 120 Volt New
Product Overview
3 year factory warranty
Brand new in box
LP powered
Authorized Cummins dealer
Features
- Computer-controlled variable speed operation matches engine speed to load demand, minimizing noise level and vibration.
- LP and EFI gasoline models
- No fuel return line necessary - EFI gasoline
- EVAP model for specialized applications
- High power quality with inverted electrical output for sensitive RV loads.
- J1939 communications capable
- Increased oil capacity, reduced oil consumption, low oil shutdown switch, high oil temperature sensor, allows for no required oil checks between recommended oil changes.
- Quietest generator sets of their size.
- Completely enclosed with muffler, quick and easy to install.
- 3-year limited warranty
- Low fuel consumption
Specifications
| Design | Cummins, permanent magnet |
| Bearings | None |
| DC Brushes | None |
| Exciter system | None |
| Air Conditioner Operation | 2.8kW generator set will start and run one 13500 Btu high efficiency air conditioner (15.5 Amps or less) plus 600-Watt base load with an additional 300 Watts of power available. 2.5kW generator set will start and run one 13500 Btu high efficiency air conditioner (15.5 Amps or less) plus a 600- Watt base load. |
| Voltage Regulation | Exceeds requirements of ANSI/RVIA EGS-1 ±10% |
| Frequency Regulation | Exceeds requirements of ANSI/RVIA EGS-1 ± 5% Note: See your Cummins distributor or authorized Cummins service dealer for a listing of approved air conditioners |
| Design | 4-cycle, single cylinder, OHV |
| Displacement | 15.4 in3 (252 cm3 ) |
| Compression Ratio | 8.8:1 |
| Power | 7.1 bhp (max) at 3600 r/min |
| Cooling | Pressurized air |
| Cooling Air Volume | 120 ft3 /m (3.40 m3 /min) at full load Fuel System: (Gasoline) Electric fuel transfer pump, max fuel lift 3 ft (914 mm), internal high-pressure injection pump module; (LP) electric fuel solenoid |
| Combustion Air | 7.2 ft3 /m (0.20 m3 /min) at 2900 r/min |
| Ignition System | Electronically controlled |
| Starting System | Remote, 12 V, 3-wire negative ground; start-stop rocker switch on control; connector for remote start harness |
| Lubrication | Splash lubrication |
| Oil Capacity | 1 qt (1.0 L) |
| Cylinder Crankcase | Aluminum alloy |
| Crankcase Cover | Aluminum alloy |
| Cylinder Head | Aluminum alloy, removable |
| Insulation System and Temperature Rise | Class F insulation system meets ANSI/RVIA EGS-1 standard and CSA TIL RV-06 temperature requirements |
Package Contents
Cummins Onan QG 2500 Propane Generator
User's manual
Warranty
This item comes with a 3 year factory warranty.
