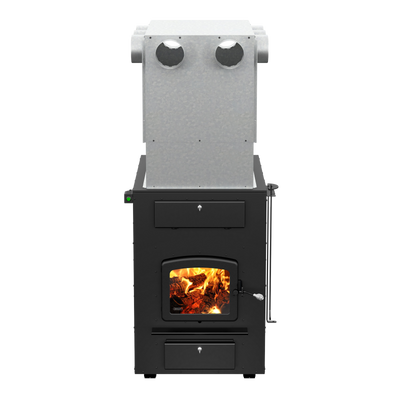

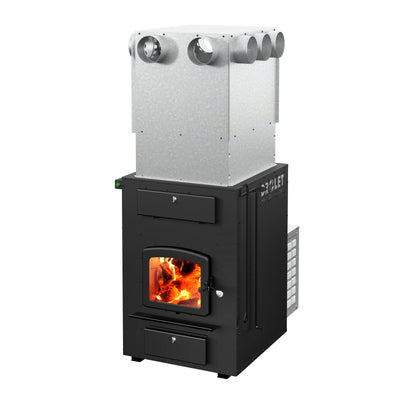

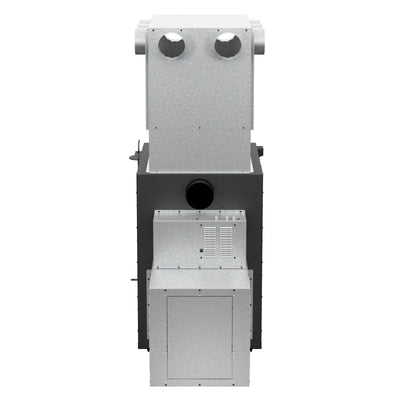

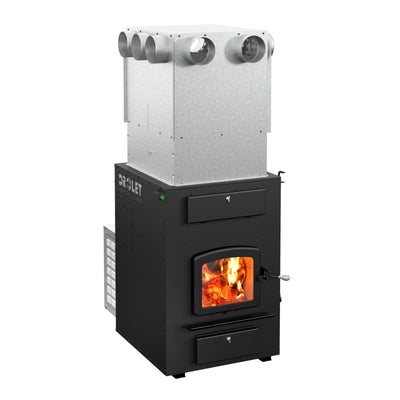

Drolet DF02003 Heat Commander 2,500 Sq. Ft. Wood Furnace New
Manufacturer: Drolet
SKU: DF02003
Share
Email
QTY
$ 4,199.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ADD TO CART FOR NEW CUSTOMER DISCOUNT
Ships in (est) 1-3 business days
Extended Warranty
Factory Warranty
- This item comes with a limited lifetime warranty on parts. See PDF attachment in the below section for further details
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a limited lifetime warranty on parts. See PDF attachment in the below section for further details
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Product Overview
Among the most efficient systems on the market based on distributed energy, the Heat Commander is a central heating system that is both cutting edge and accessible thanks to its innovative design and ease of use. EPA certified, its 310,000 BTU capacity makes this furnace versatile and ideal for heating spaces up to 2,500 ft². The Heat Commander’s overall thermal power is notably much higher than most comparable systems.
Result of our victory in an international innovation competition, the Heat Commander is the very first wood furnace on the market to offer Dual Fire© technology with a two-stage electronic combustion control. Find peace of mind with a self-regulated combustion that allows easy ignition. Its automated air supply and flame adjustment systems synchronize with your thermostat to offer additional safety, optimize comfort and reduce emissions with minimal maintenance.
In the USA, get a 26% tax credit on your Drolet Heat Commander purchase
The first tax credit that covers the cost of the appliance, chimney, air distribution ducts, labor for installation and related material.
Perfect for areas up to 2,500 sq. ft.
Limited lifetime warranty on parts
Brand new in box
US orders ship from IN. Canada orders ship from QC
Features
- Intuitive start mode for fast and clean ignition
- Optimized combustion for low creosote formation
- Uninterrupted heat with on-demand boost based on thermostatic demand
- Among the lowest burn rates on the market (firewood savings)
- Up to 10 hours burn time
- 3.6 ft³ firebox
- 21'' logs (loading over depth and width)
- EPA certified
- Limited lifetime warranty
Specifications
| Firebox – dimension (Height) | 16 3/8" |
| Firebox – dimension (Width) | 18 1/2" |
| Firebox – dimension (Depth) | 22 3/4" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 1/4" |
| Hot air plenum – dimension (Depth or Height) | 22 3/8" - 47 7/8" |
| Hot air plenum – dimension (Width) | 26 7/8" |
| USA standard (emissions) | EPA |
| USA standard (safety) | UL 391 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Clearance – back wall | Single wall pipe 14 1/4" Double wall pipe 6 3/4" |
| Clearance – ducts | Single wall pipe 1" (plenum=5") |
| Clearance – top (measured from the platform on which the appliance is installed) | Single wall pipe 69" |
| Clearance – recommended for maintenance on option side | Single wall pipe 24" |
| Clearance – front | Single wall pipe 36" |
| Clearance – side wall | Single wall pipe 11" |
| Warranty | Limited lifetime |
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area-ft² | 1,000 - 2,500 |
| Overall firebox volume-ft³ | 3.6 |
| Maximum burn time | 10 h |
| Maximum input capacity (dry cordwood) | 310,000 BTU |
| Overall heat output rate | 19,354 BTU/h (5.6 kW) to 47,052 BTU/h (13.8 kW) |
| Average overall efficiency (min. to max.) | 76.6% (HHV) 82.0 % (LHV) |
| Delivered heat output rate (min. to max.) | 13,297 BTU/h (3.9 kW) to 42,234 BTU/h (12.4 kW) |
| Average delivered efficiency (min. to max.) | 60.7% (HHV) 65.0% (LHV) |
| Optimum efficiency | 83.2% |
| Optimum heat transfer efficiency | 81 % |
| Average particulate emissions rate | 0.095 lb/mmBTU (0.041 g/MJ) |
| Average CO | 8.78 lb/mmBTU (3.78 g/MJ) |
| Average electrical power consumption | 330 W |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 21" |
| Log positioning | Loading over width and over depth |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Shipping Weight | 740 lb (337 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 12 3/8 X 10 1/8" |
| Glass air-wash system | Yes |
| Blower (hp / speed / CFM) | 1/3 | 1 | 1,135 |
| Filter – dimensions (Width X Height X Depth) | 15" X 20" X 1" |
| Overall dimension (Height) | 63 1/2" |
| Overall dimension (Width) | 27 3/4" |
| Overall dimension (Depth) | 51 1/8" |
| Door opening – dimension (Height) | 10" |
| Door opening - dimension (Width) | 13 3/4" |
Package Contents
Wood furnace
Blower
Thermostat
Hot air plenum
Combustion-state indicator light
Automated combustion control
Ash lip
Ash drawer
Poker and scraper
Warranty
This item comes with a limited lifetime warranty on parts. See PDF attachment in the below section for further details
