Outside width between two fork (Inch) | 8.66-33.74 |
Ground clearance under mast 1Inch) | 3.54 |
Min ground clearance (Inch) | 3.54 |
Aisle width for pallets 1000 x 1200 crossway (Inch) | 120.67 |
Aisle width for pallets 800 x 1200 crossway (Inch) | 125 |
Turning radius (Inch) | 53.07 |
Max climbing with/without load | 6/10 |
Travel speed, laden/unladen km/h | 6.2/7.2 |
Lift speed, laden/unladen mm/s | 135/215 |
Lowering speed. Laden/unladen mm/s | 238/225 |
Life motor | 4.5kw |
Driving motor | 1.7kw |
Steering motor | 0.2kw |
Battery voltage, nominal capacity (v/ah) | 24v350AH Li-iron |
Working time of fully charged (h) | 5 |

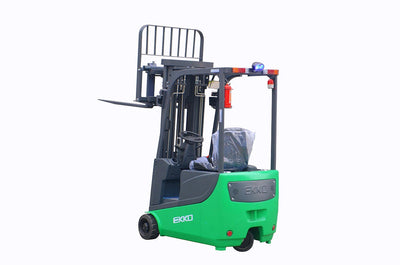

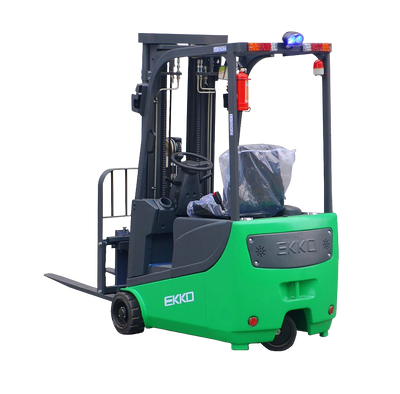

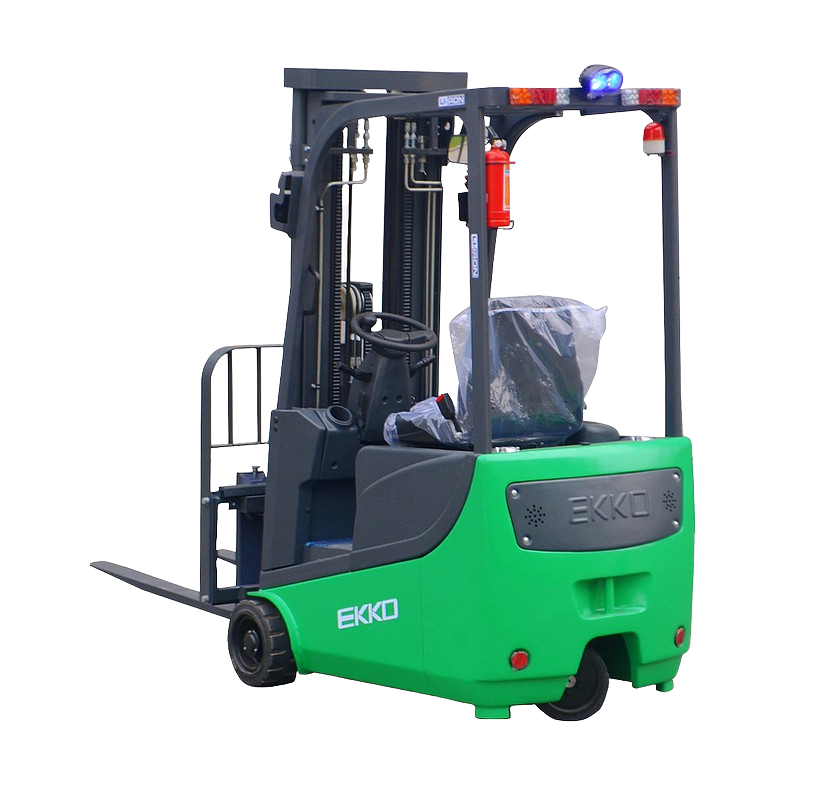

Model | EK15A-189 LI |
Operate type | Rider |
Drive Electric Load Capacity (lbs) | 3300 |
Load center distance (Inch) | 23.6 |
Axle center to fork face (Inch) | 9.25 |
