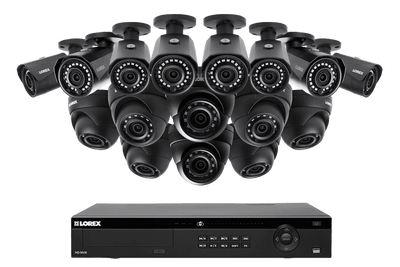

Lorex HDIP1688DW 16 Camera 16 Channel Weatherproof 2K Resolution Surveillance Security System New
Manufacturer: Lorex by Flir
SKU: HDIP1688DW
QTY
(888) 999-1522
Apply for an immediate tax exemption and checkout with taxes removed from your order.
Tax exemptions will be validated and approved before shipping.
$ 1,649.00
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Lorex HDIP1688DW 16 Camera 16 Channel Weatherproof 2K Resolution Surveillance Security System New
Product Overview
 |
Brand new in box & manufacturer direct |
|
1 year factory warranty |
|
Remote monitoring using the Flir app |
|
All original accessories included |
|
Authorized Lorex dealer |
|
Ships same or next business day |

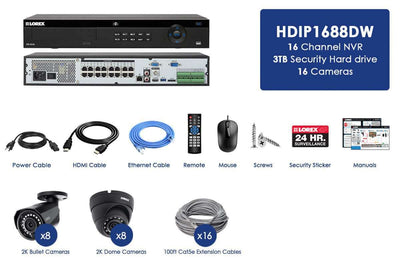

What's in the box:
- 16 channel 2K network video recorder

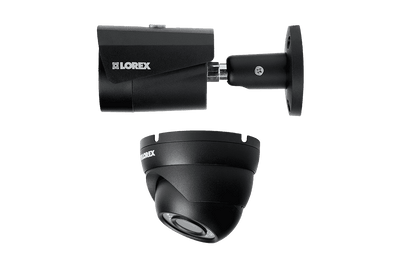

- 2K Dome Cameras (8)
- 2K Bullet Cameras (8)
- 100ft Cat5e Extension Cable (16)
- 3TB Security Hard drive
- Power Cable
- HDMI Cable
- Ethernet Cable
- Remote
- Mouse
- Manuals
Features:

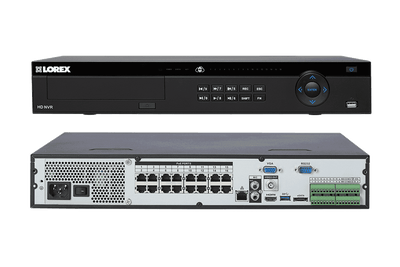

NR9163
16 channel, 4K ultra HD network video recorder:
- Real-time recording up to 8MP on all channels - 4× the detail of 1080p
- Supports industry-leading 4K recording 1
- 8/16 built in PoE (Power over Ethernet) ports providing video and power over a single Ethernet cable
- RapidRecap® - see the day in a minute with hours of activity compiled into a short video summary
- FLIR Secure™ apps for live viewing, playback, video recording & snapshots (iPhone® / iPad® / Android™) 2
- PC and Mac compatible - FLIR Cloud™ video management software gives you complete control over your security system from anywhere 2
- 24/7 security-grade pre-installed hard drive 3
- Expandable high capacity storage up to 12TB (2×6TB HDD)
- Automatically detects compatible IP cameras in the network 4
- 4K video output - view multiple HD channels at once in full resolution on a 4K TV
- H.265 / H.264 video compression offers reduced file size and improved network performance for remote viewing 3
- Mirror hard drive recording - secure your recordings by backing up footage to an internal hard drive at the same time as recording to the primary hard drive 5
- Pentaplex Operation - view, record, playback, back up & remotely control the system simultaneously
- Click-and-drag digital zoom in live view and playback
- Convenient front panel button controls
- Accurate time stamps with NTP & daylight savings time
- Instant backup of live video to a USB flash drive
- Automatic firmware upgrade over the Internet ensures your system is secure and up-to-date 6
- Push notifications of motion events
- Instant email alerts with snapshot attachment
- Multi-streaming to conserve bandwidth
- Continuous, scheduled, and motion recording
- Dual video outputs (HDMI and VGA) to connect multiple monitors
- HDMI cable included for simple connection to HD amp; 4K TVs
| Operating System | Linux (embedded) |
| Pentaplex | Simultaneous View, Record, Playback, Backup & Remote Monitoring |
| Number of Channels | 8/16/32 Channels |
| Video IN | 8ch: 8 PoE, 16/32ch: 16 PoE |
| Video OUT | No |
| VGA OUT | Yes |
| HDMI | Yes |
| Audio IN | 1 Line IN (RCA) for service only |
| Audio OUT | 1 Line OUT (RCA) for service only |
| USB Port | 1 at the back, 1 at the front |
| Alarm IN | 4 Alarm IN |
| Alarm OUT | 2 Alarm OUT |
| Video Output Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
| PTZ control | Lorex IP PTZ cameras only |
| Display | 8ch: 1/4/8, 16ch: 1/4/8/9/16, 32ch: 1/4/8/9/16/25/36 |
| Live Display Speed | 8ch: 240fps NTSC / 200fps PAL, 16ch: 480fps NTSC / 400fps PAL, 32ch: 960fps NTSC / 800fps PAL |
| OSD | ON/OFF |
| System Navigation | USB Mouse, IR Remote Control, Front Panel Buttons |
| Motion Area Setting | Fixed Grid (22×18) |
| Sensitivity Levels | 100 |
| Firmware Upgrade | Automatic over the Internet & via USB device and network |
| User Authority | By user group |
| Time Synchronization | Automatic time sync by NTP server |
| Video Compression | H.264 / H.265 |
| Audio Compression | G.711 |
| Resolution | Up to 4K (3840×2160), 1080p (1920×1080) |
| Record Rate | 8ch: 240fps@720p/1080p/3MP/4MP/8MP, 16ch: 480fps@720p/1080p/3MP/4MP/8MP, 32ch: 960fps@720p/1080p/3MP/4MP/8MP |
| Recording Resolution Setting | Per camera for different resolutions |
| Recording Quality Control | 6 Levels |
| Recording Schedule | By hour, by day, by recording mode, by motion, by alarm, by channel |
| Pre Recording | Max. 4 Secs |
| Post Recording | Max. 5 Minutes |
| Reliability | Watch-Dog, auto-recovery after power failure |
| Covert Video | Yes |
| Playback Channel | 1CH/4CH@4K, 8CH@4MP, 16CH@2MP |
| Playback Speed | Variable Max 16x |
| Playback Players | Backup Player |
| Search | By Time & Event |
| Log Search | Up to 1,000 lines for motion detected, configuration, changes, connects/disconnects and video loss |
| Audio Play | Yes (audio camera required) |
| Storage | Up to 2 HDDs (SATA) |
| Maximum Capacity | Up to 2×6TB (12TB Max) |
| Backup Media | USB Flash Drive & HDD |
| Backup File Format | DAV or ASF File |
| Cloud Connection | FLIR Secure™ |
| Supported Operating Systems | Windows™ / Mac OS X |
| Remote Software | Client Software (PC & Mac) |
| Email Notification | Text with snapshot |
| Instant Smart Phone & Tablet | Android™, iPad®, iPhone® |
| DDNS | Free Lorex DDNS |
| System Configuration | Full setup configuration over network |
| Ports | Programmable by User |
| Network Protocol | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter |
| Network Interface | 10/100/1000-Base-TX, RJ-45 |
| Network Bit Rate | 320Mbps total, 48~8192kbps per camera |
| Power Consumption | Approx. 15W (no HDD included) |
| Supply Voltage | 100VAC-240VAC, 50/60Hz |
| Total PoE Power Output | 130W (Max 25W per Camera) |
| Unit Dimensions (W × D × H) | 14.7 × 12.9 × 2.1" / 375 × 327 × 53mm |
| Unit Weight | 8ch: 5.1lbs / 2.6kg, 16/32ch: 13.2lbs / 2.7kg |
| Operating Temperature | 14° ~ 131°F / -10° ~ 55°C |
| Humidity | 10 ~ 90% RH |

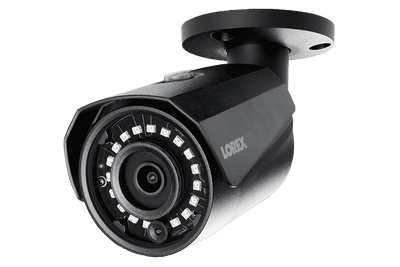

LNB4421
Weatherproof 2K 4mp HD Night Vision IP Security Camera Features:
- High definition 4mp image sensor delivers double the detail of 1080p1
- 4mp Super HD video recording provides superior quality for reviewing fine details in heightened resolution
- Color Night Vision™ provides full color images at night, letting you identify objects and people more accurately than in black & white2
- IR night vision range up to 150ft (40m) in ambient lighting and 90ft (27m) in total darkness3
- ClearNight imaging for improved low light performance and improved recording efficiency
- H.265 offers significant bandwidth and video storage savings over older compression technologies, extending the amount of video stored on the hard drive4
- True High Dynamic Range (HDR) improves image clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image
- Intelligent compression saves recording space by optimizing video performance based on available bandwidth
- Wide angle 90° field of view (horizontal)
- Ceiling / wall mountable
- Simple camera installation using a single Cat5e cable with Power over Ethernet (PoE)
- 100ft (30m) Ethernet cable included for camera video and power
- Extend the camera's video and power with a single Ethernet cable up to 300ft (91m) from the recorder
- Single-screw bracket adjustment for faster installation
- Cold climate capability (-22°F / -30°C)
- Weatherproof for outdoor & indoor installation (IP66 Rated)5
Specifications:
| Image Sensor | 1/3" 4MP |
| Video Format | NTSC / PAL |
| Compression | H.265/H.264 |
| Effective Pixels | H: 2688 × V: 1520 |
| Resolution | 4MP (2688×1520) @ 20fps |
| Scan System | Progressive |
| Sync System | Internal |
| S/N Ratio | ≥46dB (AGC OFF) |
| Iris | EIS |
| AES Shutter Speed | 1/3 ~ 1/100,000 seconds |
| Min. Illumination | 0.38 lux without IR, 0.28 lux with IR |
| Video Output | IP |
| Lens / Lens Type | 2.8mm F2.0 / Fixed |
| Field of View (Horizontal) | 90° |
| Termination | RJ45 Ethernet / 12V DC Power |
| IR LED Type | 850nm |
| Night Vision Range | 150ft (45m) / 90ft (27m) |
| Color Night Vision™ | Yes |
| Power Requirement | PoE (Power over Ethernet) Class 0 / 12V DC |
| Power Consumption | Max. 265mA / 3.2W |
| Operating Temp. Range | -22° ~ 140°F / -30° ~ 60°C |
| Operating Humidity Range | <95% RH |
| Environmental Rating | IP66 (Indoor / Outdoor) |
| Weight | 0.9lbs / 0.4kg |

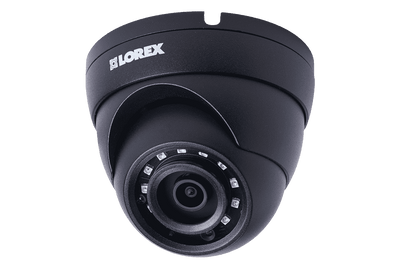

LNE4422
Weatherproof 2K 4mp HD Night Vision IP Dome Security Camera Features:
- High definition 4mp image sensor delivers double the detail of 1080p1
- 4mp Super HD video recording provides superior quality for reviewing fine details in heightened resolution
- Color Night Vision™ provides full color images at night, letting you identify objects and people more accurately than in black & white2
- IR night vision range up to 150ft (40m) in ambient lighting and 90ft (27m) in total darkness3
- ClearNight imaging for improved low light performance and improved recording efficiency
- H.265 offers significant bandwidth and video storage savings over older compression technologies, extending the amount of video stored on the hard drive4
- True High Dynamic Range (HDR) improves image clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image
- Intelligent compression saves recording space by optimizing video performance based on available bandwidth
- Wide angle 90° field of view (horizontal)
- Ceiling / wall mountable
- Simple camera installation using a single Cat5e cable with Power over Ethernet (PoE)
- 100ft (30m) Ethernet cable included for camera video and power
- Extend the camera's video and power with a single Ethernet cable up to 300ft (91m) from the recorder
- Single-screw bracket adjustment for faster installation
- Cold climate capability (-22°F / -30°C)
- Weatherproof for outdoor & indoor installation (IP66 Rated)5
| Image Sensor | 1/3" 4MP |
| Video Format | NTSC / PAL |
| Compression | H.265/H.264 |
| Effective Pixels | H: 2688 × V: 1520 |
| Resolution | 4MP (2688×1520) @ 20fps |
| Scan System | Progressive |
| Sync System | Internal |
| S/N Ratio | ≥46dB (AGC OFF) |
| Iris | EIS |
| AES Shutter Speed | 1/3 (1/4) ~ 1/100,000s |
| Min. Illumination | 0.38 lux without IR, 0.28 lux with IR |
| Video Output | IP |
| Lens / Lens Type | 2.8mm F2.0 / Fixed |
| Field of View (Horizontal) | 90° |
| Termination | RJ45 Ethernet / 12V DC Power |
| IR LED Type | 850nm |
| Night Vision Range | 150ft (45m) / 100ft (30m) |
| Color Night Vision™ | Yes |
| Power Requirement | PoE (Power over Ethernet) / 12V DC |
| Power Consumption | Max. 250mA / 3.0W |
| Operating Temp. Range | -22° ~ 140°F / -30° ~ 60°C |
| Operating Humidity Range | <95% RH |
| Environmental Rating | IP66 (Indoor / Outdoor) |
| Weight | 0.65lbs / 0.30kg |
As a Lorex authorized dealer, this product comes with a 1 year factory warranty.
Extends factory warranty to 2 total years
