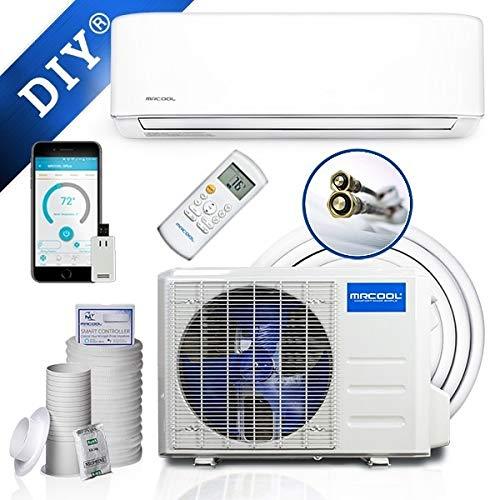

MRCOOL DIY 12000 BTU DIY Mini-Split Air Conditioner & Heater WiFi 17.5 SEER

Manufacturer: MRCOOL

SKU: DIY-12-HP-115AE

  • MRCOOL DIY 12000 BTU DIY Mini-Split Air Conditioner & Heater WiFi 17.5 SEER
  • MRCOOL DIY 12000 BTU DIY Mini-Split Air Conditioner & Heater WiFi 17.5 SEER
  • MRCOOL DIY 12000 BTU DIY Mini-Split Air Conditioner & Heater WiFi 17.5 SEER
  • MRCOOL DIY 12000 BTU DIY Mini-Split Air Conditioner & Heater WiFi 17.5 SEER
  • MRCOOL DIY 12000 BTU DIY Mini-Split Air Conditioner & Heater WiFi 17.5 SEER
  • MRCOOL DIY 12000 BTU DIY Mini-Split Air Conditioner & Heater WiFi 17.5 SEER
  • MRCOOL DIY 12000 BTU DIY Mini-Split Air Conditioner & Heater WiFi 17.5 SEER
  • MRCOOL DIY 12000 BTU DIY Mini-Split Air Conditioner & Heater WiFi 17.5 SEER
  • MRCOOL DIY 12000 BTU DIY Mini-Split Air Conditioner & Heater WiFi 17.5 SEER
  • MRCOOL DIY 12000 BTU DIY Mini-Split Air Conditioner & Heater WiFi 17.5 SEER

QTY

$ 1,368.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review
mcafee icon
MRCOOL DIY 12000 BTU DIY Mini-Split Air Conditioner & Heater WiFi 17.5 SEER

MRCOOL DIY 12000 BTU DIY Mini-Split Air Conditioner & Heater WiFi 17.5 SEER

Brand new in original box & manufacturer direct
Guaranteed to work like new or your money back
Includes all original accessories
Authorized MRCOOL dealer
Free same or next day shipping


High Efficiency Do-It-Yourself

A MRCOOL DIY Series heat pump is the only ductless mini-split system on the market explicitly designed for amateur installation. You don’t need special tools or training to install this high efficiency heat pump. The line-sets are precharged with R410A refrigerant, the quick hook-up electrical connections, and the quality engineering mean just about anyone can install a MRCOOL DIY in their home with no problem at all in only a few short hours. If you want great air comfort without paying an arm and a leg for installation, you want an easy-to-use MRCOOL DIY Series ductless heat pump.

MRCOOL DIY 2nd Generation Features:

  • Two way draining connections further simplify installation and add flexibility.
  • MRCOOL DIY temperature compensation technology help keeps you comfortable in any weather conditions
  • Unlike any other ductless heat pump on the market, the MRCOOL DIY Series is specifically designed for easy, simple installation
  • Refrigerant leakage detection ensures your system remains operating efficiently without degradation due to undetected corrosion
  • Most people can’t do their own electrical work, and that’s why the quick electrical connections on the MRCOOL DIY are a feature many will appreciate
  • One of the most difficult aspects of typical heat pump installation is dealing with the refrigerant inside the coils. The MRCOOL DIY Series comes with precharged linesets alleviating one major obstacle to amateur installation in a single stroke.
  • Wireless remote included for convenient control
  • WifFi functionality enables you to control the unit with a smartphone or other device
  • You can install this innovative ductless system without special tools, equipment, or training.
  • The system constantly monitors interior air temperature in order to deliver the maximum possible comfort.
  • Precharged 25' Quick Connect Line sets. These unique line sets are a cinch to get working. You’ll probably do it in less than 15 minutes.
  • We made Sleep Mode easy to program to save money, and let you sleep a little easier.
  • Power outage? Don’t worry, the MRCOOL DIY auto restart will have the unit running again in no time at all.

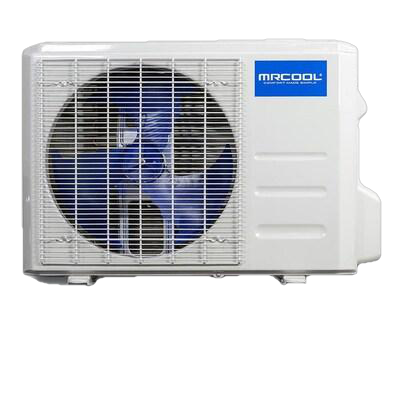

  • Live on the coast? Don’t worry, the condenser is built to resist long term corrosion.
  • When the MRCOOL DIY detects low coolant an alarm will sound to alert you to the problem. This will prevent damage to the compressor while you maintain high air comfort.
  • Horizontal louver will automatically move to the same position as you set last time the unit was turned on.

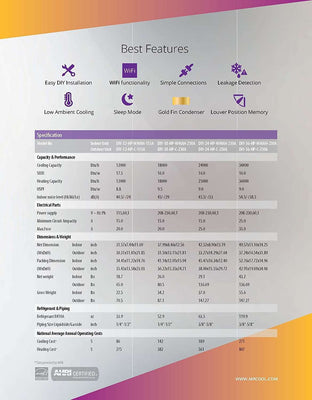

System Model

DIY-12-HP-115A
Cooling Capacity 12000 BTU/h
SEER (Cooling Season Efficiency) 17.5 BTU/w
Heating Capacity 12000 BTU/h
HSPF (Heating Season Efficiency) 8.8 BTW/w
Indoor Noise Level (High/Low) 40.5/24 db
Power Supply (Volts, Hertz, Phase) 115V, 60Hz, 1 phase
Minimum Circuit Ampacity 15.0 A
Maximum Fuse Ampacity 20.0 A
Refrigerant  R410A, 33.9oz/961g
Piping Size (Liquid Side/ Gas Side) 1/4" - 1/2"
Indoor Unit Dimensions (WxDxH) 31.57" x 7.44" x 11.69"
Outdoor Unit Dimensions (WxDxH) 30.31" x 11.81" x 21.85"
Indoor Unit Packing Dimensions (WxDxH) 34.45" x 11.22" x 14.76"
Outdoor Unit Packing Dimensions (WxDxH) 35.43" x 13.58" x 23.03"
Indoor Net Weight 18.70 lbs
Outdoor Net Weight 65.00lbs
Indoor Gross Weight 22.50lbs
Outdoor Gross Weight 70.50lbs

Five (5) years on all parts to the original registered end-user warranty

Seven (7) years on compressor warranty

One (1) year warranty on remote control unit.



Warranty applies only to products remaining in their original installation location.

Defective parts must be returned to the distributor through a registered servicing dealer for credit.

THIS WARRANTY DOES NOT COVER:
  • 1. Labor or other costs incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of either defective parts, or replacement parts, or new units.
  • 2. Normal maintenance as outlined in the installation and servicing instructions or Owner Manual, including filter cleaning and/or replacement and lubrication.
  • 3. Failure, damage or repairs due to faulty installation, misapplication, abuse, improper servicing, unauthorized alteration or improper operation.
  • 4. Failure to start due to voltage conditions, blown fuses, open circuit breakers, or damages due to the inadequacy or interruption of electrical service.
  • 5. Failure or damage due to floods, winds, fires, lightning, accidents, corrosive environments (rust, etc.) or other conditions beyond the control of the Company.
  • 6. Parts not supplied or designated by Company, or damages resulting from their use.
  • 7. Products installed outside USA and Canada.
  • 8. Electricity or fuel costs, or increases in electricity or fuel costs from any reason whatsoever, including additional or unusual use of supplemental electric heat.
  • 9. Any cost to replace, refill or dispose of refrigerant, including the cost of refrigerant.
  • 10. Any special, indirect or consequential property or commercial damage of any nature whatsoever. Some states or provinces do not allow the exclusion of incidental or consequential damages, so the above limitation may not apply to you.
Perfect For Areas Up To: 550 Sq. Ft.

Customer Reviews

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Joseph Venduro
Fantastic

I am very pleased so far with this product and the support I have received from the manufacturer.

G
George Bradford
It works

I had ordered the 12000 btu. system. So far it has been working just fine. Due to the size of my shop I wish I had ordered the 18000 btu.
As far as a diy goes it was not that hard at all.
Of course if they had provided a little more detailed info about electrical hookup would have been nice.
For money involved and DIY hookup you just can't beat this system.
