Product Overview

This system is meant to be installed by a HVAC technician. The newly designed 3rd generation Advantage Series, with improved efficiency ratings up to 19 SEER, delivers high performance comfort from the moment it's activated. The condenser incorporates a high performance compressor with eco-friendly, chlorine-free R-410A refrigerant. The MRCOOL Advantage now includes the new SmartHVAC WiFi control module that features an easier setup process, improved functionality, and works with Amazon Alexa and Google Assistant.
vendor logo
divider
authorized dealer
checkmark

Brand new in box

checkmark

2 year limited factory warranty

checkmark

Manufacturer direct shipping from KY & NV

checkmark

Fast shipping

checkmark

Authorized MRCOOL dealer

Features

  • Installation kit included
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • The new 3rd generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
  • Installation by a licensed professional required where applicable
  • 1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional
  • R-410A environmentally friendly refrigerant
  • Sleep mode, louver position memory, and auto restart functions
  • Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor

Specifications

Speed 4
Oscillation Yes
Inverter Yes
Min Ambient Heat 5 Degrees F
Line Set Length 16ft
Liquid Line Fitting 3/8 Inches
Liquid Line Size 1/4 Inches
Suction Line Fitting 5/8 Inches
Suction Line Size 1/2 Inches
Control Type LED
Filter Type Washable
Overload Protection Yes
Adjustable Thermostat Yes
Modes Quiet Mode
Fan Only Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with :iOS
Android Includes
Remote Control Batteries
Certifications UL
CSA ETL
Registered Warranty 1-Year Compressor, 2-Year Parts and 1-Year Remote
Contains Electronics Yes
Contains Chemicals Yes
Contains Aerosol Yes
Contains Compressed Gas Yes
Product Dimensions 63.07"W x 20.55"D x 33.5"H
Product Weight 85.96 lbs
Condenser Dimensions 31.5"W x 13.11"D x 21.81"H
Condenser Weight 67 lbs
Air Handler Dimensions 31.57"W x 7.44"D x 11.69"H
Air Handler Weight 18.96 lbs
Freight Class 300
Mount Type Wall
Unit Type Mini-Split
SEER 19
EER 11
HSPF 9.5
CFM 324/282/212
Tonnage 1
Cooling Capacity 12000 BTU
Heating Capacity 11800 BTU
Voltage Requires a minimum of 208V-230V/60HZ/15A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Color White
Phase 1
Max Fuse Breaker 15 A
Min Circuit Ampacity 15 A
Max Coverage Area 500 sq ft
Zone Capacity 1
Refrigerant Type R-410A
Refrigerant Volume 33.9 oz
Decibel Rating 25/-/40.5 dBA
Decibel Rating Low 25 dBA
Decibel Rating High 40.5 dBA
Air Flow Direction 4-Way

Package Contents

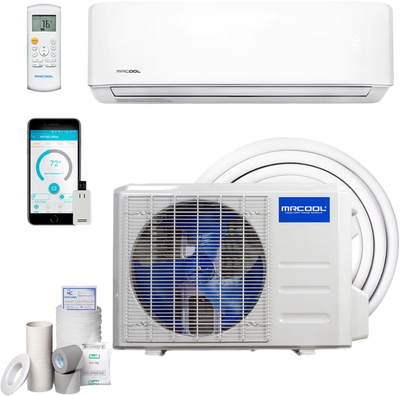

12K BTU Heat Pump Condenser & Wall Mount Air handler 230 volt

Installation kit included with 16' lineset

User Manual

Warranty

vendor logo
divider
authorized dealer

This product comes with a 1 year compressor, 2 year parts and 1 year remote warranty when registered and when installed by a licensed professional.
