MRCOOL Ductless Mini-Split Air Conditioner & Heater 9,000 BTU 3/4 Ton 230V Advantage 3rd Gen A-09-HP-230B New

Manufacturer: MRCOOL

SKU: A-09-HP-230B

5
MRCOOL Ductless Mini-Split Air Conditioner & Heater 9,000 BTU 3/4 Ton 230V Advantage 3rd Gen A-09-HP-230B New
MRCOOL Ductless Mini-Split Air Conditioner & Heater 9,000 BTU 3/4 Ton 230V Advantage 3rd Gen A-09-HP-230B New
MRCOOL Ductless Mini-Split Air Conditioner & Heater 9,000 BTU 3/4 Ton 230V Advantage 3rd Gen A-09-HP-230B New





5
MRCOOL Ductless Mini-Split Air Conditioner & Heater 9,000 BTU 3/4 Ton 230V Advantage 3rd Gen A-09-HP-230B New
MRCOOL Ductless Mini-Split Air Conditioner & Heater 9,000 BTU 3/4 Ton 230V Advantage 3rd Gen A-09-HP-230B New
MRCOOL Ductless Mini-Split Air Conditioner & Heater 9,000 BTU 3/4 Ton 230V Advantage 3rd Gen A-09-HP-230B New

MRCOOL Ductless Mini-Split Air Conditioner & Heater 9,000 BTU 3/4 Ton 230V Advantage 3rd Gen A-09-HP-230B New

QTY

$ 780.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

divider
in stock checkmark

In Stock

truck icon

Ships In 1-2 Business Days

Manufacturer Direct

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review

Product Overview

This system is meant to be installed by a HVAC technician. The newly designed 3rd generation Advantage Series, with improved efficiency ratings up to 18 SEER, delivers high performance comfort from the moment it's activated. The condenser incorporates a high performance compressor with eco-friendly, chlorine-free R-410A refrigerant. The MRCOOL Advantage now includes the new SmartHVAC WiFi control module that features an easier setup process, improved functionality, and works with Amazon Alexa and Google Assistant.
vendor logo
divider
authorized dealer
checkmark

Brand new in box

checkmark

2 year limited factory warranty

checkmark

Manufacturer direct shipping from KY & NV

checkmark

Fast shipping

checkmark

Authorized MRCOOL dealer

MRCOOL Ductless Mini-Split Air Conditioner & Heater 9,000 BTU 3/4 Ton 230V Advantage 3rd Gen A-09-HP-230B New

MRCOOL Ductless Mini-Split Air Conditioner & Heater 9,000 BTU 3/4 Ton 230V Advantage 3rd Gen A-09-HP-230B New

Features

  • Installation kit included
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • The new 3rd generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
  • Installation by a licensed professional required where applicable
  • 1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional
  • R-410A environmentally friendly refrigerant
  • Sleep mode, louver position memory, and auto restart functions
  • Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor

Specifications

Speed4
OscillationYes
InverterYes
Min Ambient Heat5 Degrees F
Line Set Length16ft
Liquid Line Fitting3/8 Inches
Liquid Line Size1/4 Inches
Suction Line Fitting1/2 Inches
Suction Line Size3/8 Inches
Control TypeLED
Filter TypeWashable
Overload ProtectionYes
Adjustable ThermostatYes
ModesQuiet Mode
Fan OnlyAuto Cool
Wifi CompatibilityYes
App CompatibilityYes
Compatible with:iOS
AndroidIncludes
Remote ControlBatteries
CertificationsUL
CSAETL
Registered Warranty1-Year Compressor, 2-Year Parts and 1-Year Remote
Contains ElectronicsYes
Contains ChemicalsYes
Contains AerosolYes
Contains Compressed GasYes
Product Dimensions58.74"W x 19.17"D x 33.27"H
Product Weight83.8 lbs
Condenser Dimensions30.31"W x 11.81"D x 21.85"H
Condenser Weight66.8 lbs
Air Handler Dimensions28.43"W x 7.36"D x 11.42"H
Air Handler Weight17 lbs
Freight Class300
Mount TypeWall
Unit TypeMini-Split
SEER18
EER11
HSPF9.5
CFM309/285/187
Tonnage3/4
Cooling Capacity9000 BTU
Heating Capacity9800 BTU
VoltageRequires a minimum of 208V-230V/60HZ/10-15A (please check your home meets this electrical requirement prior to purchase)
Phase1
Cycle60 Hz
ColorWhite
Phase1
Max Fuse Breaker15 A
Min Circuit Ampacity10 A
Max Coverage Area375 sq ft
Zone Capacity1
Refrigerant TypeR-410A
Refrigerant Volume28.2 oz
Decibel Rating23/-/36 dBA
Decibel Rating Low23 dBA
Decibel Rating High36 dBA
Air Flow Direction4-Way

Package Contents

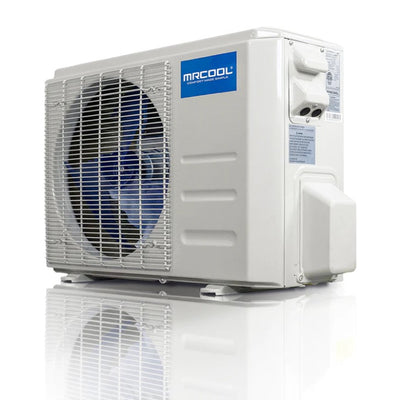

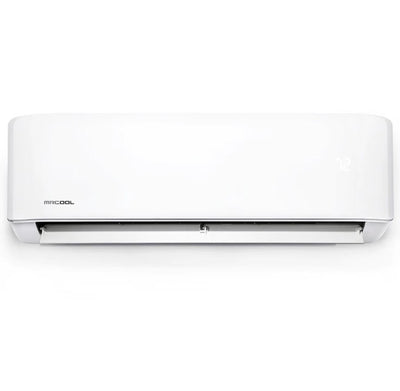

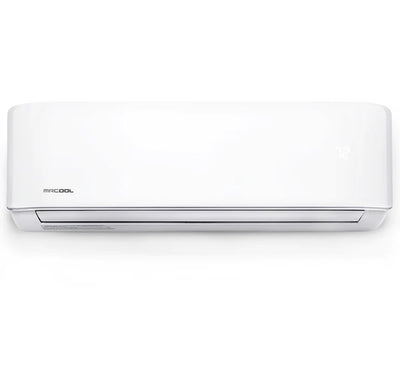

9K BTU Heat Pump Condenser & Wall Mount Air handler 230 volt

Installation kit included with 16' lineset

User Manual

Warranty

vendor logo
divider
authorized dealer

This product comes with a 1 year compressor, 2 year parts and 1 year remote warranty when registered and when installed by a licensed professional.

Customer Reviews (1)

Customer Reviews

01/15/2019
Joshua W.
MRCOOL Advantage 9000 BTU Mini-Split Air Conditioner & Heater 15 SEER

The mini split was a solid purchase overall. They did upgrade my purchase to the higher power model at no additional charge due to being out of stock. It definitely did require an HVAC technician to install (which I did), which did add onto the price. The unit itself works pretty well thus far, but I found myself having to use the turbo mode fairly often when it's freezing or below due to decreased heat output and efficiency, but I've heard this is a common thing with mini split units due to them taking heat from the outside to put into the room. It is overall a solid purchase, but I can't be certain it was worth all the money until the summer comes around and I can see the AC at work
