MRCOOL Ductless Mini-Split Air Conditioner & Heater DIY Complete System 12K BTU 115V/60Hz 4th Gen New
Manufacturer: MRCOOL
SKU: DIY-12-HP-WM-115C25
Share
Email
QTY
$ 1,728.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships In 1-2 Business Days
Manufacturer Direct
Exceptional Customer Service
Manufacturer Direct
Product Overview

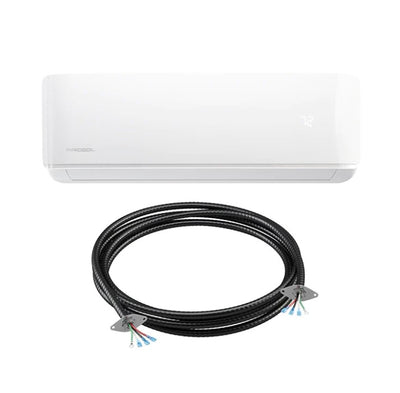

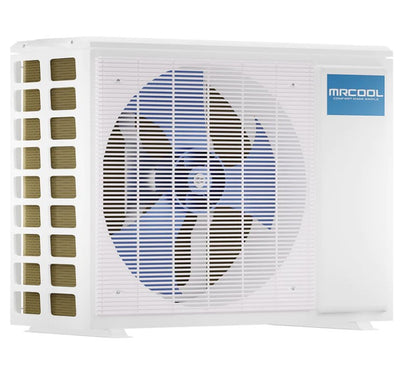

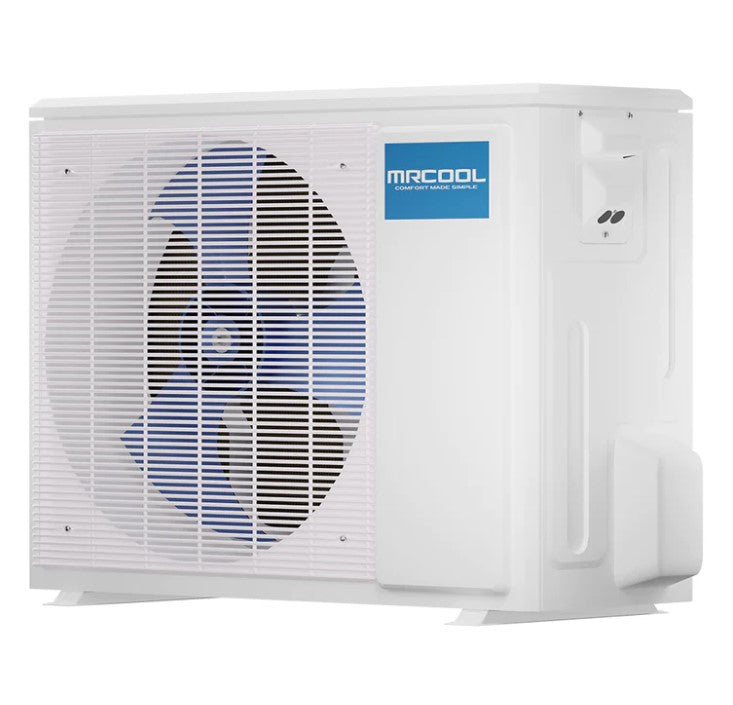

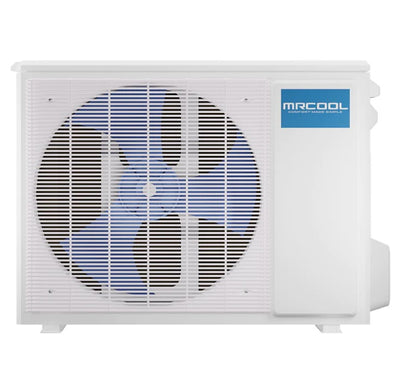

Introducing the latest in home comfort technology, with the 4th Generation MRCOOL DIY 12K BTU, 22.50 SEER2 Ductless Heat Pump System. This powerful single-zone system has the capability of heating and cooling an area up to 500 sq. ft. It comes complete with a 12K condenser, 12K air handler, and a 25 ft. line set pre-charged with R-410A refrigerant. The line set also has quick connectors which require no special tools, equipment, or training to install. The first of which is its ability to achieve an outstanding 22.50 SEER2 efficiency rating allowing it to be Energy Star certified.
Brand new in box
7 year limited factory warranty
Manufacturer direct shipping from KY & NV
Fast shipping
Authorized MRCOOL dealer
Features
- Up to 22.50 SEER2
- Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
- Variable-speed DC inverter compressor technology cuts operating costs
- R-410A environmentally friendly refrigerant
- This system has many operating modes to select from to suit the needs of the user, including HEAT, COOL, DRY (dehumidification), and SLEEP
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- It also has the Follow Me function that adjusts the temperature of the room based on the temperature being read by the hand-held remote control
- The DIY features the convenience of being able to operate its modes and functions with your smartphone by using the Smart HVAC app
- The MRCOOL mini split is the only system on the market to offer a limited lifetime compressor warranty
Specifications
| Condenser Dimensions | 30.12"W x 11.93"D x 21.85"H |
| Condenser Weight | 65.70 lbs |
| Air Handler Dimensions | 31.57"W x 7.44"D x 11.69"H |
| Air Handler Weight | 24.03 lbs |
| SEER2 | 22.50 |
| EER2 | 12.50 |
| SEER | 22 |
| EER | 12.5 |
| COP 47 | 3.36 |
| HSPF2 | 9.00 |
| HSPF | hspf4/hspf5 : 11.5/9 |
| CFM | 305.88/211.76/147.06 |
| Cooling Capacity | 12,000 BTU |
| Heating Capacity | 12,000 BTU |
| Voltage | Requires a minimum of 115V/60HZ/19-25A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 25 A |
| Min Circuit Ampacity | 19 A |
| Color | White |
| Rate Load | 0.53 A |
| Max Coverage Area | Up to 500 sqft |
| Zone Capacity | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 38.10 oz |
| Decibel Rating | 37/31/23.5 |
| Decibel Rating Low | 23.5 dBA |
| Decibel Rating High | 37 dBA |
| Oscillation | 4-W |
| Inverter | Yes |
| Min Ambient Cool | -13F - 122F |
| Min Ambient Heat | -13F - 75F |
| Line Set Length | 25ft |
| Max Lineset Length | 82.02 ft |
| Liquid Line Size | 1/4 in |
| Suction Line Size | 1/2 in |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor RPM | 850/600 |
| Blower Motor RPM | 1100/850/700 |
| Auxiliary Heater Available | No |
| Modes | Fan Only |
| Quiet Mode | Auto Cool |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with | IOS |
| Android | Includes |
| Remote | Batteries |
| Certifications | UL Listed |
| Energy Star | AHRI |
| Warranty | 5-year Parts/7-year Compressor |
Package Contents

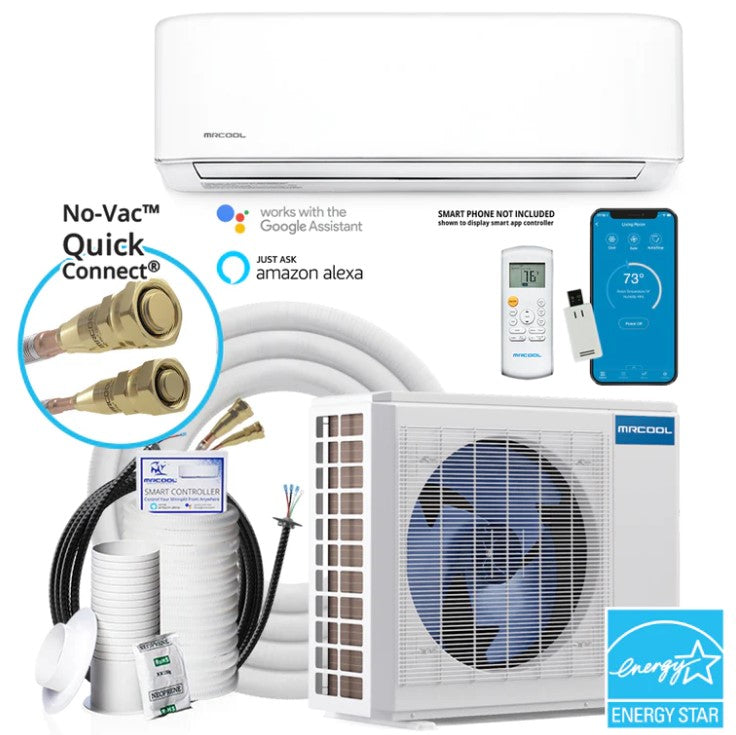

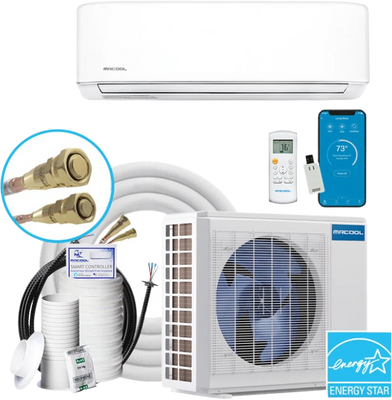

DIY 12K BTU Ductless Mini Split Heat Pump Complete System
User Manual
Warranty
This product comes with a 7 year compressor warranty and a 5 year parts warranty.
