MRCOOL Ductless Mini-Split Air Conditioner & Heater DIY Complete System 36K BTU 208-230V/60Hz 4th Gen New
Manufacturer: MRCOOL
SKU: DIY-36-HP-WM-230C25
Share
Email
QTY
$ 2,878.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships In 1-2 Business Days
Manufacturer Direct
Exceptional Customer Service
Manufacturer Direct
Product Overview
The MRCOOL® 4th Generation DIY 36K BTU, 18 SEER Ductless Heat Pump is one of the most powerful single-zone systems offered in the DIY Series. This complete system has the heating and cooling performance to cover an area up to 1500 sq. ft while still being able to achieve an 18 SEER efficiency rating. The MrCool Pre-Charged Quick-Connect Line Set that makes connecting refrigerant piping as simple as turning a few wrenches. It is also equipped with up to six operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP.
Brand new in box
7 year limited factory warranty
Manufacturer direct shipping from KY & NV
Fast shipping
Authorized MRCOOL dealer
Features
- Up to 18.3 SEER2

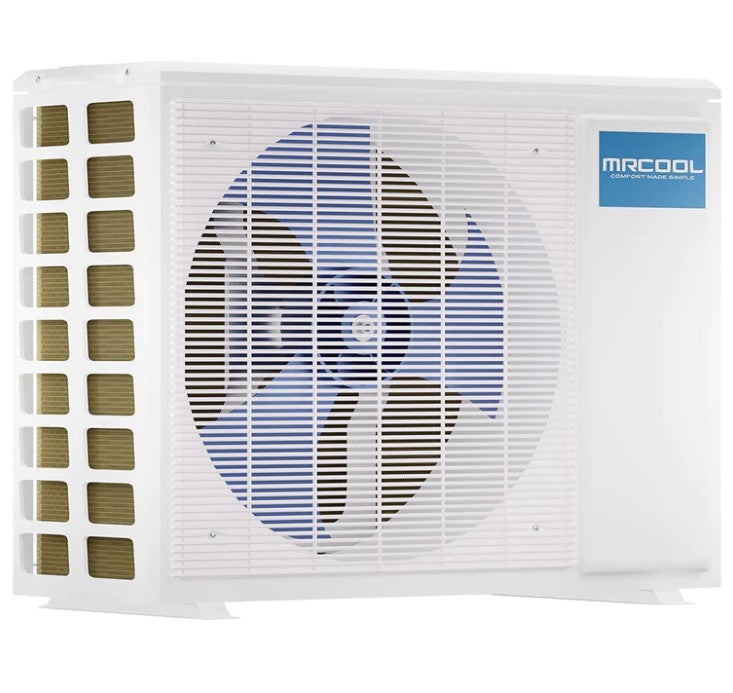

- Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
- Variable-speed DC inverter compressor technology cuts operating costs
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty
- This system can also be operated with an Apple or Android smartphone by downloading the Smart HVAC app
Specifications

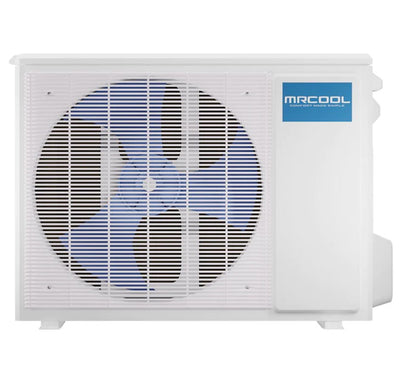

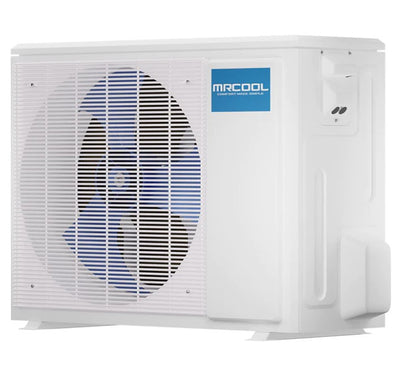

| Condenser Dimensions | 37.24"W x 16.14"D x 31.89"H |
| Condenser Weight | 147.27 lbs |
| Air Handler Dimensions | 49.57"W x 11.10"D x 14.25"H |
| Air Handler Weight | 47.84 lbs |
| SEER2 | 18.30 |
| EER2 | 8.7 |
| SEER | 18 |
| EER | 8.7 |
| COP 47 | 2.81 |
| HSPF | hspf4/hspf5 : 12/9 |
| HSPF2 | 8 |
| CFM | 673.53/502.94/367.65 |
| Tonnage | 3 |
| Cooling Capacity | 36,000 BTU |
| Heating Capacity | 36,000 BTU |
| Voltage | Requires a minimum of 208-230V/60HZ/28-35A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 35 A |
| Min Circuit Ampacity | 28 A |
| Color | White |
| Rate Load | 0.50 A |
| Max Coverage Area | Up to 1,500 sqft |
| Zone Capacity | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 111.1 oz |
| Decibel Rating | 52/45/34 |
| Decibel Rating Low | 34 dBA |
| Decibel Rating High | 52 dBA |
| Oscillation | 4-W |
| Inverter | Yes |
| Min Ambient Cool | 5F - 122F |
| Min Ambient Heat | 5F - 75F |
| Line Set Length | 25ft |
| Max Lineset Length | 98.42 ft |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 5/8 in |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor RPM | 950/250 |
| Blower Motor RPM | 1200/950/750 |
| Auxiliary Heater Available | No |
| Modes | Fan Only |
| Quiet Mode | Auto Cool |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with | IOS |
| Android | Includes |
| Remote | Batteries |
| Certifications | UL Listed |
| Energy Star | AHRI |
| Registered Warranty | 7 Years Replacement on Condenser, 5 Years Parts |
Package Contents

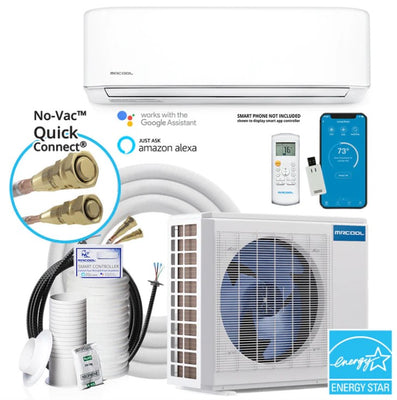

DIY 36K BTU Ductless Mini Split Heat Pump Complete System
User Manual
Warranty
This product comes with a 7 year compressor warranty and a 5 year parts warranty.
