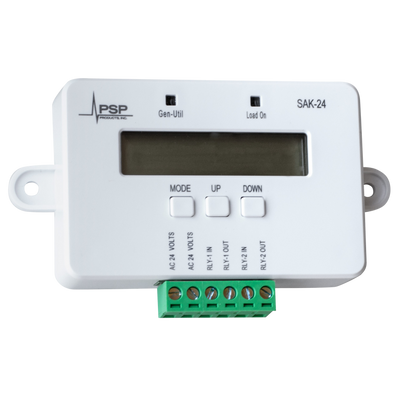

PSP SAK-24 Low Voltage Wireless Generator Load Drop New
Product Overview
The SAK-24 provides a wireless solution to control loads of both normally open and normally closed devices with a dual form āCā dry contact. The contacts are rated for up to 5A and 250 VAC to control a broad range of applications. The SAK-24 is powered by 24 VAC that can be derived from anywhere within the electrical system. A connection or control wire back to the generator or transfer switch is not required.
Brand new
2 year warranty
Authorized PSP dealer
Features
- NO/NC dry-contact control input
- Wireless technology drops load when generator power is detected
- No control wires needed from the transfer switch
- Can be installed anywhere in the electrical system that is 24 VAC accessible
- User-adjustable startup delay and under-frequency restoration timers provide an unlimited number of devices with custom priority settings
- Adjustable frequency drop-out settings and delay times for under-frequency detection
- Precision adjustments from 50.0 to 59.9 Hz for frequency and from 00.1 to 10.9 seconds delay before load shedding
- Overload detection locks out connected devices for an adjustable period of time whenever the restored load overloads a generator
- Switches at zero cross-over point for maximum life expectancy
- 2 control dry contacts
- Mounting flanges for surface mount installation
- Time delay āonā function
- All adjustments are performed in minutes with three buttons using the LCD display
- Compact size
Specifications
| Contacts Rated Up To | 5A and 250 VAC |
| Powered By | 24 VAC |
| Precision Frequency Adjustment | 50.0 to 59.9 Hz |
| Delay Before Load Shed | 00.1 to 10.9 seconds |
| Time Delay Function | Yes |
| Overload Detection | Yes |
| LCD Display | Yes |
| Dimensions | 3.375" x 2.25" |
| Warranty | 2 year warranty |
Package Contents
PSP SAK-60 Wireless Load Management
Warranty
This item comes with a 2 year warranty.
