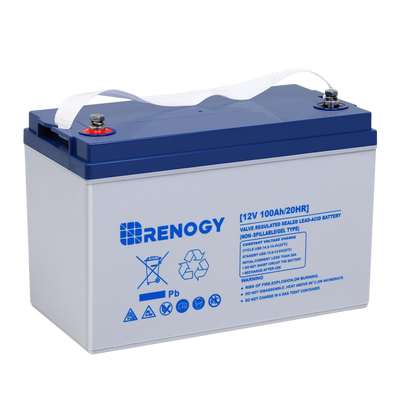

Renogy RBT100GEL12-US Deep Cycle Hybrid GEL Battery 12 Volt 100Ah New
Manufacturer: Renogy
SKU: RBT100GEL12-US
Share
Email
QTY
$ 299.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Product Overview
Renogy’s 12V 100Ah Deep Cycle Hybrid GEL Battery is an excellent choice for standby or daily power needs - even in the most severe conditions. Built tough with a leak-proof, maintenance-free design, this battery provides outstanding performance and long battery life.
This battery is perfect for critical systems due to its ability to withstand more than 750 charge/discharge cycles at 50% DOD. Stay protected against sudden loss of mains power and ensure your vehicle or off-grid systems stay powered with Renogy's GEL batteries.
3 year factory warranty
Brand new in box
Ships directly from Renogy out of CA
Authorized Renogy dealer
Features

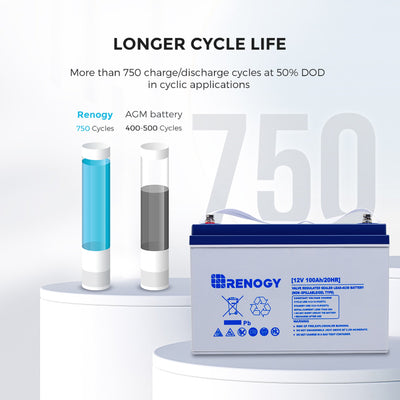

- Extended Battery Life- This Renogy Deep Cycle Hybrid GEL Battery has a design life of over 12 years. During this time, you will be able to charge and discharge the battery more than 750 times at 50% depth of discharge.

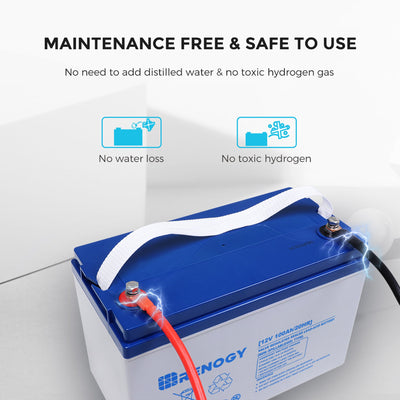

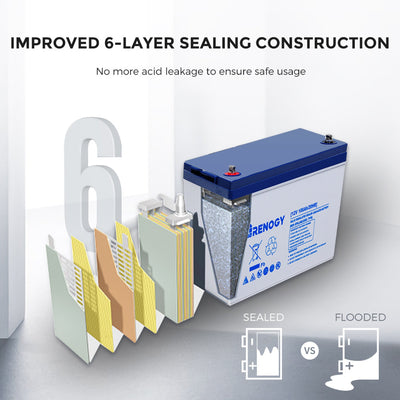

- Environmental-Friendly and Safe- All Renogy GEL batteries have installation flexibility. These non-hazardous, clean batteries emit no toxic gas during normal operation, while a Flooded battery would. Engineered with improved sealing construction, there is no acid leakage either. They can be used safely near sensitive equipment or people.
- In Series or Parallel, It's Up to You- You can connect GEL batteries in series or parallel to power your system. But please note that the maximum number that can be connected in parallel is 4. As for in series, there is no limitation. We recommend connecting batteries with the same voltage and same capacity from the same brand. We also recommend using a battery balancer to extend the battery service life when multiple batteries are connected in series and/or in parallel.
- Power Most Appliances- With a continuous 10A to 20A discharge, this Renogy Deep Cycle Hybrid GEL battery supports powering most daily home appliances. The maximum 1000A discharge (5 seconds) is suitable for appliances that require a high startup current, like a fridge, air-conditioner, washing machine, and more.

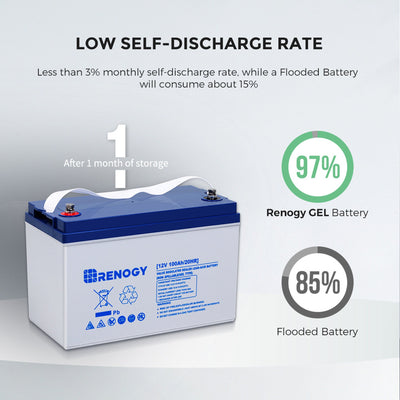

- Longer Storage Time- When not in use, the monthly self-discharge rate of this Renogy Deep Cycle Hybrid GEL battery is as low as 3%. This means it can hold the charge for longer than a Flooded battery.
- User-Friendly Handheld Strap- Whether you need to move the battery from the storage room to your RV or somewhere else, this handheld strap allows you to carry it more conveniently. The Hybrid GEL battery is a bit heavy, so, be careful.
Specifications

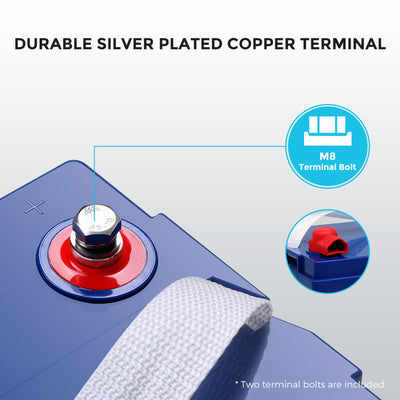

| Terminal Bolt Size | M8 x 1.25 x 16 mm |
| Normal Operating Temperature | 77°F±9°F（25°C±5°C） |

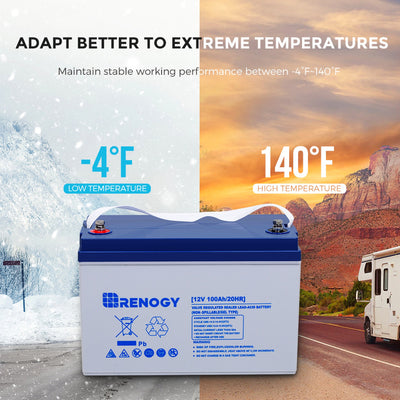

| Operating Temperature Range | Discharge -4~140°F/ -20°C~60°C; Charge 32°F~122°F (0°C~50°C) |
| Storage Temperature Range | -4~140°F/ -20°C~60°C |
| Container Material | ABS |
| Recommended Terminal Torque | 88.5~106.2 inch·lb / 10~12 N·m |
| Certifications | |
| MSDS | YES |
| Accessories | |
| M8 Bolts | *2 |
| Operation Specifications | |
| Rated Voltage | 12 V |
| Number of Cells | 6 |
| Reference Capacity (77°F/25°C) | C3 |
| Cycle Life | 750 Cycles (50% DOD) |
| Self-discharge Rate | (77°F/25°C) ＜3% / month |
| Float Charge Voltage (77°F/25°C) | 13.6V~13.8V; Temperature Compensation |
| Cycle Use Voltage (77°F/25°C) | 14.2V~14.4V; Temperature Compensation |
| Equalization Voltage (77°F/25°C) | 14.2V |
| Continuous Discharging Current | 10A~20A |
| Max Discharging Current | 1000A (5 seconds) |
| Max Charging Current | 30A |
| Internal Resistance | Approx. 6.0mΩ |
| Connection Method | In Series, and In Parallel (up to 4) |
| Mechanical Specifications | |

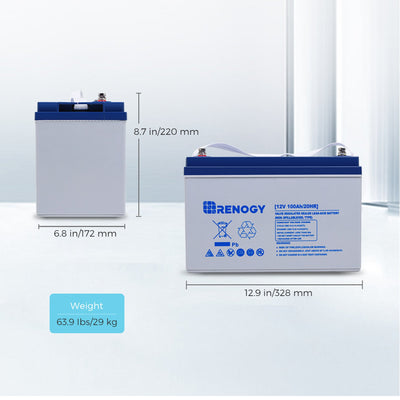

| Dimensions | (L x W x H) 12.9 x 6.8 x 8.7 in / 328 x 172 x 220 mm |
| Weight | 63.9 lbs. / 29 kg |
Package Contents
12V 100Ah Deep Cycle Hybrid GEL Battery
M8 Terminal Bolts
User Manual
Warranty
As an authorized Renogy dealer, this item comes with a 3 year material warranty.
