Renogy RNG-KIT-RV100D-ADV30-US 100 Watt 12 Volt Solar RV Kit New
Manufacturer: Renogy
SKU: RNG-KIT-RV100D-ADV30-US
Share
Email
QTY
$ 312.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Please allow 1-3 business days for processing
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- As an authorized Renogy dealer, this item comes with a 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate5-year material and workmanship warranty and 1 year material and workmanship warranty
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- As an authorized Renogy dealer, this item comes with a 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate5-year material and workmanship warranty and 1 year material and workmanship warranty
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Product Overview
Renogy 100 Watt 12 Volt Solar RV Kit silently recharges your batteries so you can enjoy the great outdoors without the extra noise. Solar panels also allow you to run limited low watt electrical equipment without a power hookup. Renogy RV Solar Kits are carefully arranged to meet your RV needs.

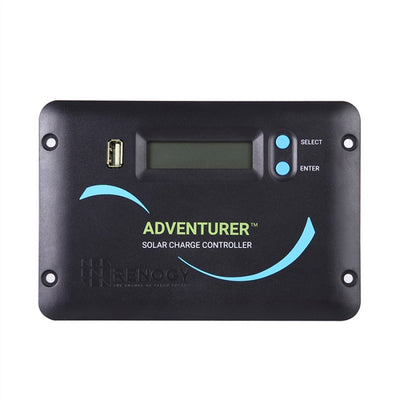

The Adventurer 30A PWM Charge Controller is specifically designed for RV applications as it allows for aesthetically clean flush mounting on walls and is negative-grounded for battery compatibility.
Newly added BT-1 Bluetooth Module enables user to pair the charge controller with our smartphone app DC Home. The APP allows you to view system performance in real time and make parameter changes right from your smartphone!
5 year limited factory warranty
Brand new in box
Ships directly from Renogy out of CA
Authorized Renogy dealer
Features
- High solar cell efficiency : Monocrystalline 21%
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- EL tested solar modules; no hot-spot heating guaranteed
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
- TPT back sheet ensures smooth performance over a long period of time
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
- Sealed, Gel, Flooded and Lithium battery charging algorithm ready 4-Stage battery charging process for a rapid, efficient, and safe battery charging
- Remote monitoring and control via Bluetooth
- The Renogy Adventurer is equipped with multiple electronic protections: reverse current, overcharging, short-circuit and reversed polarity
- Pre-drilled holes on the back of the panel allow for fast and secure mounting
- With the Renogy Adventurer 30A PWM Flush Mount Charge Controller, you can expand your system up to a maximum of 400W. The Renogy 100W Monocrystalline Expansion Kit is the perfect solution for future expansion
Specifications
| Solar Adaptor Kit (A Pair) Length | 30ft |
| Solar Adaptor Kit (A Pair) AWG | 10 |
| Solar Adaptor Kit (A Pair) Rating Voltage | 600/1000V |
| Solar Adaptor Kit (A Pair) Temperature | -40°F to +185°F |
| Mounting Z Brackets Set | Eight Long Cap Bolts and Four Short Bolts |
| Mounting Z Brackets Set | Four Spring Washers and Four Washers |
| Mounting Z Brackets Set | Four Z Shape Solar Panel Brackets |
| Mounting Z Brackets Set | Four Nuts |
| Bluetooth Module Model | BT-1 |
| Bluetooth Module Standby Power Consumption | 0.04W |
| Bluetooth Module Communication Range | ≤15m |
| Bluetooth Module Dimensions | 2.6 X 2.01 X 0.61 In |
| Maximum Power | 100W |
| Open-Circuit Voltage (Voc) | 21.6V |
| Optimum Operating Voltage (Vmp) | 17.9V |
| Dimensions | 42.2 X 19.6 X 1.38 inches |
| Maximum System Voltage | 600V DC |
| Short-Circuit Current (Isc) | 6.24A |
| Optimum Operating Current (Imp) | 5.72A |
| Weight | 14.3lbs |
| Tray Cables (A Pair) Length | 16ft |
| Tray Cables (A Pair) AWG | 10 |
| Tray Cables (A Pair) Rating Voltage | 600V |
| Tray Cables (A Pair) Temperature | -40°F to +185°F |
| Ground Charger with LCD Display Nominal Voltage | 12 VDC |
| Ground Charger with LCD Display Rated Charge Current | 30A |
| Ground Charger with LCD Display Max. PV Input Voltage | 25 VDC |
| Ground Charger with LCD Display Max. PV Input Power | 400W (12V) |
| Cable Entry Housing Material | UV-resistant ABS Plastic |
| Cable Entry Housing Weight (each component) | 7.9 oz. |
| Cable Entry Housing Recommended Adhesive | Sikaflex 252 or alike |
| Cable Entry Housing Dimensions (l x w x h) | 4.7 x 3.9 x 2.0 in |
| Cable Entry Housing Cable Gland Diameter Range | 6mm – 12mm |

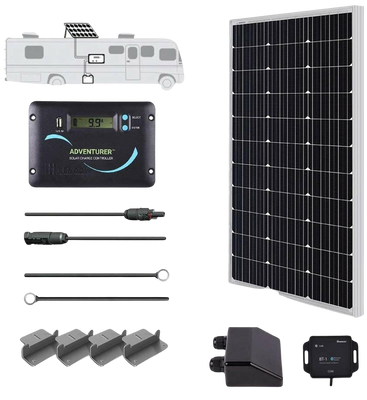

Package Contents
1x 100W Mono Solar Panel
1x Renogy Adventurer-30A PWM Charge Controller
1x Renogy 16ft 10AWG Tray Cables
1x Renogy 30ft 10AWG Solar Adaptor Kit
1x Cable Entry Housing

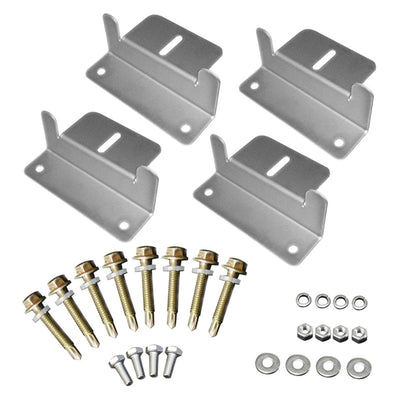

1x Mounting Z Brackets (Set)
1x Renogy BT-1 Bluetooth Module
User Manual
Warranty
As an authorized Renogy dealer, this item comes with a 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate5-year material and workmanship warranty and 1 year material and workmanship warranty
