Schulz Audaz MCSV Air Compressor 5 HP 80 gal. 2-Stage 230V 1-Phase Horizontal New
Manufacturer: Schulz
SKU: 932.9372-0
Share
Tank Orientation
Phase
QTY
(888) 999-1522
$ 2,485.00
$ 1,934.20
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
ON SALE!
Ships in (est) 1-2 Business Days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 1 year on the product and 2 year warranty on the pump.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year on the product and 2 year warranty on the pump.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

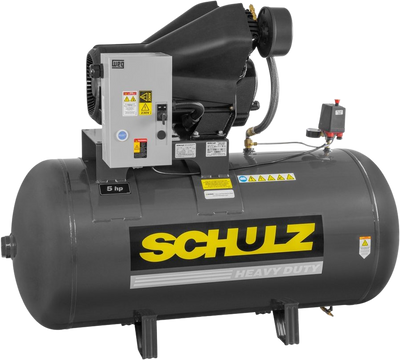

Schulz Audaz MCSV Air Compressor 5 HP 80 gal. 2-Stage 230V 1-Phase Horizontal New
Share
Product Overview
The compressor Audaz MCSV 20/80 is the most innovative one in the market. The exclusive patented technology IC-TECH® allows the integrated connection between high-efficiency stages. This technology allows lubricating oil to be changed every 300 hours* (which represents a gain of 50% in the durability of the oil). The direct coupling reduces the loss of energy and ensures greater safety. From mechanical workshops to small companies, its productivity will be greater, with less maintenance expense. This compressor of 20 cfm (cubic feet/min) has an integrated 5 hp motor, a plastic cover specially designed to increase the cooling efficiency of the compressor pump, and an oil sight glass that facilitates its monitoring.
Brand new
1 year warranty
Manufacturer direct shipping from GA
Authorized Schulz dealer
Features
- Direct Drive using IC-TECH Patented Technology
- Solid cast iron construction
- Splash oil lubricated pump
- CNC machined - ISO 9002
- Large Swedish stainless steel reed valves
- Finned Intercooler
- Two-cylinder V design
- Maximum pressure - 175psi
- Available only in 230 Volt
Specifications
| Item Number | 932.9372-0 |
| Model | MCSV 20 AP AUDAZ |
| Product Category | Air Compressor - Stationary |
| Power Type | Electric |
| Engine HP | 5 |
| Voltage | 230 Volt AC |
| Phase | 1-Phase |
| Magnetic Starter | Yes |
| CFM | 20 |
| CFM Rated @ | 175 PSI |
| Pump Material | Solid Cast Iron |
| Max PSI | 175 PSI |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Direct Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-Off | No |
| Tank Size | 80 Gallons |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
| Pressure Gauge | Yes |
| Certification | ASME |
| Product Length | 55 Inches |
| Product Width | 23 Inches |
| Product Height | 45 Inches |
| Weight | 368 lbs. |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
Package Contents
Schulz Audaz MCSV Air Compressor 5 HP 80 gal. 2-Stage 230V 1-Phase
User Manual
Warranty
This item comes with a 1 year on the product and 2 year warranty on the pump.
