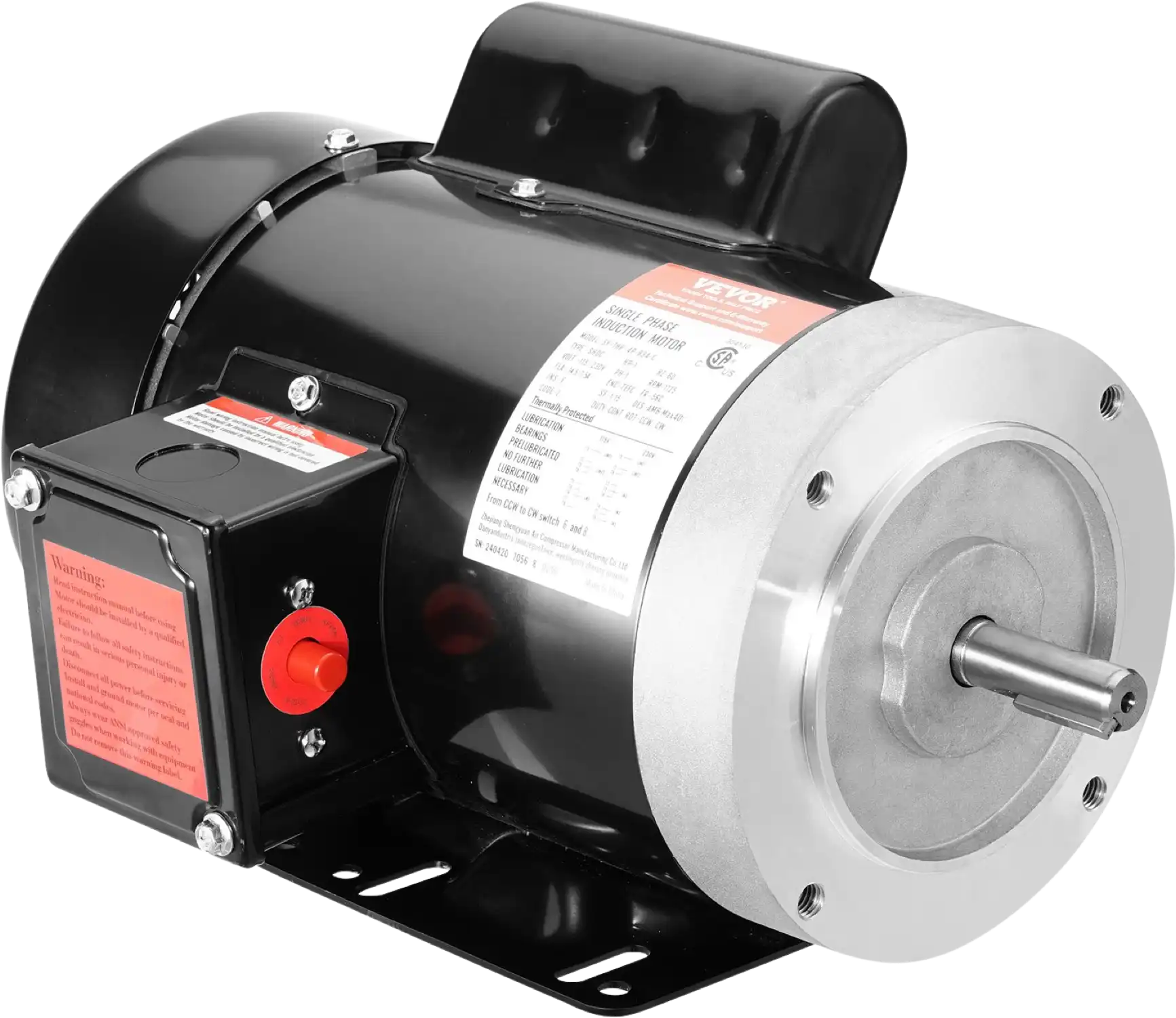

Vevor Electric Motor 1HP 5/8" Keyed Shaft 1725 RPM Single Phase AC 115/230V New
Product Overview
Vevor's 1HP electric motor boasts a high speed of 1725 rpm, delivering powerful performance across various applications. Operating at 115/230V voltage with 14.5/7.5A current, it features a 56C frame, 1.88" shaft length, 5/8" keyed shaft, and CW/CCW dual rotation direction. Its robust power output ensures efficient operation, making it ideal for agricultural machinery and industrial equipment while saving energy and boosting production.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Powerful Performance: 1 horsepower, Single Phase, Full Load Current: 14.5/7.5A, AC 115V/230V 60Hz, 1725 RPM High Speed, SF: 1.15.
- Sturdy Frame: 56C frame, 5/8" keyed shaft, 1.88" shaft length, 0.188" keyway size.
- Durable and Safe: Tested to CSA standards, this air compressor motor boasts a heavy-duty rolled steel shell for enhanced durability. It also includes overload protection with manual reset, ensuring longer service life and dependable performance.
- Dual Rotation Direction: This electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications.
- Wide Range of Applications: Vevor's 1HP general purpose motor is universally applicable, ideal for water pumps, agricultural machinery, and general equipment. It's perfect for DIY projects and repair replacements, providing versatile and powerful functionality for various needs.
Specifications
| Item Model # | SY-1HP-4P-B34-C |
| Voltage | AC 115V/230V |
| Frequency | 60Hz |
| Horsepower | 1 HP |
| Current | 14.5/7.5A |
| Frame Size | 56C |
| Rotation Speed | 1725 RPM |
| Product Dimensions | 13.2" x 9.1" x 8.3" |
| Net Weight | 36.4 lbs (16.5 kg) |
Package Contents
Vevor 1HP Electric Motor
User Manual
Warranty
This item comes with a 1 year factory warranty.
