Vevor Fiber Fusion Splicer 6 Motors with 4" Digital LCD Screen 3-in-1 Auto Focus Fiber Holder New
Product Overview
Introducing Vevor's high-end fiber fusion splicer, featuring core alignment technology with auto focus and 6 high-precision motors. Achieve lightning-fast fusion in just 5-6 seconds and rapid heating in 9-25 seconds, with fusion loss as low as 0.01dB(MM). Meet diverse fiber optic projects demands with accuracy. Coming with a 3-in-1 optic holder, this device is compatible with different types of fibers, from single-mode (SM) to erbium-doped fiber (EDF). With the integrated Optical Power Meter (OPM) and Visual Fault Locator (VFL) feature, users can easily determine the quality of the fiber link transmission, measure fusion loss, identify bends and breaks, etc.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- High Splicing Efficiency: Vevor's fiber fusion splicer boasts 6 high-precision motors, core alignment and auto-focus function, supporting rapid splicing in as fast as 5-6 seconds and quick heating in 9-25 seconds, with fusion loss as low as 0.01dB(MM).
- Operate Much Longer: Built in 3500mAh high-capacity rechargeable battery can perform over 200 continuous fusion splicing and heating cycles on a full charge. There is a USB port on the side, allowing for charging mobile phones, lighting devices, and more.
- Image Storage: Automatically capture and save crucial images during the fiber fusion process, providing you with a visual record. 4-inch high-resolution LCD screen offers independent 240x X or Y magnification display and simultaneous 120x X/Y display, ensuring clear and visible fiber cores.
- Wide Applications: The 3 in 1 optical fiber holder is widely compatible with SM, MM, DS, NZDS, UI, BUI, and EDF fibers. Built-in OPM and VFL can effectively measure connection loss, verifying continuity and assessing fiber link transmission quality.
- All-in-One Versatile Kit: All necessary tools are ready for your fiber fusion work. Each optical fusion splicer kit includes a main unit, fiber cleaver, wire stripper, 3-hole stripper, alcohol dispenser, blowing ball, power adapter, power cord, cooling tray, and a portable carrying bag.
Specifications
| Item Model # | ALK-T1 |
| Focus Mode | Arc Fusion Splicing |
| Applicable Fiber Types | SM, MM, DS, NZDS, UI, BUI, EDF |
| Applicable Fiber Diameter | 125-150μm (Cladding); 250-1000μm (Coating) |
| Splicing Loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS) |
| Number of Motors | 6 |
| Fiber Heat Shrink Tubes | 25 mm, 40 mm, 45 mm, 50 mm, 60 mm |
| Product Dimensions | 8.3" x 5.2" x 4.1" |
| Weight | 7.05 lbs. |

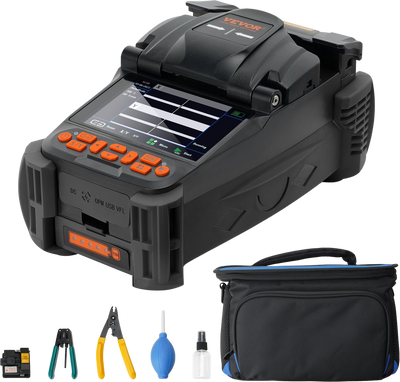

Package Contents
Vevor Fiber Fusion Splicer
Fiber Cleaver
Wire Stripper
3-Hole Stripper
Alcohol Dispenser
Blowing Ball
Power Adapter
Power Cord
Carrying Bag
User Manual
Warranty
This item comes with a 1 year factory warranty.
