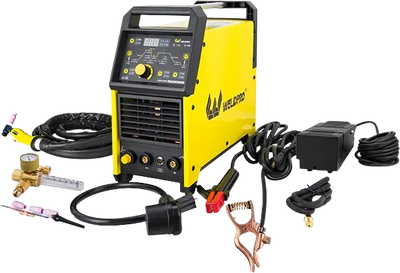

Weldpro TIGACDC200GD Digital TIG/Stick Welder With AC/DC KT26 Torch 200 Amp High Frequency Pulse L12008 New
Product Overview
This digitally designed TIG Welder with AC/DC utilizes the most advanced inverter technology. The IGBT circuits, coupled with PWM technology, enable this welder to be more efficient by 30%. The reduced size and weight of this TIG/Stick welder enable this welding machine to give you a better range of settings for each specific weld.
3 year factory warranty
Brand new in box
Ships directly from Weldpro out of WA
Authorized Weldpro
Features
- The TIGACDC200GD also has a 40% duty cycle at full amperage for DC TIG and a 60% duty cycle for AC TIG.
- This machine is capable of welding with either AC or DC.
- You can select DC welding for carbon steel, stainless steel, copper, and many other metals.
- Simultaneously, it can switch over to AC welding used in welding aluminum and aluminum alloys.
- This model utilizes advanced TIG welding functions and is a very good MMA/Stick welder.
- Our exclusive high-frequency technology includes a pure square wave output, excellent arc force, and a wide range of balance control for aluminum cleaning.
- This AC/DC TIG welder is a top choice because it’s many features that are not always found in this low price range.
- You’ll get 2T-4T touch control, start amps, end amps, upslope, downslope, pulse, AC Balance, and a completely dedicated foot control pedal with no current interim control on the foot pedal.
- With Weldpro’s TIGACDC200GD, we put you in full control by placing the amperage control settings in the front of the machine.
- Weldpro’s flagship 200 amp AC/DC TIG welder that goes beyond simply welding steel and aluminum.
- The model 200 is also a digital designed TIG welder equipped with full function TIG welding features found on machines priced much higher.
- Start and end amps, upslope, downslope, fully adjustable pulse, AC balance, AC frequency. 2T-4T
- Excellent Professional design rocker style foot pedal without annoying intermediate amperage control.
- Also fully capable MMA stick welding function with stinger included

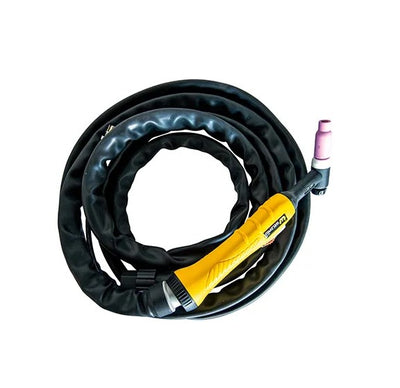

- Includes 12.5′ KT26 TIG torch with rotary amperage control in handle and rated for 200 amps @ 60% DC and 150 amps @ 60% AC
Specifications
| WEIGHT | 62 lbs |
| DIMENSIONS | 33.1 × 12.8 × 20.3 in |
| OUTPUT POWER TYPE | DC/AC |
| RATED ELECTRICAL INPUT | 110v / 240v 60 Hz |
| TIG AMPS RANGE | 5-200A |
| STICK AMPS RANGE (AC/DC) | 20-180A |
| PRE-FLOW (S) | 0.1-1 |
| UP SLOPE TIME RANGE (S) | 0-10 |
| DOWN SLOPE TIME RANGE(S) | 0-25 |
| POST FLOW (S) | 0-15 |
| PULSE PEAK ON TIME | 10-90% adjustable |
| PULSE FREQUENCY | 0.5-200 HZ |
| AC BALANCE | 30-70% |
| AC FREQUENCY | 40-200HZ |
| HOT START | Yes |
| HF START TIG | Yes |
| 2T/4T TORCH TRIGGER PANEL CONTROL | Yes |
| FOOT PEDAL | Yes |

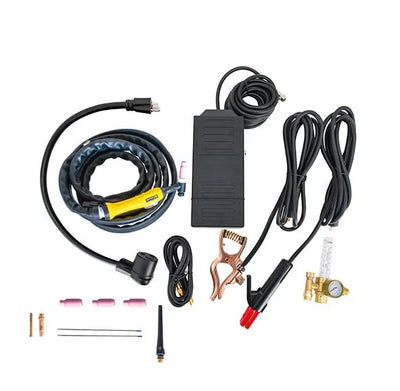

Package Contents
Weldpro TIGACDC200GD EURO Welder with KT26 Torch 200 Amp High Frequency Pluse TIG/Stick
Owner’s Manual
Warranty
This item comes with a 3 year factory warranty.
