Fuelworks Double Diaphragm Transfer Pump 1/2" Nitrile/NBR/Buna-N 12GPM/45LPM 17150500 New
Manufacturer: Fuelworks
SKU: 17150500
Share
Email
QTY
$ 350.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships Same or Next Day
If ordered by 12PM EST
Extended Warranty
Factory Warranty
- Warranty covers any defects in workmanship and materials for a period of one (1) year from the date of purchase.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- Warranty covers any defects in workmanship and materials for a period of one (1) year from the date of purchase.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
Exceptional Customer Service
Manufacturer Direct
Product Overview

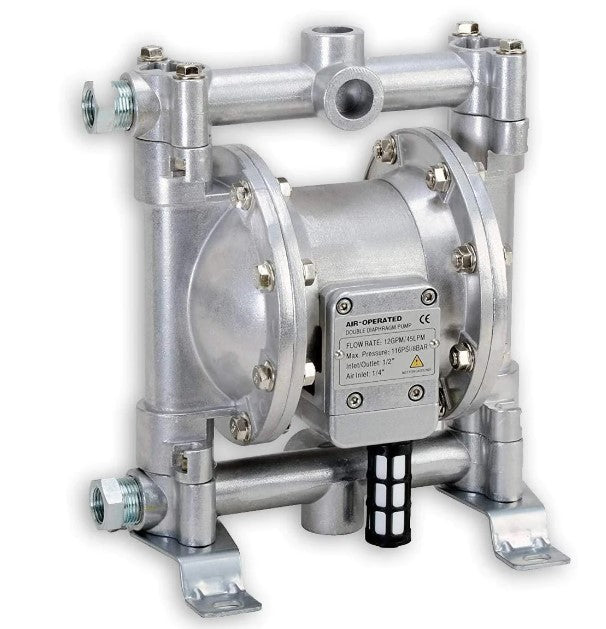

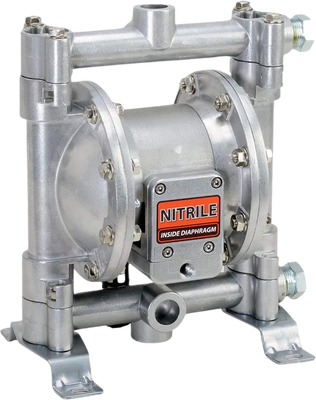

This Fuelworks air-operated double diaphragm aluminum pump has a flow rate of 12GPM/45LPM, inlet/outlet connections of: 1/2" NPT and designed with the highest quality Nitrile/Buna-N/NBR Seals. Fuel transfer of non-flammable liquids like: diesel, grease, kerosene and oil.
1 year factory warranty
Brand new in box
Ships directly from Fuelworks out of CA
Authorized Fuelworks dealer
Fuelworks Double Diaphragm Transfer Pump 1/2" Nitrile/NBR/Buna-N 12GPM/45LPM 17150500 New
Share
Email
Share
Share
Features

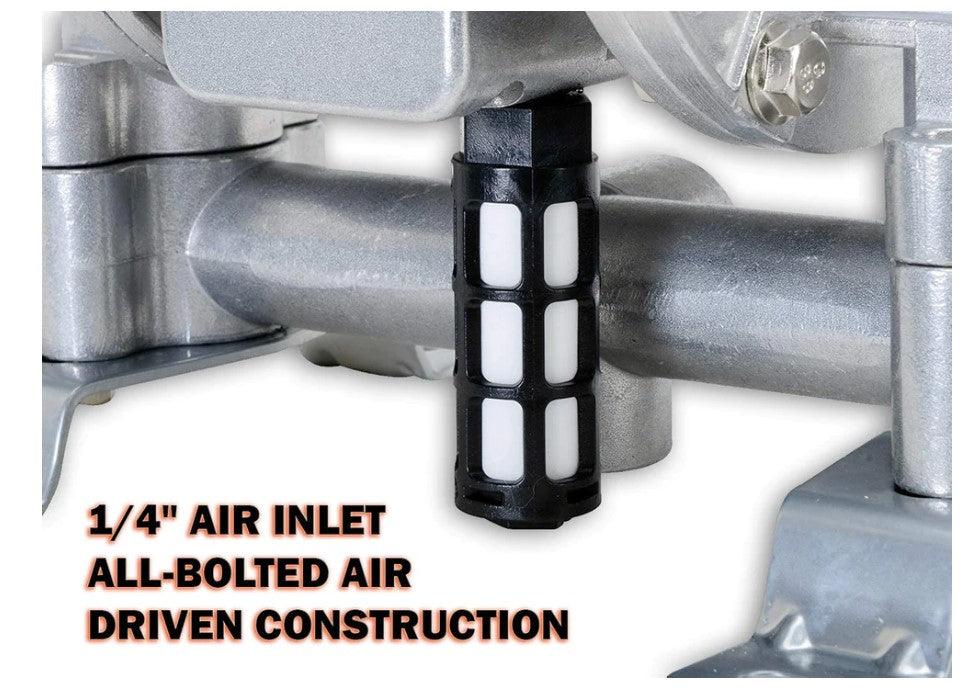

- PUMP SPECS - This Pneumatic Diaphragm Pump has a Flow Rate of 12GPM/45LPM with Self-Priming capabilities; Max Pressure: 116PSI/8BAR with 1/2" inch Inlet/Outlets, an Air Inlet of 1/4" inch NPT, a Max diameter Solid of 1/8" inch and complete with a pair of PTFE Ball Valves

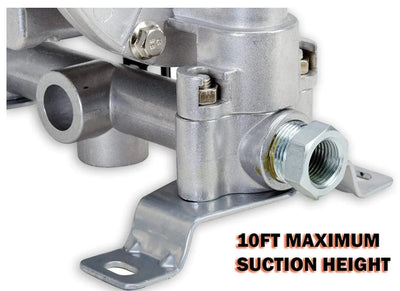

- EFFICIENT DESIGN and CAPABILITIES - Our Diaphragm Pumps are compact, lightweight and built of an Aluminium body for rigorous applications and the Membrane/O-Rings/Seals/Elastomers are of Nitrile/NBR/Buna-N material; With a Max Suction Height of: 10ft (3m) and Max Head of: 164feet (50m) for professional applications

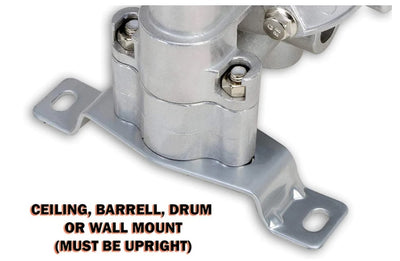

- SAFETY and PROPER USE - The Fuelworks Diaphragm Transfer Pump is to be mounted upright during operation for user safety; This pump is designed specifically for Fuel Transfer of [Non-Flammable Liquids like: Diesel, Grease, Kerosene and Oil] (DO NOT USE FOR GASOLINE, Bio-Diesel, Windscreen and Similar Chemicals)
Specifications
| Air Motor Type | Positive Displacement (aka Membrane Pump) |
| Manifold and Body Material // Diaphragm and O-Ring Elastomers | Polypropylene // Nitrile/Viton/FPM (DEPENDS ON MODEL) |
| Max Suspended Dia. Solids // Valve Type and Check Valves | 1/8" (3mm) // Ball: PTFE |
| Max PSI / Flow Rate | 116PSI (8Bar) / 12GPM/45LPM or 24GPM/90LPM (Depends On Model) |
| Air Inlet // Inlet/Outlet Size / Average Air Consumption | 1/4" NPT // 1/2"to 1" |
Package Contents
Double Diaphragm Transfer Pump
Instruction Manual
Warranty
Warranty covers any defects in workmanship and materials for a period of one (1) year from the date of purchase.
