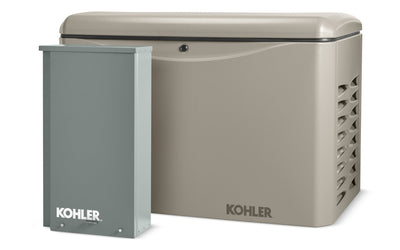

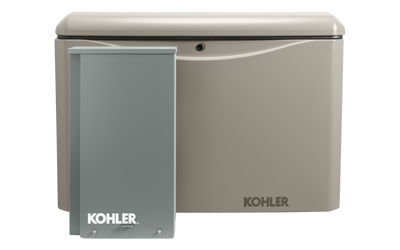

Kohler 14RCAL-200SELS 14KW Standby Generator with 200 Amp Automatic Transfer Switch and OnCue Plus New

Manufacturer: Kohler

SKU: 14RCAL-200SELS

Kohler 14RCAL-200SELS 14KW Standby Generator with 200 Amp Automatic Transfer Switch and OnCue Plus New
Kohler 14RCAL-200SELS 14KW Standby Generator with 200 Amp Automatic Transfer Switch and OnCue Plus New
Kohler 14RCAL-200SELS 14KW Standby Generator with 200 Amp Automatic Transfer Switch and OnCue Plus New



Kohler 14RCAL-200SELS 14KW Standby Generator with 200 Amp Automatic Transfer Switch and OnCue Plus New
Kohler 14RCAL-200SELS 14KW Standby Generator with 200 Amp Automatic Transfer Switch and OnCue Plus New
Kohler 14RCAL-200SELS 14KW Standby Generator with 200 Amp Automatic Transfer Switch and OnCue Plus New

QTY

$ 5,140.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

in stock checkmark

In Stock

tags

ON SALE!

truck icon

Current special - Add to cart to see lower price

Ships in (est) 3-8 business days

headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Shopper Award
FactoryPure BBB Business Review

Product Overview

Popular generators for backup power, with an automatic transfer switch included. When you lose power during an outage or storm, a hard-working 14 kW KOHLER® generator keeps your appliances working, the heat or AC running and your security system on.

vendor logo
divider
authorized dealer
checkmark

5 year comprehensive warranty

checkmark

Remote Monitoring

checkmark

Brand new in box

checkmark

Free shipping

checkmark

Works with liquid propane or natural gas

checkmark

Authorized Kohler dealer

Kohler 14RCAL-200SELS 14KW Standby Generator with 200 Amp Automatic Transfer Switch and OnCue Plus New

Kohler 14RCAL-200SELS 14KW Standby Generator with 200 Amp Automatic Transfer Switch and OnCue Plus New

Features

  • Every KOHLER® generator is equipped with a heavy-duty, commercial-grade engine that stands up to extreme weather
  • In just 10 seconds, your KOHLER generator automatically restores power to a 5-ton (60,000 BTU) air conditioner, major appliances and electronics. Based on generator and load size
  • We've got you covered with 5-year, 2,000-hour protection, and a corrosion-proof enclosure that's built to last
  • KOHLER generators have received several awards, including the Most Valuable Product (MVP) Award 2010 by Building Products magazine
  • PowerBoost™ technology provides power to start large loads such as central air conditioners without dropping power to other appliances
  • Extraordinary peak motor-starting capacity: 14RCAL at 33kVA at 240V
  • Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics
  • Powered by reliable KOHLER Command PRO® engine, designed and tested for tough commercial applications; with hydraulic valve lifters to eliminate need for lengthy break-in periods and expensive valve adjustments; operation speed is 3600 rpm (the standard for air-cooled generators)
  • Compatible with OnCue® Plus and OnCue® Plus Wireless Generator Management Systems, and Programmable Interface Module (PIM)
  • Also compatible with Load Control Module (LCM) or Load Shed kit with single-phase generators only
  • Comes with either an RXT 200-amp outdoor-rated standard automatic transfer switch
  • RDC2 controller designed for today's sophisticated electronics manages both the generator set and Model RXT transfer switch functions
  • Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner
  • Stylish corrosion-proof enclosure impact tested to -30°F
  • Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field
  • Streamlined installation, simple terminal block for easy field connections. Kohler also offers concrete mounting pads to lower installation costs and time.

Specifications

Fuel Consumption on NG at 50% load124 cfh
Fuel Consumption on LP at 50% load60 cfh
ControllerRDC2 Controller
Cylinder ArrangementV-2
Dimensions1193 mm x 666 mm x 817 mm (47 in. x 26.2 in. x 32.2 in.)
Engine Manufacturer/DescriptionKOHLER Engine
ModelCH740
Engine/Alternator RPM3600
Fuel TypeLPG, Natural Gas
Frequency60 Hz
PhaseSingle Phase or Three Phase
Voltage @ 60 Hz120/240|277/480
Digital Voltage Regulation±1.0%
Built in Mounting PadYes
Model14RCAL
Rated kW LP14 kW
Rated kW NG12 kW
Amps LP58 amps
Amps NG50 amps
Peak Motor Starting kVA @240 V33 kVa
Alternator NoteAll information shown is for 1 Phase 60 Hz generator with the largest alternator option available.
Displacement725 cm³ (44 cu. in.)
HorsepowerNG 20.5 HP, LP 23.6 HP
Enclosure MaterialAluminum
Sound Output During Weekly Exercise63 dB(A)
Sound Output During Full-speed Operation67 dB(A)
Response Time10 seconds
WarrantyPremium five-year limited warranty
Country of OriginUS
Certifications/ListingsUL 2200, EPA, CSA, cUL
Automatic Transfer SwitchIncluded
Remote Monitoring AvailableIncluded
Off Grid / Utility BackupOff Grid, Utility Backup
Weight490/500 lbs. (222/227 kg)
Alternator Type2-Pole, Rotating Field

Package Contents

Kohler 14RCAL-200SELS 14KW Standby Generator

200 Amp Automatic Transfer Switch

User's manual

Warranty

vendor logo
divider
authorized dealer

This item comes with a 5 year comprehensive warranty.

Customer Reviews (1)

Customer Reviews

01/22/2023
John Brod
Kohler Generator

I received the generator in good shape no damage. I did not get it installed yet, hopefully in another week or so, for now that’s all I have to say about it until I get it installed.
