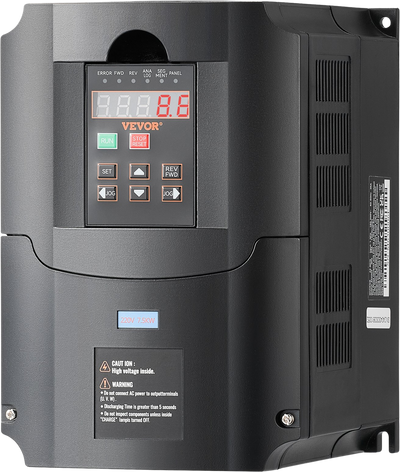

Vevor VFD Variable Frequency Drive 10HP 7.5kW 35A Single Phase or 3-Phase Input New
Manufacturer: Vevor
SKU: BPQDQ75KW220GF4DKV7
QTY
(888) 999-1522
$ 163.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Vevor VFD Variable Frequency Drive 10HP 7.5kW 35A Single Phase or 3-Phase Input New
Product Overview
The input of the variable frequency drive is single-phase 220V or three-phase 220V, and the output is three-phase 220V. With easy wiring, intuitive display, and comprehensive protections, it simplifies operations, enhances energy efficiency, and minimizes machinery faults. This VFD comes with an intelligent protection system, providing security against overcurrent, overload, overvoltage, and phase loss.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Key Parameters: Power: 7.5KW, Horsepower: 10HP, Input Current: 35A. Input Phase: Single-phase 220V or Three-phase 220V ; Output Phase: Three-phase 220V. Input Frequency: 40-60Hz ; Output Frequency: 0-400Hz.
- Intuitive Display and Buttons: This variable frequency drive (VFD) features an intuitive display and easy-to-use buttons, allowing users to get started quickly. The detachable panel can be connected to the corresponding interface for remote control, providing added convenience and flexibility.
- Safety & Durability Redefined: The VFD stands out with a comprehensive protection system, safeguarding against overcurrent, overload, overvoltage, phase loss, and more. These features prioritize your safety and enhance the longevity of the VFD. It ensures rapid cooling during extended use with its multi-sided and multi-hole design.
- Master of Versatility: Vevor's VFD is ideal for driving three-phase motors in diverse machinery, including CNC routers, CNC machines, milling machines, drilling machines, compressors, pumps, grinders, elevators, centrifuges, and other speed control machines. For heavier motor loads, please choose a higher-powered VFD for best results.
- Friendly Reminder: The motor power should not exceed that of the variable frequency drive, and having a lower power doesn't matter. Depending on the different load, power needs to be downgraded for optimal usage, especially under high-load situations.
Specifications
| Item Model # | A2-8075 |
| Input Voltage | 220V (Single Phase or 3 Phase) |
| Input Current | 35A |
| Output Voltage | 220V (3 Phase) |
| Power | 7.5kW |
| Horsepower | 10 HP |
| Input Frequency | 40-60Hz |
| Output Frequency | 0-400Hz |
| Main Material | Flame-Retardant ABS |
| Product Dimensions | 8.6" x 5.9" x 7" |
| Net Weight | 5.6 lbs (2.56 kg) |
Package Contents
Vevor Variable Frequency Drive
User Manual
Warranty
This item comes with a 1 year factory warranty.
