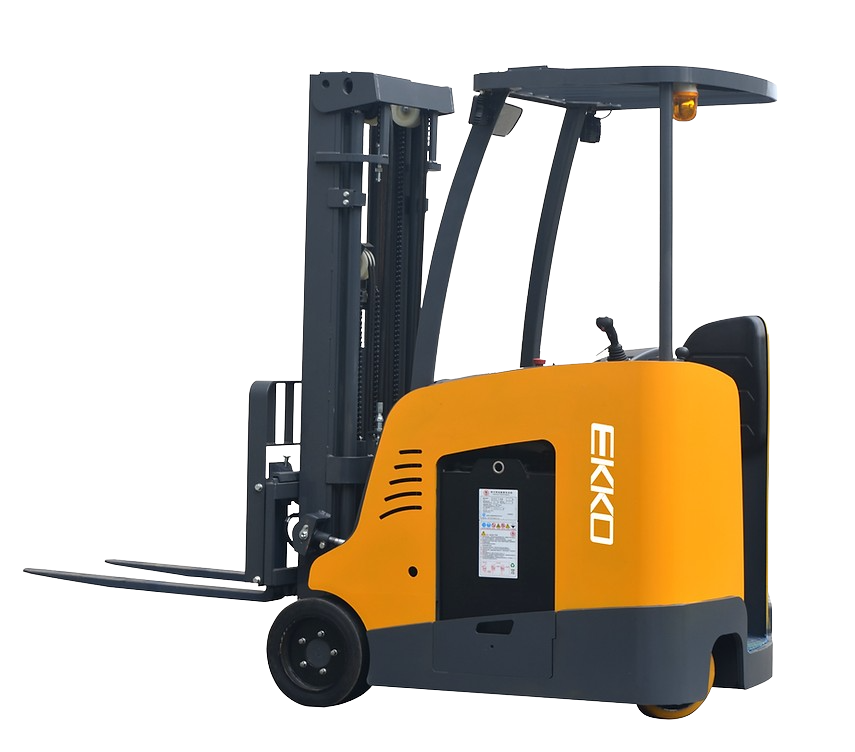

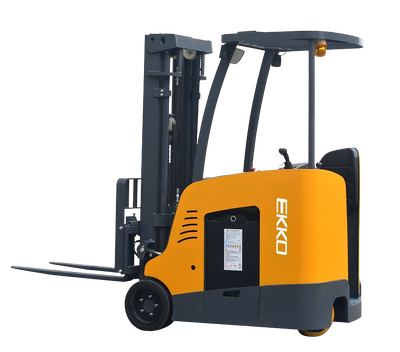

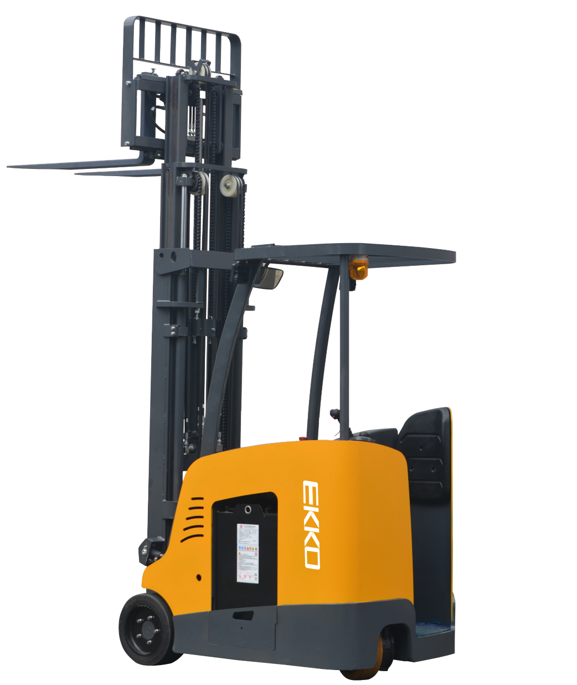

Ekko EK18RF Stand-up Rider Forklift 216" Lift 4000 lbs. Capacity New
Manufacturer: Ekko
SKU: EK18RF
Share
Email
QTY
$ 33,998.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Manufacturer Direct
Product Overview
The Ekko EK18RF Stand-up Rider Forklift is designed for use for all of your material handling demands.
It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Brand new and manufacturer direct
3 year limited manufacturer's warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- Load Capacity 4000 lb
- Raised Height 216" (18ft)
- Side Shifting Forks
- Adjustable Forks 9.4 - 35.6"
- Fork Length 45.3“
- Hydraulic Steering
- Curtis Instrument Controller
- German AC Drive Motor
- Battery 48V/420Ah (included)
- Solid Cushion Load Tires
- Polyeurathane Drive Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 48V/65A 480V
- 3 Year Limited Warranty

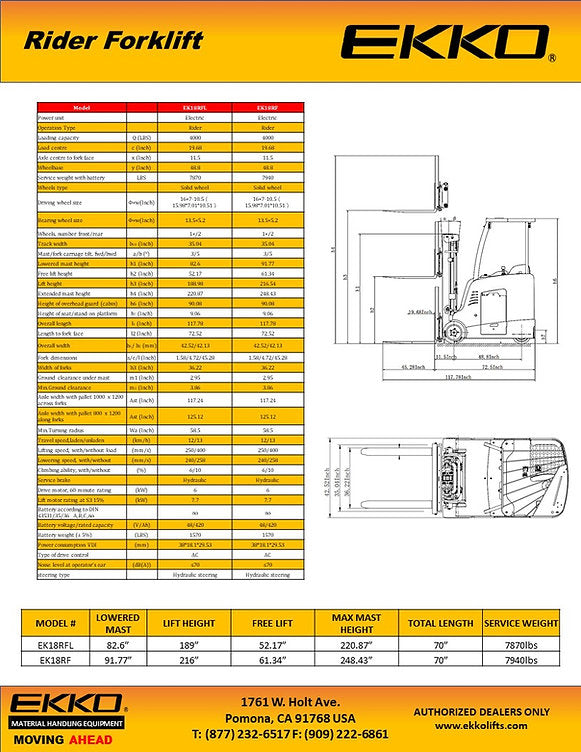

Specifications
| Model | EK18RF |
| Power unit | Electric |
| Operation Type | Rider |
| Loading capacity | 4000 lbs. |
| Load centre (Inch) | 19.68 |
| Axle centre to fork face (Inch) | 11.5 |
| Wheelbase (Inch) | 48.8 |
| Service weight with battery | 7940 lbs. |
| Wheels type | Solid wheel |
| Driving wheel size Φ×w (Inch) | 16 × 7-10.5（15.98 x 7.01 x 10.51） |
| Bearing wheel size Φ×w (Inch) | 13.5 × 5.2 |
| Wheels, number front/rear | 1×/2 |
| Track width (Inch) | 35.04 |
| Mast/fork carriage tilt, fwd/bwd (°) | 3/5 |
| Lowered mast height (Inch) | 91.77 |
| Free lift height (Inch) | 61.34 |
| Lift height (Inch) | 216.54 |
| Extended mast height (Inch) | 248.43 |
| Height of overhead guard (cabin) (Inch) | 90.08 |
| Height of seat/stand-on platform (Inch) | 9.06 |
| Overall length (Inch) | 117.78 |
| Length to fork face (Inch) | 72.52 |
| Overall width (mm) | 42.52/42.13 |
| Fork dimensions (Inch) | 1.58/4.72/45.28 |
| Width of forks (Inch) | 36.22 |
| Ground clearance under mast (Inch) | 2.95 |
| Min. Ground clearance (Inch) | 3.86 |
| Aisle width with pallet 1000 x 1200 across forks (Inch) | 117.24 |
| Aisle width with pallet 800 x 1200 along forks (Inch) | 125.12 |
| Min. Turning radius (Inch) | 58.5 |
| Travel speed, laden/unladen (km/h) | 12/13 |
| Lifting speed, with/without load (mm/s) | 250/400 |
| Lowering speed, with/without (mm/s) | 240/258 |
| Climbing ability, with/without (%) | 6/10 |
| Service brake | Hydraulic |
| Drive motor, 60-minute rating (kW) | 6 |
| Lift motor rating at S3 15% (kW) | 7.7 |
| Battery according to DIN 43531/35/36 A, B, C, no | No |
| Battery voltage/rated capacity (V/Ah) | 48/420 |
| Battery weight (± 5%) | 1570 lbs. |
| Power consumption VDI (mm) | 38 x 18.1 x 29.53 |
| Type of drive control | AC |
| Noise level at operator‘s ear (dB(A)) | ≤70 |
| Steering type | Hydraulic steering |
Package Contents
Stand-up Rider Forklift

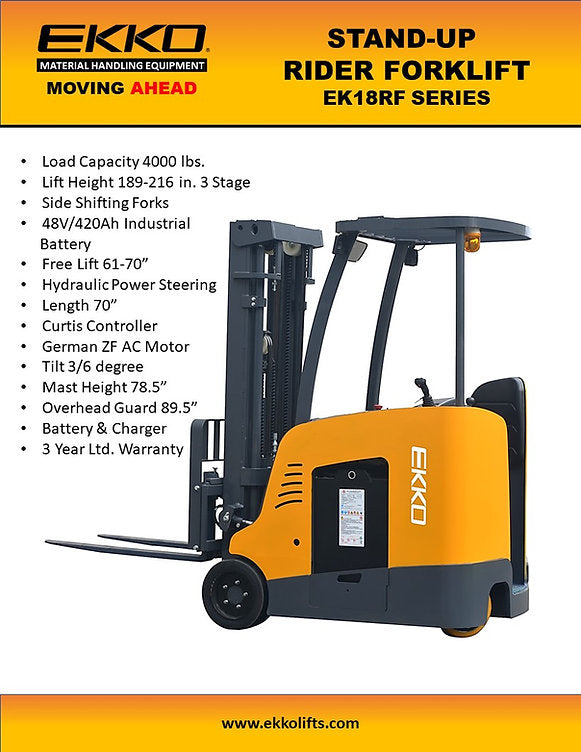

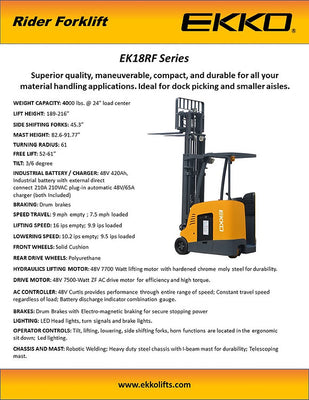

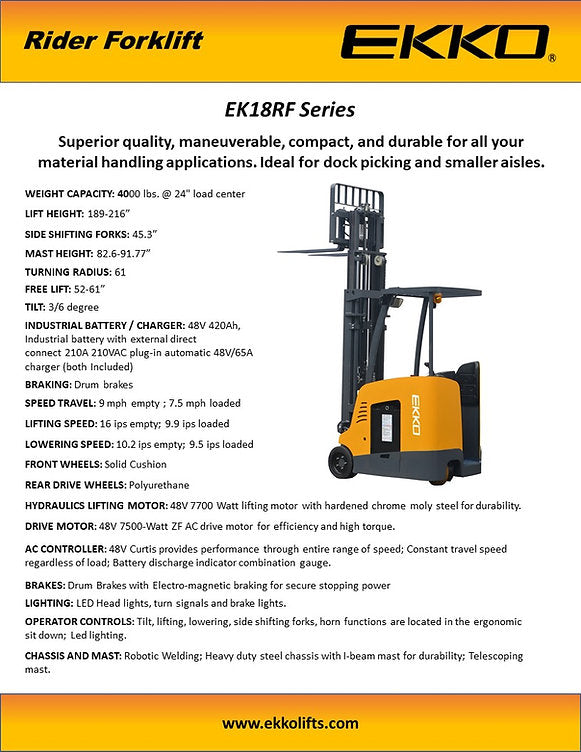

Brochure
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
Manuals & Documentation
