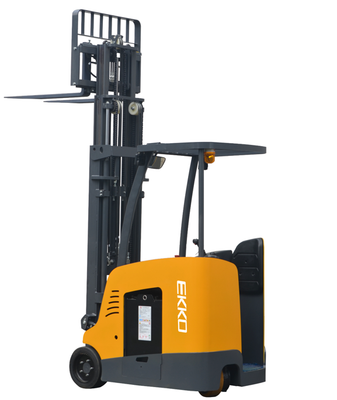

Ekko EK18RFL Stand-up Rider Forklift 189" Lift 4000 lbs. Capacity New

Manufacturer: Ekko

SKU: EK18RFL

Ekko EK18RFL Stand-up Rider Forklift 189" Lift 4000 lbs. Capacity New
Ekko EK18RFL Stand-up Rider Forklift 189" Lift 4000 lbs. Capacity New
Ekko EK18RFL Stand-up Rider Forklift 189" Lift 4000 lbs. Capacity New
Ekko EK18RFL Stand-up Rider Forklift 189" Lift 4000 lbs. Capacity New
Ekko EK18RFL Stand-up Rider Forklift 189" Lift 4000 lbs. Capacity New
Ekko EK18RFL Stand-up Rider Forklift 189" Lift 4000 lbs. Capacity New
Ekko EK18RFL Stand-up Rider Forklift 189" Lift 4000 lbs. Capacity New
Ekko EK18RFL Stand-up Rider Forklift 189" Lift 4000 lbs. Capacity New
Ekko EK18RFL Stand-up Rider Forklift 189" Lift 4000 lbs. Capacity New
Ekko EK18RFL Stand-up Rider Forklift 189" Lift 4000 lbs. Capacity New

QTY

(888) 999-1522

Add to compare
Add to wishlist
heart-like Created with Sketch Beta.
Remove from wishlist

$ 31,998.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

in stock checkmark

In Stock

truck icon

Please allow 3-5 business days for processing

Manufacturer Direct Shipping

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Review
Ekko EK18RFL Stand-up Rider Forklift 189

Ekko EK18RFL Stand-up Rider Forklift 189" Lift 4000 lbs. Capacity New

Product Overview

The Ekko EK18RF Stand-up Rider Forklift is designed for use for all of your material handling demands.



It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

vendor logo
divider
authorized dealer
checkmark

Brand new and manufacturer direct

checkmark

3 year limited manufacturer's warranty

checkmark

Ships from manufacturer in CA

checkmark

Fast processing with free shipping

checkmark

Authorized Ekko dealer

Features

  • Load Capacity 4000 lb
  • Raised Height 189" (15.75 ft.)
  • Side Shifting Forks
  • Adjustable Forks 9.4 - 35.6"
  • Fork Length 45.3“
  • Hydraulic Steering
  • Curtis Instrument Controller
  • German AC Drive Motor
  • Battery 48V/420Ah (included)
  • Charger 48V/65A 480V
  • Solid Cushion Load Tires
  • Polyeurathane Drive Tires
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger 48V/65A

Specifications

Ground clearance under mast (Inch) 2.95
Min. Ground clearance (Inch) 3.86
Aisle width with pallet 1000 x 1200 across forks (Inch) 117.24
Aisle width with pallet 800 x 1200 along forks (Inch) 125.12
Min. Turning radius (Inch) 58.5
Travel speed, laden/unladen (km/h) 12/13
Lifting speed, with/without load (mm/s) 250/400
Lowering speed, with/without (mm/s) 240/258
Climbing ability, with/without (%) 6/10
Service brake Hydraulic
Drive motor, 60-minute rating (kW) 6
Lift motor rating at S3 15% (kW) 7.7
Battery according to DIN 43531/35/36 A, B, C, no No
Battery voltage/rated capacity (V/Ah) 48/420
Battery weight (± 5%) 1570 lbs.
Power consumption VDI (mm) 38 x 18.1 x 29.53
Type of drive control AC
Noise level at operator‘s ear (dB(A)) ≤70
Steering type Hydraulic steering
Model EK18RFL
Power unit Electric
Operation Type Rider
Loading capacity 4000 lbs.
Load centre (Inch) 24
Axle centre to fork face (Inch) 11.5
Wheelbase (Inch) 48.8
Service weight with battery 7870 lbs.
Wheels type Solid wheel
Driving wheel size Φ×w (Inch) 16 × 7 - 10.5(15.98 x 7.01 x 10.51)
Bearing wheel size Φ×w (Inch) 13.5 × 5.2
Wheels, number front/rear 1×/2
Track width (Inch) 35.04
Mast/fork carriage tilt, fwd/bwd (°) 3/5
Lowered mast height (Inch) 82.6
Free lift height (Inch) 52.17
Lift height (Inch) 188.98
Extended mast height (Inch) 220.87
Height of overhead guard (cabin) (Inch) 90.08
Height of seat/stand-on platform (Inch) 9.06
Overall length (Inch) 117.78
Length to fork face (Inch) 72.52
Overall width (mm) 42.52/42.13
Fork dimensions (Inch) 1.58/4.72/45.28
Width of forks (Inch) 36.22

Package Contents

Stand-up Rider Forklift

Brochure

Warranty
