Lorex N4K3-1616WB 16-Channel Fusion NVR System with Sixteen 4K (8MP) IP Cameras Security Surveillance System New
Product Overview

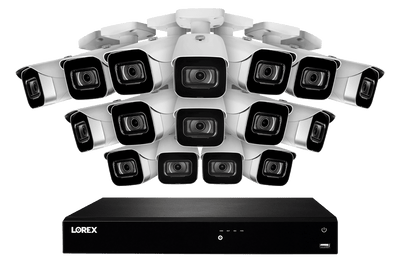

With industry-leading 4K (8 megapixel) resolution, this security camera system will bring a whole new level of detail to your security monitoring. It includes a 16-channel Network Video Recorder (NVR) and sixteen 4K bullet security cameras with Color Night Vision. So whether you are looking to protect your home, small business or commercial property, this powerful security camera system will help you secure the things that matter most. |
Brand new in box
1 year factory warranty
Fast shipping from CA or IL
Manufacturer direct
Authorized Lorex dealer
Features
- A 3TB security grade hard drive (expandable up to 2 × 8TB) comes preinstalled within this NVR. Designed to meet the high workload demands of continuous security monitoring, this heavy-duty hard drive can reliably record weeks (even months) of footage without taking a break. All recorded footage is then safely stored on the hard drive where only you can access it, so there are no surprise fees or monthly cloud subscriptions.
- Get faster access to you security system with hands-free voice control. Use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. You can also download the Lorex Home app on your Apple TV* to view live video in single or multiple feeds, or playback recorded footage. For more information about current smart home integrations, visit our Smart Home Guide.

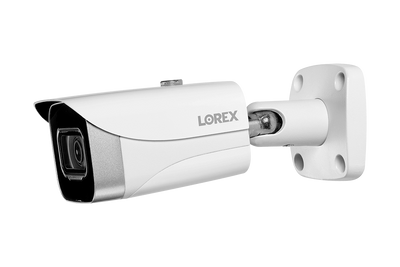

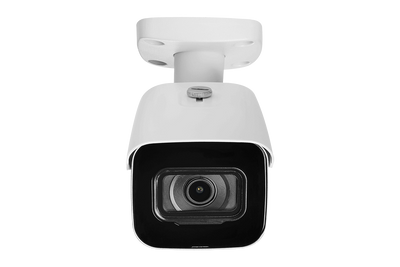

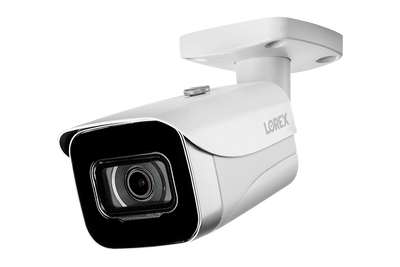

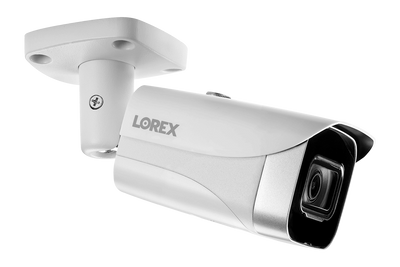

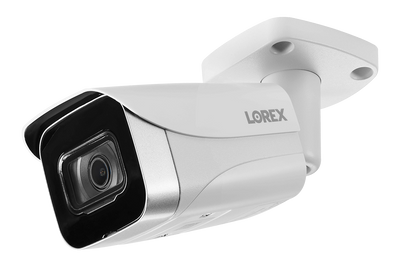

- Thanks to the camera's powerful 8MP image sensor, you'll experience the difference that 4K resolution makes when it comes to your security. 4K means there are more than 8 million pixels, and that results in sharper video and higher quality digital zooms to capture the details you need.
- This camera features our revolutionary Color Night Vision™ (CNV) technology, which will produce full-color video with the help of external lighting around the camera. CNV also adds a further level of detail (the color of clothes or cars, for example), and increases contrast for easier detection and recognition of people and objects.
- In regular nighttime conditions that are too dark for CNV to render full-color images, this camera will use it's infrared LEDs to record crisp black and white video footage up to 130ft (40m) away and up to 90ft (27m) in complete darkness.
- This security camera only needs a single Cat5e ethernet cable to connect it to the NVR. This cable provides video transmission, power to the camera, a stable network connection, and installation flexibility up to 300ft (as the camera does not need to be plugged into a nearby power source).
- This security camera is equipped with High-Efficiency Video Encoding (HEVC) or H.265 video compression. This encoding technology efficiently compresses file sizes. In fact, it can compress file sizes up to 50% more than files using the previous encoding technology (H.264), without any noticeable degradation in quality. HEVC encoding will also save you plenty of bandwidth while watching live or recorded video remotely.
- Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.
- Find what you are looking for quickly with Lorex's Area Search. Select an area of interest and automatically playback any video footage showing scene changes in that area. Ideal for doorways, drive ways, etc.
- This NVR comes with two separate hard drive bays. Each of which can be upgraded with a hard drive up to 8TB, giving you the potential for a total of 16TB's of storage space. You can also use the second hard drive to record videos in parallel with the primary hard drive. This way, the footage is automatically backed up.
Specifications
| Voice Control | Amazon Alexa™, Google Assistant™ Streaming Options Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™, Lenovo Smart Display™ |
| Mobile Viewing | Android, iOS |
| Compatible APP | Lorex Home™ |
| PC/Mac Remote Viewing | Yes/Lorex Cloud™ |
| Email Notification | Text and Snapshot |
| Network Interface | 1000 Base-TX, RJ45 |
| Network Bit Rate | 200 Mbps total |
| DDNS | Yes (Optional) |
| USB interface | USB 2.0 × 2 |
| FW Upgrade | USB/Network |
| Watchdog Function | Yes |
| Power Consumption | Approx. 13.2W (no HDD included) |
| Supply Voltage | 100VAC-240VAC, 50/60hz, DC48V/2A |
| Total PoE Power Output | PoE: Max 25.5W for single port, 130W total9 |
| Unit Dimensions (W × D × H) | 14.7 x 12.9 x 2.1” / 375 x 327 x 53 mm |
| Unit Weight | 5.8 lbs / 2.6 kg (excl. HDD) |
| Operating Temperature | 14° ~ 131°F / -10° ~ 55°C |
| Humidity | 10 ~ 90% RH |
| Video Transmission Technology | IP |
| Channels | 16 Channels |

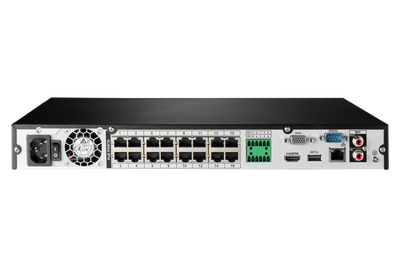

| Video Input | 16 x PoE |
| Video Outputs | 1 × VGA/1 × HDMI |
| Audio Input | ch: RCA type |
| Audio Output | ch: RCA type |
| Alarm IN | 4 channels |
| Alarm OUT | 2 channels |
| Display Output Resolution | Up to 4K UHD, Auto Detect |
| Live Display | 1,4,8, 9,16 |
| Live Display Speed (Max) | up to 4ch 4K@15fps |
| OSD | On/Off |
| System Navigation | USB Mouse |
| Recording Resolution | 4K (8MP)/5MP/3MP/ 1080p/720p |
| Recording Frame Rate | 4K@15fps; 5MP@30fps; 1080p@30fps;720p@30fps |
| Recording Schedule | Schedule recordings through Continuous, Motion, Smart Motion (Person and Vehicle), Face Detection, Alarm, Day, Hour per channel |
| Back-up File Format | DAV/ASF/AVI/MP4 |
| Video Compression | H.265/H.264 |
| Simultaneous Playback | Up to 4ch@4K15fps |
| Playback Speed | Variable Max 8× |
| Search | By Time/Date, All Motion Events or Smart Motion (Person/Vehicle), Area Search |
| Hard Drive Bays | 2 Bays |
| Hard Drive Capacity | Up to 2 x 8TB (SATA) |
| Backup Media | USB Flash Drive & USB HDD |
| Smart Motion Detection | Yes: Person & Vehicle Motion Detection |
| Face Detection Support | Yes |
| Active Deterrence Support | Yes |
| Panic Button | Yes |
| Smart Search | Yes |
| Wired/Wireless Fusion™ supported | Yes |
| Sensor Fusion™ support | Yes |
Package Contents
4K Capable HD NVR

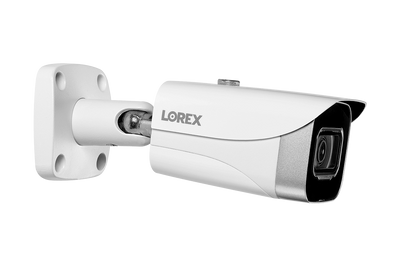

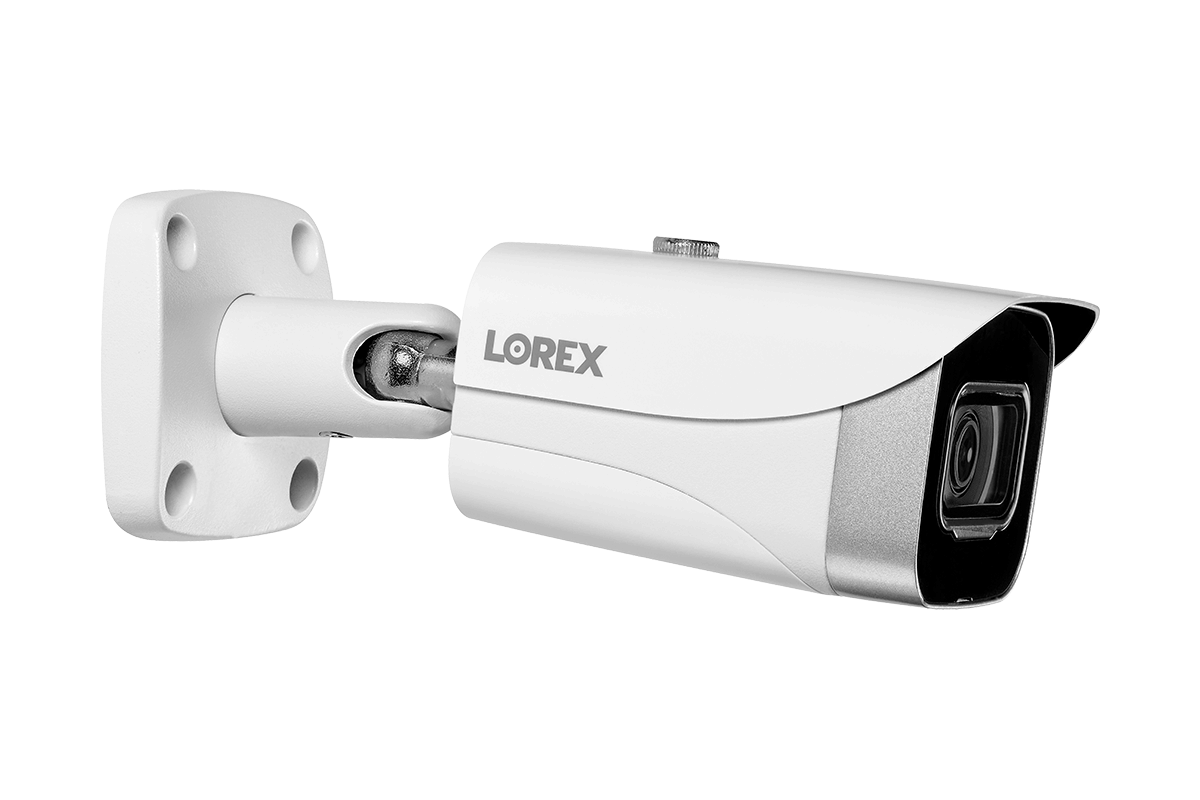

4K Ultra HD Bullet Cameras
100ft Cat5e Cable
Mounting template
Power adapter
Ethernet cable
HDMI cable
Mouse
Security decal
Quick Start Guides
Manual
Warranty
This product comes with a 1 year factory warranty.
