Lorex N4K3-168WB 16-Channel Fusion NVR System with Eight 4K (8MP) IP Cameras Security Surveillance System New
Manufacturer: Lorex by Flir
SKU: N4K3-168WB
Share
QTY
(888) 999-1522
$ 989.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
Ships In 1-2 Business Days
Manufacturer Direct
Extended Warranty
Factory Warranty
- This product comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This product comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
Exceptional Customer Service
Manufacturer Direct
Lorex N4K3-168WB 16-Channel Fusion NVR System with Eight 4K (8MP) IP Cameras Security Surveillance System New
Share
Product Overview

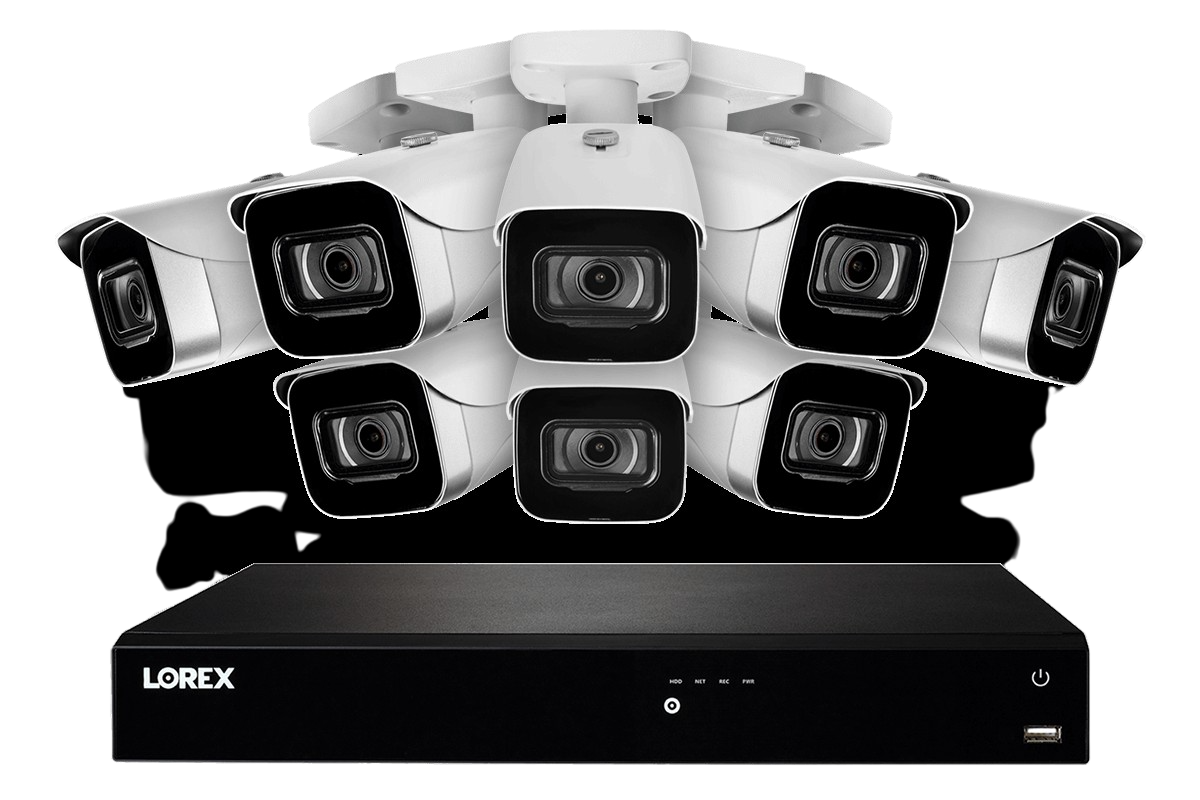

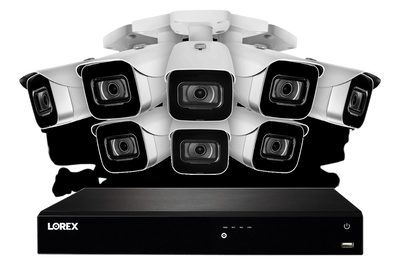

With industry-leading 4K (8 megapixel) resolution, this security camera system will bring a whole new level of detail to your security monitoring. It includes a 16-channel Network Video Recorder (NVR) and eight 4K bullet security cameras with Color Night Vision. The NVR is also part of the Lorex Fusion™ collection, which means that you can add up to two Wi-Fi devices to open channels, as well as accessory alarm sensors. So whether you are looking to protect your home, small business or commercial property, this powerful security camera system will help you secure the things that matter most.
Brand new in box
1 year factory warranty
Fast shipping from CA or IL
Manufacturer direct
Authorized Lorex dealer
Features
- Record and view video in up to 4K (8MP) Ultra HD Resolution on all cameras
- View live footage in up to 15fps and digitally zoom in on distant objects for better clarity
- Expand your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, Doorbells, Floodlights, and more
- Stream and record continuous video from your Wi-Fi cameras on your recorder with Lorex Fusion™
- Increase the limited Wi-Fi SD-Card storage capacity of pair cameras by taking advantage of recording directly to the NVRs built-in HDD
- Use Smart Search to filter motion events for reviewing footage quickly and easily
- 2 bay hard drive with up to 2 × 8TB of storage space with no hidden monthly fees
- Local built-in security-grade hard drive
- Heavy-duty hard drive designed for advanced processing and the workload of 24/7 monitoring
- Quickly access your live footage with simple voice commands (compatible with Amazon Alexa and Google Assistant)4
- View live or recorded video directly on your TV with smart home compatibility (Compatible with: Apple TV and Chromecast)
Specifications
| Voice Control | Amazon Alexa™, Google Assistant™ Streaming Options Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™, Lenovo Smart Display™ |
| Mobile Viewing | Android, iOS |
| Compatible APP | Lorex Home™ |
| PC/Mac Remote Viewing | Yes/Lorex Cloud™ |
| Email Notification | Text and Snapshot |
| Network Interface | 1000 Base-TX, RJ45 |
| Network Bit Rate | 200 Mbps total |
| DDNS | Yes (Optional) |
| USB interface | USB 2.0 × 2 |
| FW Upgrade | USB/Network |
| Watchdog Function | Yes |
| Power Consumption | Approx. 13.2W (no HDD included) |
| Supply Voltage | 100VAC-240VAC, 50/60hz, DC48V/2A |
| Total PoE Power Output | PoE: Max 25.5W for single port, 130W total9 |
| Unit Dimensions (W × D × H) | 14.7 x 12.9 x 2.1” / 375 x 327 x 53 mm |
| Unit Weight | 5.8 lbs / 2.6 kg (excl. HDD) |
| Operating Temperature | 14° ~ 131°F / -10° ~ 55°C |
| Humidity | 10 ~ 90% RH |
| Video Transmission Technology | IP |
| Channels | 16 Channels |

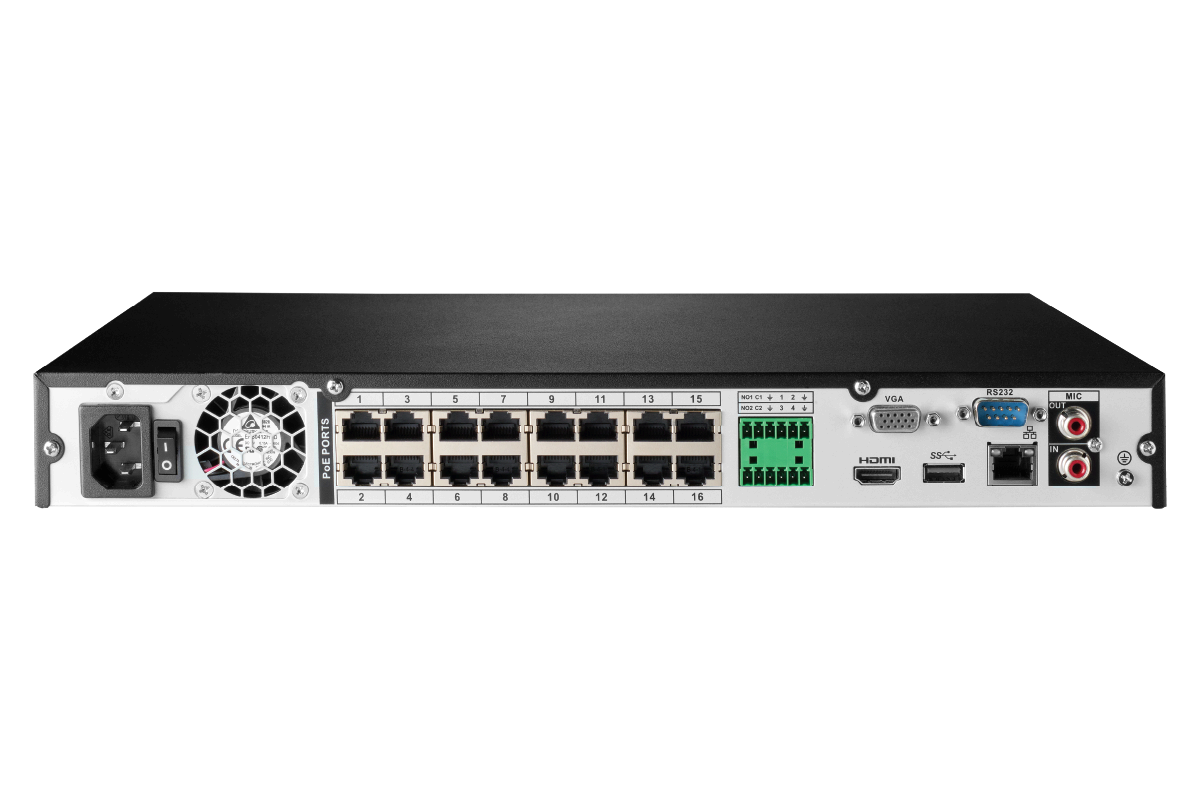

| Video Input | 16 x PoE |
| Video Outputs | 1 × VGA/1 × HDMI |
| Audio Input | ch: RCA type |
| Audio Output | ch: RCA type |
| Alarm IN | 4 channels |
| Alarm OUT | 2 channels |
| Display Output Resolution | Up to 4K UHD, Auto Detect |
| Live Display | 1,4,8, 9,16 |
| Live Display Speed (Max) | up to 4ch 4K@15fps |
| OSD | On/Off |
| System Navigation | USB Mouse |
| Recording Resolution | 4K (8MP)/5MP/3MP/ 1080p/720p |
| Recording Frame Rate | 4K@15fps; 5MP@30fps; 1080p@30fps;720p@30fps |
| Recording Schedule | Schedule recordings through Continuous, Motion, Smart Motion (Person and Vehicle), Face Detection, Alarm, Day, Hour per channel |
| Back-up File Format | DAV/ASF/AVI/MP4 |
| Video Compression | H.265/H.264 |
| Simultaneous Playback | Up to 4ch@4K15fps |
| Playback Speed Variable Max | 8× |
| Search | By Time/Date, All Motion Events or Smart Motion (Person/Vehicle5), Area Search |
| Hard Drive Bays | 2 Bays |
| Hard Drive Capacity | Up to 2 x 8TB (SATA) |
| Backup Media | USB Flash Drive & USB HDD |
| Smart Motion Detection | Yes: Person & Vehicle Motion Detection |
| Face Detection Support | Yes |
| Active Deterrence Support | Yes |
| Panic Button | Yes |
| Smart Search | Yes |
| Wired/Wireless Fusion™ supported | Yes |
| Sensor Fusion™ support | Yes |
Package Contents
4K Capable HD NVR
4K Ultra HD Bullet Cameras
100ft Cat5e Cable
Mounting template
Power adapter
Ethernet cable
HDMI cable
Mouse
Security decal
Quick Start Guides
Manual
Warranty
This product comes with a 1 year factory warranty.
