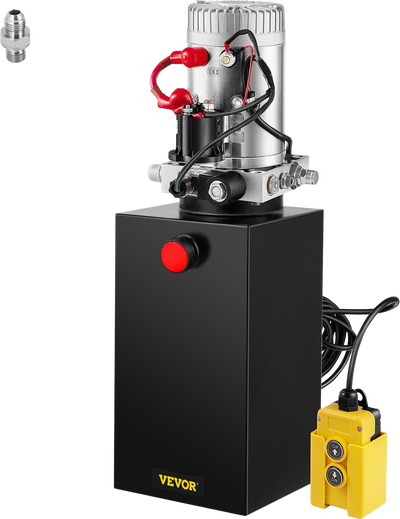

Vevor Hydraulic Pump 10 Quart Power Unit Single Acting 12V with SAE#6 Connector New
Product Overview
This hydraulic pump is a single-acting power unit for power up and gravity down. It has a 10-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc. The hydraulic pump has been fully assembled and comes with a hand-held remote control, the unit is easy to wire and operate.
Brand new in box
1 year factory warranty
Manufacturer direct shipping from CA & TX
Authorized Vevor dealer
Features
- Product Details: This hydraulic pump is designed with a 12V DC motor and a 10-quart reservoir. The max relief pressure on A port is 3200 psi, and on B port is 1500 psi. It is a single-acting pump for power up and gravity down.
- Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. One additional SAE#6 connector and one 15 ft. remote control are included in the package.
- Reliable Quality: The hydraulic pump is made of sturdy metal, making the oil tank not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when over pressure, for safer and reliable operation.
- Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil. It can provide strong power for hydraulic systems like dump trailers, dump beds, and is able to complete lifting in a short time.
- Wide Application: This power unit is widely used in stackers and small to medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
Specifications
| Model | 10QSAMHP |
| Tank Material | Metal |
| Tank Capacity | 10 Quart / 2.5 Gal. |
| Flow | 2 GPM |
| Max Relief Valve Setting Port A | 3200 psi |
| Max Relief Valve Setting Port B | 1500 psi |
| Voltage | DC12V |
| Power | 1.6kw (rated), 3kW (max) |
| Rated Speed | 2850 RPM |
| Duty | 3 min. |
| Rotation | Clockwise |
| Connector | SAE#6 |
| Mount Position | Horizontal/Vertical |
| Control | Solenoid and Handheld Pendant |
| Pendant Length | 15 ft. |
| Product Dimensions | 7.8" x 7.2" x 22.6" |
Package Contents
Vevor 10 Quart Hydraulic Power Unit
SAE#6 Connector
User Manual
Warranty
This item comes with a 1 year factory warranty.
