Champion 100330 37 Ton Horizontal/Vertical Towable Log Splitter New
- Model: Champion
- SKU: 100330
Shipping Options
Shipping option has been addedPlease click add to cart
- Free Shipping Options Available
- Price Match On Most Items
- Manufacturer Direct
- Exceptional Customer Service
- Free Replacement Shipping
Authorized Dealer
Brand New & Manufacturer Direct

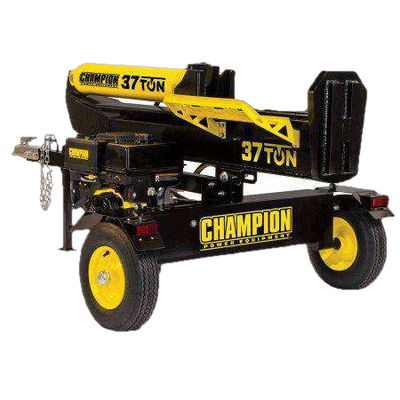

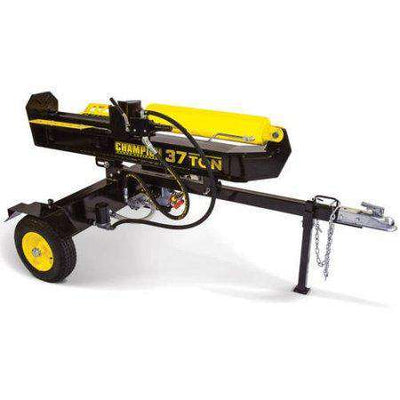

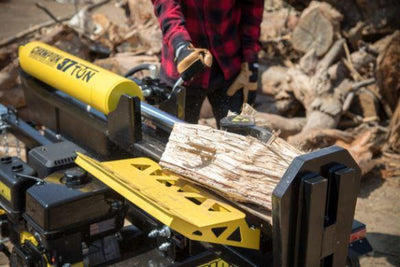

Champion’s towable 37-ton log splitter with its massive 338cc engine easily powers through tough logs. The fast 16-second cycle time and auto-return valve reduce your work time, while the handy log catchers and easy adjustment from horizontal to vertical save your back.
What’s included
- Oil Funnel
- Log Catchers
Powerful
37 tons of splitting capacity with a large 338cc Champion single-cylinder OHV engine
Versatile

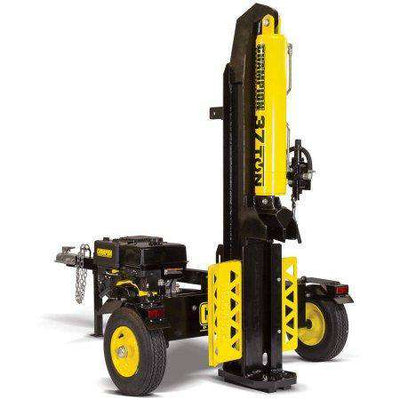

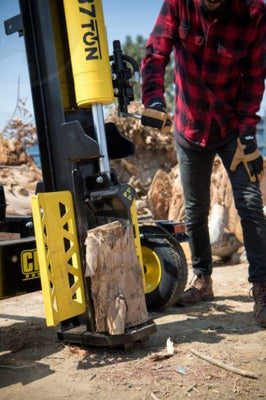

Converts from horizontal to vertical in seconds, allowing you to handle large, heavy logs with ease
Efficient
16-second cycle time, expanded operator area and dependable auto-return valve capable of over 200 cycles per hour
Portable

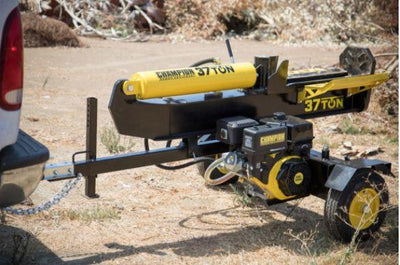

Towable up to 45 mph and fits most ATV/UTV towing applications with an extended tongue, 2-inch ball hitch coupler and 16-inch tires
Reliable
Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
SPECIFICATIONS
| Ram Force | 37T |
|---|---|
| Operating Position | Horizontal, Vertical |
| Cycle Time | 16 s. |
| Max Log Length | 24.0 in. |
| Max Log Weight | 100.0 lb. |
| Log Cradles | Yes |
| Log Catchers | Yes |
| Auto Return | Yes |
| Wedge Type | Single |
| Wedge Material | Hardened Steel |
| Cylinder Diameter | 5.0 in. |
| Cylinder Rod Size | 1.8 in. |
| Hydraulic Pump | 2-Stage |
| Hydraulic Flow Rate | 13.0 gal/min |
| Hydraulic Pressure | 3600 PSI |
| Hydraulic Oil System Capacity | 6.8 gal. |
| Hydraulic Oil Tank Capacity | 5.0 gal. |
| Hydraulic Oil Type | AW-32, Universal Hydraulic Oil, Automatic Transmission Fluid |
| Hydraulic Filter | Internal/External |
| Hydraulic Oil Included | No |
| Power Type | Gasoline |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size | 338cc |
| Engine Type | 4-stroke |
| Gasoline Capacity | 1.6 gal. |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 1.2 qt. |
| Engine Oil Included | No |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Pneumatic |
| Wheel Diameter | 16.0 in. |
| Towable | Yes |
| Hitch Type | 2 in. Ball Hitch |
| Fenders | No |
| Max Tow Speed | 45 mph |
| EPA Certified | Yes |
| CARB Compliant | Yes |
DIMENSIONS
| Length | 89.5 in. |
|---|---|
| Width | 51.3 in. |
| Height | 40.6 in. |
| Weight | 566.6 lb. |
Terrific assistance and delivery help from FP to get this beast up the mountain.
It is a beast and takes two to assemble. We were missing some acres and blots and one high pressure hose would not hold a seal well. We wrote the company for replacement with no response. Able to get some similar parts from rural king and tractor supply to make do. Think the company should be reaponsive as their materials at assembly all day to contact them.
We’ve used the splitter for three months and probably 18 cords of wood including some massive pieces. The splitter is very well designed, from the catch trays to placement of operations. It struggled briefly with a piece of red oak and popped it through-sending the piece about 15 feet away. This splitter does exactly what is supposed to do and does it well. Again, have hydraulic leaking some bit other than the missing/defective pieces at assembly with no company response this is an excellent design and operational splitter that I totally recommend.
Champion 100330 37 Ton Horizontal/Vertical Towable Log Splitter New
First the dealing with factory pure was really great experience. Shipping not easy where I’m located. Factory Pure called me worked everything out. Booked a specific delivery truck to make it to my location. With the logistics the splitter still showed up the same week.
All in all, awesome company & log splitter.
Easy starting
Major large dense hardwoods not a problem
Assembly is a breeze
PRICE IS RIGHT!
AAA+
Built heavy looks really good
