Champion 201314 37-Ton Log Splitter Horizontal/Vertical Full Beam Gas with Auto Return New
Product Overview
The Champion Power Equipment 201314 37-Ton Horizontal/Vertical Full Beam Log Splitter not only offers relief from the back-breaking work of splitting logs, but also reduces your work time so you can move on to other tasks. Depend on the reliable recoil start to start up the powerful Champion 338cc single-cylinder OHV engine, which features a cast-iron sleeve, a 1.45-gallon fuel tank, 1.2-quart oil capacity (recommended 10W-30), and a low-oil shutoff for safety.
Â
*Not for Sale in California*
Brand new and manufacturer direct
2 year manufacturer's limited warranty
Ships from CA or NY
Fast processing with free shipping options
Authorized Champion dealer

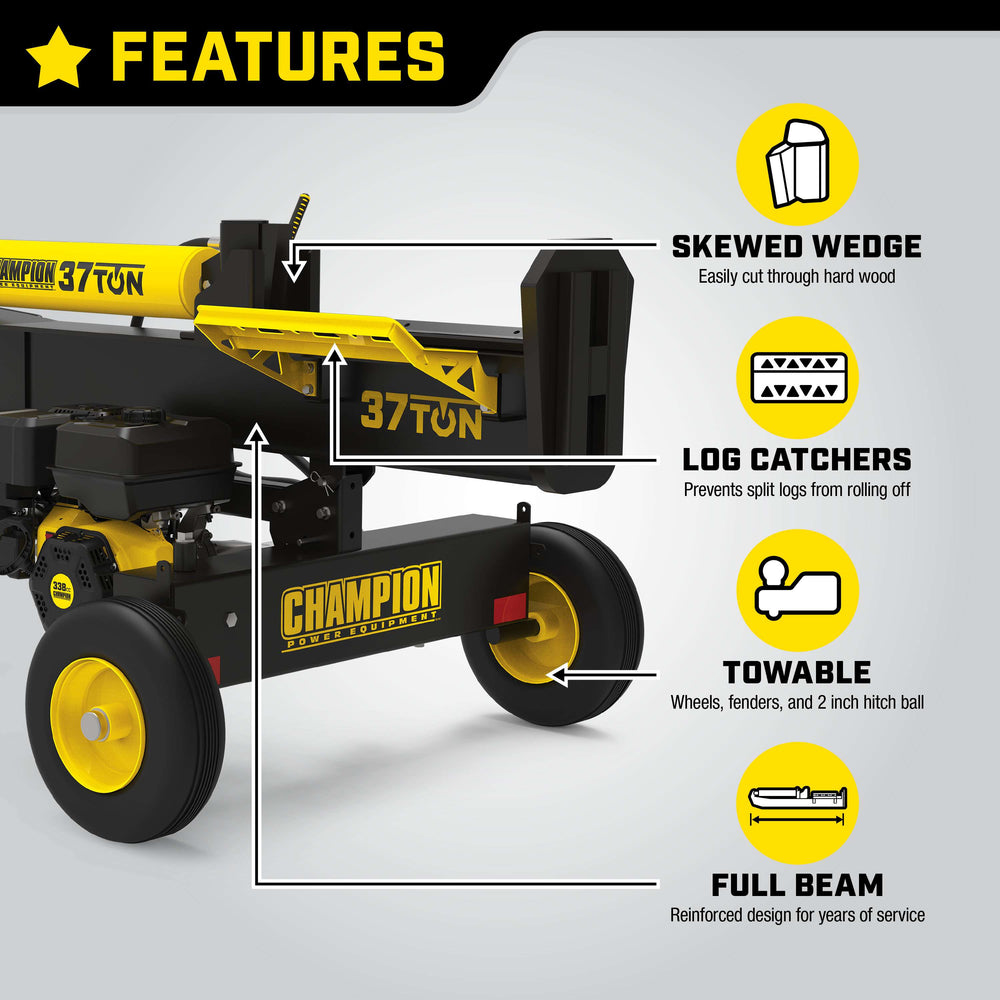

Features
- Powerful: 37 tons of splitting capacity with a large 338cc Champion single-cylinder OHV engine.

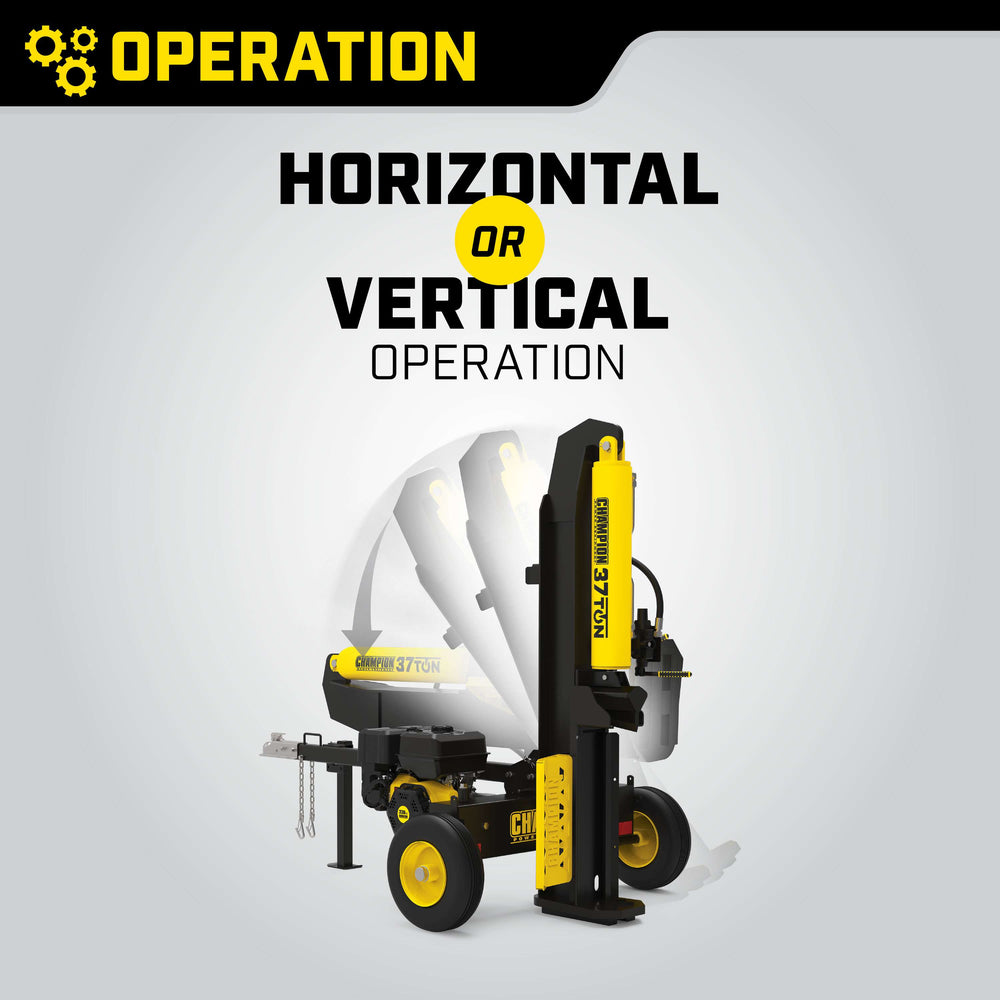

- Versatile: Converts from horizontal to vertical in seconds, allowing you to handle large, heavy logs with ease.
- Efficient: 16 -second cycle time, expanded operator area and dependable auto-return valve capable of over 220 cycles per hour.
- Portable: Towable up to 45 mph and fits most ATV/UTV towing applications with an extended tongue, 2-inch ball hitch coupler and 16-inch tires.
- Reliable: Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts.
Specifications
| Ram Force (T) | 37 |
| Operating Position | Horizontal/Vertical |
| Cycle Time (s.) | 16 |
| Max Log Length (in.) | 24.00 |
| Max Log Weight (lb.) | 100.00 |
| Log Cradles | Yes |
| Log Catchers | Yes |
| Wedge Type | Single |
| Wedge Material | Hardened Steel |
| Auto Return | Yes |
| Cylinder Diameter (in.) | 5.00 |
| Cylinder Rod Diameter (in.) | 1.80 |
| Hydraulic Pump | 2-Stage |
| Hydraulic Flow Rate (gal/min) | 17.00 |
| Hydraulic Oil System Capacity (gal.) | 6.00 |
| Hydraulic Oil Tank Capacity (gal.) | 5.00 |
| Hydraulic Oil Type | AW-32, Universal Hydraulic Oil, Automatic Transmission Fluid |
| Hydraulic Filter | Internal/External |
| Hydraulic Oil Included | No |
| Power Type | Gasoline |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size (cc) | 338 |
| Engine Type | 4-stroke |
| Fuel Type | Gasoline |
| Fuel Gauge | Analog |
| Gasoline Capacity (gal.) | 1.45 |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity (qt.) | 1.20 |
| Engine Oil Included | Yes |
| Low Oil Shut-off | Yes |
| Wheels | Yes |
| Wheel Type | Pneumatic |
| Wheel Diameter (in.) | 16.00 |
| Towable | Yes |
| Hitch Type | 2 in. Ball Hitch |
| Fenders | No |
| Max Tow Speed (mph) | 45 |
| EPA Certified | Yes |
| Prop 65 Warning Required | Yes |
| CARB Compliant | No |

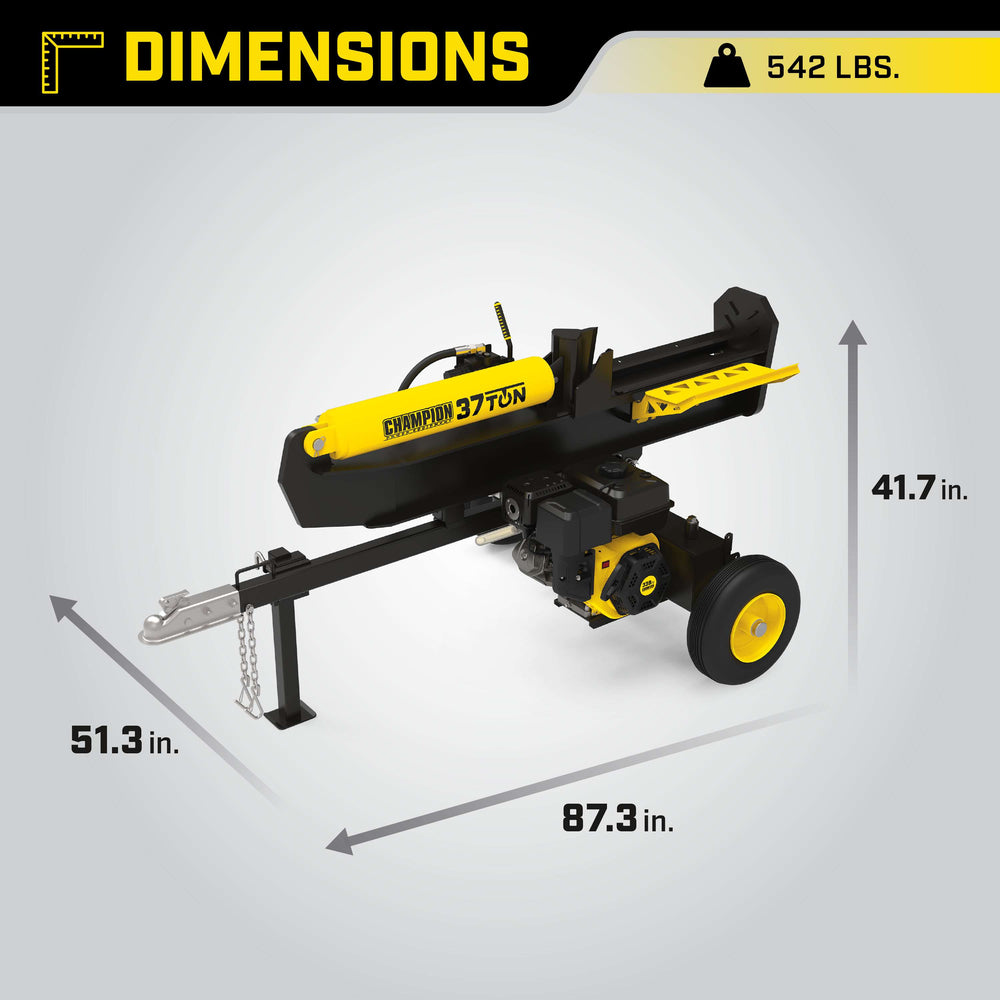

| Item Dimensions | 87.30 x 51.30 x 41.70 in. |
| Item Weight | 542 lbs. |
| Package Dimensions | 71.70 x 28 x 23.60 in. |
| Package Weight | 633 lbs. |
Package Contents
Champion 201314 37T Log Splitter
Engine Oil
Oil Funnel
Spark Plug Wrench
User Manual
Warranty
This item comes with a 2 year limited manufacturer warranty.
