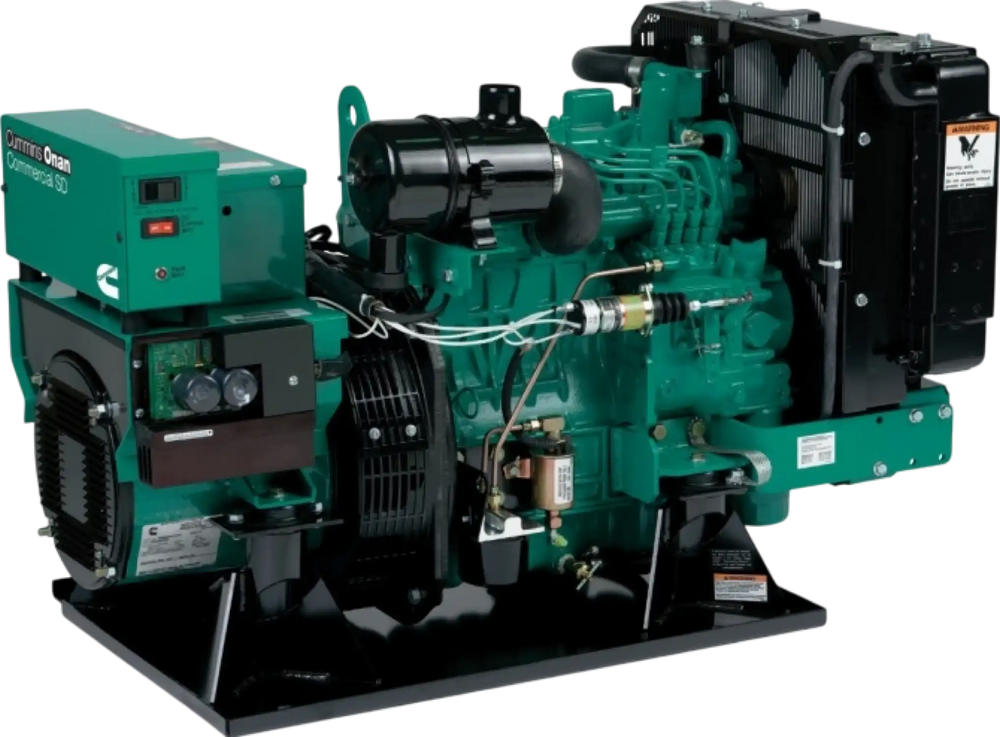

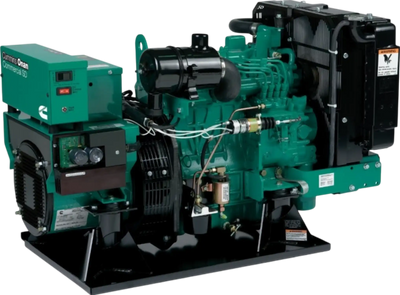

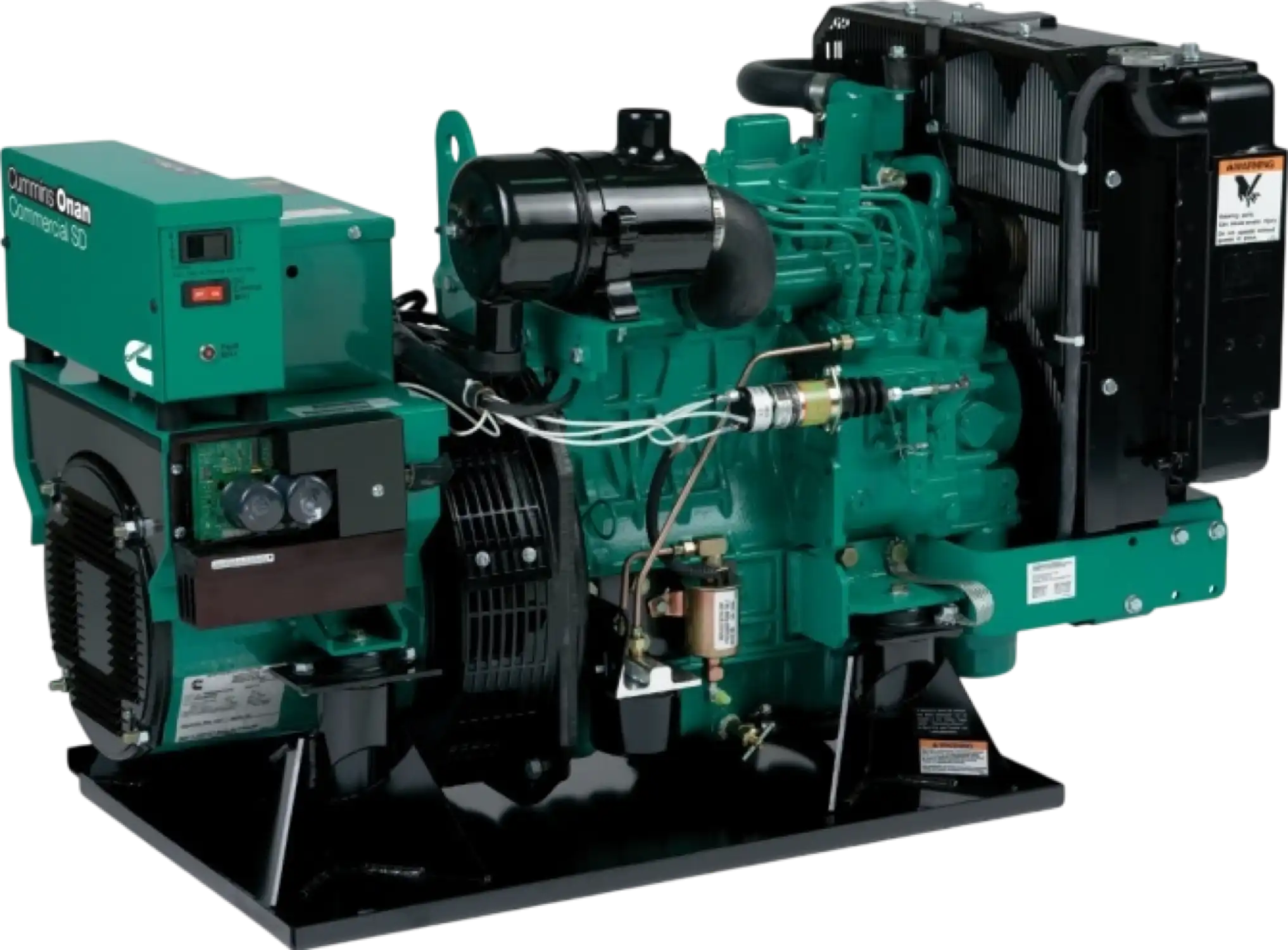

Cummins Onan SD 7500 7.5kW Generator 7.5HDKAL-3 Commercial Mobile Diesel 3-Phase 120V/240V New
Manufacturer: Cummins
SKU: A060C031
QTY
(888) 999-1522
$ 12,368.72
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Use the following code at checkout for $50 off: CRV COPY
Ships in (est) 8 weeks
Exceptional Customer Service
Authorized Dealer
Cummins Onan SD 7500 7.5kW Generator 7.5HDKAL-3 Commercial Mobile Diesel 3-Phase 120V/240V New
Product Overview
The Cummins Onan Standard Diesel Series of generators are designed for tough commercial applications that do not require a housed product. Designed as a fully-integrated power system that includes the hydraulic pump, motor generator, filtration system, oil cooler and reservoir in one complete package. All standard diesel generators operate at low speed for long life, and can be used in both open and compartment-type applications. Three-phase models are 12-lead reconnectable for a broad range of voltage applications.
2 year factory warranty
Brand new in box
Diesel powered
Authorized Cummins dealer
Features
- Smooth operation - focalized mounting system with 4-point vibration isolation
- Glow plugs for reliable all-weather starting
- Installation flexibility with remountable 90° exhaust elbow, remountable DC control and multiple oil fill/check points
- Cross-flow radiator for increased cooling efficiency
- Water resistant controls
- Configured 12-lead reconnectable for a broad range of voltage applications
- 4-cycle, liquid-cooled diesel engine
- Low harmonic distortion for SCR loads
- Electric fuel pump
- Base pan for drip control
Specifications
| Item Number | A060C031 |
| Model Number | 7.5HDKAL-3 |
| Model Name | SD 7.5 |
| Fuel Type | Diesel |
| Voltage | 120V/240V, Three-Phase |
| Frequency | 60 Hz |
| RPM | 1800 |
| Fan | Pusher |
| Rated Watts | 7500 Watts |
| Fuel Consumption @ 50% Load | 0.56 gallons/hr |
| Fuel Consumption @ 100% Load | 0.9 gallons/hr |
| Rated Amps | 22.6 Amps |
| Decibel Rating @ 10 ft. (3m) | 76 dB(A) |
| Circuit Breaker Size | 3-pole, kit |
| Engine Brand | Kubota |
| Starting System | Remote, 12-Volt, 1.2kW starter |
| Displacement | 1124 CC |
| Dimensions (L x W x H) | 37.3" x 21" x 23.9" |
| Weight | 490 lbs. |
| Ship Weight | 530 lbs. |
Package Contents
Cummins Onan SD 7.5kW Diesel Generator
User Manual
Warranty
This item comes with a 2 year factory warranty.
